Image Dynamics CXS64 v.2

500W Peak (250W RMS) 6.5" Chameleon Series Component Car Audio Speaker System (Includes CX64 & XS28)

Product videos
highlight-star-icon

• Peak Power: 250W
• RMS Power: 125W
• 1-1/8" Soft Silk Dome Tweeter
• Mounting Depth: 3"
• Woven Fiberglass Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Learn more about the cxs64v2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CP1-S main

PAC CP1-S

CAN-Bus Interface Module for select 2015-2024 vehicles from Ford, Tesla

-30.20%

$104.00

List price $149.00

Limited time!
PSS-TSLA-M3P main

Alpine PSS-TSLA-M3P

13 Speaker Audio System Upgrade Kit for select 2017-2025 Model 3 with Premium Audio System Includes 6.5" Component Speakers, 4" Midrange Speakers, 12-Channel DSP, and 10" Subwoofer (Hi-Res Audio Certified)

-25.00%

$2,429.96

List price $3240.00

Limited time!
HRN-TSLA-M3P2 main

Alpine HRN-TSLA-M3P2

Installation Harness for PSS-TSLA-M3P Audio Upgrade in select 2017-2023 Model 3

-22.86%

$270.00

List price $350.00

Limited time!
HRN-TSLA-M3P1 main

Alpine HRN-TSLA-M3P1

Installation Harness for PSS-TSLA-M3P Audio Upgrade in select 2017-2023 Model 3

-22.86%

$270.00

List price $350.00

82-8601 main

Metra 82-8601 Speaker Adapter Plates

Install aftermarket speakers in select 2003-2024 vehicles from BMW, Porsche, Tesla

-26.93%

$18.99

List price $25.99

72-8604 main

Metra 72-8604

Install New Speakers in select 2012-2024 vehicles from Tesla

-16.68%

$14.99

List price $17.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

47
Limited time!
R2-S65C main

Alpine R2-S65C

600W Peak (200W RMS) 6.5" Next Generation R-Series 2-way 4-ohm Hi-Res Component Speaker System

125
-33.34%

$319.95

List price $480.00

Product Highlights


• Peak Power: 250W
• RMS Power: 125W
• 1-1/8" Soft Silk Dome Tweeter
• Mounting Depth: 3"
• Woven Fiberglass Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Description


Image Dynamics brand icon

Authorized dealer

General Features:

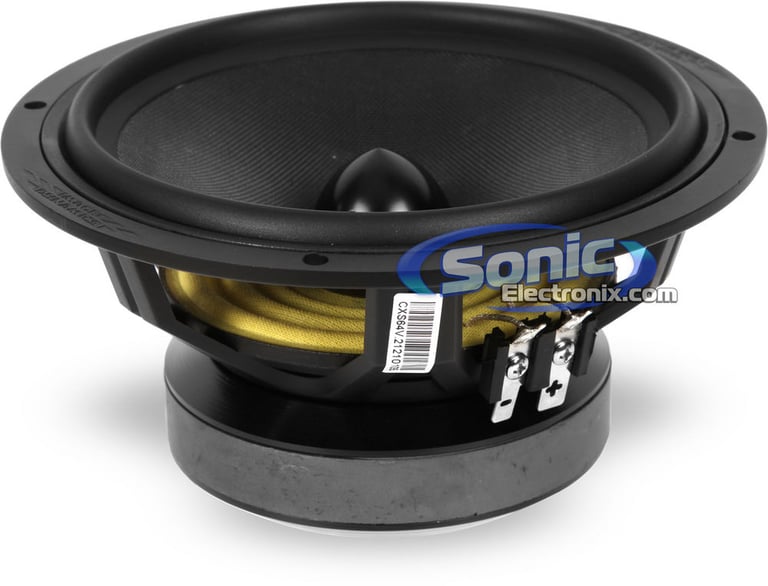

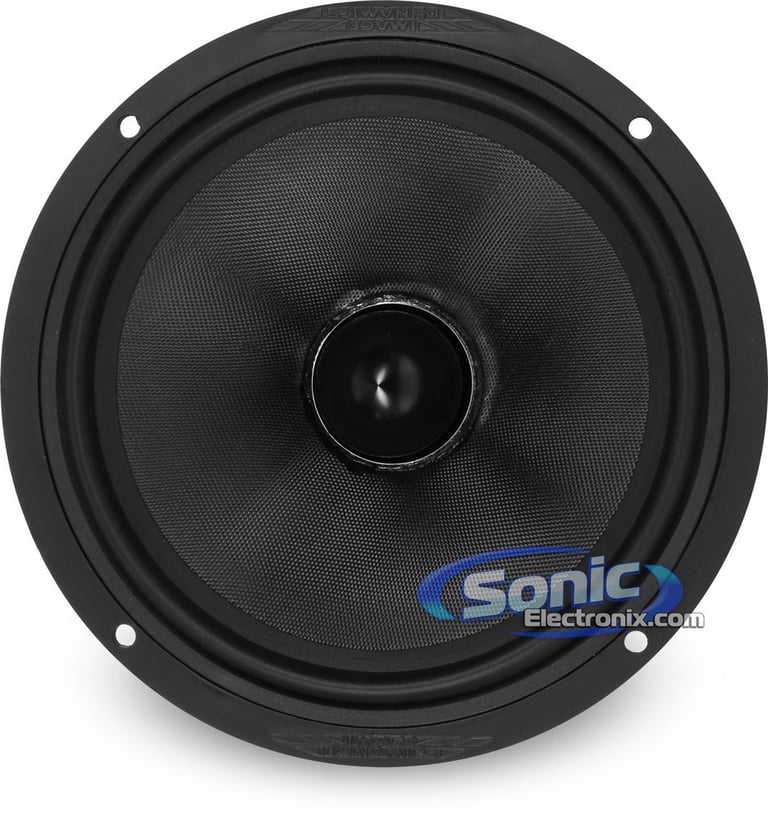

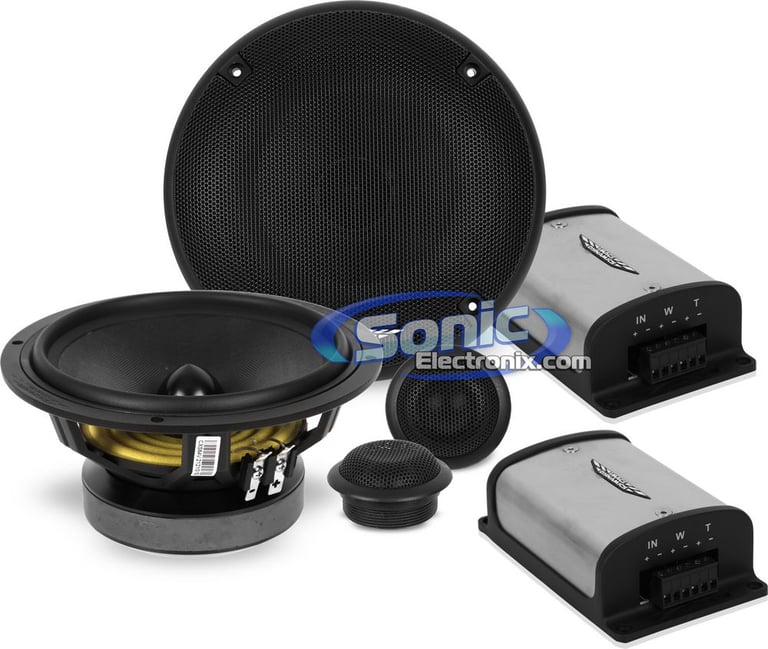

  • 6-1/2" CXS Chameleon Series 2-Way Car Component System
  • Power Handling:
    • Peak: 500 watts per set / 250 watts each side
    • RMS: 250 watts per set / 125 watts each side
  • Recommended RMS Power Range: 25-125 watts per channel

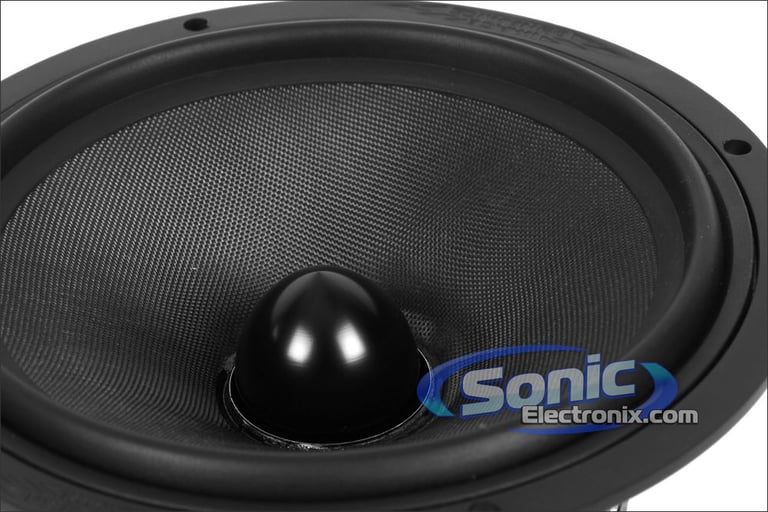

  • Woven Fiberglass cone material
  • Parabolic Rubber speaker surround reduces moving mass

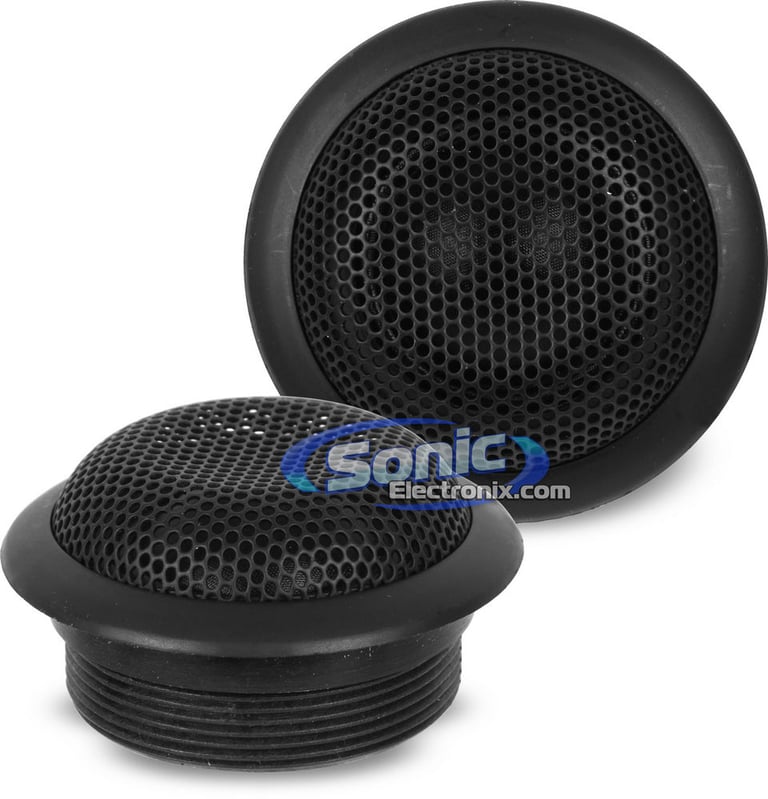

  • 28mm soft Silk Dome tweeters

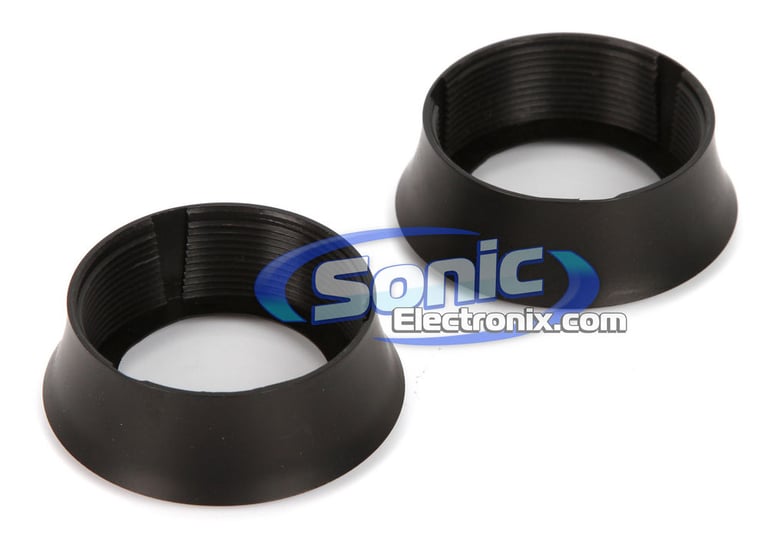

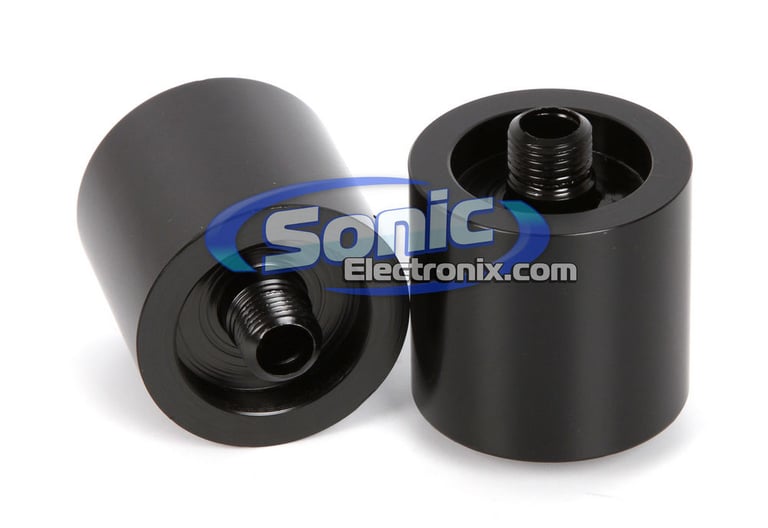

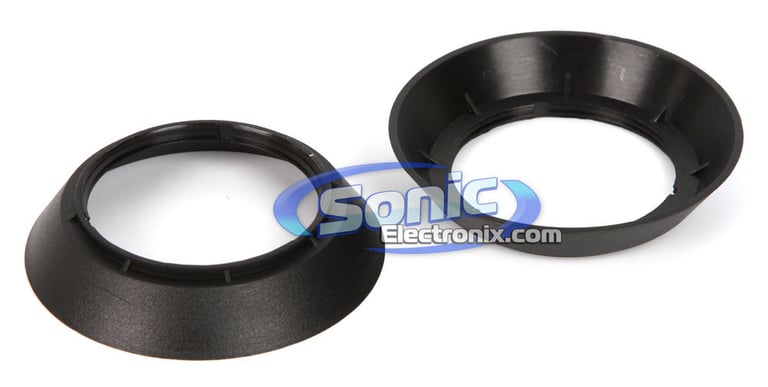

  • Multiple mounting options for tweeter
  • Edge wound Aluminum ribbon high-temperature voice coil
  • Black anodized Aluminum former for high power handling capabilities

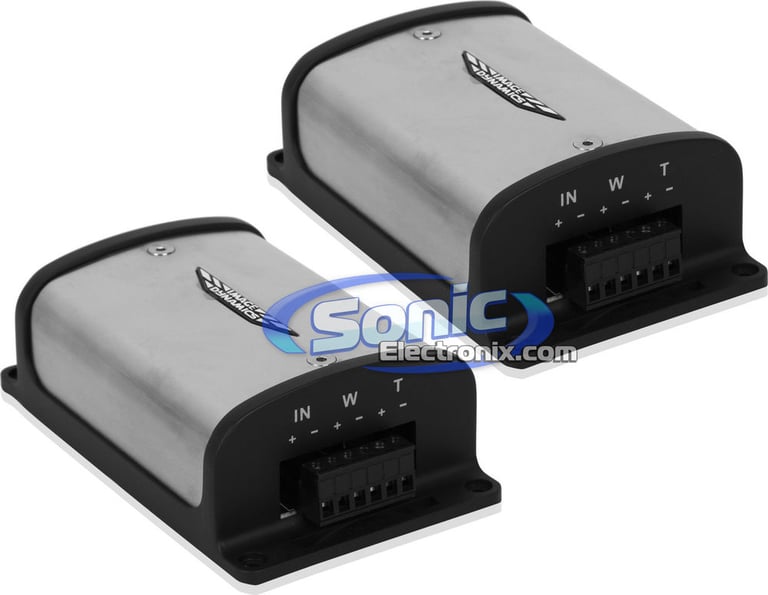

  • Included crossover filters with metalized Polypropylene capacitors

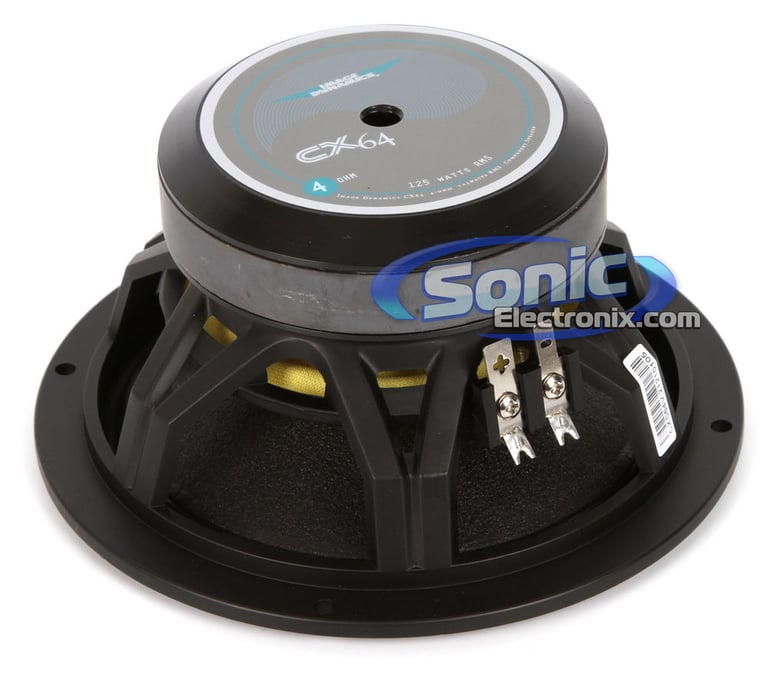

  • Neodymium magnet motor structure
  • Nomex spiders with progressive roll design
  • Composite Glass Fiber non-resonant basket
  • 4 ohm impedance
  • Sensitivity: 90 dB
  • Top-mount depth: 3"
  • Mid-Range Frequency Response: 55-4,000 Hz
  • Tweeter Frequency Response: 900-25,000 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also Found As: CXS64V.2, CXS64V2, CXS64

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Message from Image Dynamics: As of May 2016 this product will ship with a slight visible glue joint that was done to remedy a possible - yet extremely unlikely - plastic failure. The terminal itself is now up to Image Dynamics standards, but we urge the installer to not force the connector onto the terminal and use the fork style - not quick disconnect female - to make the connection. Thank You.





Loading...
PBK-TM3-VSW10S2 main

NVX PBK-TM3-VSW10S2 - 2017-2022 Tesla Model 3 - Complete Bass Package

For select 2017-2022 Model 3 - 10" 500W RMS Complete Amplified Subwoofer Bass Package Solution

93
-40.72%

$609.99

List price $1028.96

BE-TM3-G1 main

NVX Tesla Model 3 Sub Box - BE-TM3-G1 BOOST Box

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2017-Up Tesla Model 3

2
-50.27%

$279.99

List price $562.99

Limited time!
PSS-TSUB-T3A main

Alpine PSS-TSUB-T3A

500W Peak (200W RMS) Loaded Single 10" Sealed Enclosure with Monoblock Amplifier for select 2017-2025 Model 3 with Factory-Equipped Premium Audio

-25.00%

$899.95

List price $1200.00

SB-TE-3G1/10TW1 main

JL Audio Stealthbox® Stealthbox® SB-TE-3G1-10TW1

Custom-fit subwoofer enclosure for select 2021-2024 Model 3

$1,349.99

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Limited time!
RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
-15.00%

$152.96

List price $179.95

Limited time!

Alpine PSS-TSUB-T3B

500W Peak (200W RMS) Loaded Single 10" Sealed Enclosure and Monoblock Amplifier for select 2017-2025 Model 3

-25.00%

$899.95

List price $1200.00


Best selling similar products

GX608C small

JBL GX608C (GX608CAM)

• 210 watts Peak Each, 70 watts RMS Each
• 1-13/16" Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 2.3 ohm
• Sensitivity: 92 dB

(7)

$119.95

List price $119.95

MPK 163.3 small

Hertz MPK163.3

• 300 watts Peak Each, 150 watts RMS Each
• Tetolon Soft Dome tweeters
• Pressed Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$999.99

List price $1175.00

PNW-65CS2 small

AudioControl PNW-65CS2

• 125 watts Peak Each, 100 watts RMS Each
• 3/4" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.8 dB

(4)

$319.00

List price $339.00

Specifications & Details


Speaker Specifications
Series
Chameleon / CXS Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Carbon Fiber
Woofer Surround
Nitrile Butadiene Rubber NBR
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Sensitivity
90 dB
Frequency Response
55 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3"
Bottom-Mount Depth
3-1/8"
Cutout Dimensions
5-5/8" x 5-5/8"
General specifications

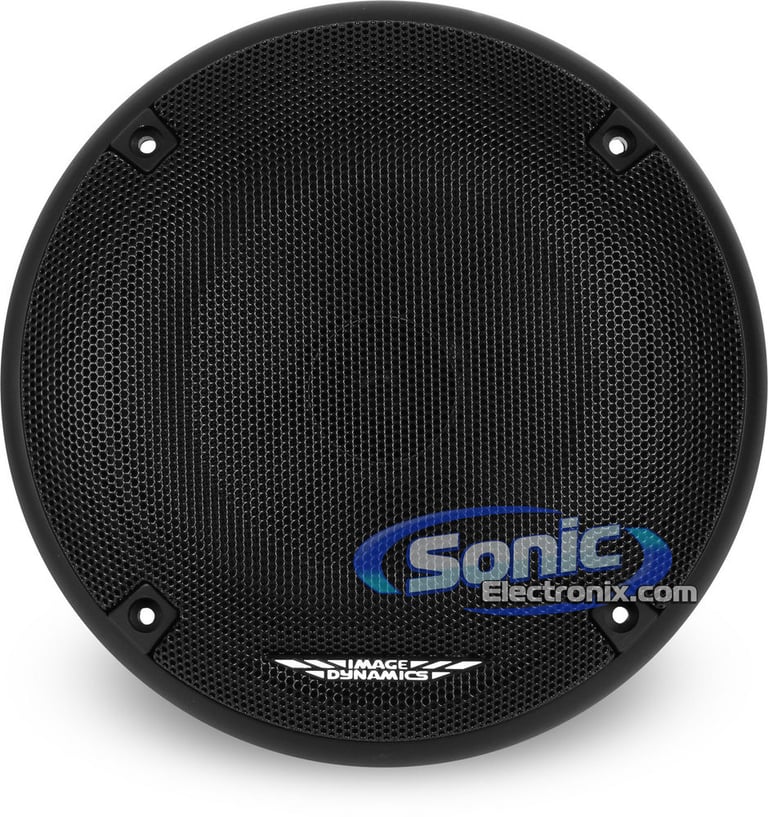

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CXS64 v.2

Weight:

11.50lbs

Internal SKU:

cxs64v2

Internal Product ID:

22325
