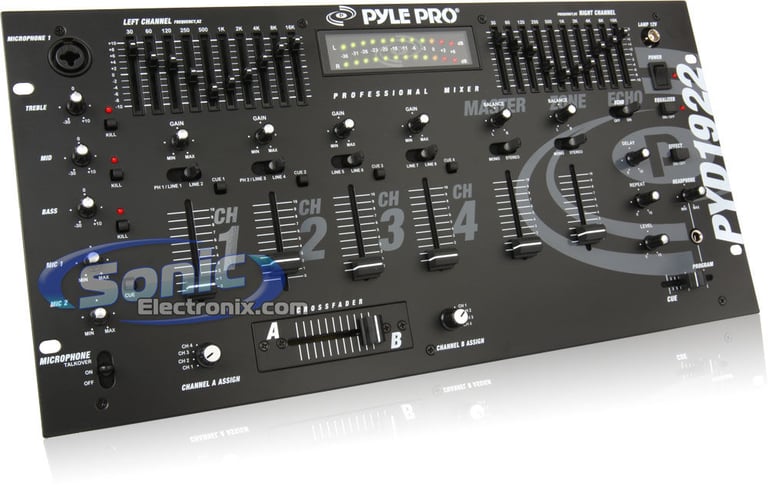

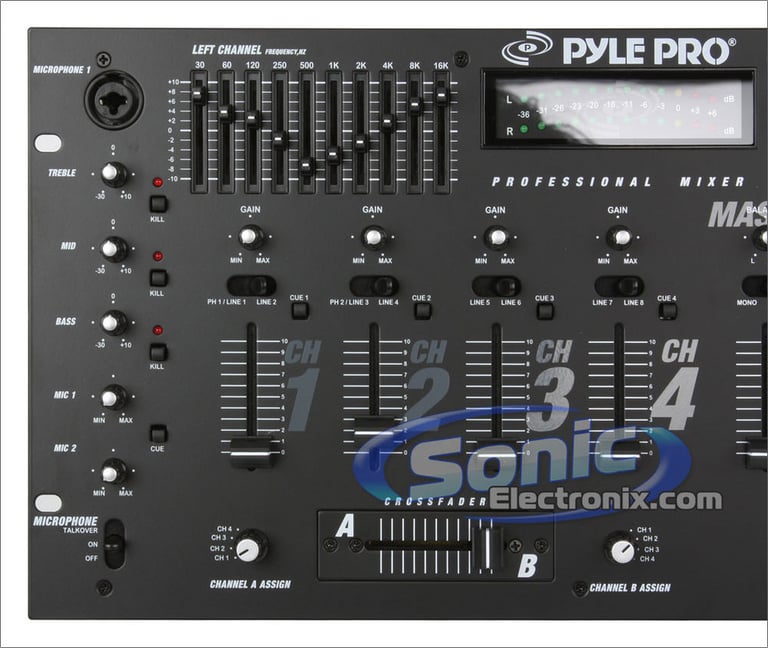

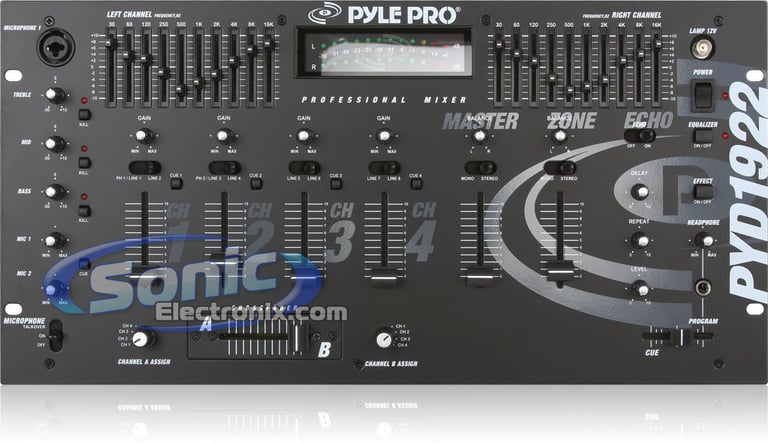

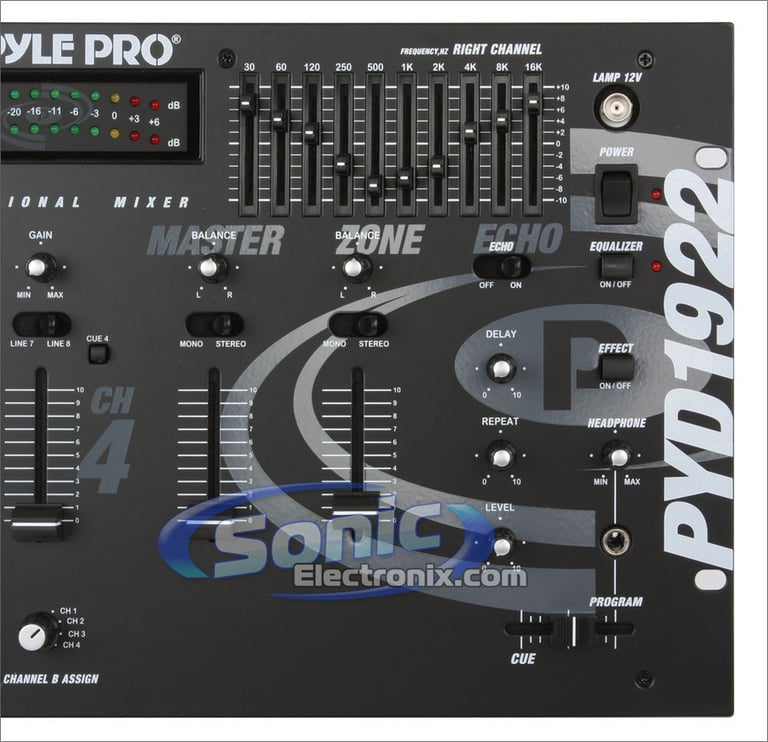

Pyle Pro PYD1922 (PYD-1922)

19" Rack Mount 4-Channel Pro Series DJ Mixer with 10-Band Graphic Equalizer and Digital Echo

Pyle
Shop all Pyle
highlight-star-icon

Rack Mount Pro Series DJ Mixer • 10-Band Graphic Equalizer • Crossfader Slider Control • Turntable Compatible • Dual Microphone Connections • Channel CUE • Front Monitoring Headphone Jack • Echo Control

Learn more about the pyd1922

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Add to cart
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Add to cart
Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Add to cart
Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Add to cart
KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Add to cart
KMM-X705 main Out of stock

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Add to cart
MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Add to cart

Description

Pyle brand icon

Authorized dealer

Product Features:
  • Rack Mount Pro Series DJ Mixer
  • Fit in 19" rack mounts
  • 4-Channel professional mixer
  • 10-Band graphic equalizer
  • Effect jacks permits externally generated effects in the mix or to process the mixed sound
  • Stereo line inputs let you connect high-level audio sources

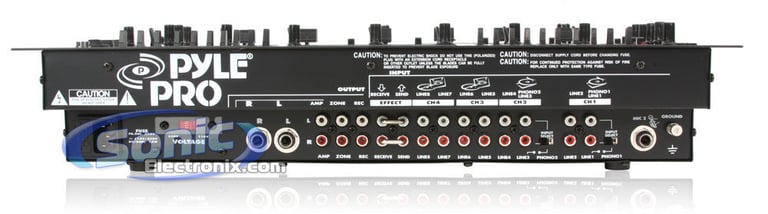

  • Output jacks connect the mixer to a receiver or amplifier using 1/4" plugs or RCA cables
  • Zone output jacks connect the mixer to a second receiver or amplifier
  • Record output jacks connect the mixer to a tape deck for recording the audio playing through the mixer
  • Dual purpose stereo inputs for using a turntable with a magnetic cartridge
  • Input select switches for choosing a source
  • Rear grounding screw terminal for grounding turntables
  • Second microphone connection for connecting a balanced or unbalanced microphone
  • 10-Band equalizer adjusts the sound output of the mixer
  • Crossfader slider control
  • Echo level, repeat, delay, and switch
  • BNC Lamp adaptor
  • Microphone frequency kill switches
  • Channel CUE switch
  • Channel gain control and input selector
  • Front headphone jack and level control for monitoring
  • 1-year Manufacturer's warranty
Product Specifications:
  • Sensitivity:
    • Mic 1-2: 1.5 mV/600 Ohm
    • Phono 1-2: 3 mV/50,000 Ohm
    • Line 1-8: 150 mV/27,000 Ohm
  • Output Level:
    • Amp: 2V
    • Zone: 2V
    • Record: 150 mW
  • Frequency Response: 20-20,000 Hz
  • Signal-to-Noise Ratio:
    • Mic: 60 dB
    • Phono: 70 dB
    • Line: 80 dB
  • Distortion:
    • Mic: 0.20%
    • Phono: 0.05%
    • Line: 0.03%
  • Equalizer:
    • Control Frequencies: 30, 60, 120, 250, 500, 1000, 2000, 4000, 8000, 16000
    • Boost/Cut Range: +/- 10 dB
  • Microphone Tone Control:
    • Treble: 10,000 Hz
    • Mid: 1,000 Hz
    • Bass: 100 Hz
  • Talkover Attenuation: -16 dB
  • Echo Delay Time: 50mS-120mS
  • Power Source: 120 VAC
  • Dimensions: 9-1/2"L x 19"W x 4-1/4"H

Specifications & Details

Specifications
Total number of channels
4
Frequency Response
20 - 20,000 Hz
Signal-to-Noise Ratio
80 dB
Number of Microphone Inputs
2
Built-In Equalizer
10-Band Graphical Equalizer
Digital Key Control
No
Inputs and Outputs
Composite (RCA) Stereo Inputs
10
Composite (RCA) Stereo Outputs
3
Number of XLR Inputs
0
Number of XLR Outputs
0
Number of Stereo 1/4" Phone Inputs
1
Number of Stereo 1/4" Phone Outputs
1
Number of Video Inputs
0
Number of Video Outputs
0
Number of USB Connections
0
General
Primary Color
Black
Rack Mountable
Yes
Width
19"
Height
4-1/4"
Depth
9-1/2"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Pyle

Model Number:

PYD1922

Weight:

11.50lbs

Internal SKU:

pyd1922

Internal Product ID:

22528
