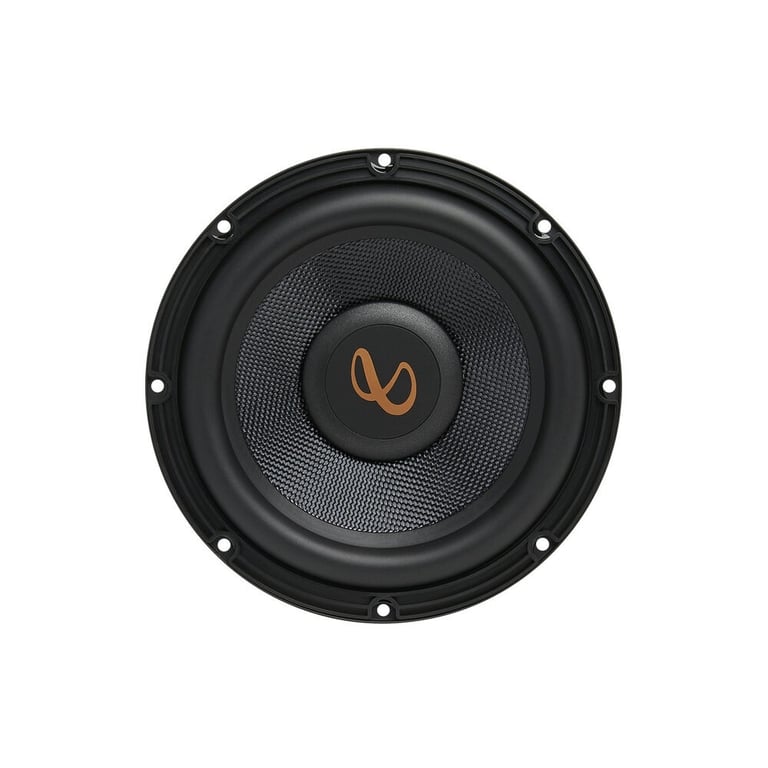

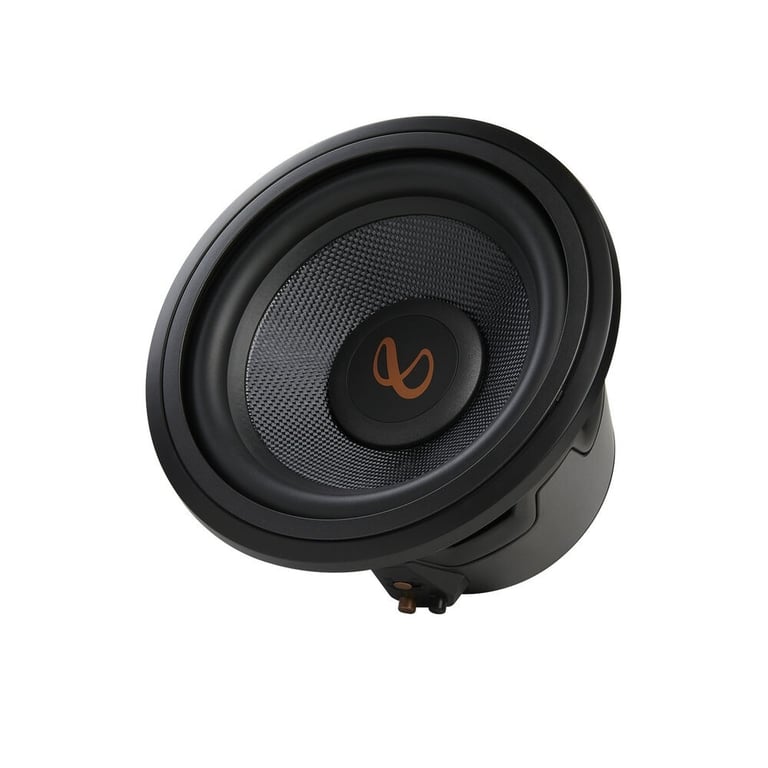

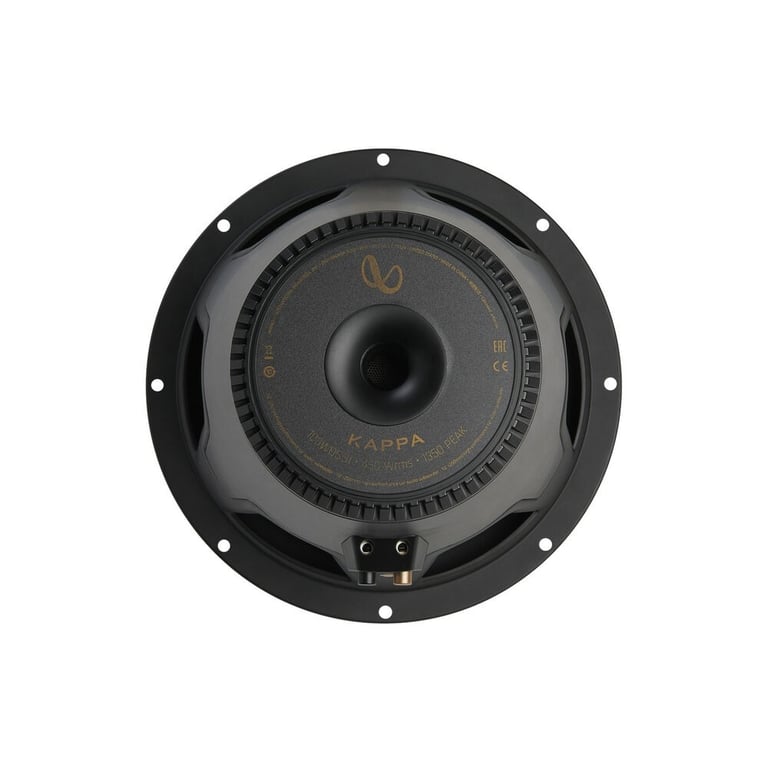

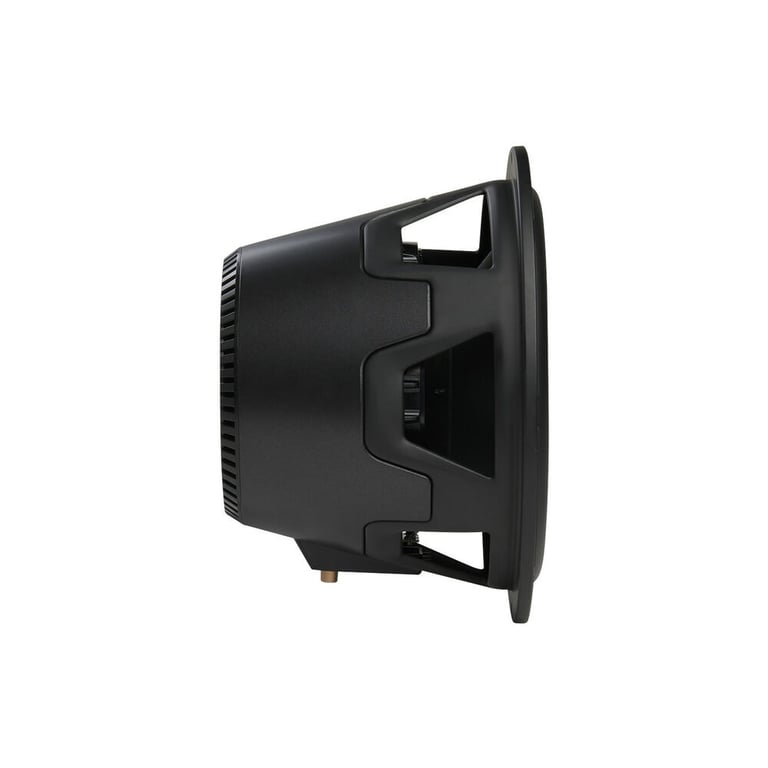

Infinity Kappa 103WDSSI w/ Atrend 10DVR - Black Carbon Fiber

Product Details:

• 10" Single 2 or 4 ohm Kappa Series Subwoofer
• Power Handling:
• Peak: 1350 watts
• RMS: 450 watts
• Glass Fiber Cone
• Rubber Surround
• Aero-cooling oversized voice coil design
• Premium integrated push terminals
• Terminals accept up to 8-gauge speaker wire
• 2" High Temperature Voice coil
• 10.25 mm Xmax
• Frequency Response: 30 - 175 Hz
• Smart Selectable Impedance: 2 or 4 ohm
• Resonance Frequency (Fs): 45.4 Hz
• Sensitivity: 91 dB
• Recommended sealed box volume: 0.8 cubic feet
• Recommended ported box volume: 1.5 cubic feet
• Top-mount depth: 6-1/4"
• Cutout diameter: 8-15/16"
• Authorized Internet Dealer
• 3 Year Manufacturer's Warranty



Priced Individually

Product Details:

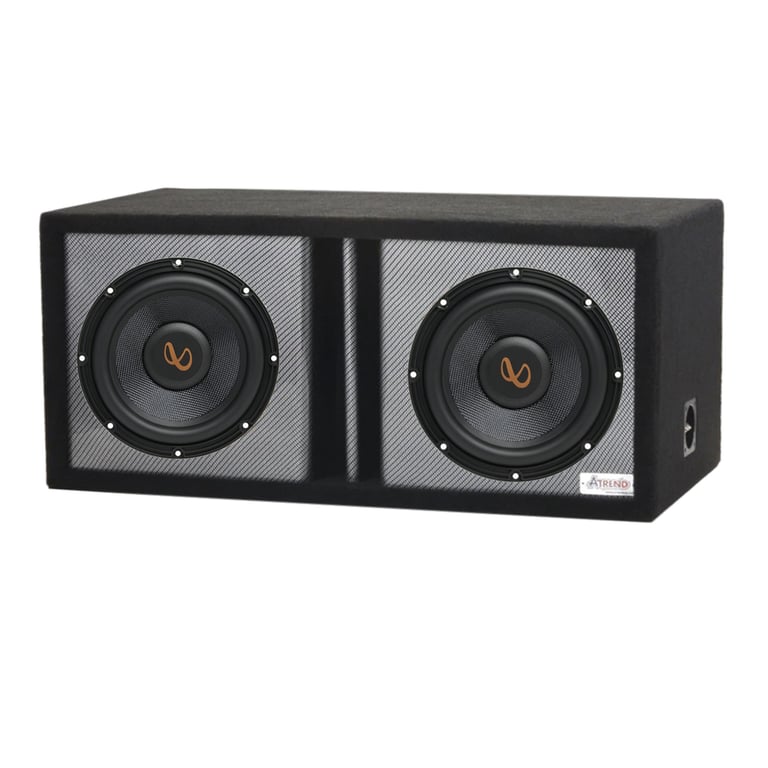

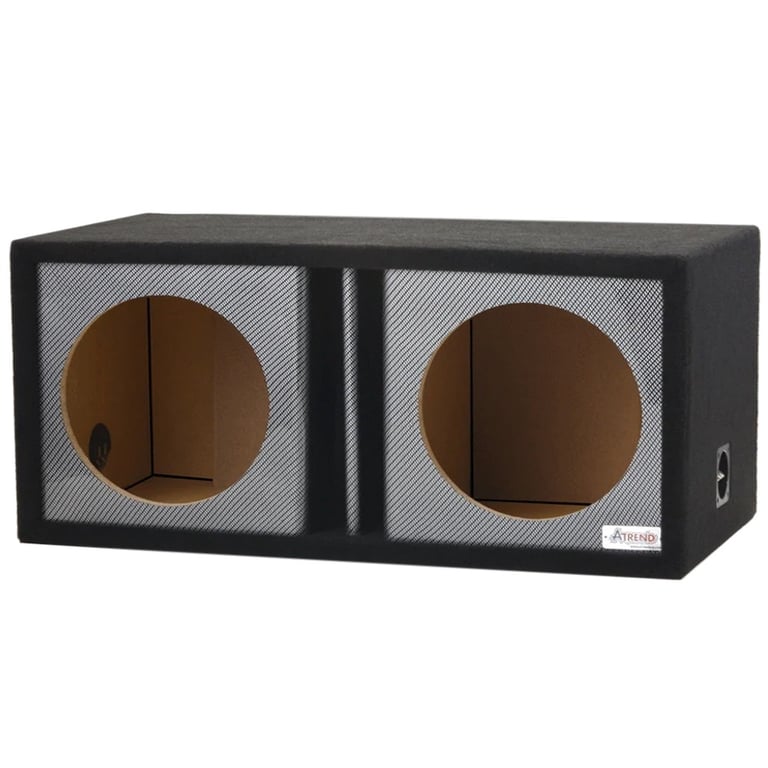

• 10" Dual Ported Subwoofer Enclosure
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Features carbon fiber pattern and embroidered logo finish for sleek look
• Also available in other color options (all sold separately):
• Atrend 10DVR - Brushed Aluminum Carbon Fiber
• Atrend 10DVR - Blue Carbon Fiber
• Atrend 10DVR - Red Carbon Fiber
• Atrend 10DVR - White Carbon Fiber
• Engineered using automated software and CNC machinery
• Signature miter and dado construction
• Miter joints adds 41% surface area for tighter seal and stronger bond
• Dado joints add up to 80% more surface area for increased strength
• Plush black carpet and premium silver push-down terminal cups
• Bonded using proprietary trick glue (3600 PSI of holding power)
• Utilizes liquid ink process for high-quality enclosure construction
• Maximum subwoofer mounting depth: 15"
• Subwoofer cutout diameter: 9.13"
• Box volume: 1.41 cubic feet (per chamber)
• Total box volume: 2.82 cubic feet
• Dimensions: 30" L x 14" H x 17" W
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Port Specifications:

• Rectangle port
• Number of ports: 2
• Port length: 3.25"
• Estimated port tuned frequency (fb): 35 Hz
