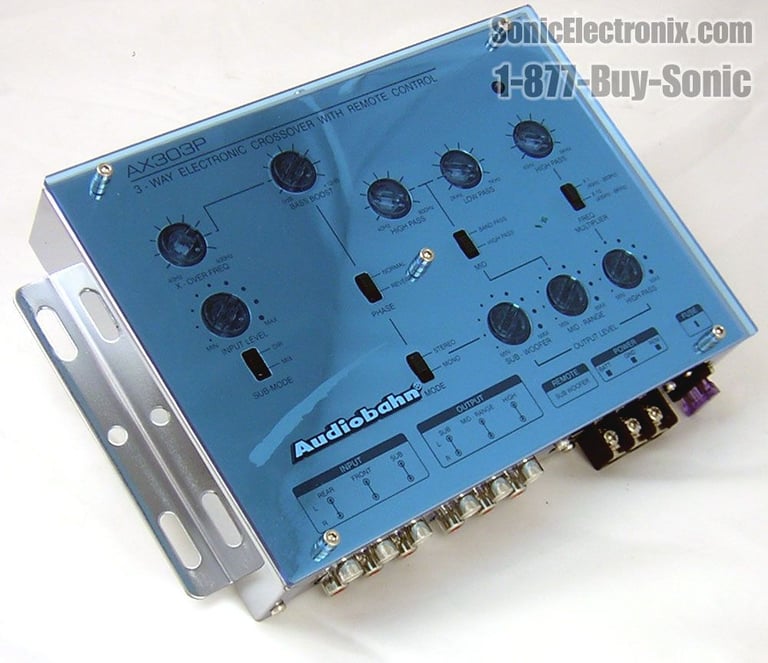

Audiobahn AX303P

3-way Electronic Crossover

Audiobahn
Shop all Audiobahn
highlight-star-icon

18dB per Octave Crossover Slopes • PWM Power Supply • Variable Bass Boost: 0 - 12dB • Front & Rear RCA Inputs • Iced Blue Acrylic Protective Cover • Blue Backlight Knobs on Remote • Blue LED Indicator Lights

Learn more about the ax303p

We apologize

This item has been discontinued

Description


  • 18dB per Octave Crossover Slopes
  • PWM Power Supply
  • Variable Q (2 - 20) and Subwoofer Gain Remote Module
  • Variable Bass Boost Frequency: 25 - 250Hz
  • Variable Bass Boost: 0 - 12dB
  • Stereo/Mono Subwoofer Switch
  • 0/180¾ Subwoofer Phase Switch
  • Band-Pass/High-Pass Midrange Switch
  • Variable Low-Pass Crossover: 40 - 400Hz
  • Variable Band-Pass Crossover: High 40 - 800Hz & Low 2kHz - 7kHz
  • Variable High-Pass Crossover: 40 - 8kHz
  • 1/10x Crossover Multiplier (High Pass Only)

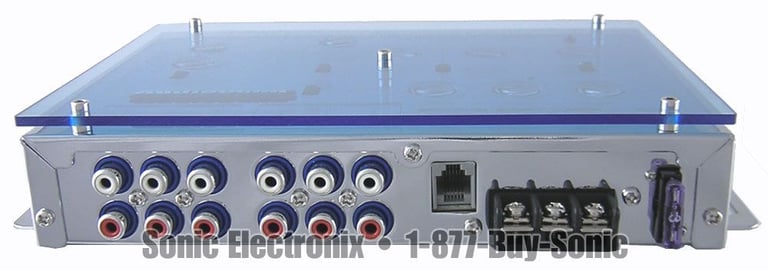

  • Front & Rear RCA Inputs
  • Low, Band Pass, High, & Full Range RCA Outputs
  • Variable Input Level Control
  • Variable Output Level Controls
  • Remote Output and Bass Boost Control
  • Blue Backlight Knobs on Remote
  • Blue LED Indicator Lights
  • Chrome-Plated Steel Chassis
  • Iced Blue Acrylic Protective Cover
  • Dimensions: 1-3/4" (H) x 8-1/8" (W) x 5-15/16" (L)
  • 1-year SonicElectronix.com warranty
