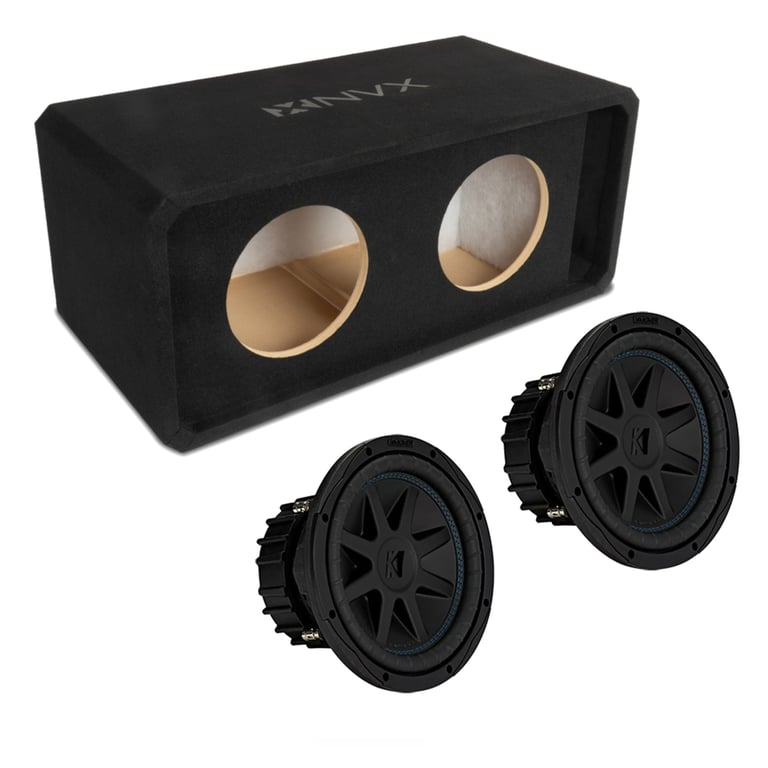

NVX NE102P w/ Kicker 50CVX104 (Sold Individually)

Product Details:

• Not compatible with NVX VC-Series Subwoofers

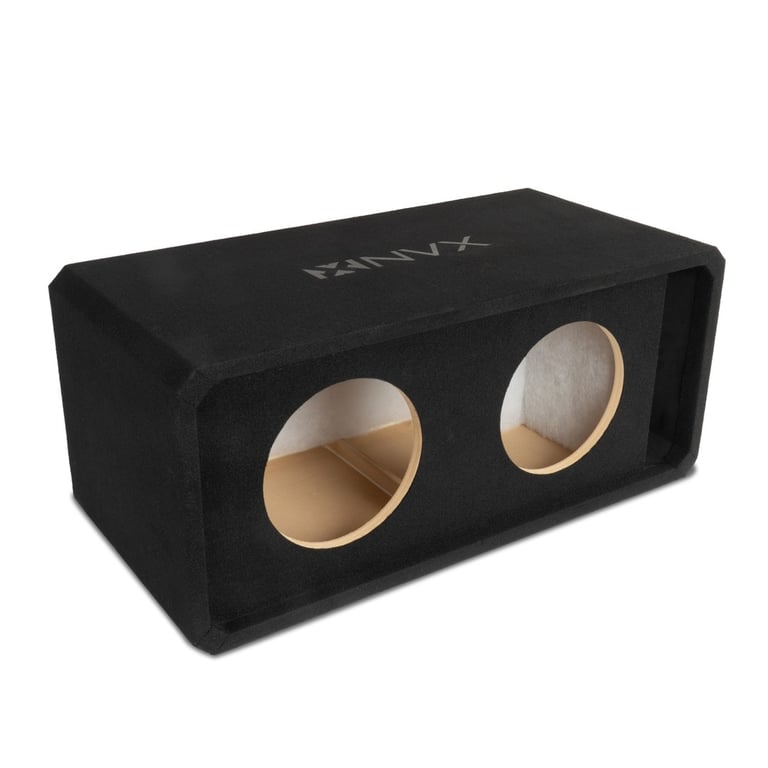

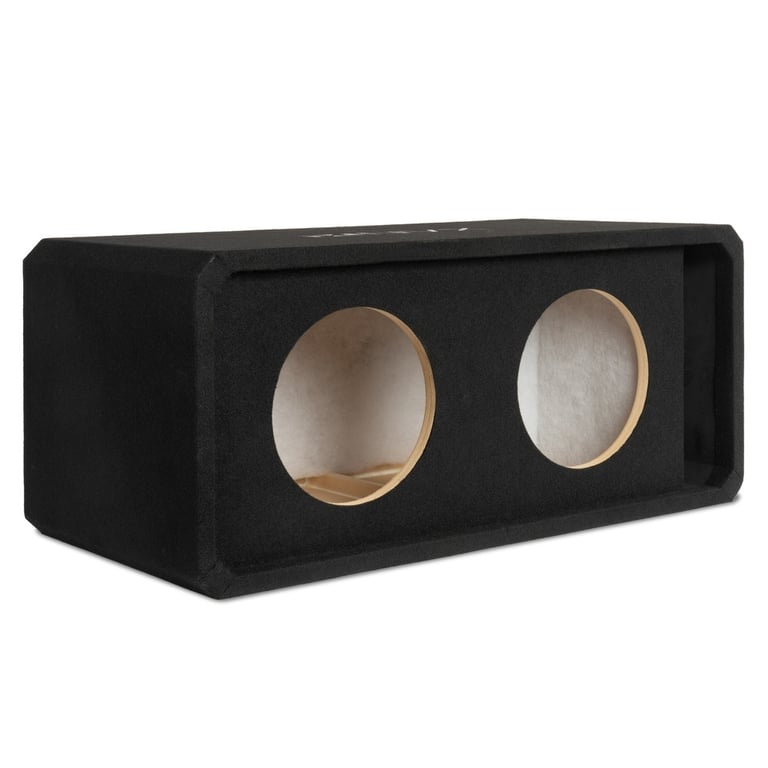

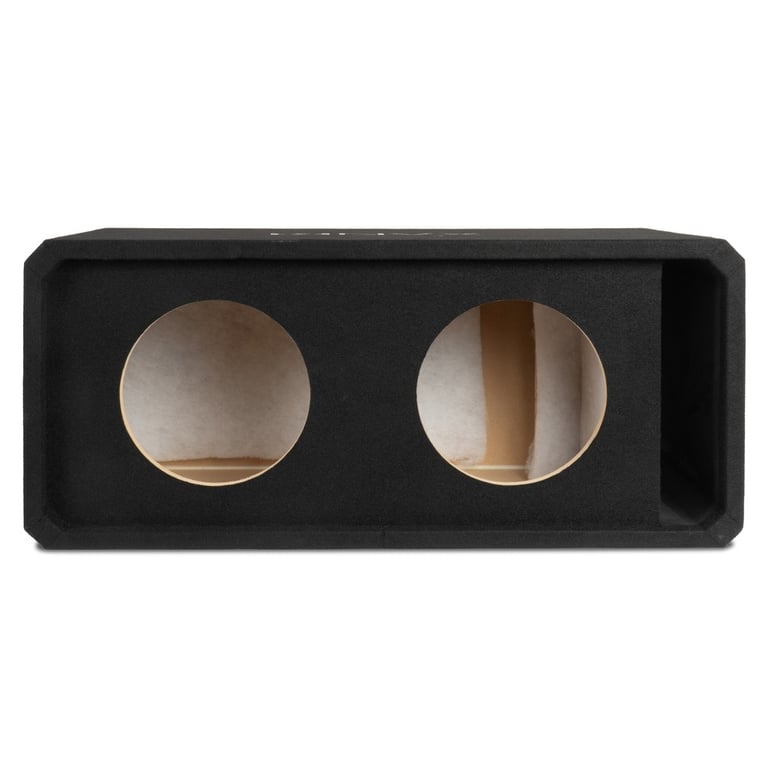

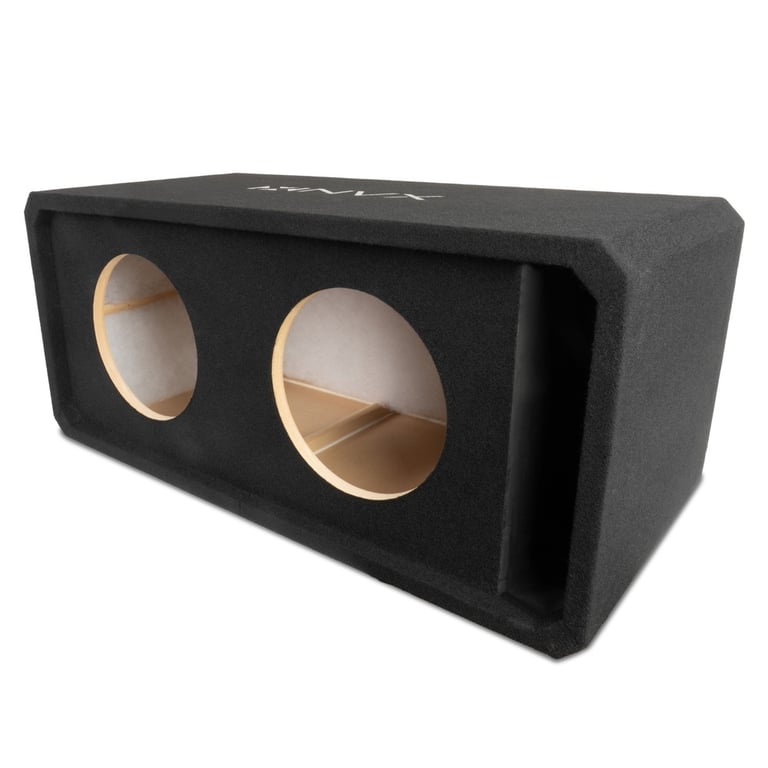

• 10" Dual Ported Subwoofer Enclosure
• Made from 3/4" Medium Density Fiberboard (MDF) construction
• Built with precision CNC technology for exceptional accuracy
• Pre-lined with Poly-Fil for improved acoustic response
• Premium Black Carpet with Black NVX Logo

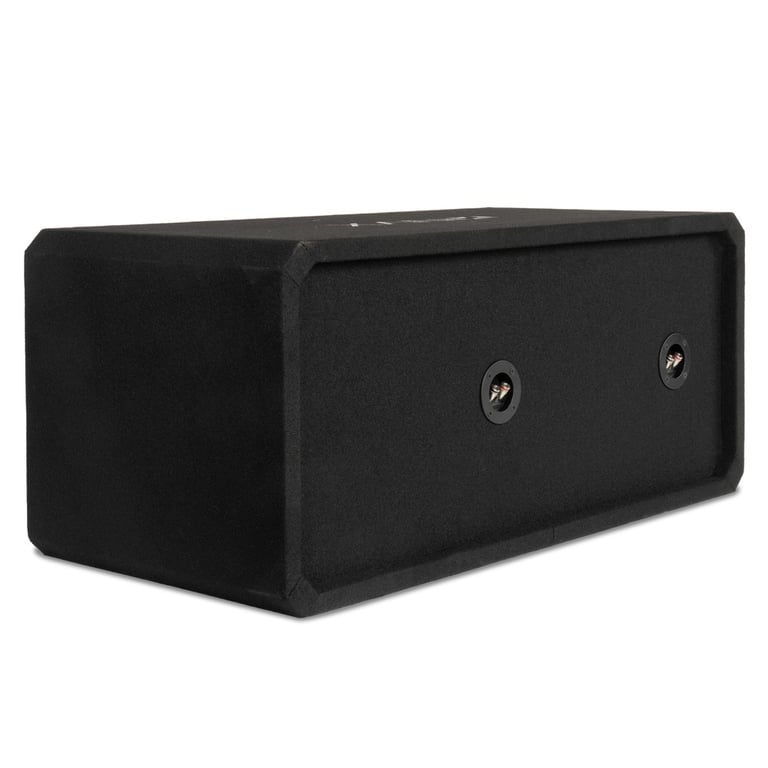

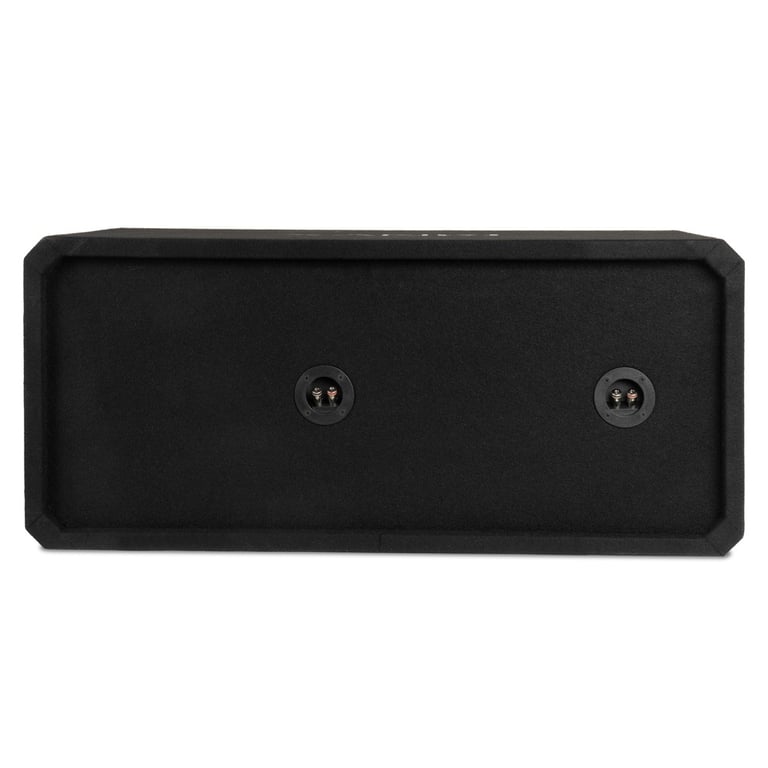

• Spring Loaded Push Terminals
• Maximum subwoofer mounting depth: 13-7/8"
• Subwoofer cutout diameter: 9-1/4"
• Internal box volume: 2.90 cubic feet
• Port Tuning Frequency (Fb): 38 Hz
• Dimensions: 16.50" D x 34.50" W x 15.00" H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Port Specifications:

• Tuning Frequency: 38 Hz
• Port Width: 3"
• Port Height: 13.50"
• Port Length: 18.29"

Product Details:

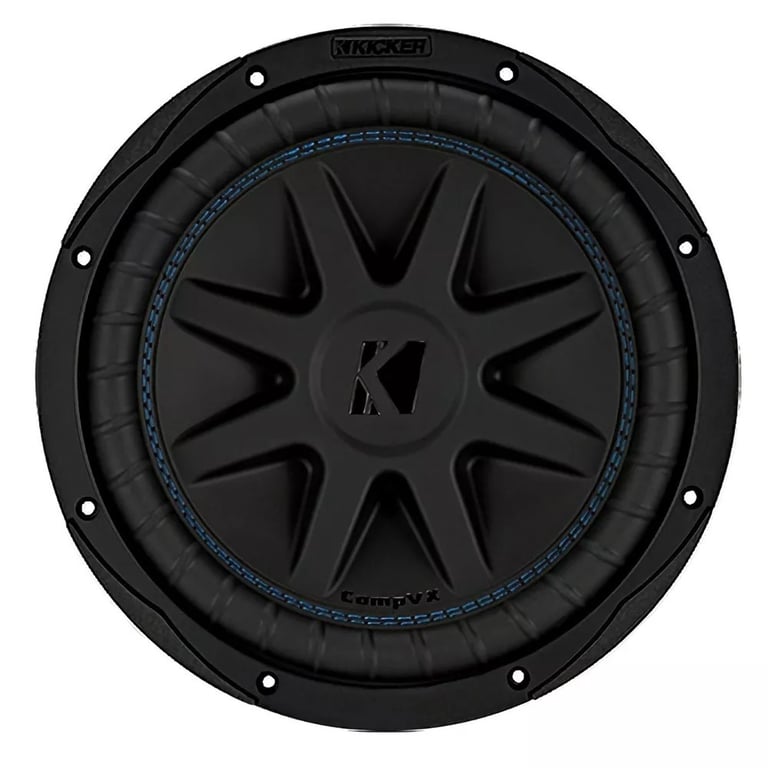

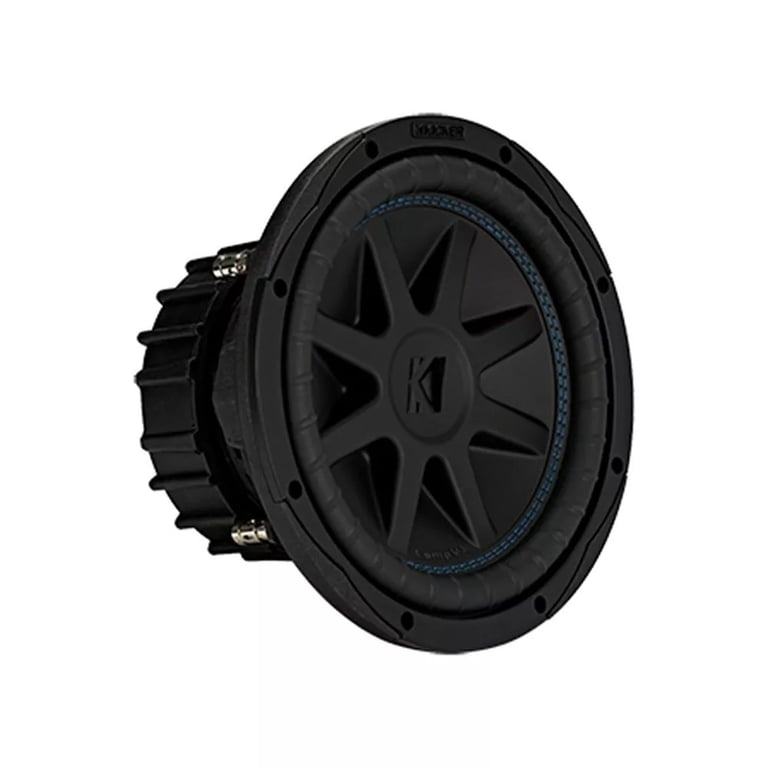

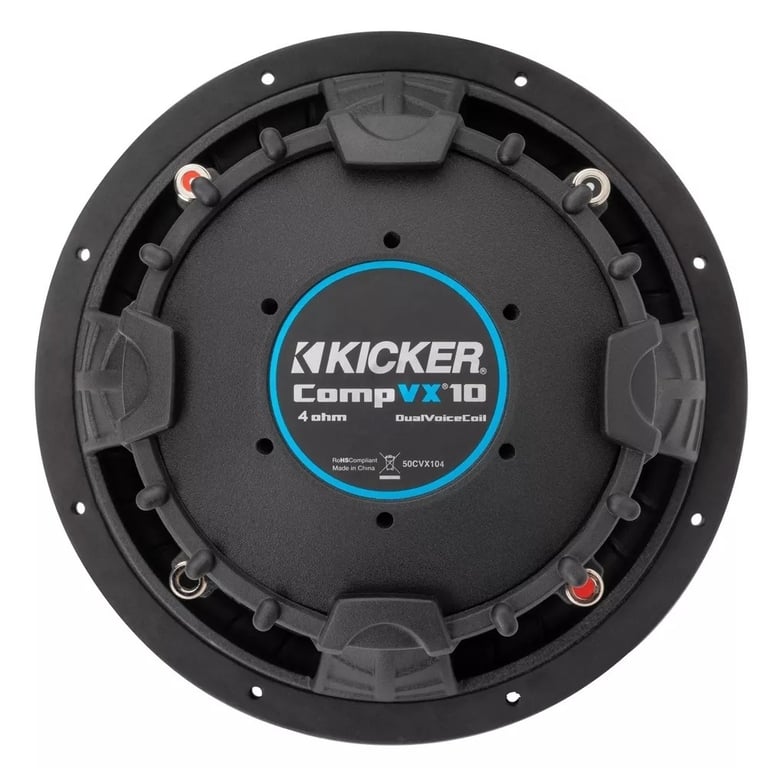

• 10" Dual 4 ohm CompVX Series Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• ANSI/CTA-2031-A compliant
• Thick Polypropylene cone
• Utilizes one-piece SoloKon cone reinforcement technology
• Ribbed Santoprene surround with signature double blue stitching
• Oversized suspension system for improved control
• High-strength insulated tinsel leads
• High temperature voice coil for increased excursion and deeper bass
• Perimeter venting for excellent thermal management
• Vented back bracing for ultra-rigidity and cool motor
• UniPlate extended pole piece and backplate for heat dissipation
• Cast aluminum basket for added strength
• Satin nickel spring-loaded speaker terminals
• 16.25 mm Xmax
• Massive Ceramic magnet motor structure
• Frequency Response: 24 - 500 Hz
• Resonance Frequency (Fs): 35.4 Hz
• Sensitivity: 85.7 dB
• Recommended sealed box volume: 0.8 cubic feet - 3.0 cubic feet
• Recommended ported box volume: 1.25 cubic feet - 1.75 cubic feet
• Top-mount depth: 5-15/16"
• Cutout diameter: 9-3/16"
• Mesh grille: Kicker 52GR10 (sold separately)
• Grille insert: Kicker GR100 (sold separately)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Sold Individually

Kicker 50CVX104 owner’s manual
