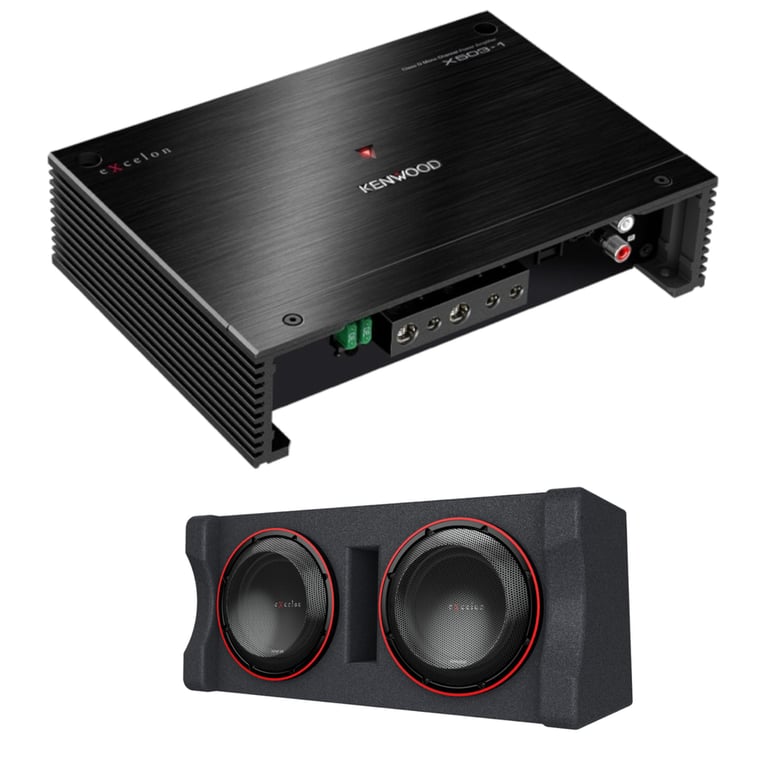

Kenwood eXcelon X503-1 w/ P-XW1221DHP

Product Details:

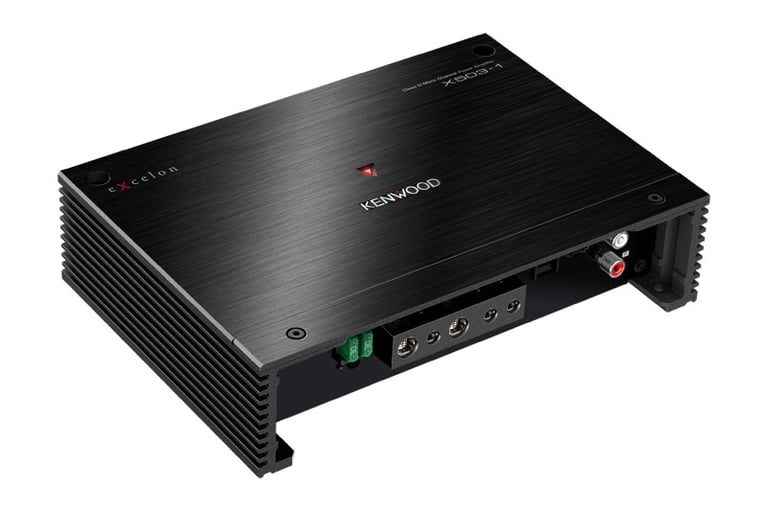

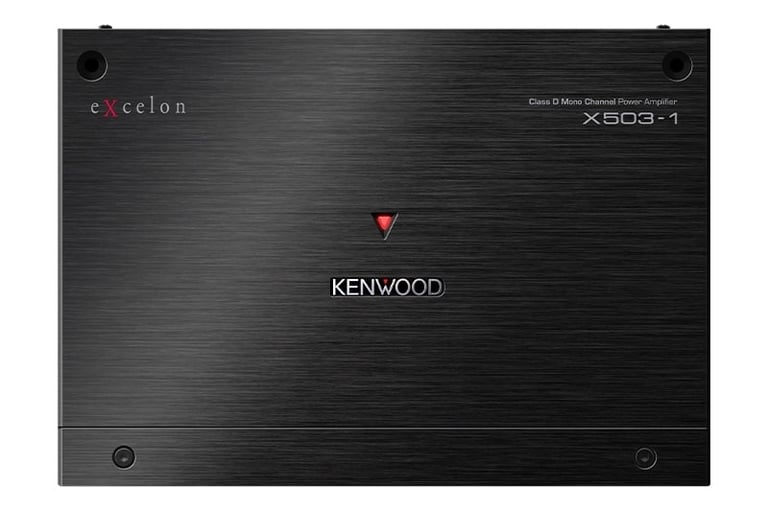

• eXcelon Series Class D 2 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 300 watts x 1 channel
• 2 ohm: 500 watts x 1 channel
• Total RMS power output: 500 watts
• Wired bass level remote control included

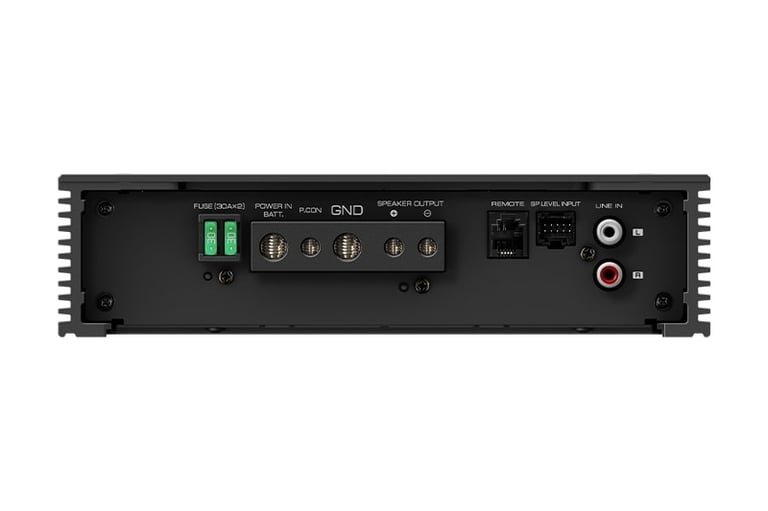

• Speaker-level (high-level) inputs
• Mono output of pre-amp outputs
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• PMLCAP's (Polymer Multi-Layer Capacitors)
• Infrasonic Filter (ISF)
• Input sensitivity:
• Low level: 4 - 12 volts
• High level:
• Frequency Response: 0 - 20 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 100 dB

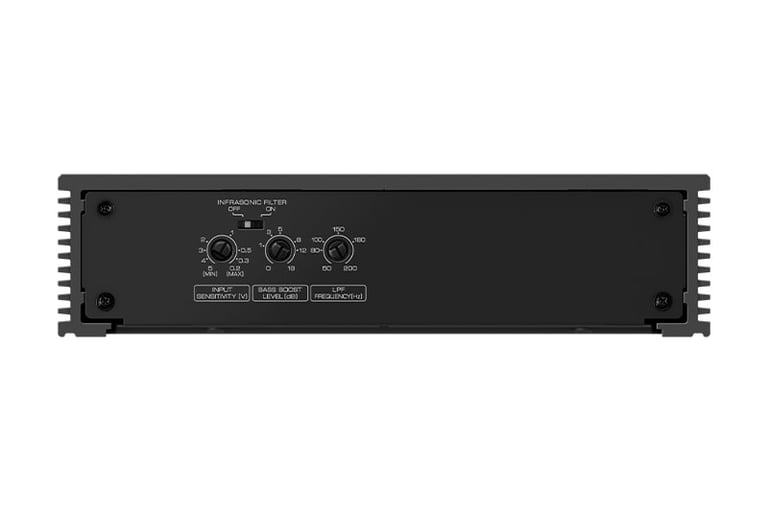

• Variable low-pass filter: 50 - 200 Hz
• Subsonic filter: 0 - 25 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 60A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 8-3/8" L x 5-7/8" W x 2-1/16" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: X503-1

General Features:

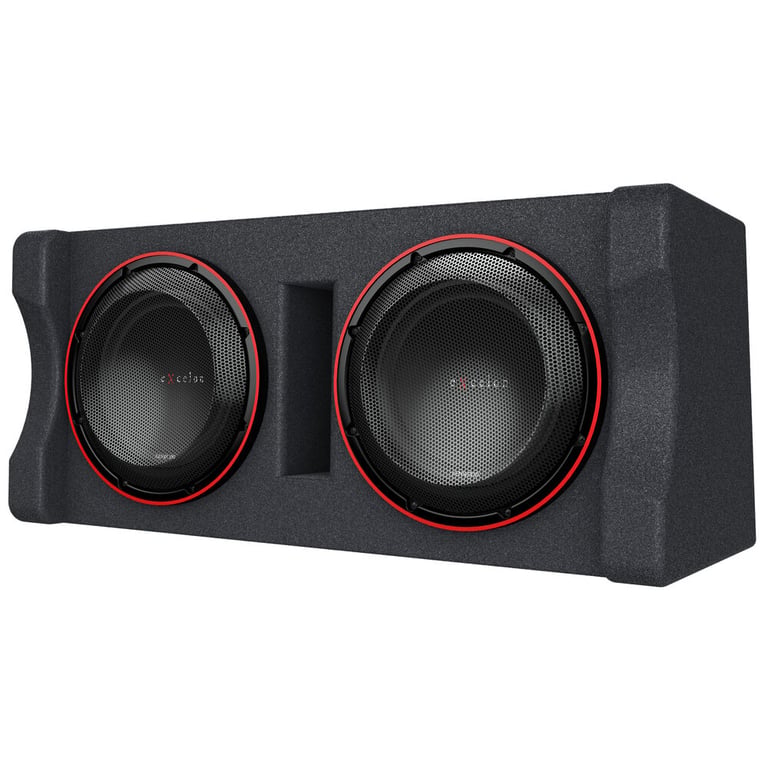

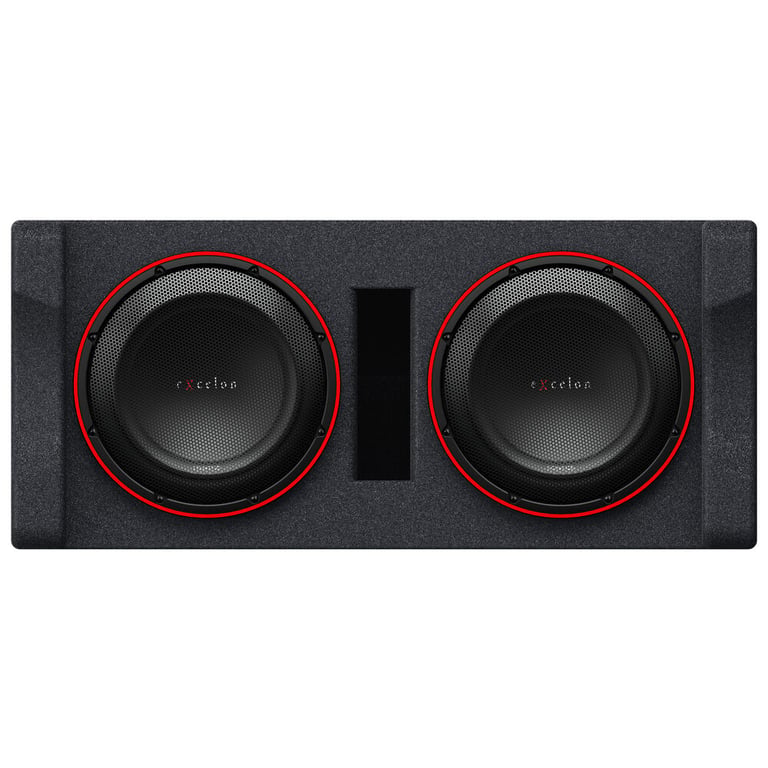

• 1000 W RMS Dual 12" Vented Subwoofer Enclosure
• Power Handling:
• Peak: 2000 Watts
• RMS: 1000 Watts
• Impedance: 2 ohm
• Preloaded with dual 12" Excelon Series Subwoofers
• Enclosure Dimensions: 12-1/2" TD x 15-3/4" BD x 35-3/4" W x 15-7/8" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Subwoofer Features:

• Polypropylene cone with "dual area" cap
• Single voice coil
• Frequency Response: 29-300Hz
• Stress controlled spider
• 5/8" MDF construction with 3/4" MDF baffle

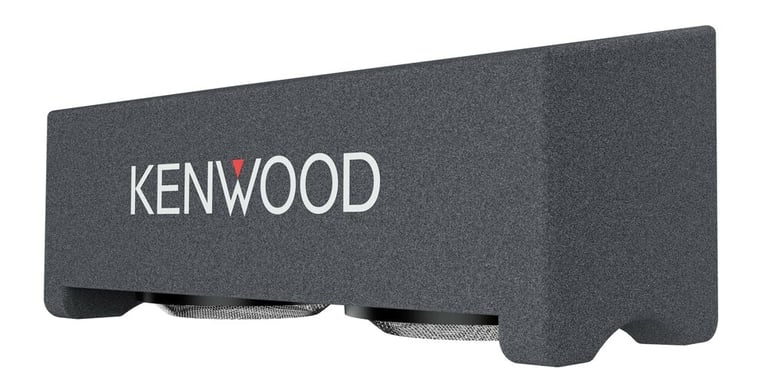

• Down-firing design for greater output and more installation flexibility
• Spring-post terminals accommodate up to 8-gauge wire
• Steel-mesh grilles included
