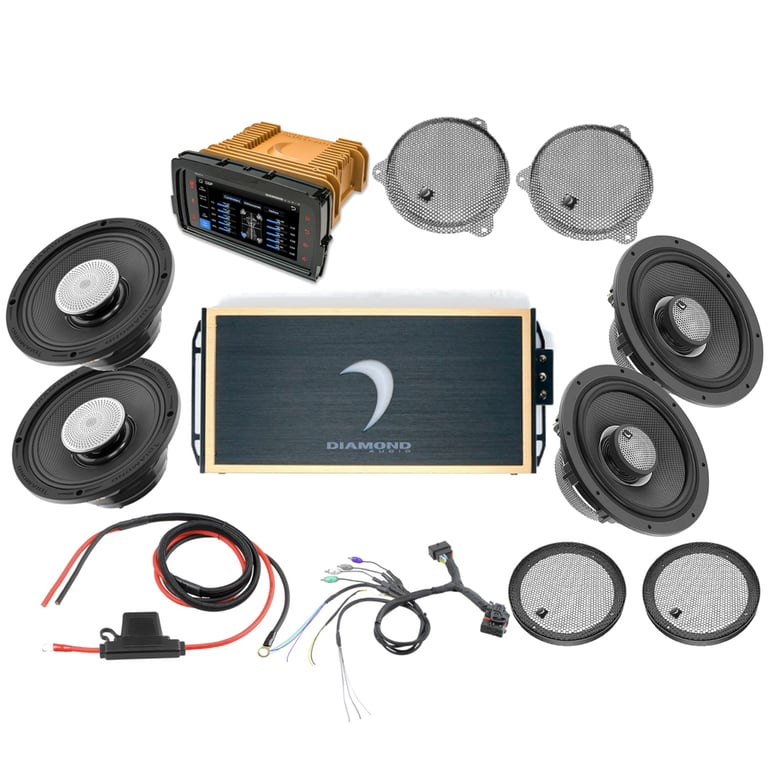

Diamond Audio 4-Speaker Sound Packs for Tour Pack - 1/2" Spacer Required

Product Details

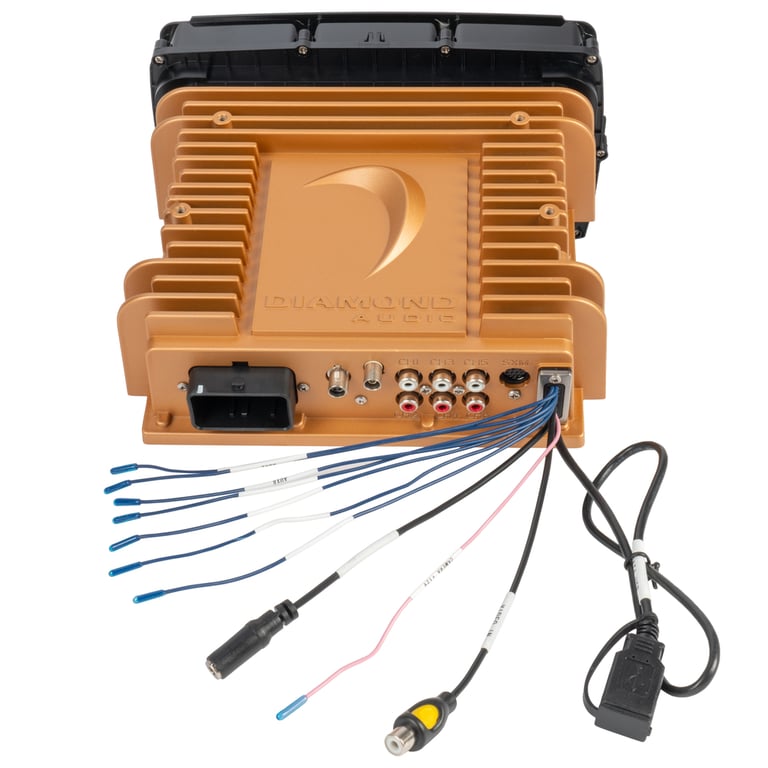

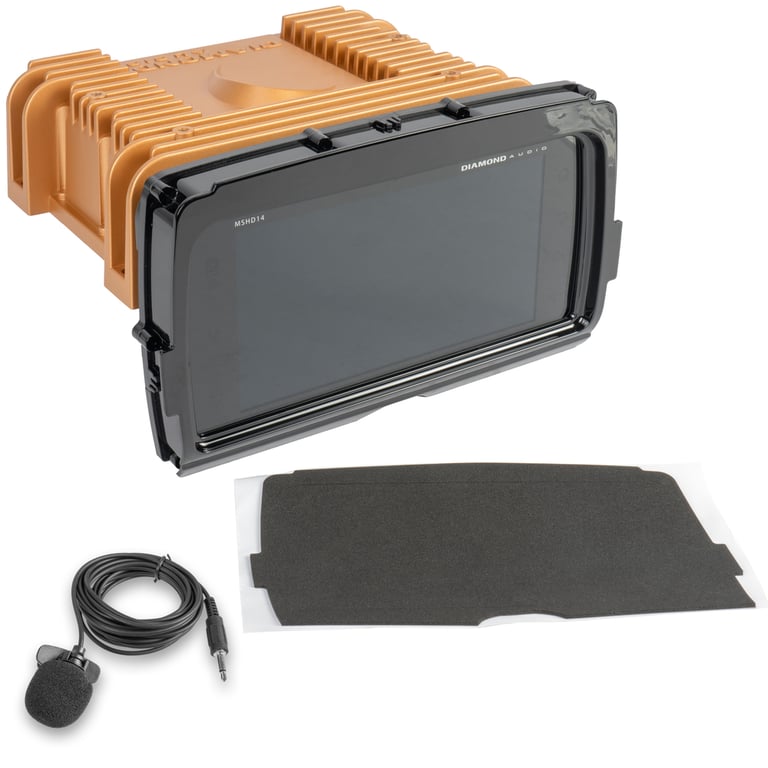

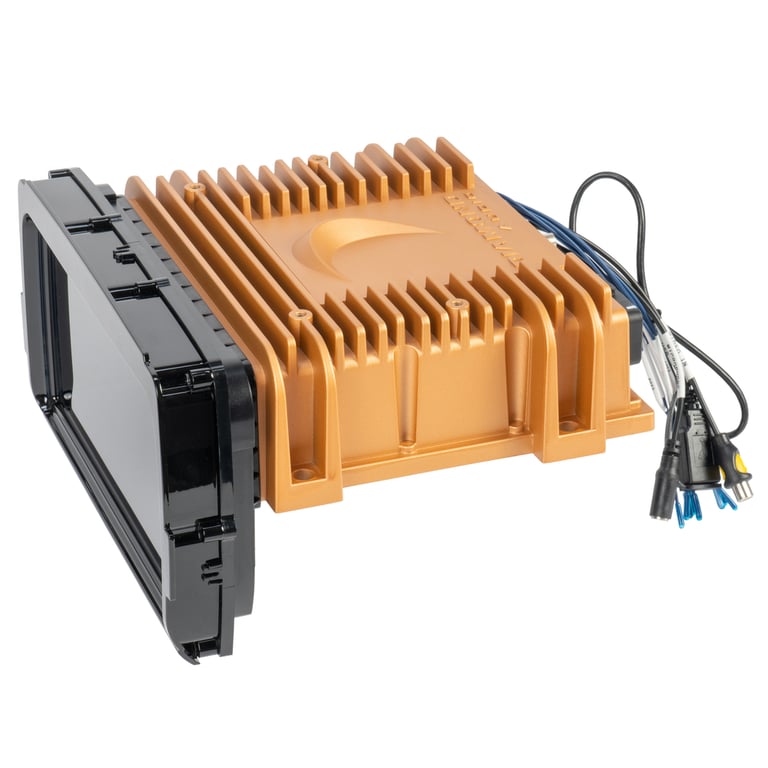

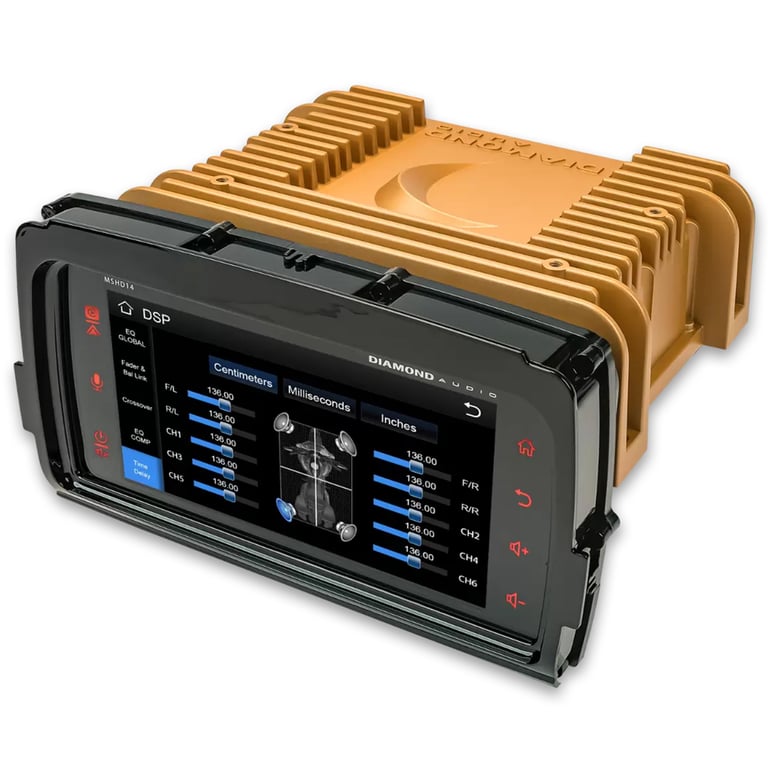

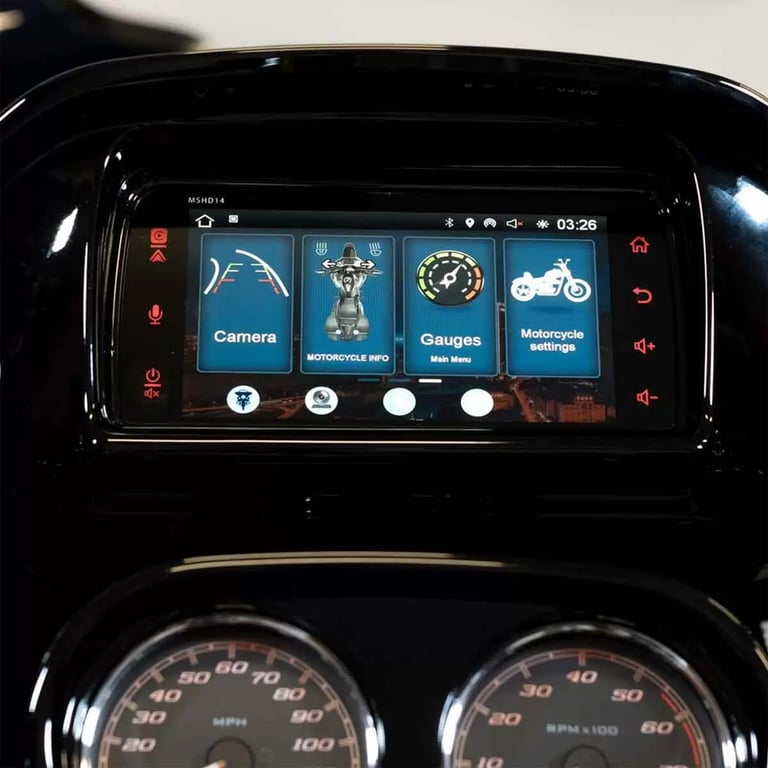

• Custom Fit Digital Multimedia Receiver
• Compatible with select 2014-2023 vehicles from Harley Davidson
• 7" TFT-LCD Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 28 watts x 4 channel
• Wireless Apple CarPlay and Android Auto compatible
• Utilizes factory USB for phone charging and music playback
• Maestro built in for advanced vehicle data Boom Audio 2 amplifier turn on
• Retains handlebar controls, reconfigurable though programming
• CAN-BUS integration and vehicle data

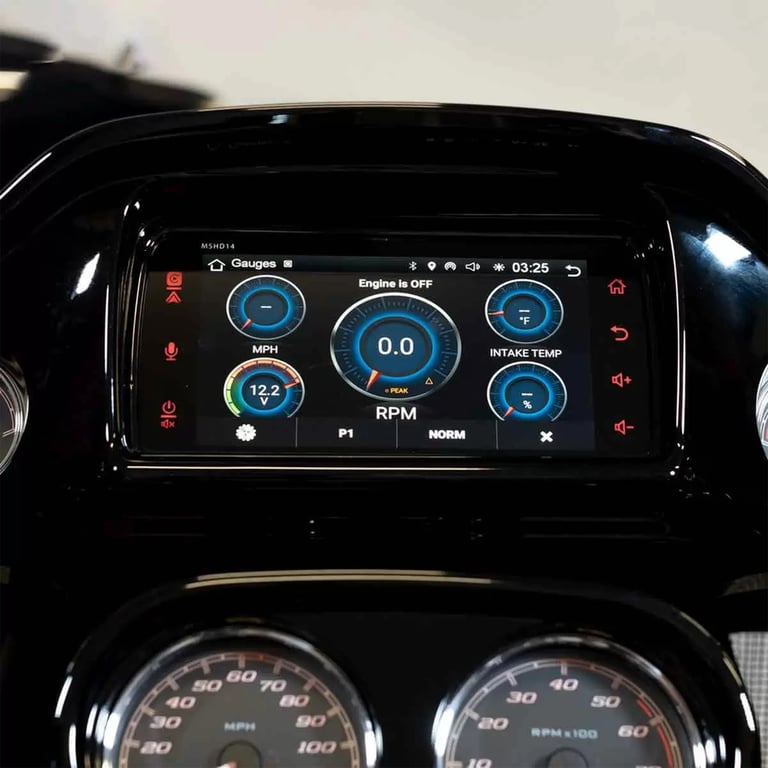

• Selectable on-screen data such as RPM, voltage, temperature, and throttle position
• Glove friendly, ultra-bright 7" 1000 nit, sunlight viewable touch screen display
• 6 independent equalizers for the ultimate sound customization (1 Global, 5 for Setup)
• 10-channel integrated digital signal processor with time delay
• High-pass, bandpass, and low-pass filters with adjustable 6,12,18,24db slopes
• Independent channels can be linked together or separated from fader control
• Built-in HD Radio Tuner
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty
• MFR #: MSHD14

Smartphone Features

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android

Playback and Audio Features

• MP3 | AAC | WMA | FLAC Audio Playback
• AVI | MP4 | MPG | MOV | XVID | WMV Video Playback
• AM/FM tuner
• MP3 ID3 Tag Display (Title/Artist/Album)
• 16 Band Graphic Equalizer

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• 6 programmable auxiliary triggers for controlling lighting, kickstands and accessories via touchscreen, timers/triggers or handlebar controls
• Internal iDataLink ADS-MRR2 CAN-BUS module for seamless integration

Audio/Video Inputs and Outputs

• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input

Bluetooth Features

• Bluetooth line driver for maximum output
• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free sound

Product Details:

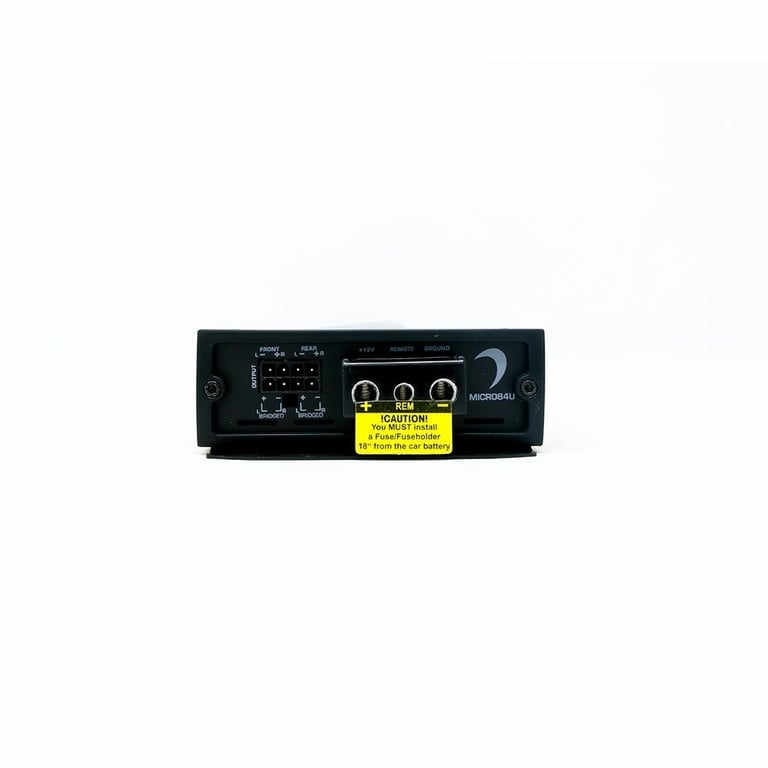

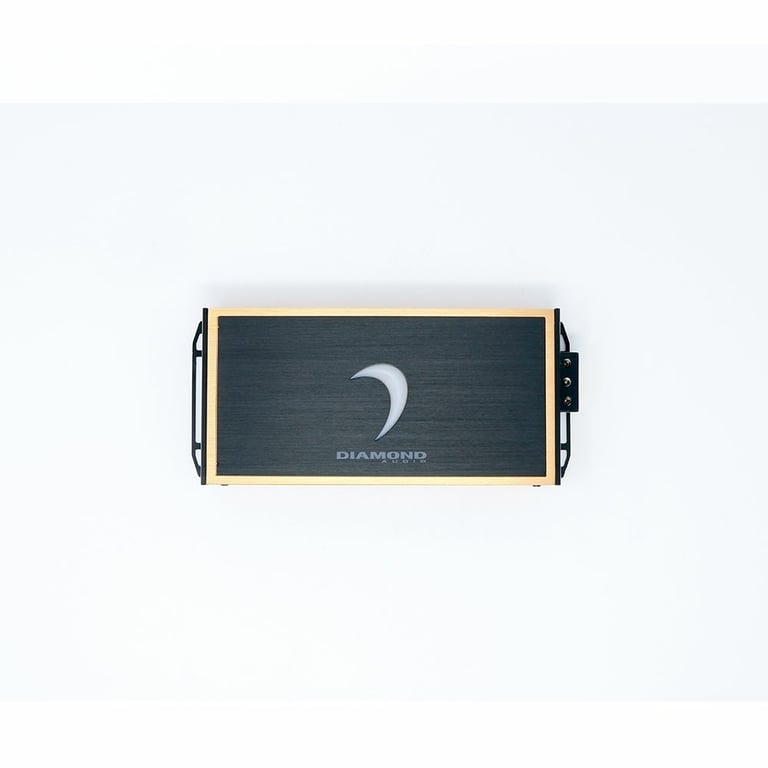

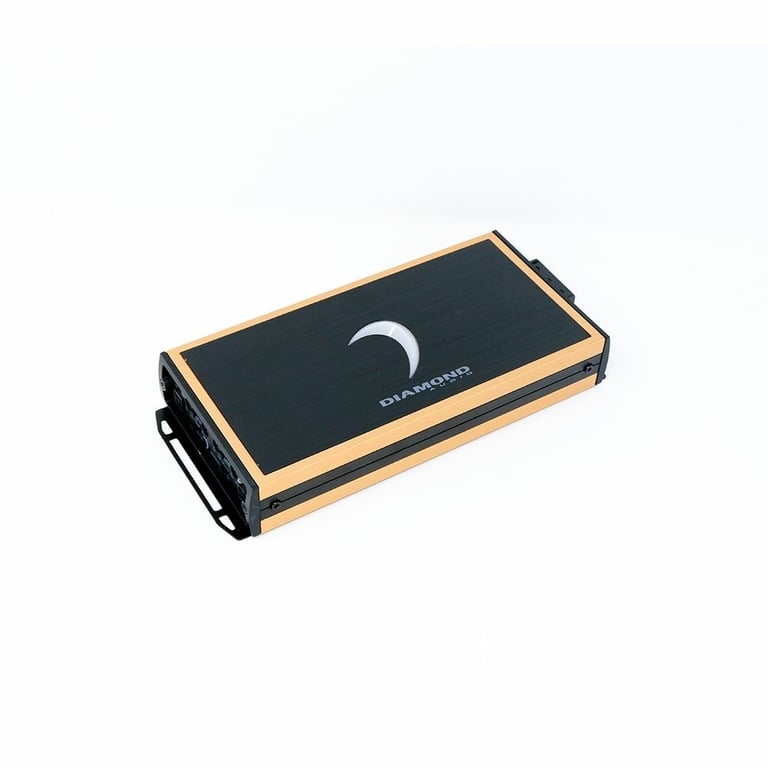

• Micro Series Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 85 watts x 4 channel
• 2 ohm: 125 watts x 4 channel
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS power output: 660 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• DirectFET Power MOSFET output stage
• SMD technology on 4-layer glass PC board
• Conformal coated PCB assembly for added water resistance
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 10 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 40A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.0" L x 4.06" W x 1.52" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MICRO84U

Product Details:

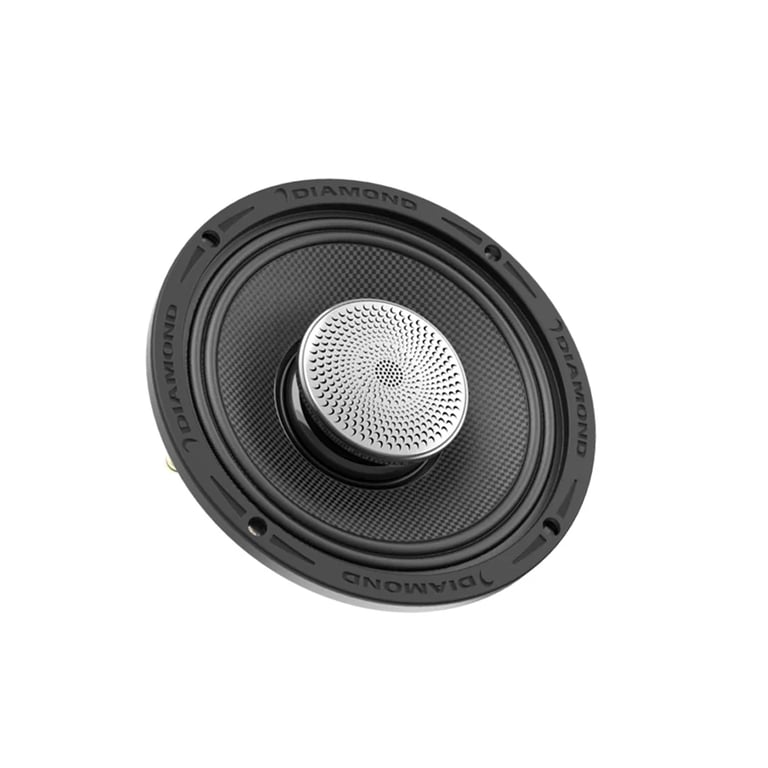

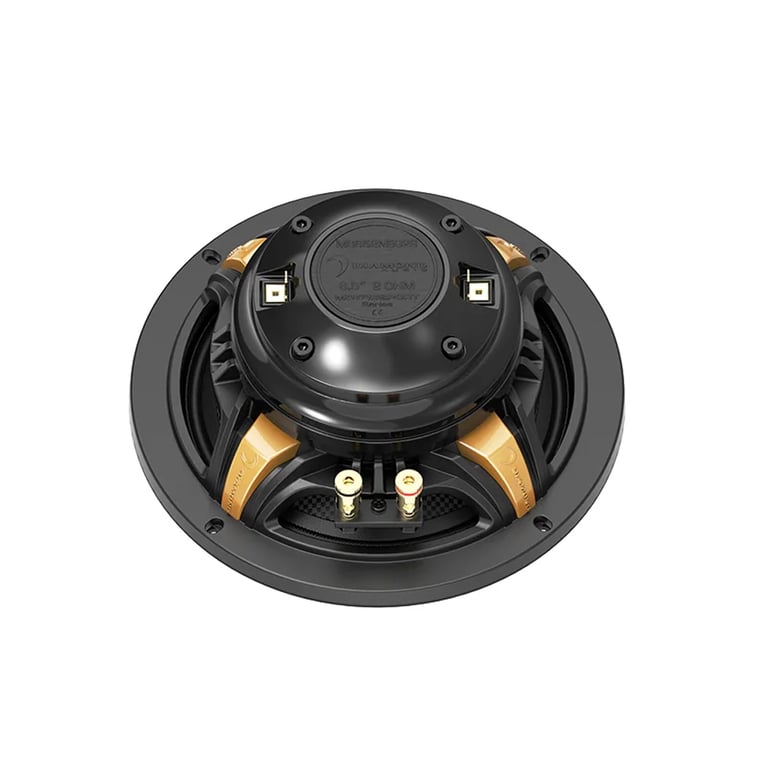

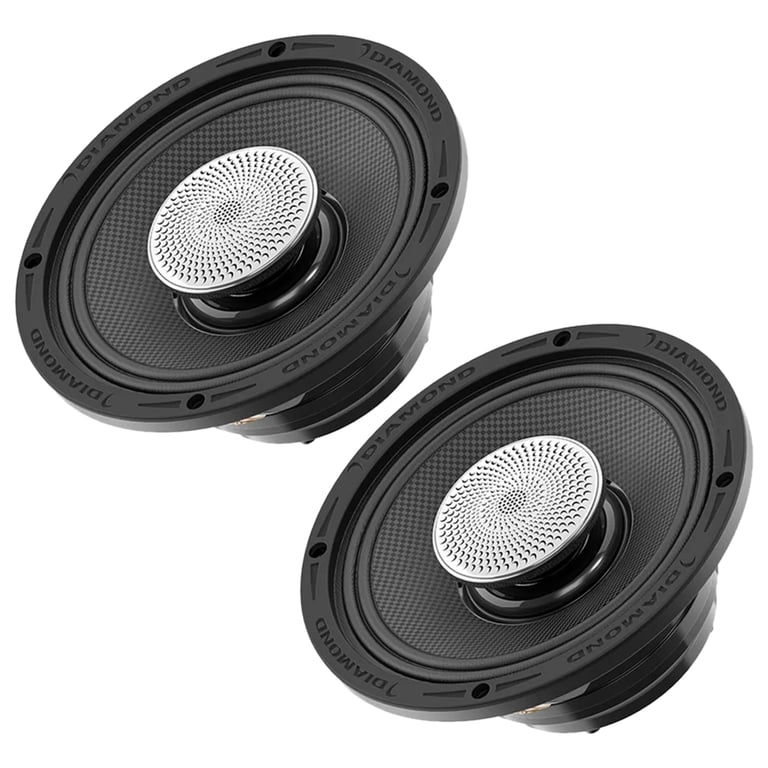

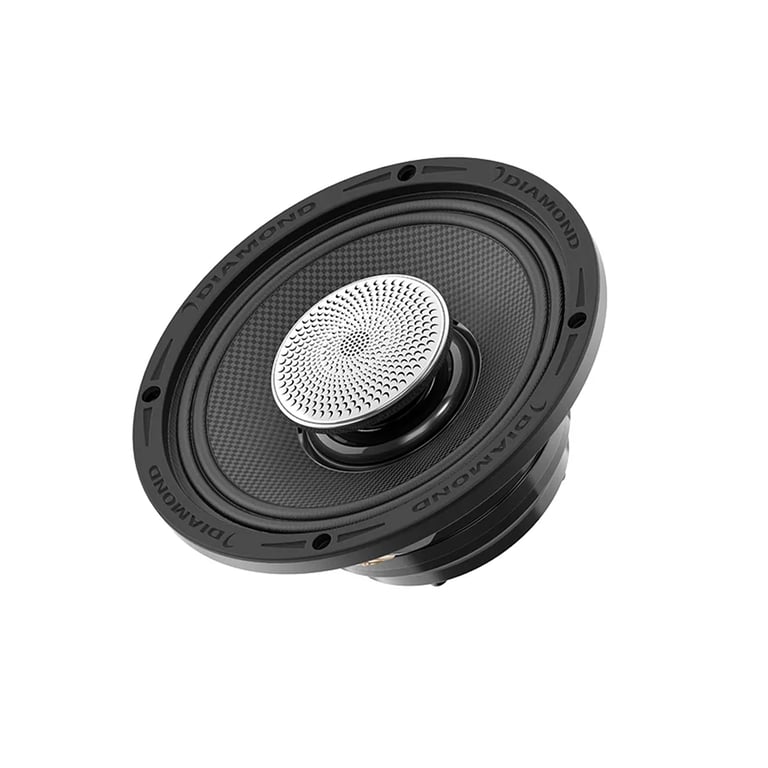

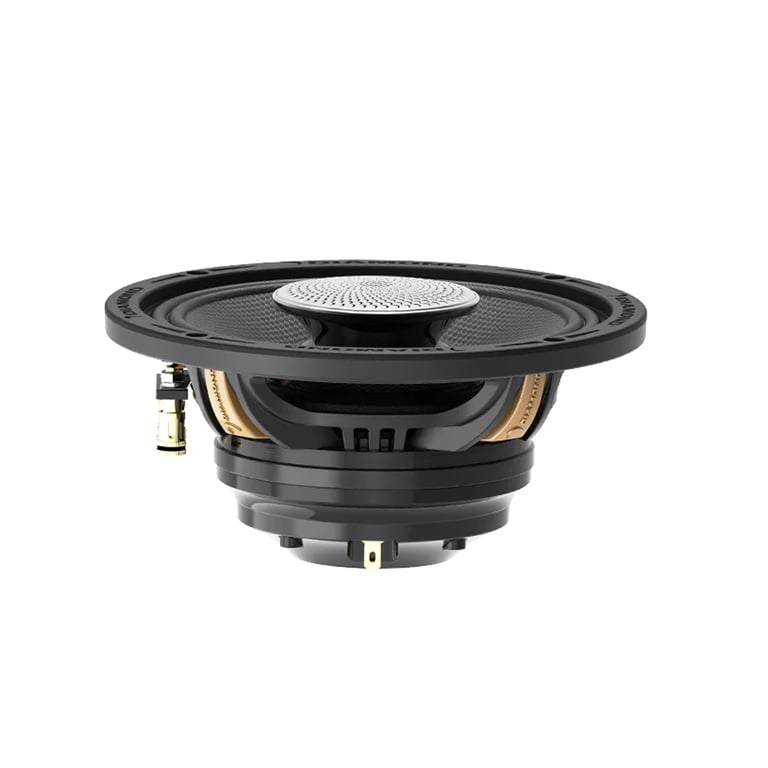

• 6-1/2" MSNEO Series 2-way Coaxial Motorsports Speakers
• Power Handling:
• Peak: 1200 watts per pair / 600 watts each
• RMS: 400 watts per pair / 200 watts each
• Waterproof DUPONT™ Kevlar cone material
• Rubber speaker surround
• Polyethylene-Naphthalate Horn Tweeters
• 2" High temperature coated voice coil
• Neodymium magnet motor structure
• Shallow mounting depth for tight applications
• Heavy duty industrial cast aluminum basket
• Bi-ampable for DSP tuning or use with separate amplifier channels
• Field serviceable tweeter voice coil
• Fully waterproof for extreme applications
• Highest output motorsports speaker
• Top-mount Depth: 2.74"
• Cutout Dimensions: 5.43"
• Impedance: 2 ohm
• Frequency Response: 180 - 20000 Hz
• Sensitivity: 95 dB
• Authorized Internet Dealer
• MFR #: MS652NEO2S
• 1-year Manufacturer's Warranty



Priced Per Pair

Product Features:

• Compatible with select 2014-2023 vehicles from Harley Davidson

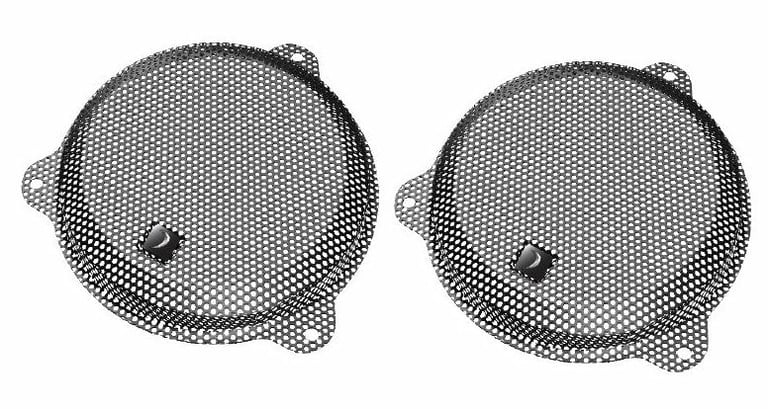

• Metal mesh upper fairing speaker grilles
• Embossed Diamond Audio logo for custom look
• Durable, OEM and factory quality construction
• Rugged construction, long lasting protection
• Protects speakers from debris and dust
• Easy installation, no cutting or modification required
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Sold in Pairs

Product Details:

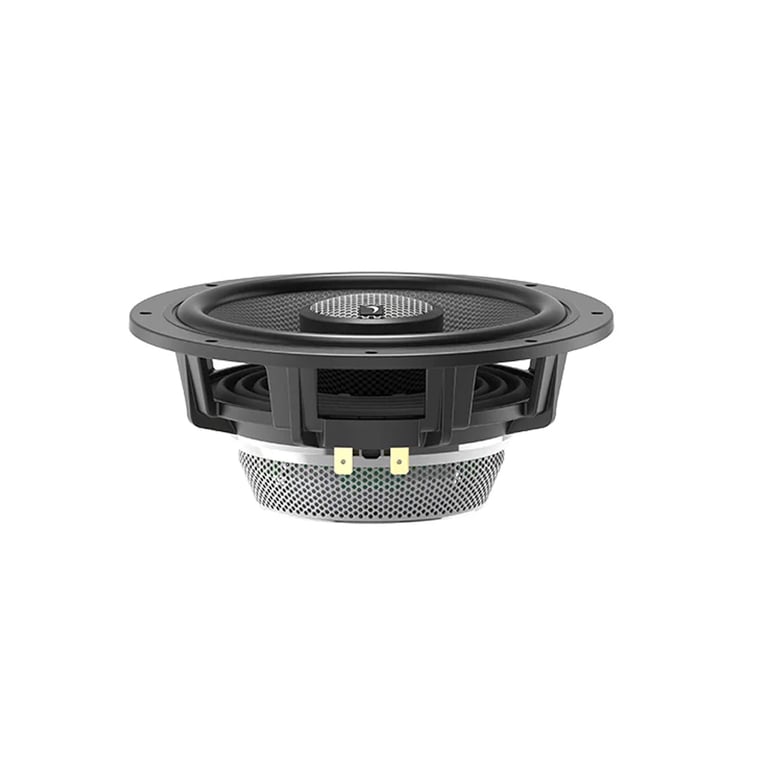

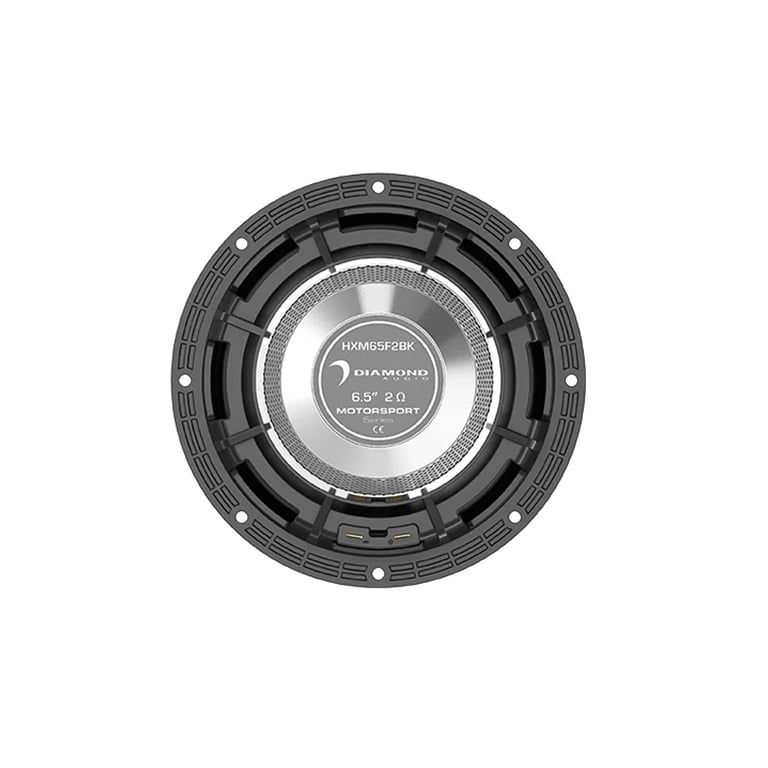

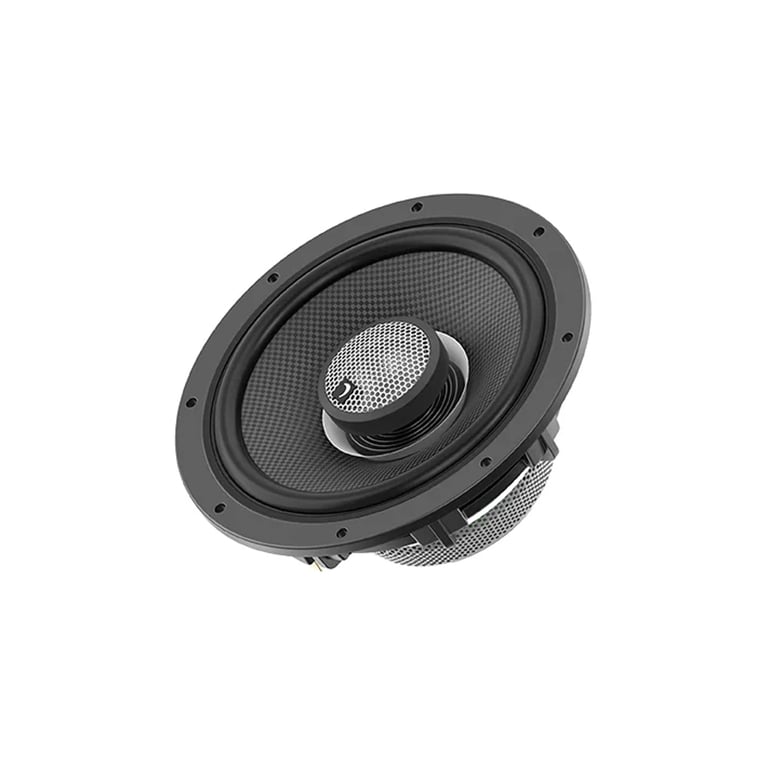

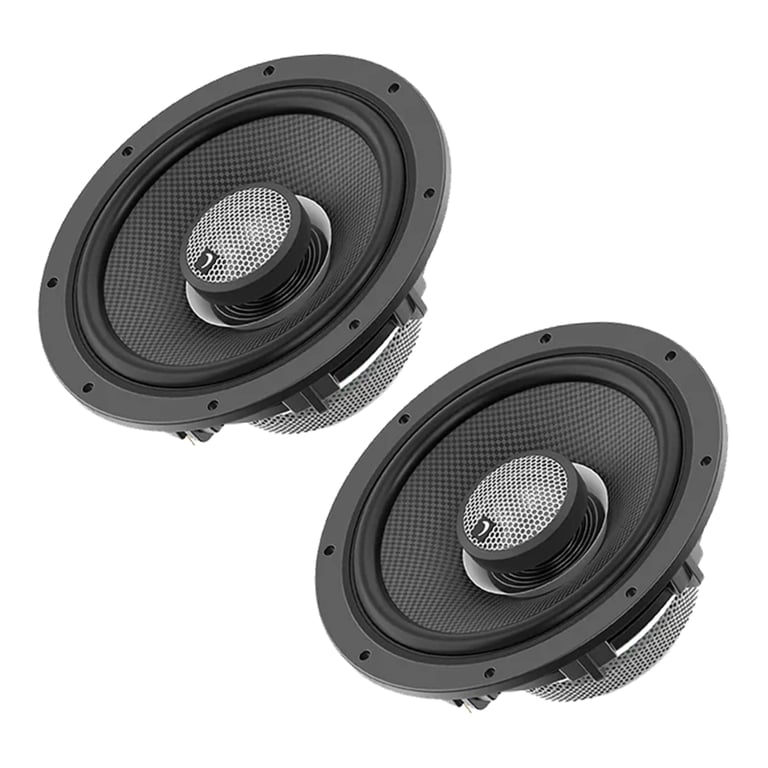

• 6-1/2" HXMF Series 2-way Coaxial Marine Speakers
• Power Handling:
• Peak: 750 watts per pair / 375 watts each
• RMS: 250 watts per pair / 125 watts each
• Carbon Fiber cone material
• Rubber speaker surround
• 1-1/2" Titanium Dome Tweeters
• 1.5" High temperature voice coil
• Ultralight neodymium magnet motor structure
• Motor structure includes max xmax suspension
• Flush or back mount design
• Water spray and salt water resistant, 100% UV stable
• Light weight injection molded composite basket
• Top-mount Depth: 2.51"
• Cutout Dimensions: 5.43"
• Impedance: 2 ohm
• Frequency Response: 110 - 20000 Hz
• Sensitivity: 95 dB
• Authorized Internet Dealer
• MFR #: HXM65F2BK
• 1-year Manufacturer's Warranty



Priced Per Pair

Product Details:

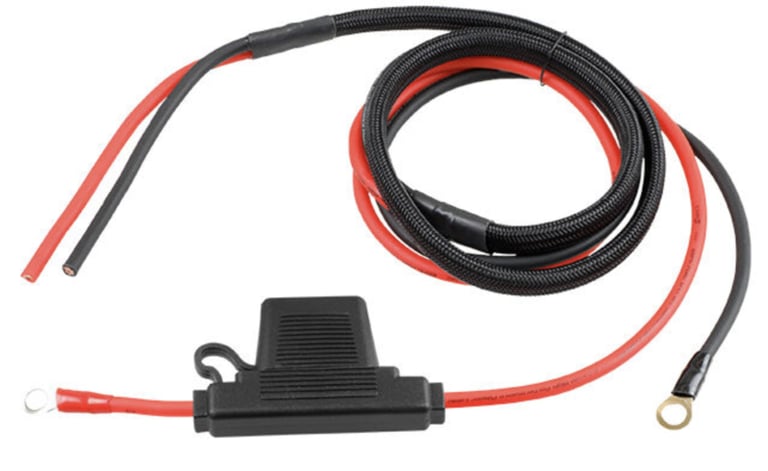

• 8 gauge Complete Power Amplifier Installation Kit
• Designed specifically for motorcycle audio systems up to
• Premium power and ground wire provides optimal power transfer
• Made from OFC (100% Oxygen-Free Copper)
• Complete power kit for fairing mounted amplifier on any Harley Davidson or bikes
• Easy connection of ring terminals to battery
• Terminals are Nickel for excellent signal transfer
• ATC Fuse holder offers ideal protection for powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

1. 6 feet of 8 gauge red power cable
2. 5 feet of 8 gauge black ground cable
3. 1 feet of 18 gauge blue remote turn-on wire
4. 3 feet braided loom to cover wire from battery to fairing
5. (1) 8 gauge in-line ATC fuse holder
6. (1) 60A ATC maxi fuse
7. (1) 8 gauge red ring terminal installed
8. (1) 8 gauge black ring terminal installed

Product Features:

• Compatible with select 2014-2023 vehicles from Harley Davidson

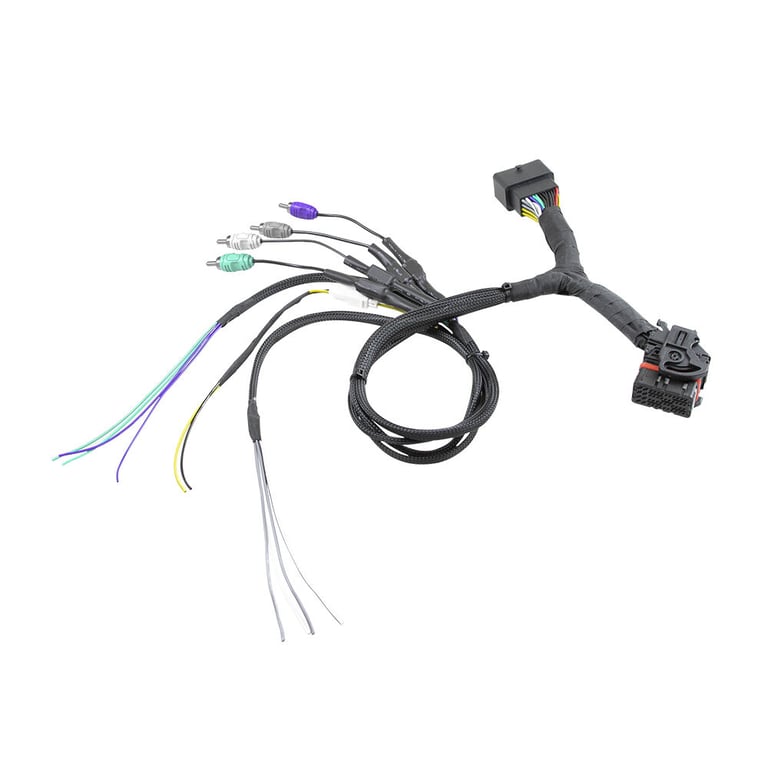

• 4-Channel Input with Load Resistor and 4-Channel Output T-Harness Kit
• Designed for both amplified and non-amplified factory systems
• Four RCA outputs and four speaker level inputs with load resistor
• Aftermarket replacement harness function
• Retains RAP (Retained Accessory Power)
• Direct plug and play installation, no major modification required
• Can be used with: Diamond Audio MSBYPLG (sold separately)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Features:

• Compatible with select 2014-2023 vehicles from Harley Davidson

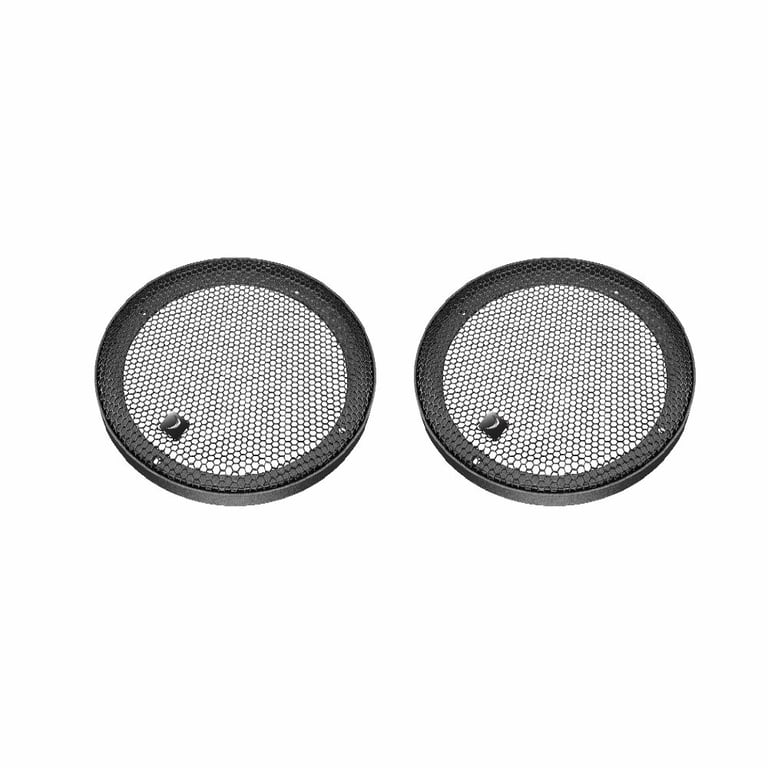

• Universal speaker mesh grilles
• Designed to fit a wide range of 6.5" speakers
• Embossed Diamond Audio logo for custom look
• Rugged construction, long lasting protection
• Protects speakers from debris and dust
• Easy installation, no cutting or modification required
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Sold in Pairs
