See all parts that fit your 2017 Navigator

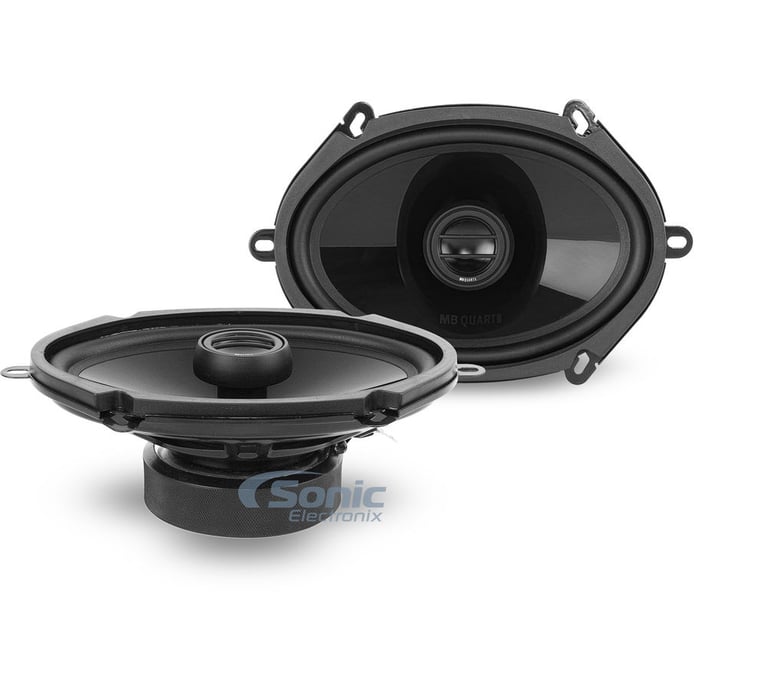

MB Quart ONX157

240W Peak (100W RMS) 5" x 7" / 6" x 8" ONYX Series 2-way Coaxial Speaker System

MB Quart
Shop all MB Quart
highlight-star-icon

• RMS: 100 watts Per Pair / 50 watts Each
• Gloss Piano Black Polypropylene Cone
• 30mm WideSphere Titanium Dome Tweeter

Learn more about the onx157

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

Description


MB Quart brand icon

Authorized dealer

Buy with the NVX SDSK2 Sound Dampening Kit and Save $5.00!


Click here to buy the combo package!
Hard as Rock Yet Eloquent as Ivory

Speakers are extremely important when it comes to the recreation of high quality sound from CDs, MP3s, radio signals and more. MB Quart engineers built the all new Onyx series speakers from the ground up to be an affordable speaker with the audiophile and performance enthusiast in mind. This series is composed of value-packed 2-way and 3-way speakers that are constructed of the same superior technology in MB Quarts other lines. All Onyx Speakers come elegantly designed with a glossy black piano finish woofer cone and rubber surround. The stamped steel basket touts black high-gloss paint to accent the polypropylene woofer cone and contrasts well with the red progressive cotton spider. Matching these speakers perfectly the line of Onyx Amplifiers shows off the same piano black finish applied to their heatsinks and outer casing. No need to find a match maker, it’s already been made.

You won’t find a lack of features at this price point. Onyx series speakers come equipped with 30mm WideSphere titanium dome tweeter with matching piano gloss finish. The piano black polypropylene cone is suspended by a rubber surround that allows rapid movement to hit all notes. The crossover system has been designed to filter out unwanted frequencies and supply the tweeter and midrange with the power they desire. Tweeter attenuation on the crossover allows 0db, -3db and -6db steps so you can tune your system the way your ears want to hear it. Top it off with a black smoked crossover case to continue with the sophisticated theme and you have yourself Onyx series speakers.

General Features:
  • 5" x 7" / 6" x 8" Onyx Series Coaxial Speakers
  • Power Handling:
    • Peak: 240 watts per pair / 120 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Recommended power range: 10 - 50 watts RMS per channel
  • Gloss piano black polypropylene cone for accurate sound reproduction
  • Rubber surround adds durability and more linear movement
  • 30mm WideSphere titanium dome tweeters
  • Rugged stamped steel basket complements speaker design
  • Impedance: 4 Ohm
  • Sensitivity: 90 dB
  • Frequency Response: 40 - 32,000 Hz
  • 4 ohm impedance
  • Large magnet structure

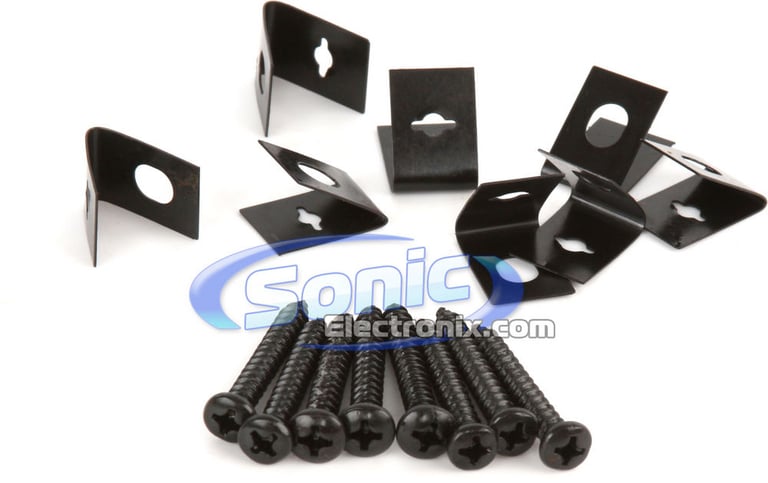

  • Includes mounting grille and hardware
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Priced Per Pair


Best selling similar products

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

REF687F small

Infinity REF687F (INFSPKRF687FUS)

• 180 watts Peak Each, 60 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(1)

$129.95

List price $159.95

JS68K small

Jensen JS68K

• 250 watts Peak Each, 60 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$139.99

List price $139.99

P1683 small

Rockford Fosgate Punch P1 P1683

• 130 watts Peak Each, 65 watts RMS Each
• 3/4" tweeter and 1/2" super tweeter PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(85)

$109.99

List price $109.99

VTEK-57Xi small

Earthquake Sound VTEK-57Xi

• 400 watts RMS Each
• 3/4" Silk Dome swiveling tweeters
• Glass Fiber cone material
• Impedance: 2 ohm
• Sensitivity: 90 dB

$129.99

List price $169.00

NSP68 small

NVX NSP68

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.63"

(59)

$79.99

List price $95.99

PK1-168 small

MB Quart PK1-168

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 88.5 dB

$129.99

List price $189.99

VSP68 small

NVX VSP68

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.59"

(46)

$89.99

List price $107.99

46CSC684 small

Kicker CSC68 (46CSC684)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material with EVC™ (Extended Voice Coil) technology
• Impedance: 4 ohm
• Sensitivity: 90 dB

(11)

$79.96

List price $119.99

H7683 small

Cerwin Vega H7683

• 360 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(50)

$79.99

List price $95.99

Specifications & Details


Speaker Specifications
Series
ONYX Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
5" x 7" (also mounts in most 6" x 8" locations)
Design
2-way Coaxial
Tweeter Design
Inverted Dome
Tweeter Composition
Titanium
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
120 watts
RMS Power Handling
50 watts
Sensitivity
90 dB
Frequency Response
40 - 32,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-9/64"
Bottom-Mount Depth
2-7/16"
Cutout Dimensions
5" x 7-3/16"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ONX157

Weight:

5.50lbs

Internal SKU:

onx157

Internal Product ID:

23080

Customer Ratings & Reviews


MB Quart ONX157 thumbnail image

5 star
45%
4 star
36%
3 star
9%
2 star
9%
1 star
0%



Durability
3.8
Value
4.4
Features
3.8
Design
4.5
Usability
4.3

Customer Reviews

Sort by:

Loading...

MB QUART ONX 157

Great speaker for the money. Definitely an entry level Quart but great sound reproduction non-the-less. I wasn't going for professional level audio just something better than stock. I have a ford pickup and WOW did these speakers wake up that factory deck. I'd say not only a clarity/detail improvement but a Volume level improvement aswell. The only thing they lack is bass but really its a 5x7 what do you expect. (Also I'd like to add the placement and size of cab are not lucrative to good bass. Oh and they are a million times better than the factory speakers.)

By N/A on November 10, 2010

38 found this helpful


Solid Speaker for the Money

I got these speakers for my "budget" system replacing the stock speaker setup in my '02 Forester. I've been building up my system in stages first replacing the head-end with a Kenwood KDC-X596 (excellent!!!). I've since added the MB Quart ONX216 separates for the front and purchased the ONX157s as fill speakers in the rear doors kick panels. As the stock rear speakers are a bit odd 4-1/2 size, it took some significant cutting and fabrication to fit the space.

The effort was well worth it. As expected, the ONX157 are a far more efficient than the speakers they replaced. The mid-bass response really rounds out the sound, but I have to admit that I'm a bit surprised at the lack of high end reponse from the 30mm tweeters. I'm sure its location so low and forward in the rear doors don't help. Clarity and detail are impressive for a "budget" 2-way. I'm expecting performance to improve once they break in.

I'll be adding an amp (ONX4.60) and an 8" sub to complete the system. I had planned to run the fronts and sub off the amp and continue to run the rears from the receiver (22w), but they may need a bit more power to improve imaging and soundstage.

The ONX157 speakers are a solid value-for-money. The construction and build quality are about as good as it gets. The magnet size is considerable and immediately reassures that you've got a quality product. Highly recommended.

By SkidMarc on October 30, 2012

32 found this helpful


YES!!!

Everytime i turn my radio on I pee a little from over-excitment

By peepants on April 8, 2015

22 found this helpful


Pretty good little speakers...

For $35 bucks, you cant go wrong. Just understand they are not worth the "retail" of $130. No way. But solid great sounding unbeatable speakers for $35 any day.

They look great. Sound very good too.

Tested on 100 watts and installed on 22 watt head unit. Sounded great on both.

The magets are huge for the size also.

Cons:

The basket is very, very thin sheet metal. You can actually bend the speaker frame very easy with just your fingers. Yes seriously.

Manufacture quality- well, they are good for the price, but again understand. One of mine had the surround glued to the cone off center and angled. It looks warped. The other one is better but also has its own defects.

They are a little deep, and the front plastic ring is not removable, so bottom mount might be an issue if you need clearance.

Ohh yeah and no grills. Thats ok though. I didnt expect any.

For me, they are fine. They sound 100 times better than stock. Not as good as my good system, but for a work truck, I couldnt be happier for the cost.

Conclusion. Probobly the best $35 speakers out there. For a little bit more though, you can find a better product but at this price, very good.

By B on August 10, 2015 Checkmark Icon Verified purchase

16 found this helpful


sounds clear

The service was quick, accurate and on point .the price can't beat it . The speakers sound loud and clear with the new deck, far better than stock really impressed the tech with the music quality, alot of times you lose the music for the base ....not with these

By luis on May 4, 2015

19 found this helpful


Ok speakers

Average speaker at a good price. Decent mid and low, but a lot of distortion with vocals. It also won't fit in the front doors of a 2012 Mazda 3

By Chris on September 7, 2015

11 found this helpful


Okay for the money, but...

The $35 pricetag should have told me, but sometimes you get more than you pay for in car audio. This however is one of the cases where you pay for what you get...maybe a little less $35 gets you $35 (retail) speakers. They sound okay and that's really all I'm asking of them. I'm using 2 channels of a head unit (22W RMS reported) to use these for rear fills while the front satellites are amped. Actually once I got all my gains set up, I can't really hear these. But when I could, when everything was running off the head unit, they provided decent fill.

I was initially attracted by the construction materials & that I had owned Quart stuff in the past. I discovered on delivery however that Quart isn't the same company they used to be. The mounting tab metal is so thin it made me nervous handling them. That same material makes the basket as well - which is sort of curious. This driver flexes with great ease. I realize that once mounted the flex will be minimized, but with the shape of the basket so easily changed, so goes the shape of the cone.

If I had this do again, I'd leave these on the shelf. They sound okay and will work for a pair of shot factory replacements, but I'm having a hard time recommending these to anyone...even considering pricepoint.

By Beaver on November 23, 2015 Checkmark Icon Verified purchase

3 found this helpful


Decent for the price

The highs have trouble coming out clear when turned up. Mids and lows are alright. Still a lot better than stock.

By christopher on September 14, 2015

4 found this helpful


MB Quart ONZ157

I put 4 of these 5x7's in my 2012 F150 Supercrew pushed by a Pioneer AVH-X6700DVD. Sounds so good! Really loud and super clear. Don't let the price fool you. These speakers sound great! I wouldn't hook them up to an amp because of their low wattage requirement. Sounded good with the factory head unit. Even better with Pioneer DVD player.

By Tim on October 10, 2015

2 found this helpful


mb quart onyx

Good speakers great for the money sounds clear and precise

By Robert on May 9, 2016
