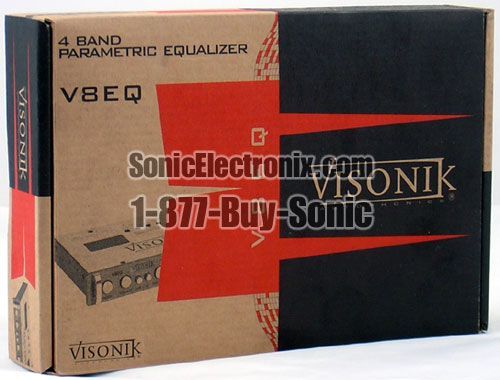

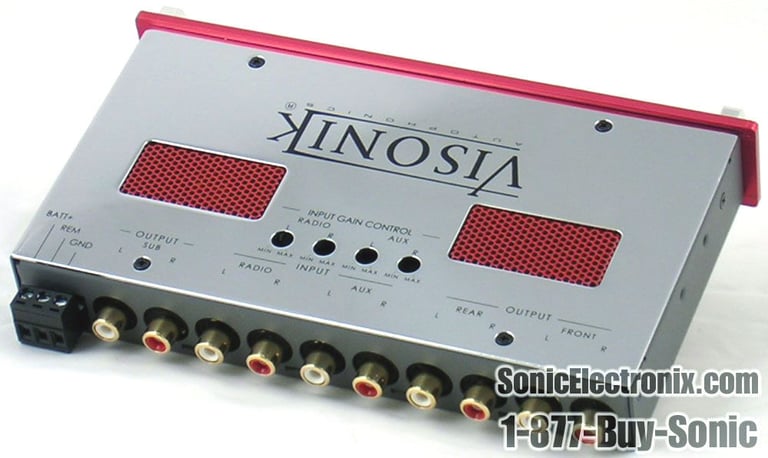

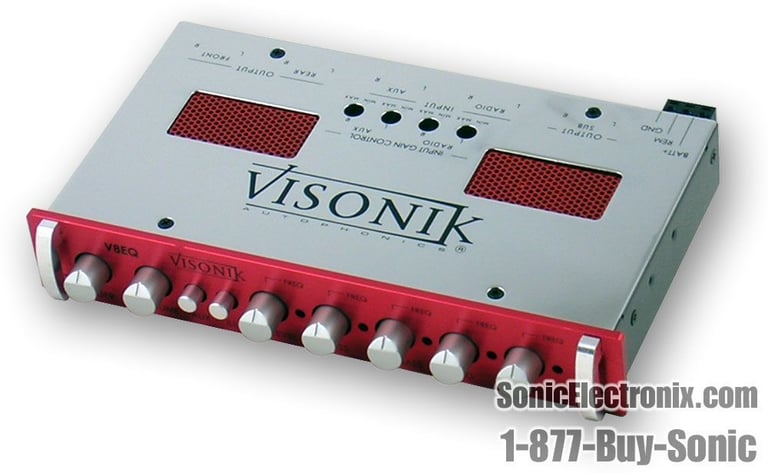

Visonik V8EQ

4-Band Parametric Equalizer with Subwoofer Output

Visonik
Shop all Visonik
Product videos
highlight-star-icon

** CLOSEOUT PRICE! WAS $189.99! **
4 Band Parametric Equalizer with 18 dB Boost Cut • gold-plated RCA connectors • aux/head unit input selector • front, rear, and subwoofer outputs • universal half-DIN mounting

Learn more about the v8eq

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Product Highlights


** CLOSEOUT PRICE! WAS $189.99! **
4 Band Parametric Equalizer with 18 dB Boost Cut • gold-plated RCA connectors • aux/head unit input selector • front, rear, and subwoofer outputs • universal half-DIN mounting

Description


Visonik brand icon

Authorized dealer

  • 4 Band Parametric Equalizer with 18 dB Boost Cut
  • Volume control with up to 7 volts RMS of output
  • Gold-plated RCA Connectors
  • Retractable, spring-loaded control switches for easy level adjustments (see other pictures)
  • Specific variable bandwidths for each band
  • Low noise BI-FET op-amp design yields minimum distortion
  • On-board 30V Bi-polar switching power supply
  • Front, rear and subwoofer outputs
  • Subwoofer outputs with level controls
  • Adjustable subwoofer frequencies (50 - 250Hz)
  • Auxiliary / Head-Unit input selector
  • Universal Half-DIN chassis for easy installation in-dash (with compatible vehicle/head-unit) or remote-mountable
  • 20 dB headroom eliminates signal overload
  • Electronic Crossover Frequency:
    • Subwoofer Low Pass: 50 - 250Hz
    • Crossover Slopes: -12 dB / octave
  • Dimensions (W x H x D): 7.25" x 1.3" x 3.82"
  • 2-year Authorized Manufacturer's warranty

Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

Specifications & Details


Equalizer Specifications
Equalizer Bands
4 band
Equalizer Frequencies
Sub (20-60Hz), Low (120-300Hz), Mid (1.0-2.4kHz), High (7-20kHz)
Signal Boost/Cut
+/- 18 dB
Max Output Level
7.5 volts RMS volts
Frequency Response
10 - 150000 Hz
THD (Total Harmonic Distortion)
0.005%
Signal-to-Noise Ratio
110 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

V8EQ

Weight:

4.00lbs

Internal SKU:

v8eq

Internal Product ID:

2309
