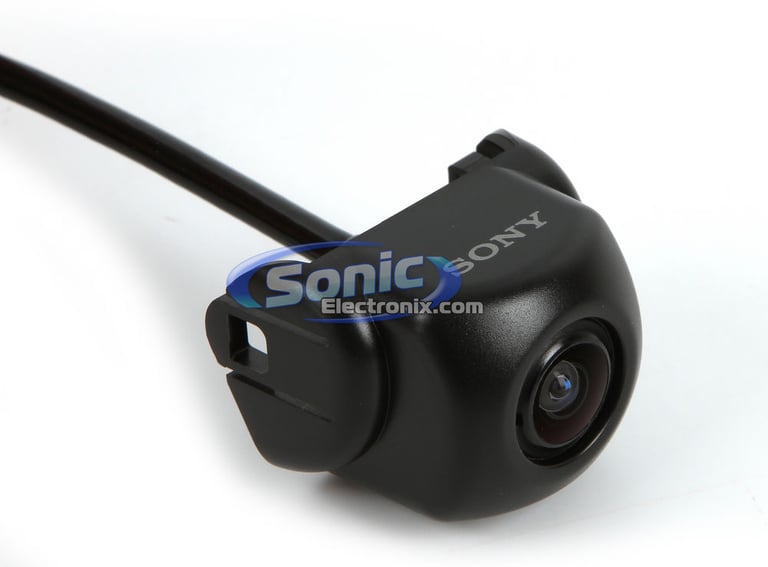

Sony XA-R800C

Backup Rearview Camera w/ 1/4" CCD Sensor and Adjustable Viewing Angle

Sony
Shop all Sony
highlight-star-icon

• Wide Viewing Angle
• 1/4" CCD Sensor
• Uses a RCA Composite Video Output
• Variable Viewing Angles
• Durable and Weatherproof Camera Housing
• Reverse Switch

Learn more about the xar800c

We apologize

This item has been discontinued


Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

Limited time!
R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34
-11.11%

$39.99

List price $44.99

JBL SHOCK WAVE 150W65 (JBLSPKSW150W65)

600W Peak (300W RMS) 6.5" Shock Wave Series 4-ohm Midrange Speakers

5
-7.70%

$119.95

List price $129.95

Limited time!

JVC CS-J6820

500W Peak (60W RMS) 6x8” J-Series 2-way 3-ohm Coaxial Car Speakers

3
-36.72%

$49.99

List price $79.00

Description


Sony brand icon

Authorized dealer

A New Level Of Visibility

See what is behind you as you reverse your car, truck or SUV with this rear view camera. It's designed for use with compatible car audio units. Improve your view while backing up and see what's behind you with the XA-R800C rear view camera. Ideal for larger trucks or SUVs, this convenient rear view camera solution offers flexible mounting options with adjustable tilt, and features 138 degrees horizontal and 92 degrees vertical viewing area for increased visibility. Compatible with select car audio units.

&nbsp

&nbsp

Product Features:

  • Sony Rear View Backup Camera
  • Designed specifically for use with Sony A/V units
  • See what is behind you as you back up your car
  • Perfect for larger vehicles like SUVs, trucks, and vans
  • Wide viewing angle helps you see more of what is behind you
  • Uses a 1/4" CCD sensor for excellent detail

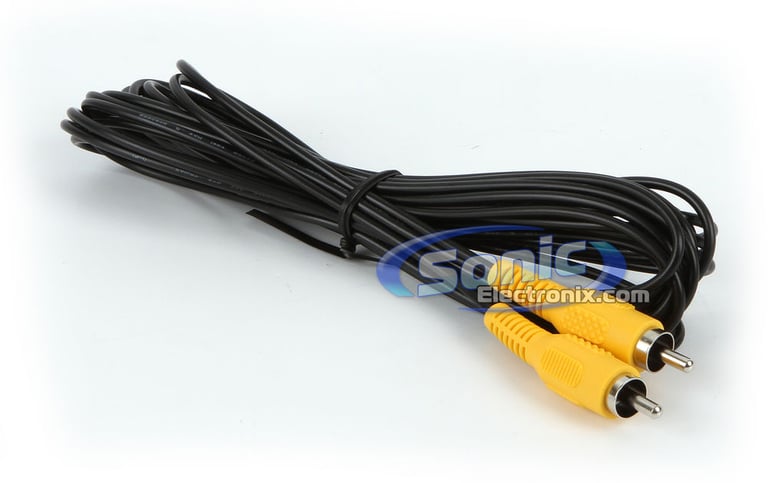

  • Connects to most video sources that use RCA composite video inputs
  • Remote mount system allows the camera to be installed anywhere and on any vehicle

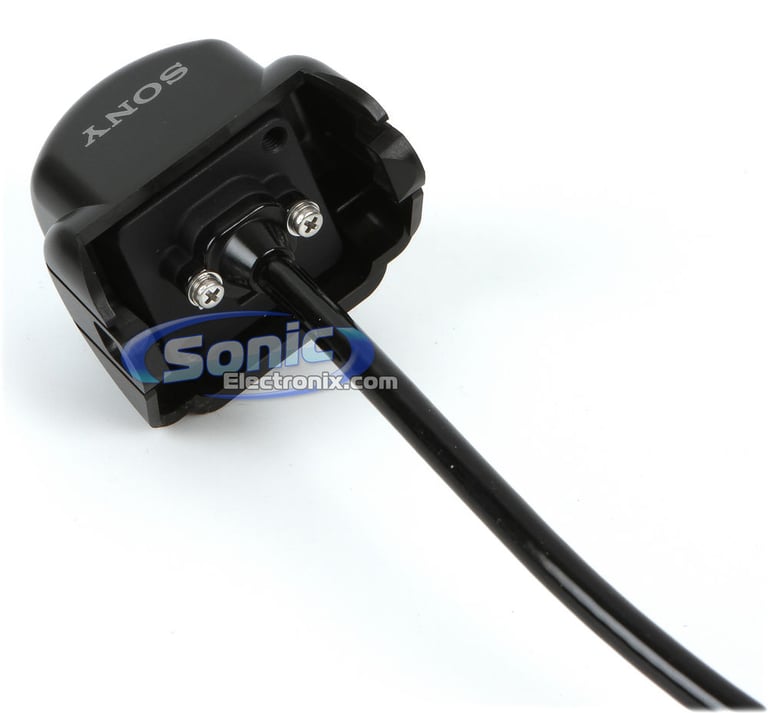

  • Camera housing is small, black, and durable
  • Adjustable viewing angle help you see the most of what is behind you

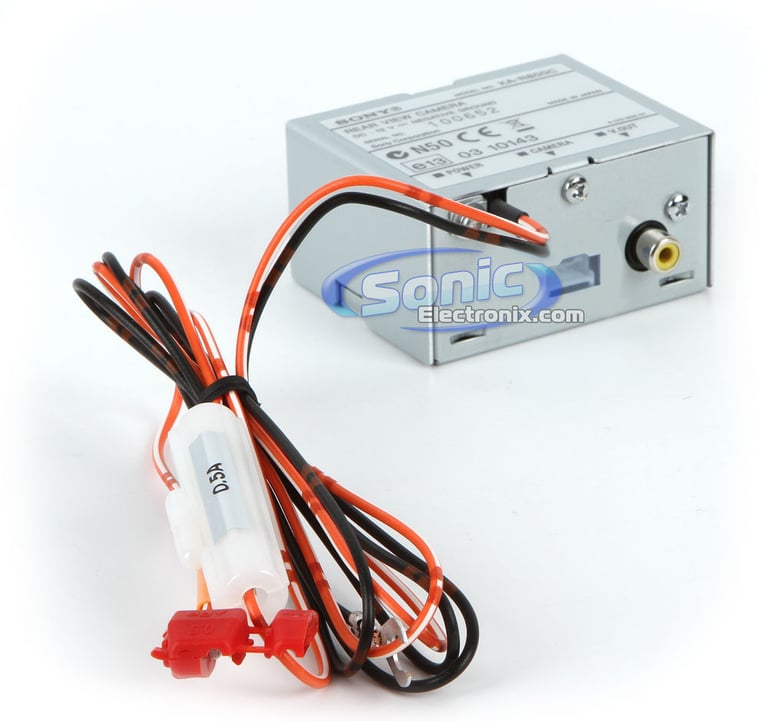

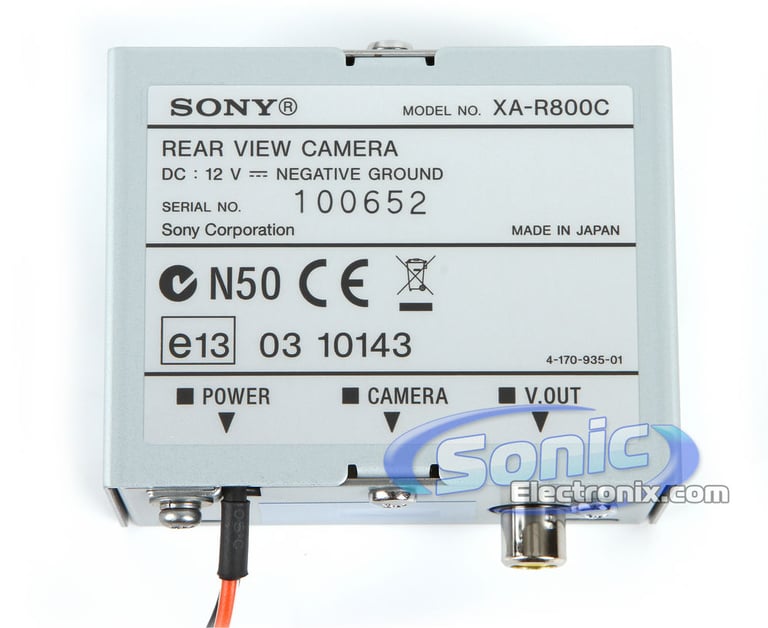

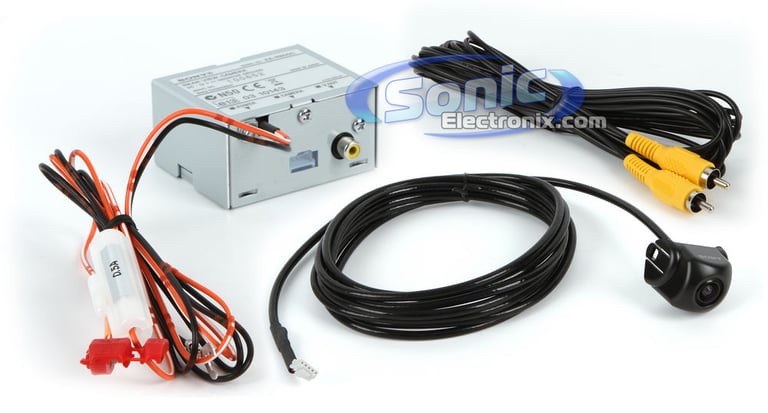

  • Uses an external power box (included)
  • Reverse switch turns the camera on when the vehicle is put in reverse

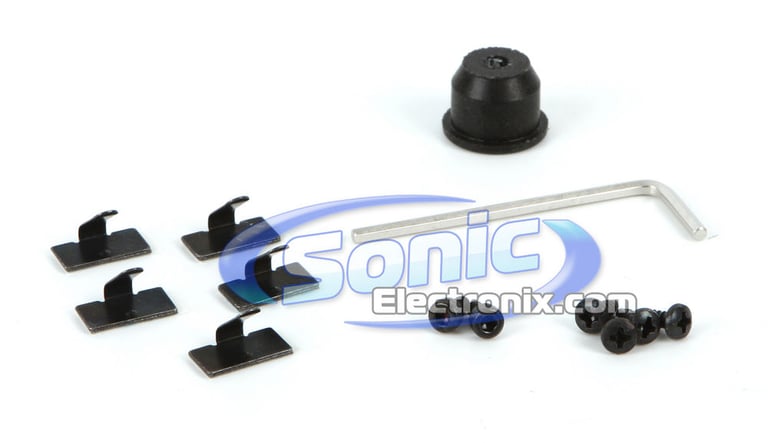

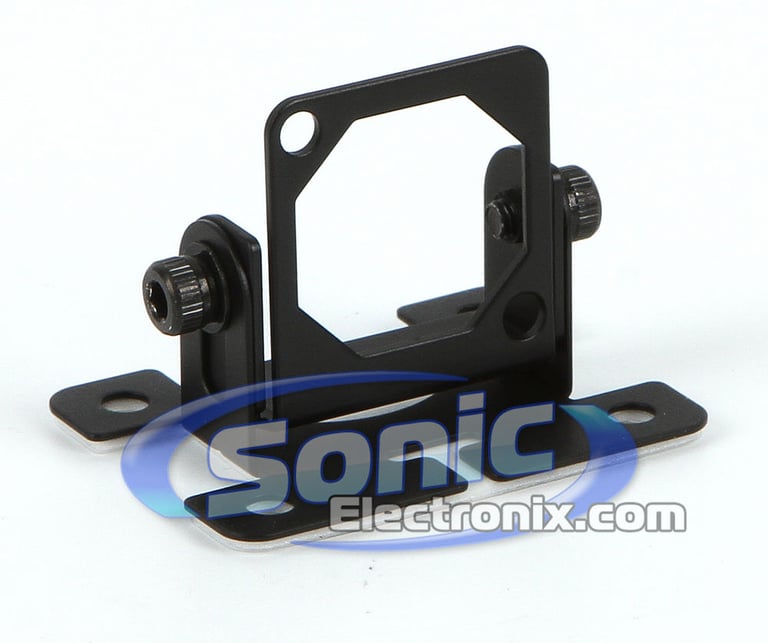

  • Includes all necessary mounting hardware
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product Features:

  • Sensor: 1/4" Color CCD
  • Aspect Ratio: 16:9
  • Viewing Angle:
    • Horizontal: 138 Degrees
    • Vertical: 92 Degrees
  • Signal-to-Noise Ratio: <40 dB
  • Lens Focal Length: f=1.22 mm
  • Lens F Value: F=2.8
  • Horizontal Resolution: Approx. 300 Lines
  • Illumination Range: Approx. 1-100,000 lux
  • Video Output: NTSC mirror image
  • Power Requirement: 12V DC Negative ground
  • Operating Temperature: -30 to 60 C (-22 to 140 F)
  • Dimensions (Camera): 29/32"D x 15/16"W x 15/16"H
  • Dimensions (Power Supply Unit): 2-1/4"D x 2-7/8"W x 1-7/16"H

Compatible Sony Receivers:
