100W 7.7" (196 mm) M-Series Marine Tower Component Woofer
• 100 Watts RMS Each

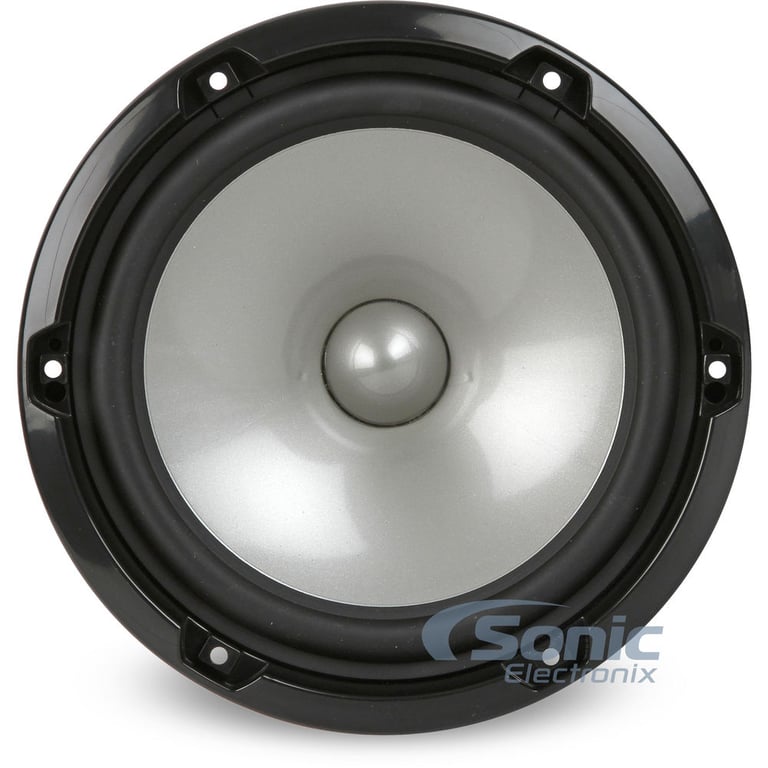

• Injection-molded, mica-filled polypropylene cone with UV inhibitors w/ Synthetic rubber surround
• 4 Ohm Impedance
• Sensitivity: 91.0 dB
• Mounting Depth: 3.15 "
• Frequency Response: 45 Hz - 5 KHz ± 3 dB
600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers
$79.96
List price $119.99
900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers
$111.96
List price $159.99
360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers
$99.95
List price $139.95
600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers
$109.00
List price $119.99
150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers
$79.95
List price $109.95
480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)
$84.99
List price $94.99
280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers
$56.99
List price $71.99
600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers
$49.99
List price $59.99
• 100 Watts RMS Each
• Injection-molded, mica-filled polypropylene cone with UV inhibitors w/ Synthetic rubber surround
• 4 Ohm Impedance
• Sensitivity: 91.0 dB
• Mounting Depth: 3.15 "
• Frequency Response: 45 Hz - 5 KHz ± 3 dB

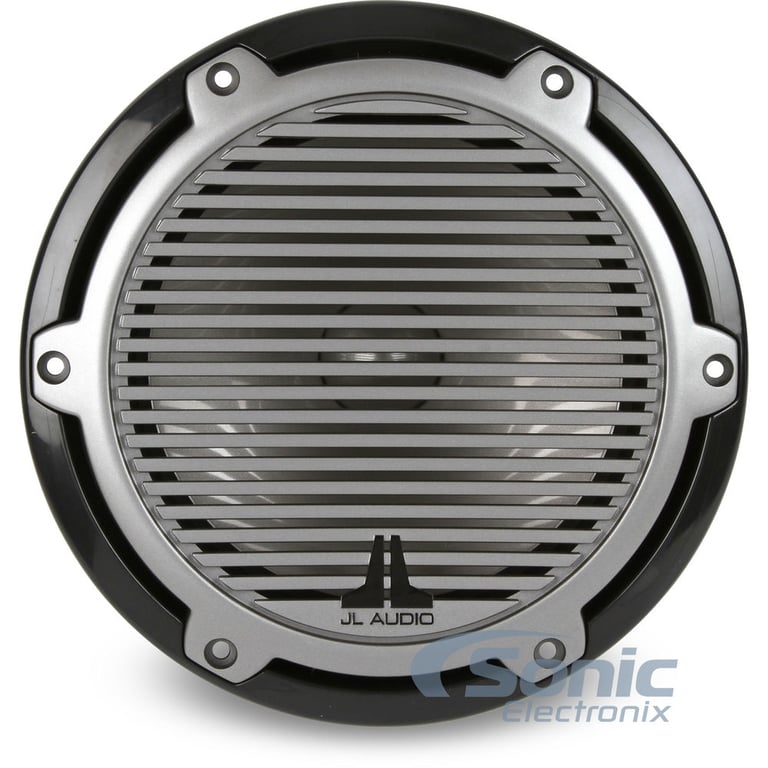

Please note: This listing is for a single component woofer with an attached 2-way, passive crossover network and a grille. No tweeter is included.
The unique 7.7" diameter of the component woofer provides 20% more surface area, than the typical 6.5", therefore providing an increase in efficiency as well as the ability to play louder and cleaner at high volumes. Although these woofers require a slightly larger mounting hole, they are well worth the small modification for the amount of sound they can produce.

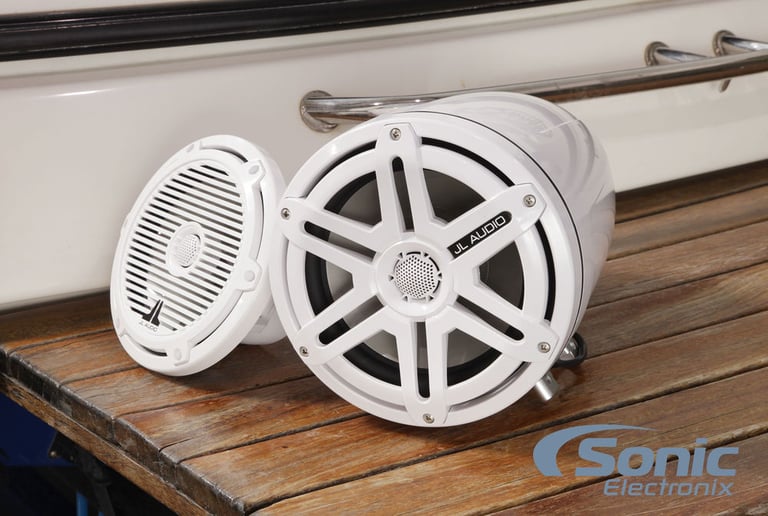

TCW (aka Tower Component Woofer) models are component woofers specifically engineered for enclosed operation. What does this mean? This means that they are designed to operate within an enclosure. More specifically, the woofer design is optimized to operate with a small volume of air behind it (ideally less than 1.5ft³). The bass response of the speaker will suffer significantly if placed in a large enclosure or in an Infinite Baffle (aka "Free Air"), so make sure your system is planned accordingly. The M-Series is purpose-engineered and built for real marine duty and has been specifically designed to deliver maximum audio performance in any open-air boating environment. Although M770-TCW Component Woofers can be used with as little as 40 Watts per channel, for best audio performance JL Audio recommends amplifiers capable of between 75 - 150 Watts of continuous power per channel, like the JL Audio M400/4 or JL Audio MHD600/4.

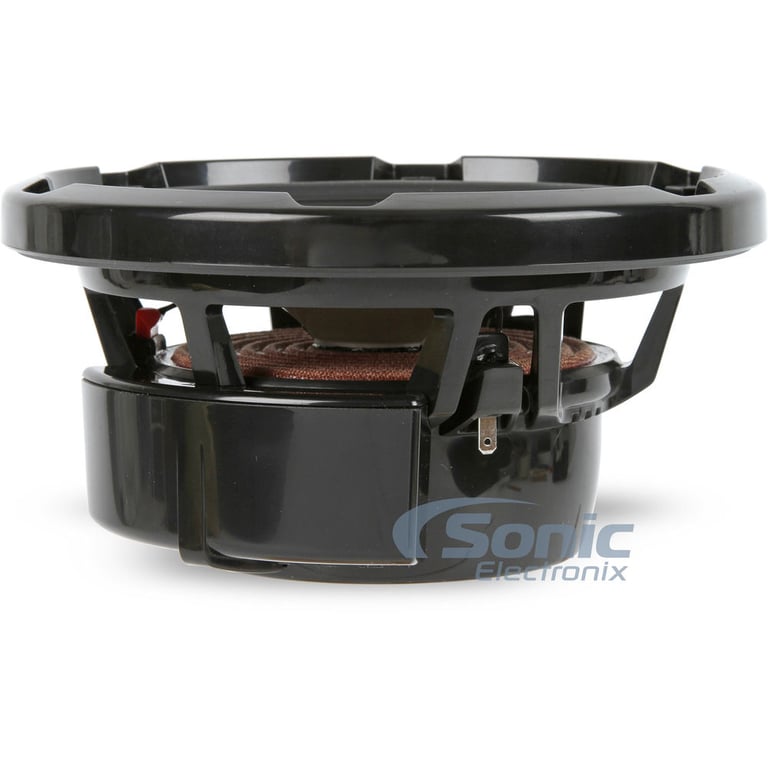

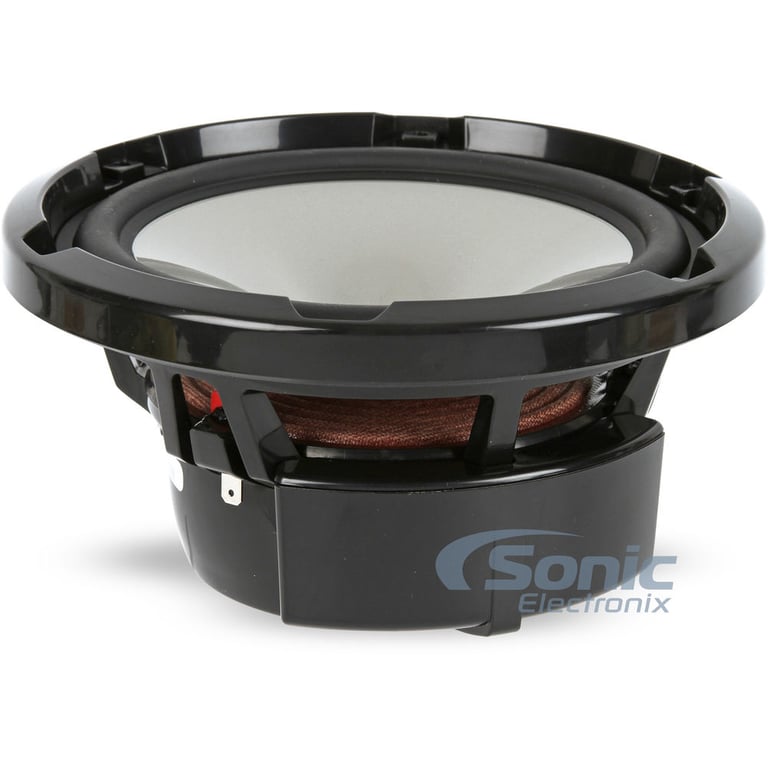

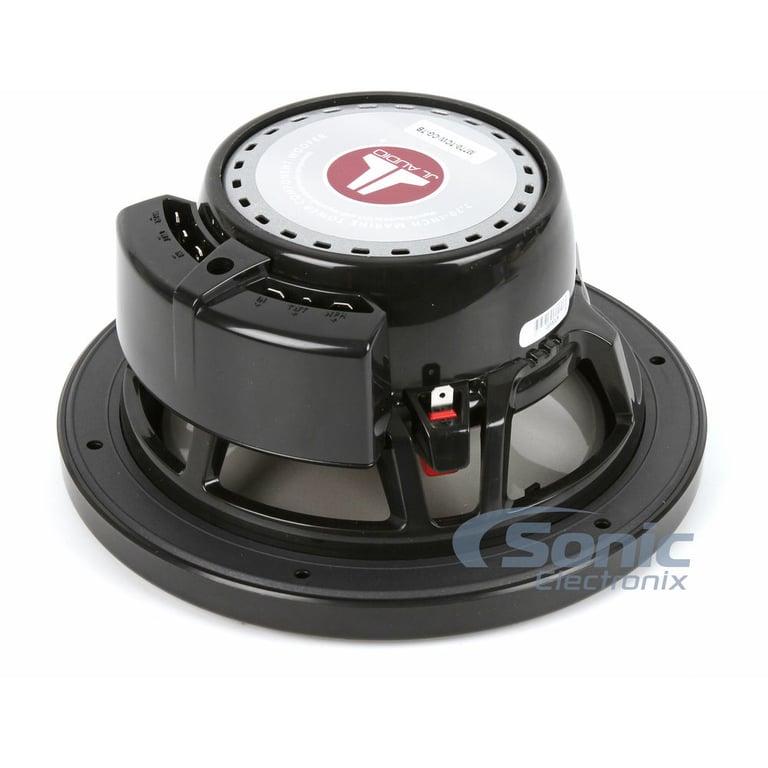

Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion. The system's true 2-way passive crossover network is sealed within the protective capsule and mounted to the woofer's frame so that it does not require additional mounting provisions and is protected from the harmful elements. JL Audio utilizes Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments to ensure that the M-Series not only sound great in your boat, but will also sound great for many, many years.
 |
 |
 |
Priced Individually
Check out the JL Audio M770-TCS Owner's Manual
This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.
