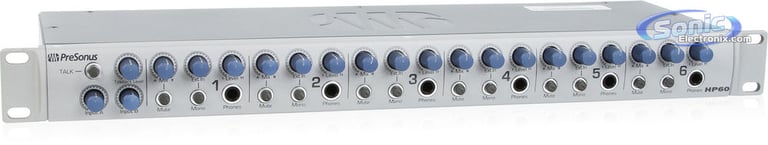

PreSonus HP60

6-Channel Headphone Mixing System With Ultra Low Noise Operation

PreSonus
Shop all PreSonus
highlight-star-icon

• 6-Channel Headphone Mixing System
• Ultra Low Noise Operation
• Two Sets of Stereo Inputs
• External XLR Microphone Input
• Stereo External Input
• Balanced TRS Connectors
• Stereo Output On Each Channel

Learn more about the hp60

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

OL-RS-CH5 main

Omega OL-RS-CH5

Remote Start and Car Alarm System for select 2005-2018 vehicles from Dodge, Jeep, Chrysler

23
-53.00%

$93.99

List price $199.99

RP4-CH11 main

PAC RP4-CH11

Install New Car Stereo and Retain Steering Wheel Controls, Entertainment System, and Other Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-59.63%

$152.99

List price $379.00

MET-CH14 main

Metra MET-CH14

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in

-10.38%

$94.99

List price $105.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

SOOCR-26 main

CRUX SOOCR-26 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-35.71%

$75.60

List price $117.60

99-6510 main

Metra 99-6510 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2005-2009 vehicles from Dodge, Jeep, Chrysler (Black)

11
-41.19%

$19.99

List price $33.99

CDK637B main

PAC CDK637B

Double DIN Stereo Dash Kit for select 2005-2007 300 (Black)

-53.03%

$69.99

List price $149.00

Description


PreSonus brand icon

Authorized dealer

Product Features:
  • PreSonus 6-Channel Headphone Mixing System
  • Ultra Low Noise Operation
  • Two sets of stereo inputs (A and B) with balanced TRS connectors allows you to mix between three stereo audio streams (mix A, mix B, and external input)
  • Stereo external input point on each channel for “more me” with trim control
  • Stereo output on each channel to send line level headphone channel mixes to additional headphone amplifiers or monitor systems
  • Each channel features headphone level, mix control between A and B inputs, external input volume, mute and mono
  • External XLR microphone input provides Talkback
  • 6 independent ultra low noise, high output headphone amplifiers
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Product Specifications:
  • Weight: 8 lbs
  • Dimensions: 5-1/2"D x 19"W x 1-3/4"H
  • Input A: Two 1/4" TRS balanced
  • Input B: Two 1/4" TRS balanced
  • External Input: TRS stereo unbalanced
  • Headphone amplifier output power: 150mW RMS, (60 Ohm) per channel
  • Audio Outputs: 1/4" TRS stereo unbalanced per channel
  • Master Controls: Talk button, Talkback volume, input A, input B
  • Channel Controls: Headphone level, mix A/B control, external input level, mono, mute
  • External Talkback: XLR with TS external control jack
  • Power: IEC, 115V or 230V
  • Power Requirements: 30 Watts
  • Dynamic Microphone Input:
    • Type: XLR Female balanced
    • Input Impedance: 1200 ohm
    • Maximum Gain: 50dB
    • Maximum Input Level: -10dBu
    • Frequency Response: 10-40,000 Hz
  • Input A & B:
    • Type: 1/4" TRS balanced
    • Input Impedance: 10,000 ohm
    • Gain Range: -96dB - +10dB
  • Headphone Outputs:
    • Type: 1/4" TRS active stereo
    • Maximum Output: 150mW/channel @ 60 ohm
    • THD (Total Harmonic Distortion) Noise: <0.05%
    • Frequency Response: 10-70,000 Hz
