Mackie 802-VLZ3

8-Channel Mixer with 2-Band Active EQ and High-Headroom Design

Mackie
Shop all Mackie
highlight-star-icon

8-Channel • 8 High-Headroom Line Inputs • DC Pulse Transformer RF Rejection • 12-Segment Stereo Meters • 3-Band Active EQ • Sealed rotary Controls • Smooth, Tough Steel Chassis • Selectable Instrument Inputs

Learn more about the 802vlz3

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

45
-21.92%

$17.95

List price $22.99

82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

99-5802 main

Metra 99-5802 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

3
-46.17%

$13.99

List price $25.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95

Description


Mackie brand icon

Authorized dealer

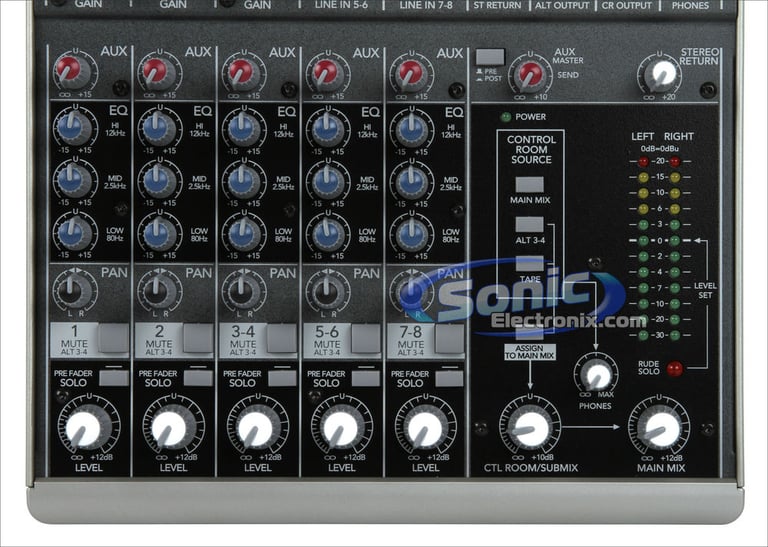

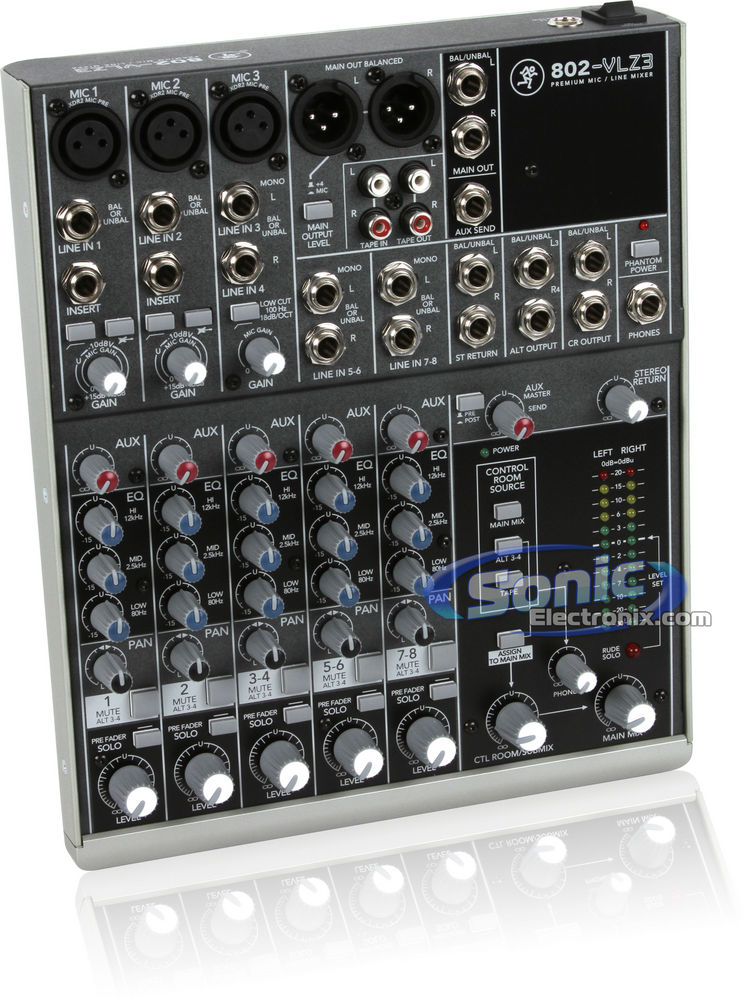

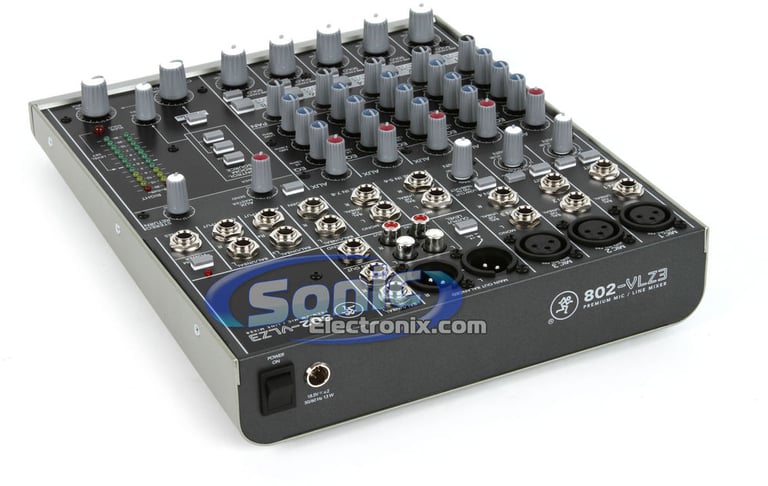

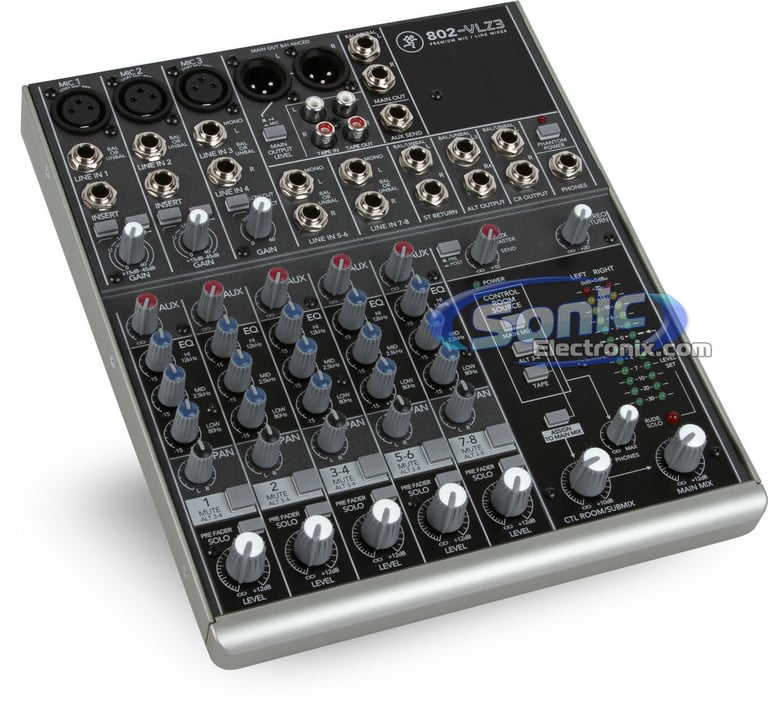

Product Features:
  • Mackie 802-VLZ3 8-Channel Mixer
  • 3 studio-grade XDR2 Extended Dynamic Range mic preamps:
    • Ultra-wide 60dB gain range
    • 130dB dynamic range
    • +22dBu line input handling
    • Extended low frequency response
    • THD (Total Harmonic Distortion) under 0.0007%
    • Phantom power for studio condenser mics
  • 8 high-headroom line inputs
  • Advanced DC pulse transformer RF rejection
  • Auxiliary send, level, pan and PFL solo on each channel
  • Selectable Instrument inputs on first two channels (no DI box needed)
  • Control Room/Phones source matrix
  • ALT 3/4 stereo bus for added versatility
  • Stereo Return for connecting effects processor or other stereo source
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls to resist dust and grime
  • Smooth, tough steel chassis
  • 1-year Manufacturer's warranty
Product Specifications:
  • 3-Band Active EQ (80, 2500, 12,000 Hz)
  • Lo-Cut filter on Mic input channels (100 Hz @ 18dB/octave)
  • THD (Total Harmonic Distortion): 0.001%
  • Power Consumption: 13 Watts
  • Dimensions: 1-13/16"D x 8-15/16"W x 10-3/4"H
  • Frequency Response:
    • 30-30,000 Hz, mic input to any output @ 60dB
    • 10-100,000 Hz, mic input to any output @ unity gain
  • Maximum Levels:
    • Mic In: +21 dB
    • Tape In: +22 dB
    • All other inputs: +22 dB
    • Main mix XLR output: +28 dB
    • All other outputs: +22 dB
  • EQ:
    • High Shelving: +15 dB @ 12,000 Hz
    • Mid Peaking: +15 dB @ 2500 Hz
    • Low Shelving: +15 dB @ 80 Hz
  • Weight:
    • With power supply: 5.5 lbs
    • Without power supply: 4.5 lbs

Loading...
Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Specifications & Details


Mixer Features
Format
Analog
Frequency Response
30 - 30,000 Hz
THD (Total Harmonic Distortion)
0.001%
Channels
8 Channels
Rachmountable
No
Phantom Power
Yes
Width
8-15/16"
Height
10-3/4"
Depth
1-13/16"

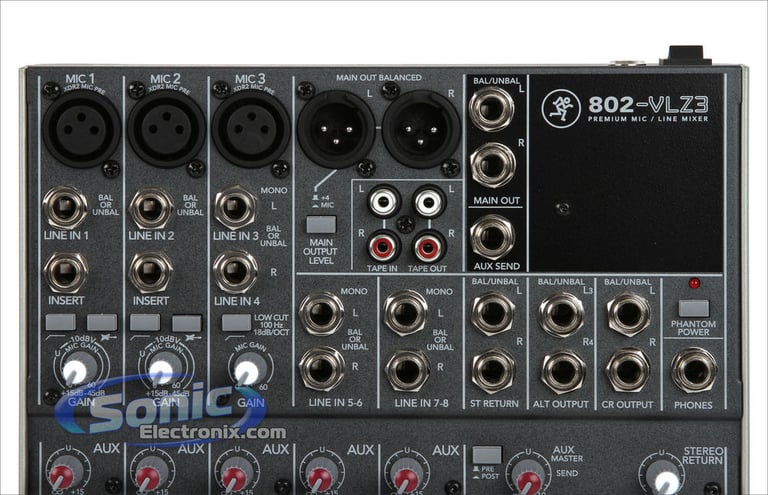

Connections
Main Outs
Ballanced XLR
CRTL Room/ALT Outs
Balanced 1/4" TRS
Headphone Outs
1
Aux Sends
1
Inserts
2
Mic-Pre Inputs
3
Line Inputs
8
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

802-VLZ3

Weight:

21.30lbs

Internal SKU:

802vlz3

Internal Product ID:

24175

Customer Ratings & Reviews


Mackie 802-VLZ3 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great Mixer

Bought this Mackie 802 based upon the recommendation of a friend for use with my portable PA system. It improved the sound coming from my system immediately, made mixing microphone and music playback from laptop computer a high quality production.

By Hondo on June 7, 2013

13 found this helpful
