Ethereal HDMWL1

Plug and Play HD Digital Wireless Video System, Comes with Wireless Video Transmitter and Receiver

Ethereal
Shop all Ethereal
highlight-star-icon

Plug and Play HD Digital Wireless Video System, Comes With Wireless Video Transmitter and Receiver • 35 ft. HD Video Transmission Distance • Up to 1080p at 24fps/30fps • 256-Bit AES Encryption • No Latency

Learn more about the hdmwl1

We apologize

This item has been discontinued


Loading...

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Hifonics ZS5768CX

500W Peak (180W RMS) 5x7" / 6x8” Zeus Series 4-ohm Coaxial Speakers

4
-18.92%

$29.99

List price $36.99

Description


Ethereal brand icon

Authorized dealer

Product Features:
  • Plug and Play HD Digital Wireless Video System, Comes with Wireless Video Transmitter and Receiver
  • 35 ft. HD video transmission distance with omnidirectional antenna system
  • High performance and small form factor internal antennas are employed
  • Up to 1080p at 24fps/30fps, 1080i at 60fps picture quality
  • No latency for playing high definition video game consoles
  • Built-in up conversion for two component sources
  • Additional switching for two HDMI sources
  • 256-bit AES encryption for securing video transmission over wireless IR repeater and blaster
  • Auto set-up, plug and play
  • EDID/ E-DDC 1.1
  • Supports high definition multimedia and CEC
  • Automatically changes frequency in case of interference
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Product Specifications:
  • Supported Video Resolution: 1080p @ 24/30 Hz, 1080i, 720p, 576p, 576i, 480p, 480i
  • Supported Audio Formats: 48KHz and 24-bit per sample (up to 3.072 Mbps AC-3 and DTS)
  • Transmission Distance: 20 meters line of sight scenarios and 10 meters beyond
  • System Latency: No latency (<1ms)
  • Antenna: High performance internal antennas
  • Operating Frequencies: 4.9~5.9 GHz (non-DFS frequency bands) for US, EU, JP, TW
  • Power Supply: 100~240V AC in, 5V 3A DC out Power Adapter
  • Operating Temperature: 0~40 C
  • Regulations: FCC, CE
  • Dimensions (HDMWL1T): 5-7/8"L x 11-5/8"W x 1-13/16"H
  • Dimensions (HDMWL1R): 5-1/2"L x 7-1/8"W x 1-9/16"H
Connections:

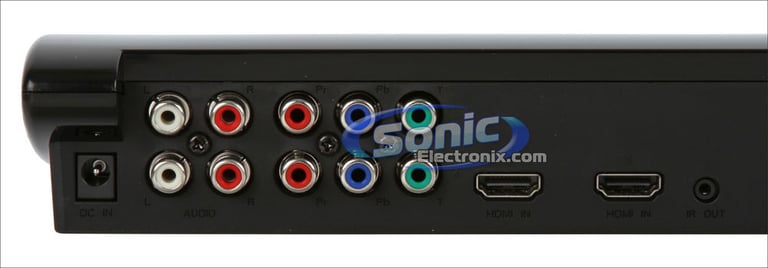

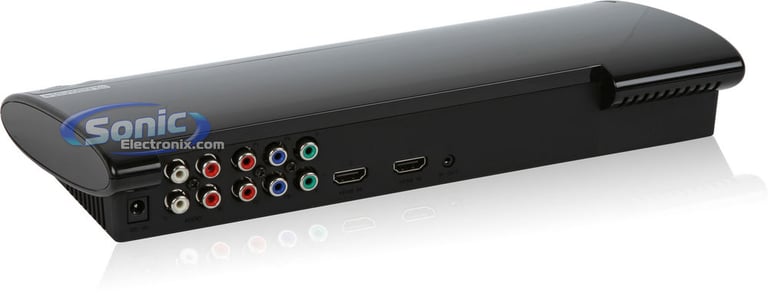

  • HDMWL1T:
    • 2 HDMI Inputs
    • 2 Component Inputs
    • 2 Audio L/R Inputs
    • 1 DC Power Input
    • 1 IR Output

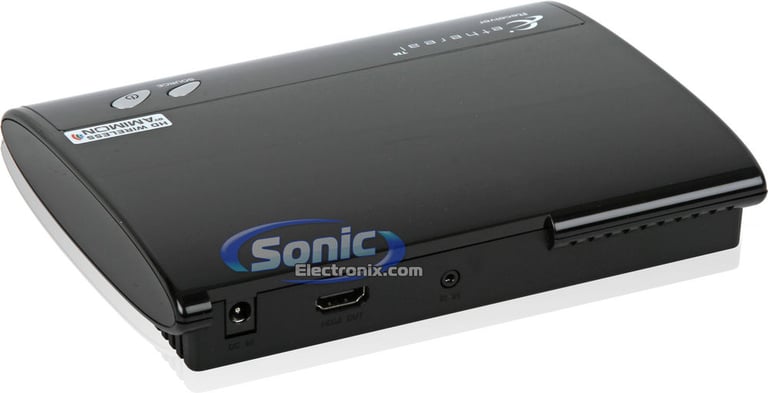

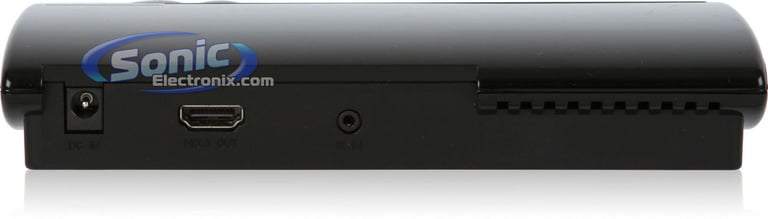

  • HDMWL1R:
    • 1 HDMI Output
    • 1 IR Input
    • 1 DC Power Input

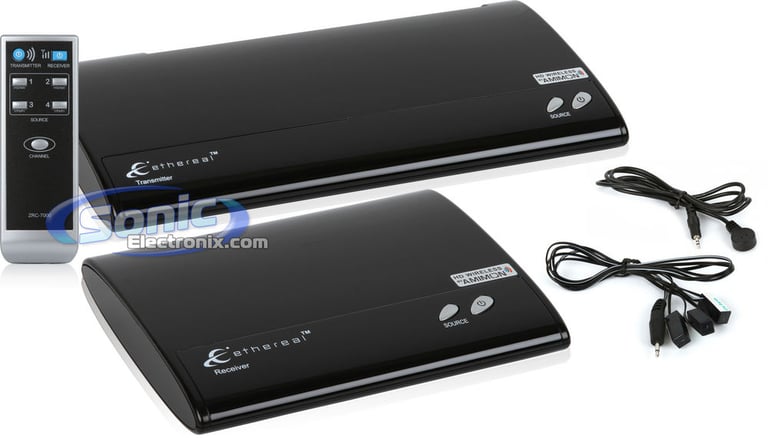

Package Includes:

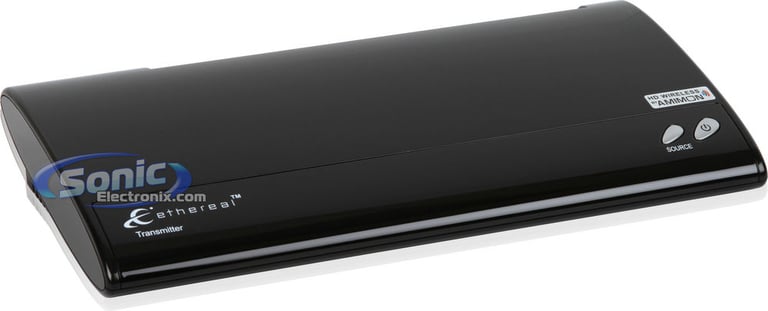

  • HDMWL1T (Transmitter)

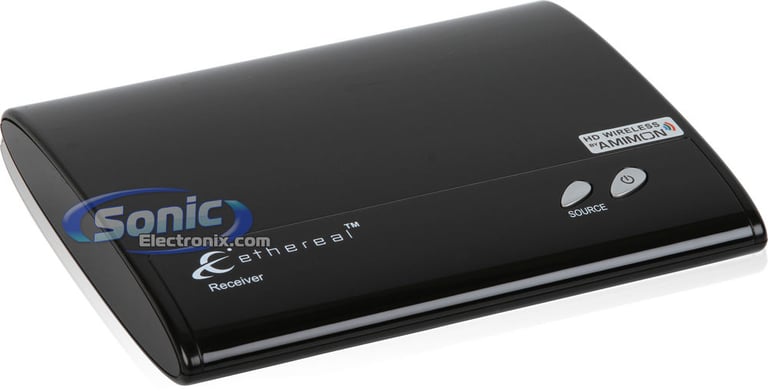

  • HDMWL1R (Receiver)

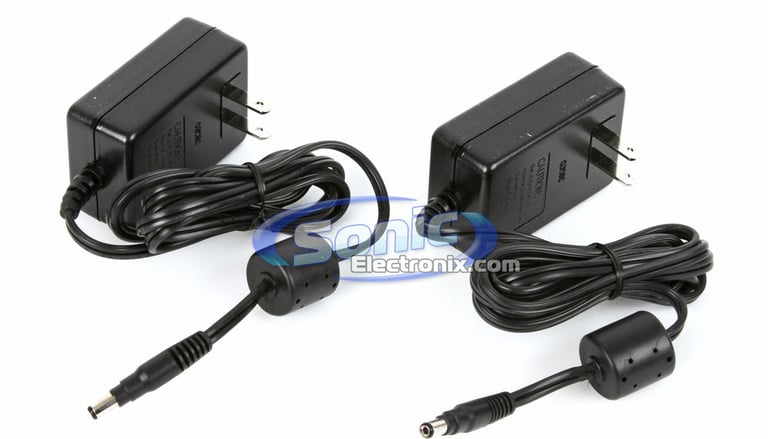

  • 2 Power Adapters

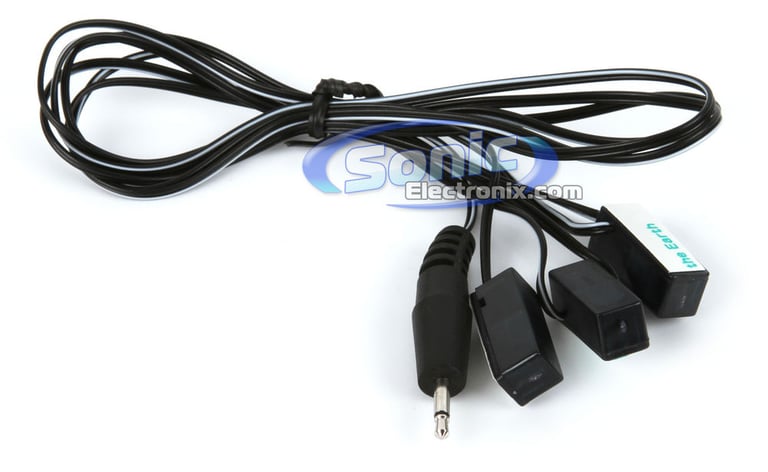

  • IR Blaster Extender Cable

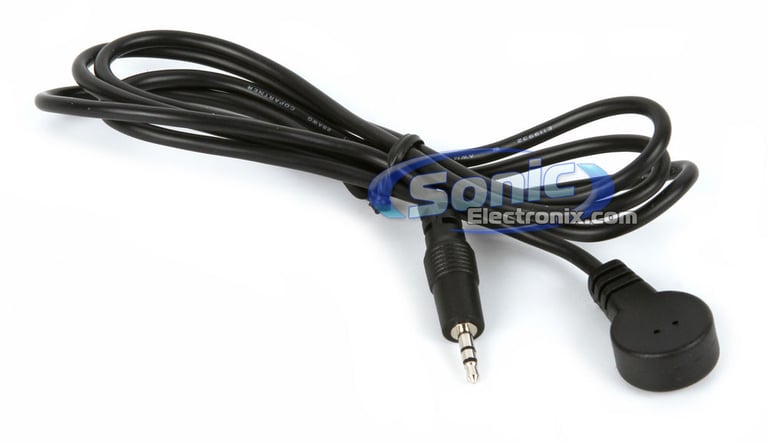

  • IR Sensor Extender Cable

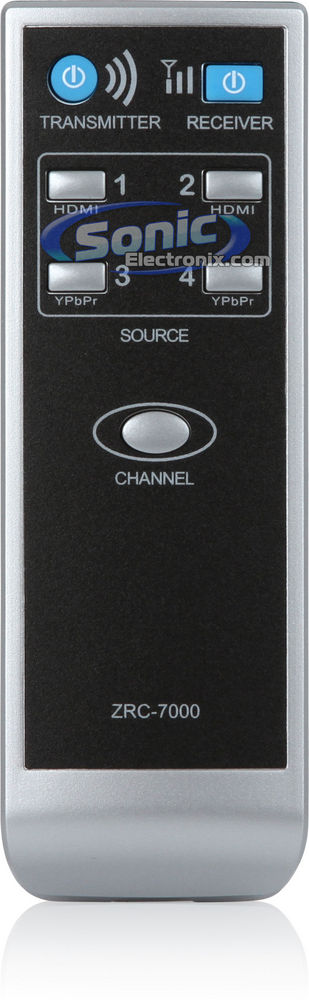

  • Remote Control

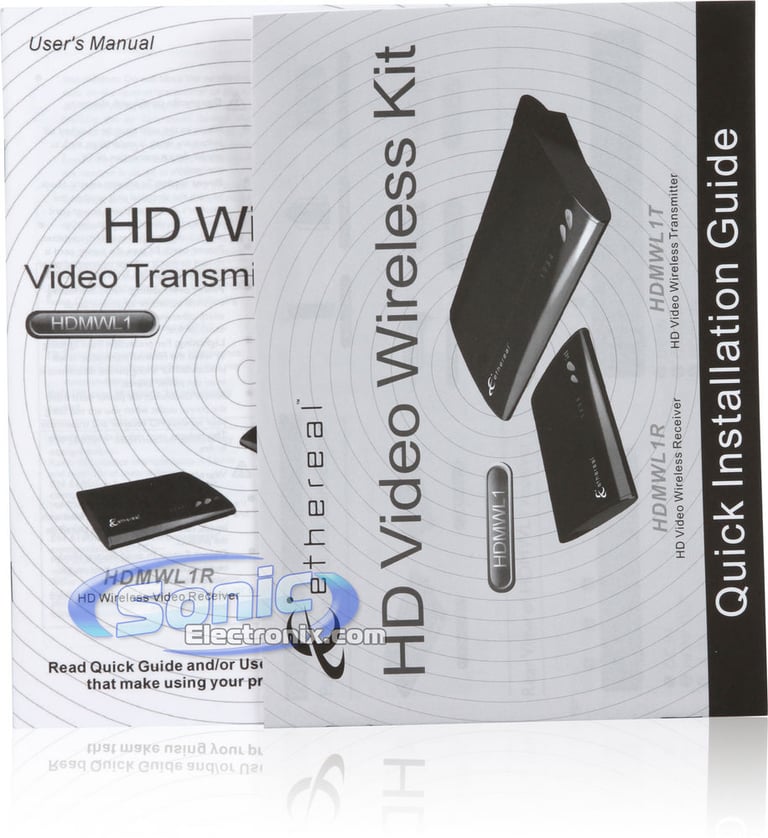

  • Quick Installation Guide
  • User's Manual
