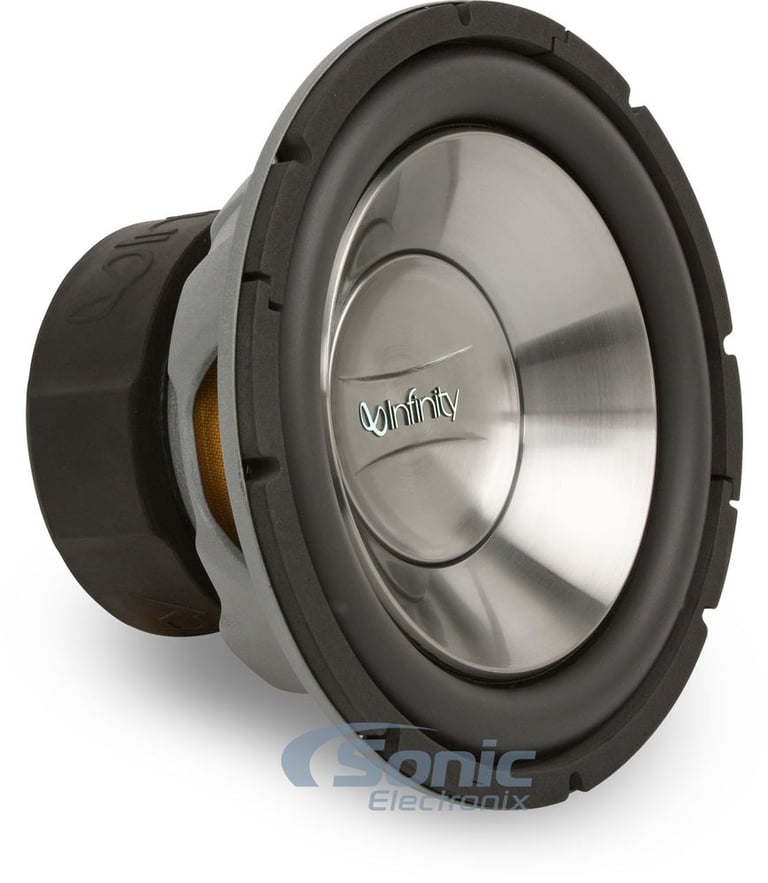

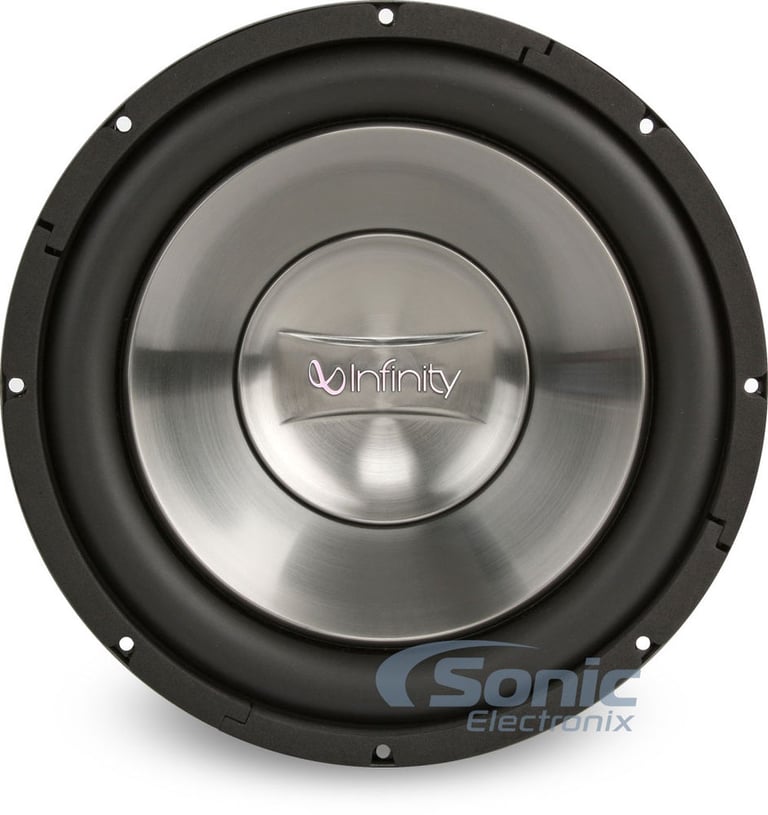

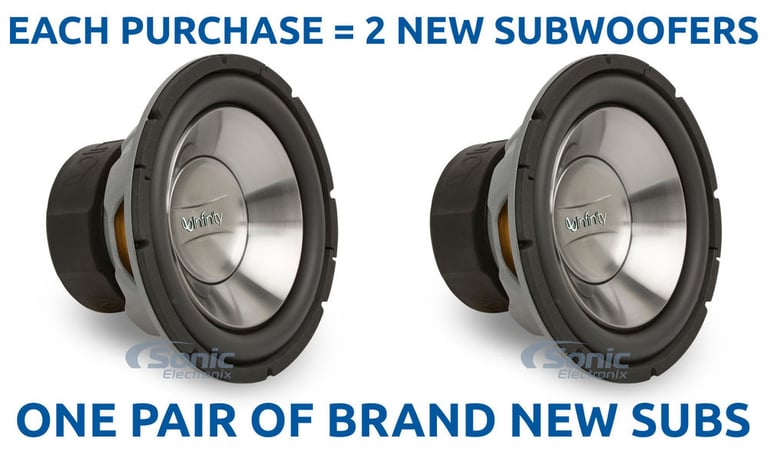

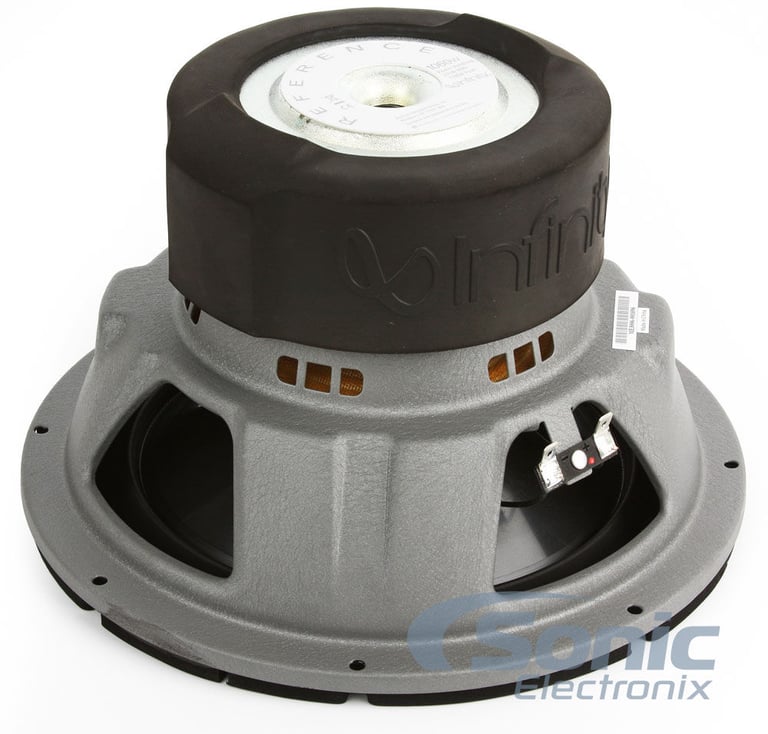

Two Infinity Reference 1060W

Pair of 10" Single 4 ohm Reference Series Car Subwoofers

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 1100W Peak Each
• 275W RMS Each
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces

Learn more about the 2subs_1060w

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Product Highlights


• 1100W Peak Each
• 275W RMS Each
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces

Description


Infinity brand icon

Authorized dealer


Infinity Reference 1060W
- To Infinity, and Beyond Your Normal Woofer -

Some think of the 10 inch subwoofer as a compromise of power handling, sensitivity, space and performance. In most cases, this would be true; however this Infinity makes no compromises when it comes to sound quality and crisp bass.

Infinity’s product quality and excellence stem from their passion for music. This fact is evident in each of their lines, with no exception to their Reference Series subwoofers. Whether you listen to rock, hip-hop, jazz, country or anything else, these woofers will shine through with every note. High-gloss polypropylene woofer cone is lightweight which assures maximum efficiency which produces high output with modest amplifier power. This in no way means the Reference woofers don’t have a sound quality side, far from it. Sound quality is the name of Infinity’s game, and every beat will be smooth, crisp, and hard hitting. The large-roll rubber surround absorbs distortions that travel through the cone, ensuring clean bass response. Vented polepieces help cool the motor structure which allows for an increase in power handling. Engineering at Infinity is state-of-the-art and a great deal of computer aided design software is used to devise their products. This commitment shows in all of their product lines, and with such a good reference, it’s a no brainer.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.



General Features:
  • 10" Single 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 2200 watts per pair / 1100 watts each
    • RMS: 550 watts per pair / 275 watts each
  • Recommended power range: 300 - 550 watts RMS @2ohm (monoblock)
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • 2" Voice coil
  • Mounting Depth: 5-7/8"
  • Cutout Diameter: 9-1/4"
  • Frequency response: 25 - 400 Hz
  • Sensitivity: 91 dB
  • Xmax: 13mm
  • Optimum ported enclosure: 3.50ft³ per pair / 1.75ft³ per chamber
  • Optimum sealed enclosure: 1.50ft³ per pair / 0.75ft³ per chamber
  • Also found as: REF1060W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Per Pair

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Two Infinity Reference 1060W Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Two Infinity Reference 1060W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Two Infinity Reference 1060W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Two Infinity Reference 1060W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.97

List price $2479.97

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.80

List price $2348.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1456.96

List price $2074.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1348.96

List price $1973.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX8000S_MRR_S8FO2_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(37)

$1348.96

List price $1923.96

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1605.96

List price $2254.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(38)

$1383.97

List price $1778.97

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
10"
Peak Power Handling
1100 watts
RMS Power Handling
275 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
25 - 400 Hz
Sensitivity
91 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.50 cubic feet
Optimum Ported Box Volume
3.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29 Hz
Equivalent Compliance (Vas)
32.90 liters
Total Speaker Q Value (Qts)
0.42
Electrical Q Value (Qes)
0.44
Electrical Resistance of Voice Coil (Re)
3.59 ohm
Mechanical Q Value (Qms)
7.59
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

1060W-2-PACK

Weight:

30.00lbs

Internal SKU:

2subs_1060w

Internal Product ID:

24856

Product and How-to Videos


  • Infinity Reference Subwoofers
  • Harman International: The Pursuit of Great Sound

Customer Ratings & Reviews


Two Infinity Reference 1060W thumbnail image

5 star
86%
4 star
14%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.6
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great value and great sound just what my car needed

The following review is for 1060W, which is a part of the bundle you are viewing.

My subs went bad I found these at a good price and thought I would try them out. I'm glad I did as these hit hard and sound awesome even with a cheaper amp. I will buy these again in the future and they look cool as well.
Great price and value for a tight budget.
Thank you

By refuse to grow up (49 yrs and getting younger) on November 27, 2014

58 found this helpful


Hard hitting and tight

The following review is for 1060W, which is a part of the bundle you are viewing.

I am using this in a single subwoofer system driven by a Boss 1500 mono amp and a Pioneer DEH-P8400BH. I have had a Pioneer and a MTX 10" in the trunk already mounted in their oem boxes. This Infinity 1060W mounted in a generic .74 cu. ft. box with poly fill sounds like two subs compared to the others. It plays rock and metal lows super clean and tight. Awesome sound inside but has revealed loose heat shields and license plate mounting outside.

By Steve on January 21, 2014

56 found this helpful


Great

The following review is for 1060W, which is a part of the bundle you are viewing.

Wow, crazy good deal for these! Other websites had them marked up over $30 higher. These kick hard and sound flawless, best bang for your buck no question.

By Travis on December 30, 2014

54 found this helpful


Great bump for your vehicle!

The following review is for 1060W, which is a part of the bundle you are viewing.

I was very surprised at the power of this woofer! I sounds great, has good lows & I have not had a single problem with it since. I would highly recommend this woofer to anyone! Infinity is a top audio brand (which I have all throughout my car) & many people have said if you can't get Infinity, get Bose. Well, Bose is WAY more expensive so this is a great deal!

By Mike on April 12, 2014

53 found this helpful


You will be estacic with the performance of this Infinity sub.

The following review is for 1060W, which is a part of the bundle you are viewing.

I installed an Infinity 1060w in one of my cars and it showed me how lacking the Pioneer TS-SWX251 was in my other car. I used a sealed single 10" subwoofer angled truck or hatchback box enclosure of about .75 cu. ft. filled loosely with poly fill for the Infinity 1060w install. At the same amp and head unit settings as used with the TS-SWX251 the Infinity was about twice as loud and just as clean. I've ordered another to replace the Pioneer in my other car.
I listen to all genra of music and ran this through the paces of double bass metal to Bach organ works. This sub will let you know what can rattle on your car, like heat shields and license plates as well as what can shake on your garage shelves.

By Chuck on January 23, 2014

52 found this helpful


great product

The following review is for 1060W, which is a part of the bundle you are viewing.

Thank, ive had an awesome experience. My package I got has been everything I could have wanted from the customer service to the quality of the speakers and amps. easy to install and sound amazing I would definitely recommend this set up for anyone. I was looking for something that would not wake the neighbors and found it. get compliments on how good the amp and speakers sound and perform. looking for a set up for the money you have found it. just remember to break them in before BEATING it up. thanks sonic I will be a returning customer.

By Kimm on September 12, 2013

52 found this helpful


Excellent subwoofer

The following review is for 1060W, which is a part of the bundle you are viewing.

I wanted an all infinity system in my 96 jeep grand Cherokee I have the reference series 6.5's in the doors and this sub is amazing I put it in a ported box and 380 watts going to it and wow the bass is so deep I listen to all kinds of music and this plays it all. I have had all brands of subwoofers from 8's to 15's and this will satisfy anybody's bass needs.

By Jesse on October 8, 2014

51 found this helpful


Infinity Reference 1060W

The following review is for 1060W, which is a part of the bundle you are viewing.

used for 1 month so far. deep deep bass. tight responsive. used with an alpine bridged 220w amp.in a .75 cu.ft. sealed box. happy so far.! no sign yet of unglued surround. will update after 6 month

Only con is the 'made in china' sticker.

By james on January 26, 2014

51 found this helpful


Infinity 1060W 10" Subwoofer

The following review is for 1060W, which is a part of the bundle you are viewing.

I purchased this 10" subwoofer for a home theater subwoofer build. When the unit was finished and I started testing it with my blue ray movies, I was absolutely stunned at how good it sounds. I heard and felt sounds I had never heard before. Rich, deep bass and powerful, room shaking effects that were not present with my previous commercial sub unit. I am very pleased with this subwoofer purchase and highly recommend it.

By Delano on August 19, 2014

50 found this helpful


Pleased

The following review is for 1060W, which is a part of the bundle you are viewing.

I would have gotten the 1062w had I known they were available, they allow drop of ohms. Great woofer, clean sound.

By darren on August 25, 2011

47 found this helpful




T1D415 small

Rockford Fosgate Power T1 T1D415

2000W Peak (1000W RMS) 15" Power Series Dual 4-ohm Car Subwoofer

(8)

$849.99

List price $849.99

TE-35VS small

Metra TE-35VS

Universal 3-1/2" Color Video Screen

$69.99

List price $129.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Volkswagen Eos

2000 GMC K2500

1983 Dodge Diplomat

2011 Ford Edge

2012 Lexus IS350C

2003 Mazda Protege5

2016 Ford Transit-150

2011 BMW X5 M

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
