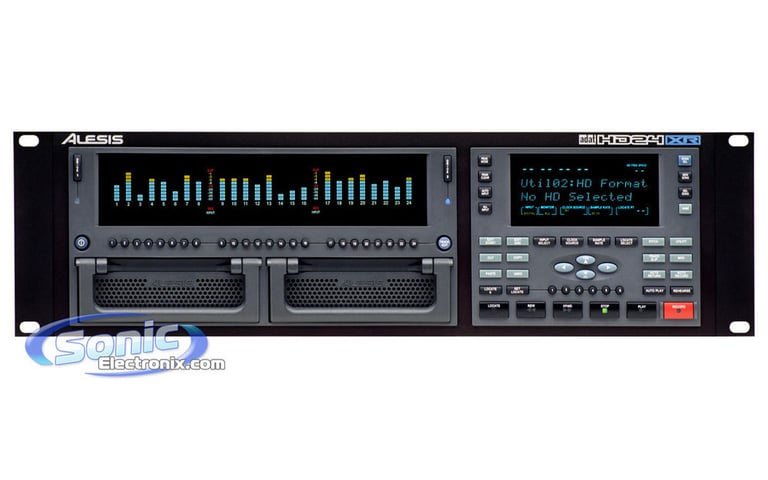

Name: Alesis ADAT HD24
Brand: Alesis
SKU: hd24
Price: 1999.00 USD
Availability: Discontinued

by Alesis

About
Reviews
Recently Viewed
Related Searches

Product highlights

24-Bit, 24-Track Hard Disk Recorder • Two Swappable Media Bays • Edit Tracks Internally • ADAT Optical • ADAT Sync • LRC Remote Control Included • Can be Upgraded to HR24XR • Instant Random Access to Audio Using ADAT/FST

Learn more about the hd24

NVX - Worth the Envy - Direct to Consumer Car Audio

Other Ford F-150 owners bought

Limited time!

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124

-33.36%

$79.96

List price $119.99

Add to cart

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

-13.34%

$129.99

List price $150.00

Add to cart

Out of stock

Kenwood KFC-C1656S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Dual Cone Coaxial 4-ohm Car Speakers

-33.35%

$39.99

List price $60.00

Notify Me

Description

Authorized dealer

Product Features:

24-Bit, 24-Track Hard Disk Recorder
Record up to 24 tracks of high-resolution 24-bit recording at 44.1 and 48 kHz sample rates
Two swappable media bays provide convenient access to recording drives and allow data backup in minutes
Edit tracks internally including cut, copy, paste, and track-move with undo and easily transfer to computer via an Ethernet connection
ADAT Optical and ADAT Sync allows efficient compatibility with existing systems
Can be upgraded to HR24XR with the Analog Audio Upgrade Kit
Instant random access to audio using ADAT/FST (File Streaming Technology)
Multiple units can be combined to create a larger system
Standard LRC remote control included
All necessary hardware and connectors included
Authorized Internet Dealer
1-year Manufacturer's warranty

Product Specifications:

Media:
- Caddy: 40GB HD
- Caddies can be fitted with IDE/EIDE/ATA drive at 5,400/7,200/10,000 RPM up to 2TB
Track Count:
- 24 tracks at 24-bit, 44.1 or 48
- 12 tracks at 88.2 or 96 kHz with optional EC2 upgrade

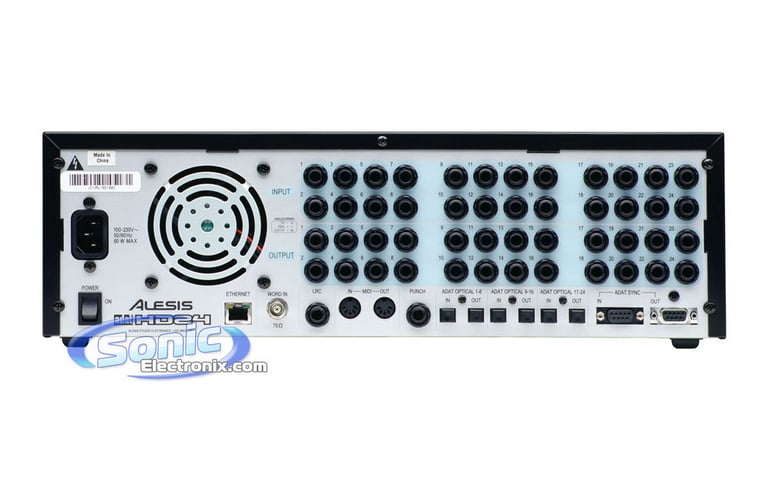

Connections:
- Analog: 24 24-bit inputs, 24 24-bit outputs (1/4" TRS, +4dBu)
- Digital: 24-channel I/O via 3 ADAT Optical inputs and 3 ADAT Optical outputs
- MIDI in/out
- Alesis Sync in/out (DB-9)
- Word Clock input (BNC, 75)
- Footswitch jack for punch in/out (1/4")
- LRC input for traditional wired remote (1/4")
- 10 Base-T Ethernet (RJ-45)
Frequency Response: 20-20,000 Hz
Dynamic Range: 103 dB
THD (Total Harmonic Distortion): <0.003%
Pitch Control: +100 cents/–200 cents, min-max 30–50kHz (30–100kHz with version 2.0)
Power: 90-230V AC, 60 watts
Weight: 20 lbs
Dimensions: 17""D x 19"W x 5-1/16"H
