Alesis MasterControl

Studio Recording Control Surface with up to 26 Inputs, Control-Room Manager, and Motorized Faders

Alesis
Shop all Alesis
highlight-star-icon

Alesis MasterControl Studio Recording Control Surface • Steinberg Cubase LE 4 and Ableton Live Lite 7 Software Included • FireWire Computer Connectivity for Mac and PC • Built-In Speaker Switching

Learn more about the mastercontrol

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Description


Alesis brand icon

Authorized dealer

Product Features:
  • Alesis MasterControl Studio Recording Control Surface
  • MasterControl eliminates the need for individual analog and digital audio interfaces, speaker switching and routing units, mixing and transport-control surfaces, hardware volume controls, and more
  • Steinberg Cubase LE 4 and Ableton Live Lite 7 software included
  • 24-bit, 192kHz, high-resolution, low-latency audio interface
  • FireWire computer connectivity for Mac and PC carries all audio and control data from MasterControl to DAW
  • Input section can be expanded to handle up to 24 simultaneous inputs, including dual ADAT Lightpipe, coaxial, and optical S/PDIF
  • Hands-On controls for confidently running tracking and editing sessions
  • Multiple banks of assignable controllers provide access to over 50 software parameters
  • 9 touch-sensitive, 100mm, motorized, capacitive Alps faders deliver a hands-on mixing experience
  • Transport controls and a multifunction jog wheel
  • DSP-driven internal mixer enables hardware-direct monitoring with zero discernable latency
  • Easy editing of templates and presets for customization
  • Large display provides real-time visual feedback of all actions
  • Preview button allows safe audition of controls prior to sending commands to the DAW
  • Built-in speaker switching enables you to easily switch between multiple sets of monitor loudspeakers
  • Internal talkback microphone enables easy communication with musicians while tracking
  • Three pairs of independently assignable stereo outputs
  • Direct monitor routing allows sources to be assigned to any and all output pairs
  • Independent gain controls further extend the output capabilities
  • Advanced DICE II chip with JetPLL technology for clock-stable firewire-audio streaming and routing
  • 8 assignable knobs, three banks each
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Product Specifications:
  • Frequency Response: 20-20,000 Hz
  • Faders: 9 motorized 100mm faders
  • Rotary Controls: 8 x Rotary Controls
  • Display: 2 x 16 character LED
  • Weight: 7 lbs 12 oz
  • Dimensions: 19-1/8"L x 14-1/2"W x 3-3/4"H

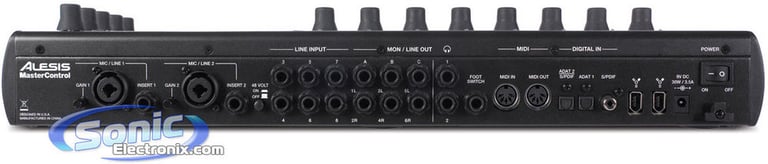

Connectivity:
  • Inputs:
    • 2 XLR (1/4" combo) with preamps, phantom, and channel inserts
    • Eight TRS 1/4" line inputs (including the combo jacks)
    • Optional input expansion: Dual ADAT Lightpipe, Coaxial, and selectable optical S/PDIF
    • MIDI input
  • Outputs:
    • 6 1/4" TRS output
    • 2 stereo headphone outputs
    • MIDI output
System Requirements:
  • PC:
    • Windows XP (32-bit), Windows Vista (32-bit or 64-bit)
    • Pentium 4 3.0GHz or equivalent
    • 512MB RAM (1GB or higher recommended)
    • 5400RPM (or faster) hard drive recommended
    • FireWire 400 (IEEE1394) port
  • Macintosh:
    • Mac OSX 10.5/10.6
    • G5 or Intel CPU
    • 512MB RAM (1GB or higher recommended)
    • FireWire 400 (IEEE1394) port

Item Details


Manufacturer:

Model Number:

MASTERCONTROL

Weight:

10.00lbs

Internal SKU:

mastercontrol

Internal Product ID:

25168
