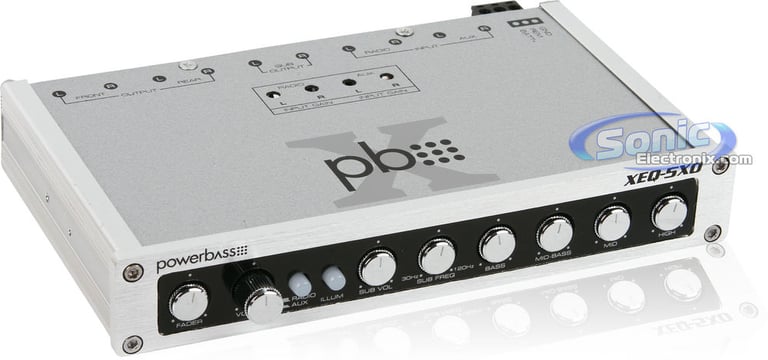

PowerBass Xtreme XEQ-5XO

4 Band Parametric Equalizer and Pre-Amp

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

PowerBass Xtreme 4 Band Parametric Equalizer and Pre-Amp • 10 Volt RMS Output • Master Volume Control • Individual Gain Controls • Subwoofer Level Control • Red/Green Selectable Night Illumination • Fader Control

Learn more about the xeq5xo

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

xeq5xoa thumbnail

PowerBass XEQ-5XOA

OUR PRICE: $69.99

View item

Loading...
82-7805 main

Metra 82-7805

6" to 6-3/4" Speaker Plate Adapter for select 2004-2023 vehicles from Honda, Acura

12
-47.38%

$19.99

List price $37.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30
VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

ZS65CXS main

Hifonics ZS65CXS

600W Peak (100W RMS) 6.5" Zeus Series 2-way 4-ohm Coaxial Car Speakers

18
-5.72%

$32.99

List price $34.99

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

$119.95

Rockford Fosgate Punch P1 P1675-S

240W Peak (120W RMS) 6.75" Punch Series 2 Way Component 4-ohm Speakers

20

$159.99

Product Highlights


PowerBass Xtreme 4 Band Parametric Equalizer and Pre-Amp • 10 Volt RMS Output • Master Volume Control • Individual Gain Controls • Subwoofer Level Control • Red/Green Selectable Night Illumination • Fader Control

Description


PowerBass brand icon

Authorized dealer

Product Features:
  • PowerBass Xtreme 4 Band Parametric Equalizer and Pre-Amp
  • 10 Volt RMS output
  • Master volume control
  • Individual gain controls (Left and Right)
  • Subwoofer level control
  • Variable subwoofer frequency control
  • Input radio/aux select switch
  • Red/Green selectable night illumination
  • Retractable rotary knobs
  • Fader control
  • Pre-Amp line driver
  • Also found as: Power Bass Xtreme XEQ-5XO
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Product Specifications:
  • Boost/Cut: 18 dB
  • Power Supply: Switching 30 volt bipolar
  • Frequency Response: 10-50,000 Hz
  • THD (Total Harmonic Distortion): 0.05%
  • Signal-to-Noise Ratio: >80 dB
  • Subwoofer Frequency Range: 30-120 Hz
  • Channel Separation: 80 dB
  • Input Impedance: 20k ohm
  • Dimensions: 4"L x 7"W x 1-1/8"H

Product history:

PowerBass XEQ-5XOA thumbnail
(newest, current model)
PowerBass XEQ-5XO thumbnail
(previous model, replaced by PowerBass XEQ-5XOA)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

HFEQ-2 small

Hifonics HFEQ-2

• 4 band-Band Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$59.99

List price $99.99

EQL7 small

Memphis EQL7

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 8 volts max preamp outputs
• Subwoofer frequency and level control

(1)

$99.99

List price $159.95

EQP850 small

Cerwin-Vega EQP850

• 5-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$139.99

List price $139.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

EQ-770 small

Cerwin-Vega EQ-770

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control

(2)

$99.99

List price $115.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

EQX7 small

DS18 EQX7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$95.95

List price $95.95

eqx5 small

DS18 EQX5

• 5 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$65.95

List price $65.95

Specifications & Details


Equalizer Specifications
Equalizer Bands
4 band
Equalizer Frequencies
2 - 200 Hz
Built-in Crossover
None
Built-in Bass Reconstruction
No
Line Driver
Yes
Signal Boost/Cut
18 dB
Max Output Level
10 volts
Frequency Response
10 - 50,000 Hz
THD (Total Harmonic Distortion)
0.05%
Signal-to-Noise Ratio
>80 dB
Width
7"
Height
1-1/8"
Depth
4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XEQ-5XO

Weight:

1.70lbs

Internal SKU:

xeq5xo

Internal Product ID:

26895
