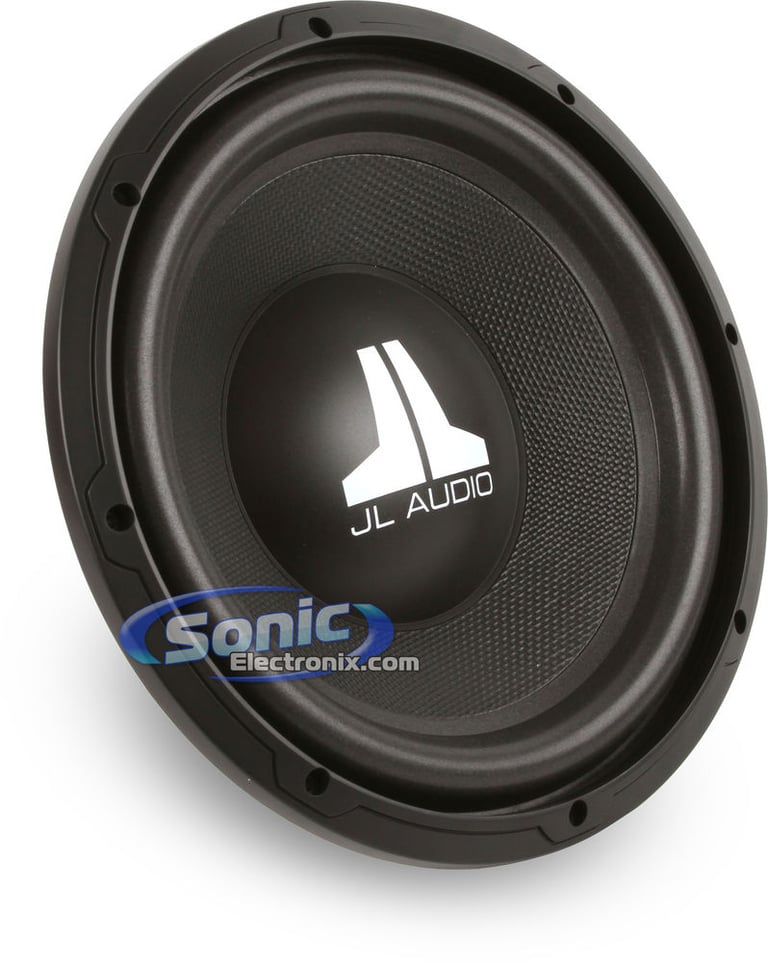

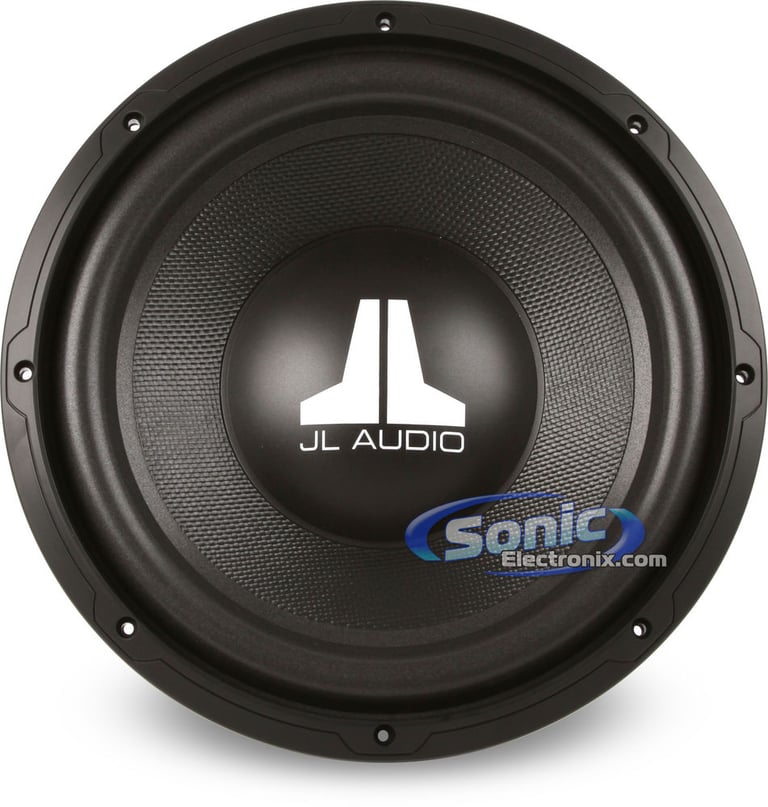

JL Audio 12WX-4

12" Single 4 ohm WX Series Car Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

12" Single 4 Ohm WX Series Subwoofer • 500W Peak • 200W RMS • Polypropylene Woofer Cone Material • Elevated Frame Cooling • Integrated Foam Rear Gasket • Resists Breakdown Under Extreme Conditions

Learn more about the 12wx4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

12wxv24 thumbnail

JL Audio WXv2 12" Subwoofer - 12WXv2-4

OUR PRICE: $109.99

View item

Loading...
NSB710 main

American International NSB710

6.5" or 6.75" Speaker Mounting Adapters for select 1995-2019 vehicles from Nissan, Infiniti, Suzuki

17
-64.74%

$11.99

List price $34.00

72-7401 main

Metra 72-7401

Install New Speakers in select 2000-2024 vehicles from Nissan, Infiniti, Chevrolet

16
-13.34%

$12.99

List price $14.99

72-7400 main

Metra 72-7400

Install New Speakers in select 1990-2024 vehicles from Nissan, Infiniti, Mercury

20
-46.70%

$7.99

List price $14.99

ADS-THR-NI3 main

FlashLogic ADS-THR-NI3 (ADSTHRNI3)

T-Harness Kit for Select 2013-Up Infiniti and Nissan Vehicles

1
-22.22%

$69.99

List price $89.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

51KSC2704 main

Kicker KSC270 (51KSC2704)

200W Peak (100W RMS) 2.75" KS Series Midrange 4-ohm Speakers with Custom Brackets for GM, Chrysler, Subaru, Toyota and Jeep Models

3
-14.29%

$59.99

List price $69.99

Infinity REF-6532ex (REF6532EXAM)

330W Peak (110W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

6
-38.47%

$79.99

List price $130.00

Limited time!
CS-DR693 main

JVC CS-DR693

1000W Peak (140W RMS) 6x9'' DRVN DR Series 3-Way 4-ohm Coaxial Car Speakers

1
-53.50%

$59.99

List price $129.00

Product Highlights


12" Single 4 Ohm WX Series Subwoofer • 500W Peak • 200W RMS • Polypropylene Woofer Cone Material • Elevated Frame Cooling • Integrated Foam Rear Gasket • Resists Breakdown Under Extreme Conditions

Description


JL Audio brand icon

Authorized dealer

Digitally Optimized So You Don't Have To

For years JL Audio has produced subwoofers with highly accurate, tight and clean bass reproduction. For many years more JL will continue its legacy of hard hitting bass and the WX series is no exception. These woofers work great in smaller more compact enclosures which saves trunk space and gives that bass we have grown to love. This woofer utilizes elevated frame cooling techniques to deliver cold air above the top plate of the voice coil helping to resist breakdown in extreme situations. A polypropylene cone has been used for durability and a foam surround provides exceptional excursion for a woofer of this size. Proprietary Dynamic Motor Analysis (DMA) modeling gives a highly accurate computer reproduction of the woofers physical behavior. This helps JL Audio engineers analyze the distortion mechanisms of the speakers and make adjustments to improve loudspeaker behavior. For reduced distortion, improved performance and stellar sound quality the WX series woofers have it made!

Product Features:

  • 12" Single 4 ohm WX Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 200 watts
    • Recommended Power Range: 50-200 watts
  • Impedance: 4 ohm
  • Polypropylene woofer cone material
  • Foam woofer surround type
  • Proprietary dynamic motor analysis (DMA) improves motor behavior

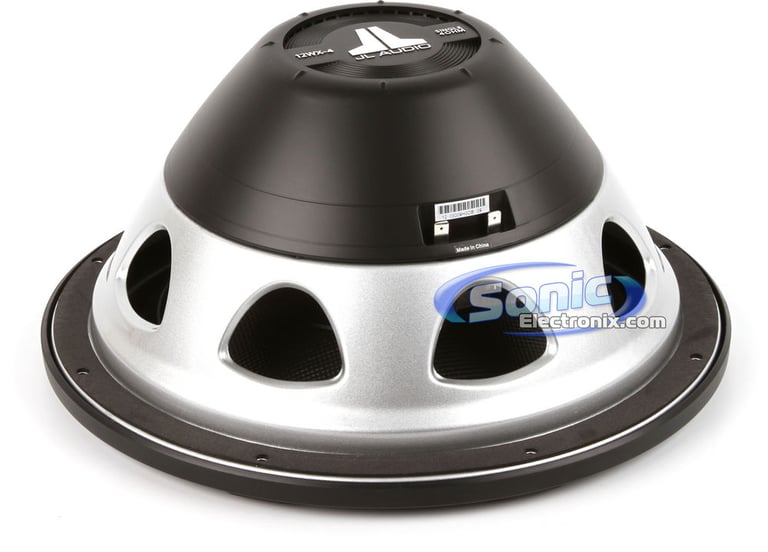

  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • Resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Frequency response: 22-250 Hz
  • Sensitivity: 87.17 dB
  • Top Mount Depth: 5-5/16"
  • Cutout Diameter: 10-13/16"
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-12
  • 1-year Sonic Electronix warranty
JL Audio 12WX Recommended Power Range

Product history:

JL Audio 12WXv2-4 thumbnail
(newest, current model)
JL Audio 12WX-4 thumbnail
(previous model, replaced by JL Audio WXv2 12" Subwoofer - 12WXv2-4)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 12WX-4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 12WX-4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 12WX-4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 12WX-4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
WX Series
Subwoofer Size
12"
Peak Power Handling
500 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
22 - 250 Hz
Sensitivity
87.17 dB
Xmax (millimeters)
9.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.375 cubic feet
Maximum Sealed Box Volume
1.375 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/16"
Cutout Diameter
10-13/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

12WX-4

Weight:

7.90lbs

Internal SKU:

12wx4

Internal Product ID:

26963

Product and How-to Videos


Customer Ratings & Reviews


JL Audio 12WX-4 thumbnail image

5 star
53%
4 star
47%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.4
Design
4.5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great sub for the money

The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

Bought this to match up with the single 12" that I already had. You cant go wrong for this price. Im running 2 of these off a JL 250/1 amp at 2ohms and they hit hard. Not OMG I blew out the windows hard but hard enough to shake every little bit of the car.

By Bob on September 17, 2013

38 found this helpful


These hit decent for the price

The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

I've been running one for about a year now. Have it hooked up to a small JL Audio JX250/1 mono amp. The combo hits harder than other systems I have built with double the power. I liked the sub so much I just bought another one so I can drop the amp down to 2 ohms.

I know there are tons of subs out there that are probably much better than this, but for under $100, this is a great value sub that plays like it costs twice the price.

By bob on July 23, 2013

39 found this helpful


Why hate a jl of any kind

The following review is for 12WXv2-4, which is a part of the bundle you are viewing.

These subs are perfect starters especially in my small compact car. I hooked 2 of them up and they bump all the lows and mids to perfection. I run a lot of power to them and they show no signs of letting up. They can be pushed passed there max to be honest. I run almost 1300 watts through the pair in a sealed enclosure. They hit hard and loud. If you do buy these, buy a pair and be prepared.

By TMM on March 20, 2012

35 found this helpful


poundabal

I recentally bought 2 of these little guys and put them in an enclosed box with a 400 watt rms amp generating together 400 rms and 1000 peak. Let me tell you this thing pounds it hits all bass and sounds awesome doing it definitely a JL for sure.

By TMM on February 6, 2012

23 found this helpful


LOVE IT

SATISFIED WITH THE PRODUCT FULLY. WILL CONTINUE TO PURCHASE MORE FROM SONIC ELECTRONIX.
THANKS

By david on August 13, 2012

17 found this helpful


Great speaker for the price

For an economical build, the woofers are great. They provide great punch and great amount of low end. I highly recommend these for anyone looking to improve the volume and dynamics of thier sound system.

By Bhartsaw on August 1, 2012

18 found this helpful


Overall good sub

I think this is one of the best entry level subs there is. I bought this with a low budget and was really suprised how hard one hits. I have a 1999 silverado 1500 ext. cab and it sounds really nice. Not somethin i would recommend if you plan on lettin the whole neighborhood hear you though.

By weezy on October 11, 2011

18 found this helpful


Inexpensive model but great quality

JL has always been one of my favorites and this base model is amazing. I have just one in my Pt Cruiser and I thought that it wouldnt hit as hard since its not a 500rms or more sub but this one sub shakes the whole car when its just half power. Right now I have connected to it an Rockford fosgate R-150-2. I plan to put another one in so i would have 2 subs with a R500. I cant say this for sure but im pretty sure this sub pushes alot harder than some subs that are 500 or more rms

By Shanernater on January 22, 2011

18 found this helpful


great subs great price

If your looking for the best deal on some good sounding subs your search is over. I'm using one in a 1.8 cu ft ported box from Sonic and i was surprised at how good this thing sounds for 50 bucks. I'm giving it 250 watts.

By reverand jim on February 21, 2012

17 found this helpful


great sound

Great sounding, bass is very clear, hits every note great. Beginer subs or if you want to add some more bump in your trunk i recommend these.
Pros: great bass and sound very cool looking and also look good in any ride
Cons: none

By freddie on January 1, 2012

16 found this helpful




SGRU-12 main

JL Audio SGRU-12

• 12" Grille made specifically for the JL Audio 12W1v2, 12W3v3, or 12TW5 Sub
• Provides the Best Protection Possible
• Top-Notch JL Audio Quality
• Metal Mesh Grille Painted Black

(19)

$49.99

List price $49.99


KDC-X695 small

Kenwood eXcelon KDC-X695

In-Dash CD/MP3/WMA/AAC Car Stereo Receiver w/ Bluetooth, Front USB and Auxiliary Inputs

(3)

$174.99

List price $250.00

Monitor Vault (Smoke) small

Westone Monitor Vault - Smoke

Monitor Vault Weather Resistant Protective Travel Carrying Case for UM1, UM2, UM3X-RC, W4, W4R, & W2

$19.50

List price $29.99

No picture

JL Audio XMD-WHTAIC4-25 - New (Damaged Packaging, Product A+)

25 ft. (7.62 m) 4-Channel Marine-Grade RCA Audio Interconnect Cable

$73.11

List price $89.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Escape

2017 Volkswagen CC

2017 Nissan Pathfinder

2014 MINI Clubman

1980 GMC C1500 Pickup

1996 Toyota Corolla

2010 Ford Escape

2014 Cadillac ELR

1987 Land Rover Range Rover

2006 BMW 325xi

Vehicle
Store
Delete

2024 Can-Am Defender MAX

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
