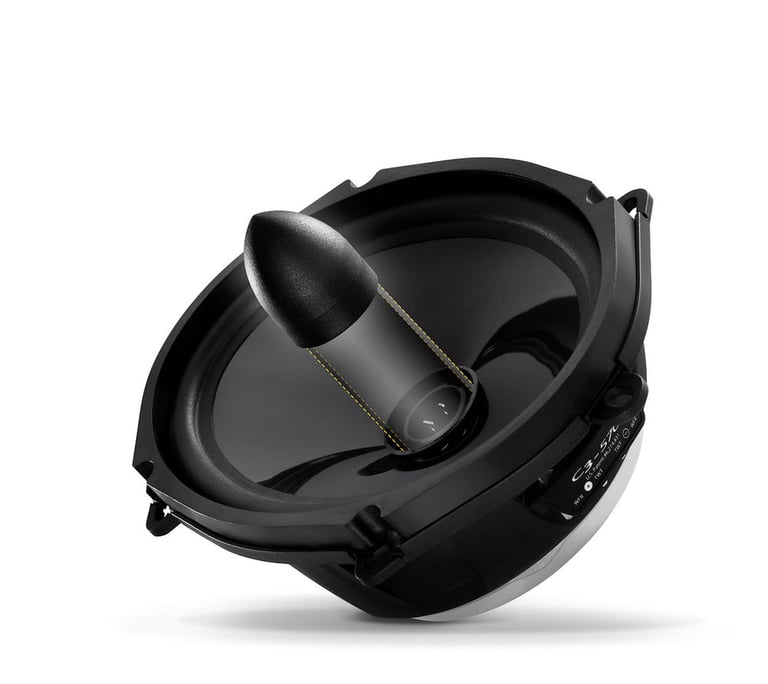

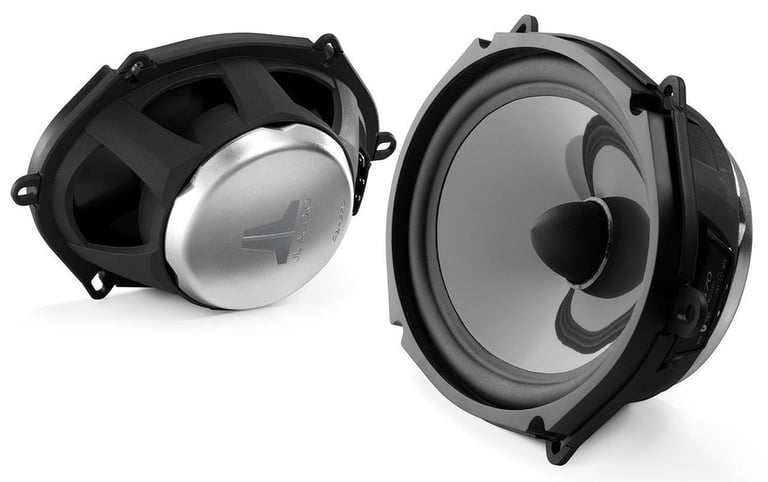

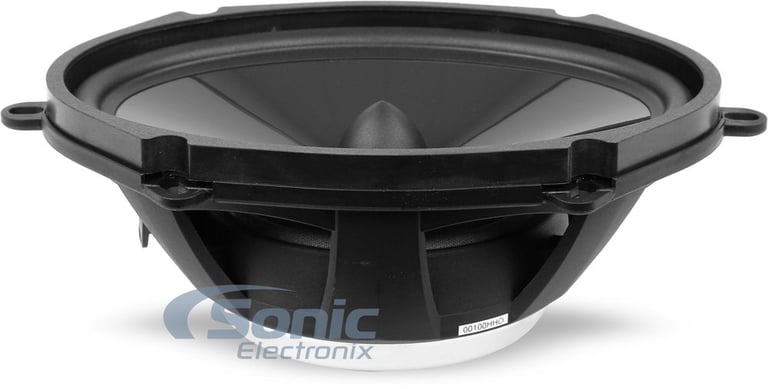

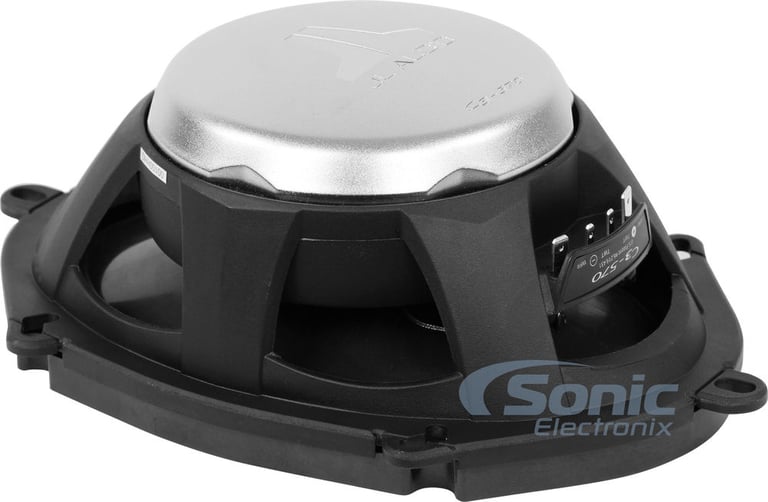

JL Audio C3-570cw (Sold Individually) (Open Box, Great)

150W RMS 5x7" Evolution C3 Series Component 4-ohm Speaker

JL Audio
Shop all JL Audio
highlight-star-icon

• 150 watts RMS Each
• Includes Component Phase Plug and Tweeter Post (Tweeter sold separately)
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90.0 dB

Learn more about the c3570cw_obg

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

JL Audio C3-570cw (Sold Individually)

150W RMS 5x7" Evolution C3 Series Component 4-ohm Speaker
Quantity: 1

Product Details:

  • 5" x 7" (also mounts in most 6" x 8" locations) Component Car Speaker
  • Power Handling:
    • RMS: 150 watts each
  • Convertible system from component to coaxial
  • Mineral-Filled Polypropylene cone material with Injection-molded Polymer Frame
  • Rubber speaker surround with low-profile, symmetrical roll spider
  • Ferrite magnet on an optimized motor structure
  • Crossover: 1st order Low-Pass, 2nd order High-Pass Filter
  • Premium Mylar capacitors and air-core inductors
  • 4-position adjustable tweeter output level
  • 3-position midrange presence control
  • Polyswitch tweeter protection
  • Top-mount Depth: 2.52"
  • Cutout Dimensions: 5.52 x 7.68
  • Impedance: 4 ohm
  • Frequency Response: 48 - 25,000 Hz
  • Sensitivity: 90.0 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Per Each Speaker

Specifications & Details


Speaker Specifications
Series
C3 Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
5" x 7" (also mounts in most 6" x 8" locations)
Design
Component
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Rubber
RMS Power Handling
150 watts
Sensitivity
90.0 dB
Frequency Response
48 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
2.52"
Cutout Dimensions
5.52 x 7.68
General specifications
Hi-Res Certified
No
Color
Black
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
WITB: Speakers
Speaker
Mounting screws (4)
Other Accessory #1
Component Phase Plug
Other Accessory #2
Tweeter Post (Tweeter sold separately)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C3570CW_OBG

Weight:

2.79lbs

Internal SKU:

c3570cw_obg

Internal Product ID:

224164

Customer Ratings & Reviews


JL Audio C3-570cw (Sold Individually) (Open Box, Great) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great speakers

The following review is for C3-570cw, which is a part of the bundle you are viewing.

Bought these to replace blown factory component woofers in F150 front door Sony Sync system and these sound way better.
Bass is definitely deeper, not necessarily louder.

By Anonymous on August 27, 2019

30 found this helpful
