DCM Loudspeakers TP825W

8" 2-Way In-Wall Speaker System

DCM Loudspeakers
Shop all DCM Loudspeakers
highlight-star-icon

8" 2-Way In-Wall Speaker System • 120W Peak • 60W RMS • Esoteric Audio 14 Gauge Internal Wiring • Mylar Highpass Capacitors • Aimable Swivel Tweeter • Air Core Highpass Inductors • Boundary Equalization Control

Learn more about the tp825w

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

BTS-HN1 main

Crux BTS-HN1

Add Bluetooth Streaming, USB, and AUX Support in select 1998-2005 vehicles from Honda

-38.01%

$92.95

List price $149.95

Stadium 62CF main

JBL Stadium 62CF (JBLSPKSD62CFAM)

660W Peak (220W RMS) 6.5" Stadium Series 2-Way Component 3-ohm Speaker System

2
-6.25%

$449.95

List price $479.95

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

Description

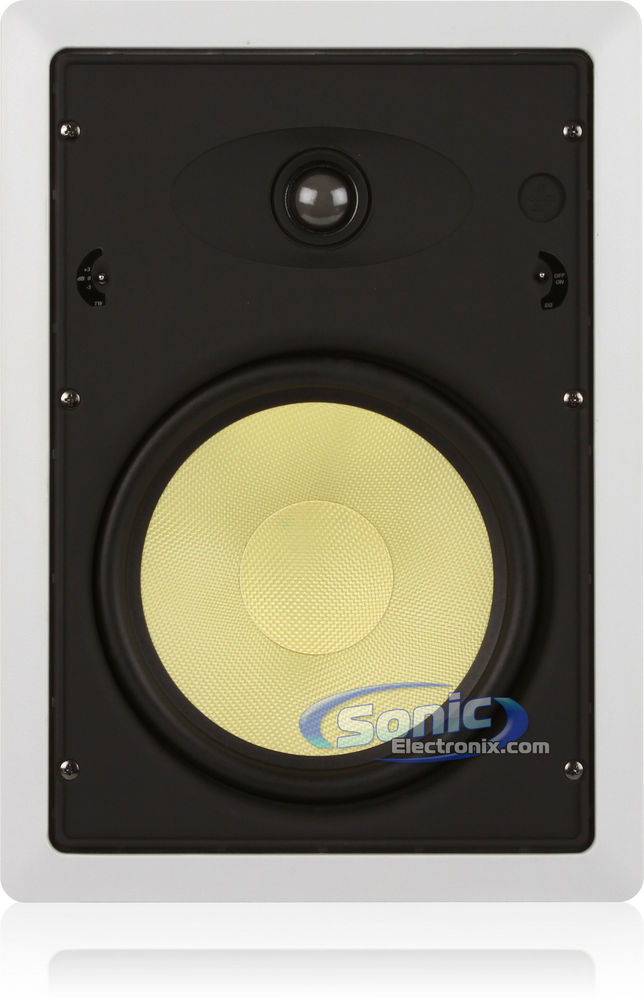

  • 8" 2-Way In-Wall Speaker System
  • Power Handling:
    • Peak: 240 watts per pair / 120 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Kevlar midwoofer cone
  • Rubber midwoofer surround
  • 25mm Teteron dome tweeter with neodymium magnet
  • Aimable swivel tweeter
  • 18dB/octave highpass, 12dB /octave lowpass crossover
  • Tweeter overload protection circuit
  • Mylar highpass capacitors with polypropylene shunt capacitors
  • Air core highpass inductors

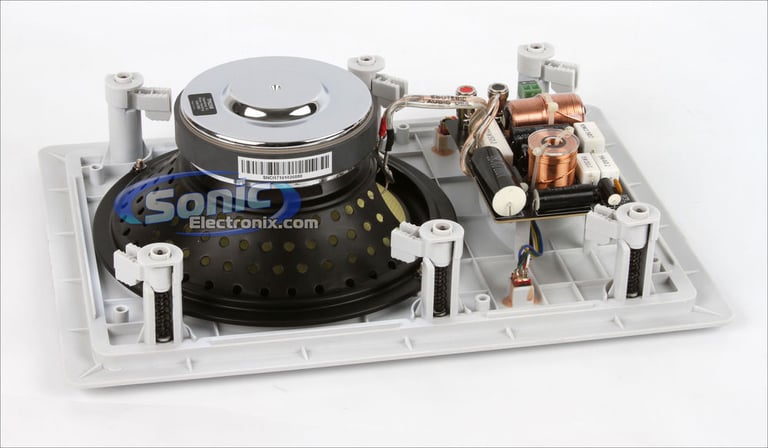

  • Debris resistant woofer basket
  • High temperature woofer and tweeter voice coil wire
  • Polished chrome woofer plates
  • Esoteric Audio 14 gauge internal wiring

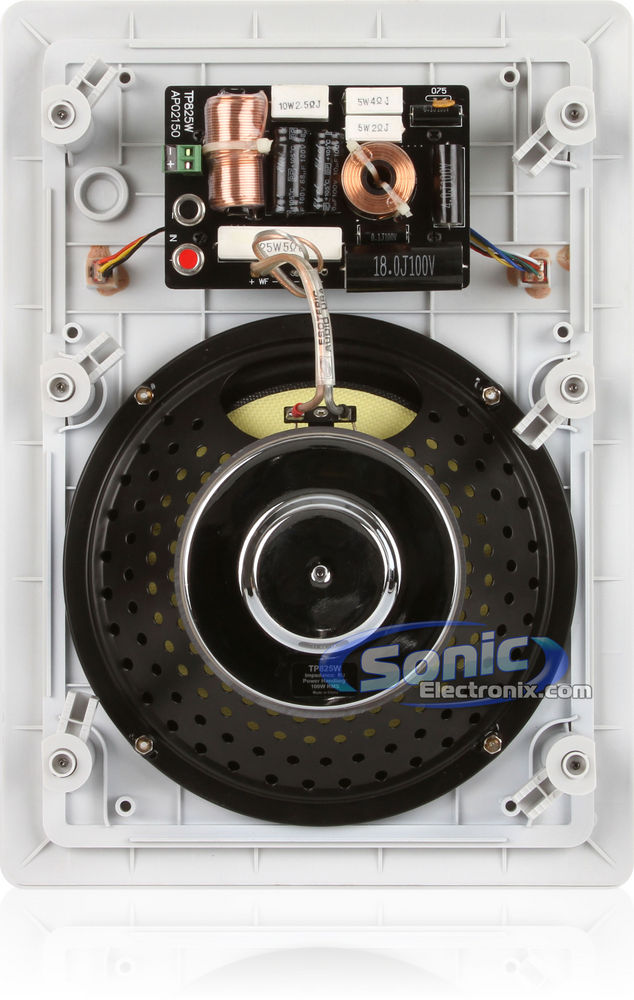

  • Chem1 crossover printed circuit boards
  • Dual inputs: Binding posts accept up to 8 gauge wire
  • Removable Phoenix style connectors for easy wiring

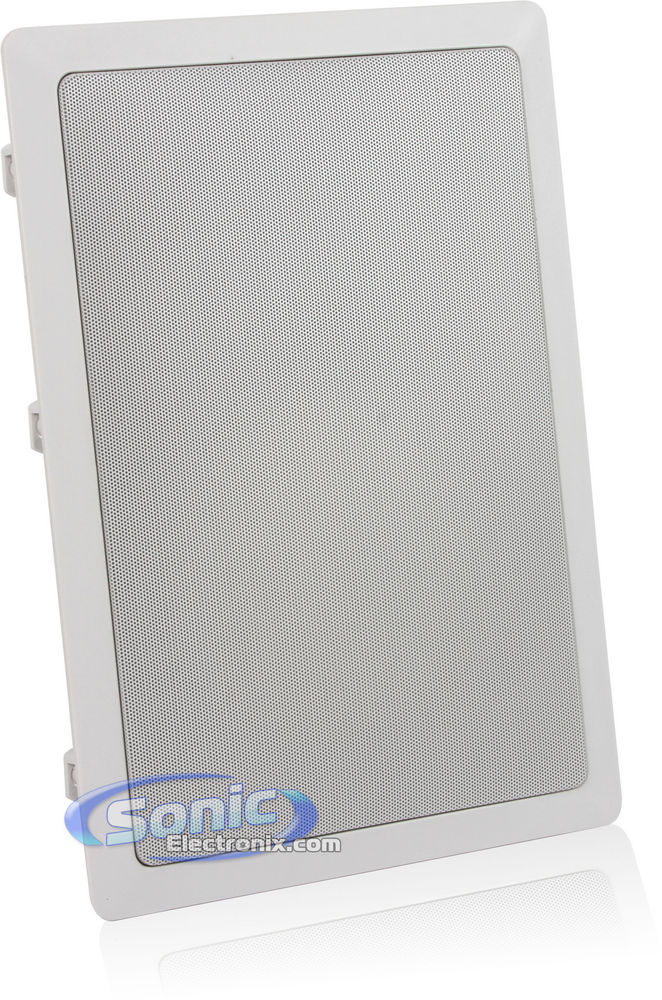

  • Aluminum grille material
  • Front mounted Tweeter Level Control
  • Front mounted boundary equalization control
  • DCM in-wall and in-ceiling speakers are designed to accept all types of interior and exterior paints
  • 8 ohm impedance
  • Top-mount depth: 4-11/16"
  • Authorized Internet Dealer
  • 10-year Manufacturer's warranty

Priced Per Individual Speaker


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

VS-SMC-65 small

Wet Sounds VS-SMC-65

• 100 watts Peak Each, 50 watts each RMS Each
• Engineered for in-ceiling applications
• 1" Polyetherimide (PEI) dome tweeter
• Nominal Impedance: 8 ohms
• Sensitivity: 88 dB @ 1W/1meter

$269.99

List price $269.99

Specifications & Details


Speaker Design
Speaker Type
In-Wall (Rectangle Frame)
Water-Resistant
No
Professional/ DJ Equipment
No
Indoor/Outdoor Speaker
Indoor
Multi-Purpose Speaker
No
Speaker Specifications
Tweeter Design
Dome
Tweeter Composition
Teteron
Woofer Composition
Kevlar Fiber
Woofer Surround
Rubber
Peak Power Handling
120 watts
RMS Power Handling
60 watts
Impedance (Per Voice Coil)
8 ohm
Frequency Response
36 - 20,000 Hz
1/4" Phone Jack
No
3.5mm Stereo Jack
No
Horn
No
Sensitivity
86 dB
Speaker Enclosure
Box Exterior Color
Black
Maximum Wall Thickness
1-3/8"
Paintable Frame
Yes
Width
10"
Height
14"
Depth
3-1/2"
Warranty and Return Policy
Parts Warranty Duration
10 years
Labor Warranty Duration
10 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TP825W

Weight:

7.75lbs

Internal SKU:

tp825w

Internal Product ID:

27218
