RE Audio VLS-1

BassLithic One Band, Low Frequency, Digital Bass Processor

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

Bass Mekanik Quantum Digital Processor • One Band, Low Frequency Adjustment for Bass Boost • 1 Set of RCA Inputs and Outputs • Gold Plated Contacts • Includes Bass Remote

Learn more about the vls1

We apologize

This item has been discontinued

Product Highlights


Bass Mekanik Quantum Digital Processor • One Band, Low Frequency Adjustment for Bass Boost • 1 Set of RCA Inputs and Outputs • Gold Plated Contacts • Includes Bass Remote

Description


RE Audio brand icon

Authorized dealer

Want more Bass in your Sound System?

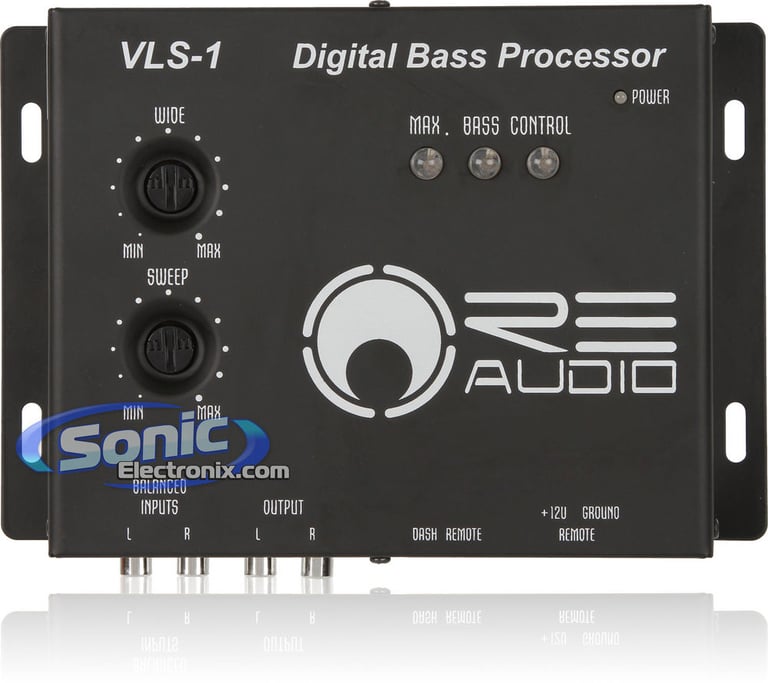

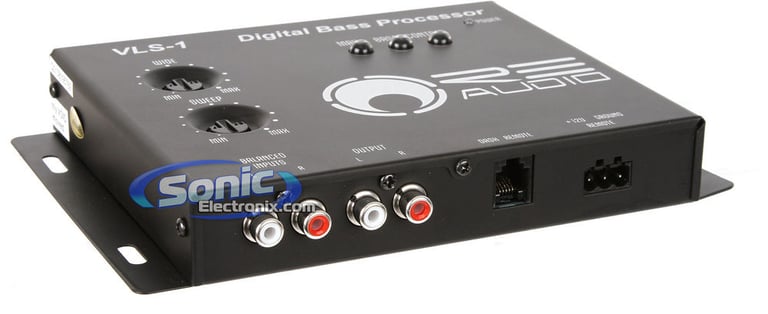

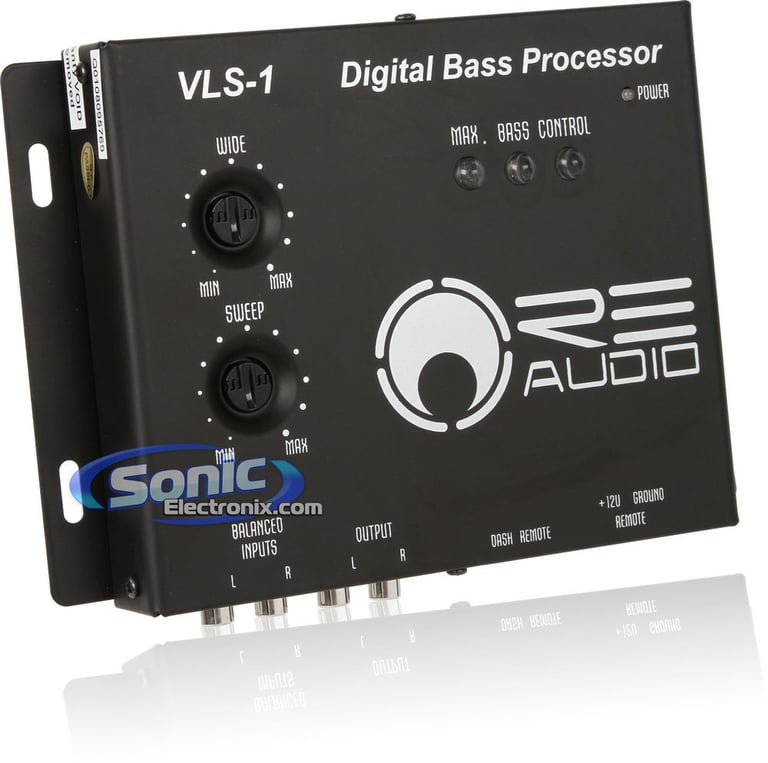

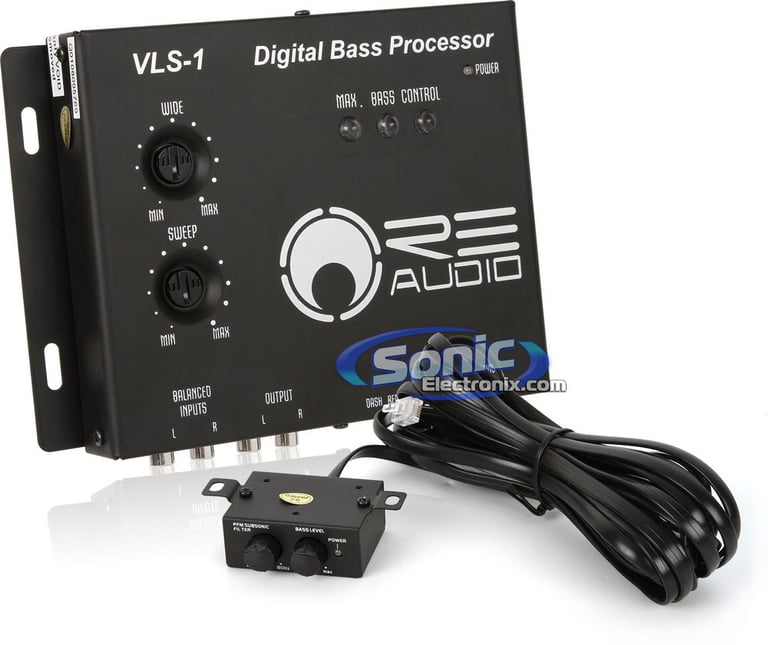

By installing a RE Audio VLS-1 in your audio system will enhance the bass in your vehicle. RE Audio and US Amps has always been known in the audio industry as having deep, hard hitting bass. Their subwoofers, amplifiers, and sound processors are the secret to their success. This VLS-1 digital sound processor is a single band, low frequency, quantum sound processor designed to bring your bass to life. On the top of the unit there are Wide and Sweep control settings that will adjust from min to max for the perfect tuning of your sound preference. The single set of RCA inputs and outputs are designed for the RCA cables that are transferring your low frequency subwoofer signal. To make the processor that much more convenient, a remote dash mounted bass control is included. Get your bass to RE Audio standards with the VLS 1 digital bass processor!

Product Features:
  • BassLithic Digital Bass Processor
  • One Band, Low frequency adjustment for bass boost
  • Wide and Sweep adjustments
  • Bass equalization circuit

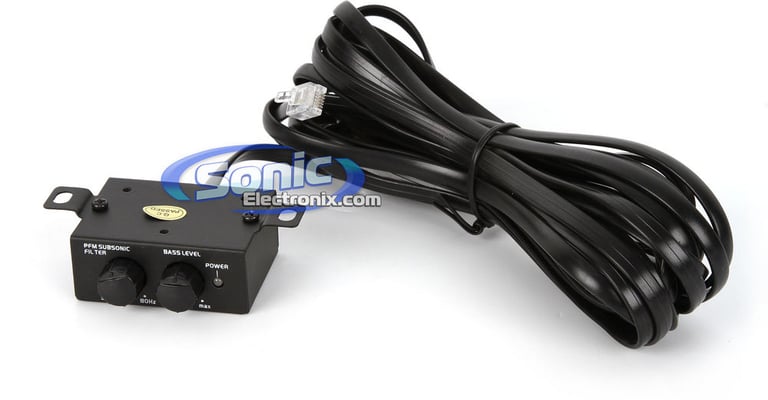

  • Dash mount remote control
  • Bass maximizer indicator
  • PFM Subsonic filter control
  • 1 Set of input RCAs
  • 1 Set of output RCAs
  • Nickel plated contacts for excellent signal transfer
  • Includes wired bass remote
  • Also found as: US Amps, Bass Mekanik, VLS1
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Technical Specifications:
  • Maximum Input Level: 15V RMS
  • Maximum Output Level: 13.5 Peak
  • Frequency Response: 10-100,000 Hz +/- 1 dB
  • Total Harmonic Distortion (THD): 0.003%
  • Signal to Noise Ratio (S/N): -130 dB
  • Balanced Input Noise Rejection: >60 dB
  • Input Impedance: 10,000 ohm
  • Output Impedance: 150 ohms
  • Power Supply: High Headroom PWM
  • Power Draw: 150 mA
  • Recommended Fuse Rating: 1A
  • Dimensions: 4-3/8"D x 6-1/2"W x 1-1/4"H

Product history:

RE Audio VLS-1 thumbnail
(newest, current model)
RE Audio VLS-1-CLEAR thumbnail
(previous model, replaced by RE Audio VLS-1)

Specifications & Details


Bass Reconstruction Processors Specifications
Input Connection Type
RCA
Output Connection Type
RCA
Maximum Input Voltage
15 volts
Maximum Output Voltage
13.5 volts
Adjustable Center Frequency
Yes
LED Indicators
Bass
Clipping
Control
Bass/Gain Remote
Yes
Auxiliary Input
No
Built-in Crossover
No
Frequency Response
10 - 100000 Hz
Signal-to-Noise Ratio
130 dB
Total Harmonic Distortion (THD)
0.003%
Width
6-1/2"
Height
1-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VLS-1

Weight:

1.79lbs

Internal SKU:

vls1

Internal Product ID:

27297

Product and How-to Videos


  • RE Audio BassLithic VLS-1 Digital Bass Processor
  • RE Audio New Product Line Overview | CES 2015
  • What Is A Bass Processor and How Do I Wire It? | Car Audio Q & A

Customer Ratings & Reviews



5 star
64%
4 star
36%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.4
Features
4.1
Design
4.5
Usability
4.3

Customer Reviews

Sort by:

Loading...

RE Audio Bass Processor

I have used this bass processor and it is night and day. I have tried it on two different subwoofers (12 inch); the JL Audio W7 and Pioneer Championship Series Pro, both great sounding subs. Spanish bass has come out amazingly and low bass tones are deeper. Best price on Sonic so get it while it's low.

By Sergio on July 26, 2011

16

found this helpful.

Good addition for my system.

Very easy to install, simply RCA in and RCA out. From what I can tell it cleaned up my bass signal and added some bass into otherwise not so bassy songs. Only use the bass knob if you don't mind your subs getting cut off at about 25hz, otherwise don't. Physically it is about the size of your hand and looks really cool when mounted next to an amplifier.

By Harry on May 16, 2011

16

found this helpful.

RE Audio

This product is really good for the price you can compare this to the SoundStream BX10 or BX15 but for me I would prefer RE Audio because its more heard of overall 10 out 0f 10

By Jesse on March 28, 2011

16

found this helpful.

Great value and it extendes your bass more than twice!!!

Its a good way to adjust your bass and add bass to low bass songs. I bought a month ago and am very happy with it! It adds incredible bass to my songs!!! I just order another one for my truck. Recommended!!!

By Rigo on October 16, 2011

14

found this helpful.

Highly recommend for the bass lovers!!

Way better than the Soundstream BX-15. I'm happy with this product. Muy buen producto para los que les gusta la música latina y quieren se retumba el bass.

By Mv on November 24, 2011

13

found this helpful.

RE Audio

This is one of the best investments I have made in my Sound system. This little sucker pack a kick when it comes to cranking up the BASS in your ride. I would recommend this product any day. =) GOD BLESS

By JOEY on October 9, 2011

14

found this helpful.

nice

Fast shipping and easy to deal with.

By Renier on December 21, 2011

12

found this helpful.

Excellant Product,Value

This bass processor really gets power to the amps. I cant believe I've had stereos for years without one of these!

By JimJim on April 5, 2012

11

found this helpful.

re audio vls-1

This product right here is fine. I was use to the audiocontrol epicenter, but i ordered this one. For the price it gives you a really good sound. It gets good low frequencys. i recommend it.

By koriano on December 9, 2011

11

found this helpful.

Good product

Seems to lack some adjustability. Hard to get right amount of effect without too much increased level. I used to use a lot of eq now i use this. Great for music with with low amount of low bass. I would buy again.

By JAMES on October 28, 2012
