See all parts that fit your 1997 K1500

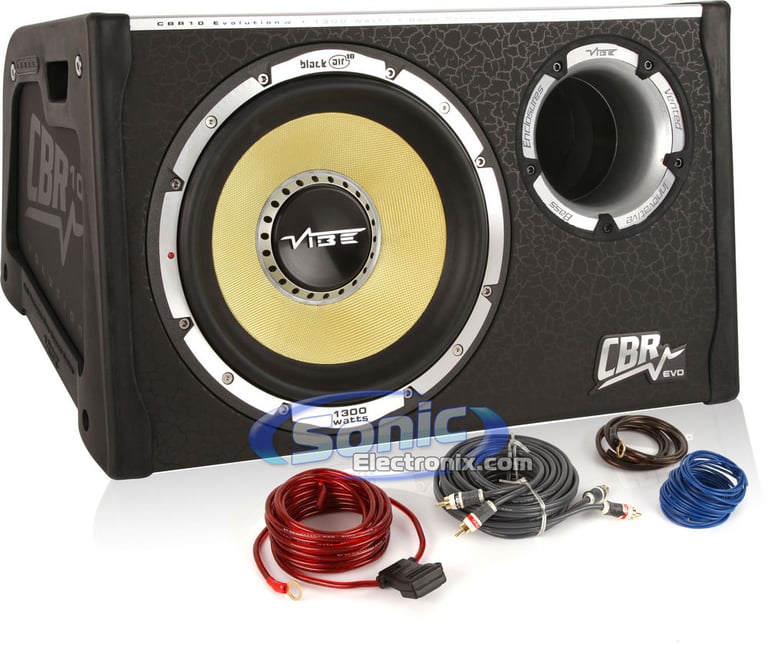

VIBE Audio CBR10ACTIVE (CBR10 EVO Active) R/B

1300W Max, 10" Black Air Series Amplified and Ported Subwoofer Enclosure with Complete Amp Wiring Kit (CBR10AEVO-V2)

VIBE
Shop all VIBE
highlight-star-icon

10" BlackAir Subwoofer with Loaded Enclosure • 1300W Max • 450W RMS • Aluminum Cone Woofer • Built-in Class D Amplifier • 600W Max • Boost EQ • Subwoofer output • Dual Ported Box • PressureWedge Design

Learn more about the LS-cbr10active-RB

We apologize

This item has been discontinued

Description


VIBE brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Choose For Yourself Anytime, Every Time

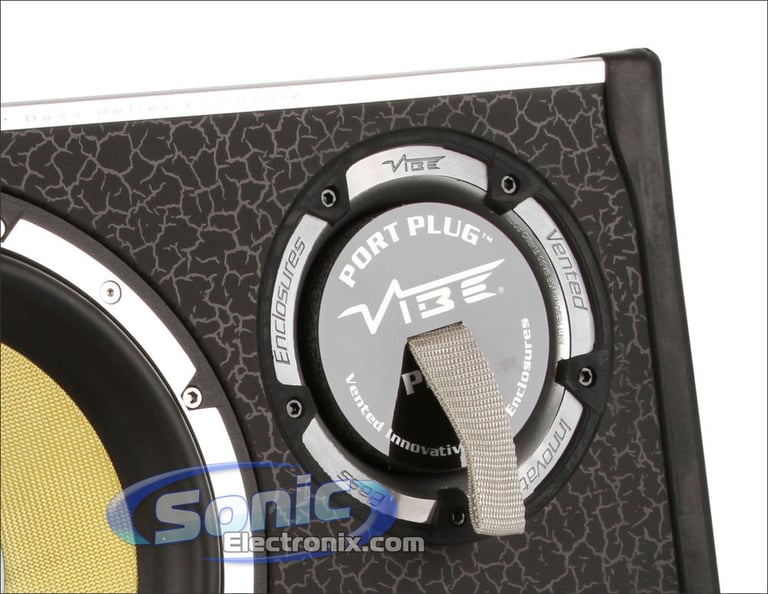

Picture this; you’re going on a hip-hop or R&B craze and you want that booming 808 bass drum. Than out of nowhere you’re feeling the need to rock out with some tight, hard hitting bass. Normally you would need to have multiple woofers and enclosures to get that kind of tuning, until of course you purchase the Vibe Audio CBR12 Active Enclosure. On the fly you can insert or remove the port plug for easy conversion from bass reflex to acoustic suspension. The dual ported designed also allows for variable tuning options, so you can remove one or both port plugs to get that perfect sound. Loaded into this enclosure is a Black Air subwoofer and integrated amplifier for fast and easy installation and tons of power. The Black Air subwoofer has a high roll rubber surround for extra excursion and an aluminum woofer cone for added strength. With the Vibe Audio CBR12 active enclosure you can satisfy any musical mood you find yourself in.

Subwoofer Features:

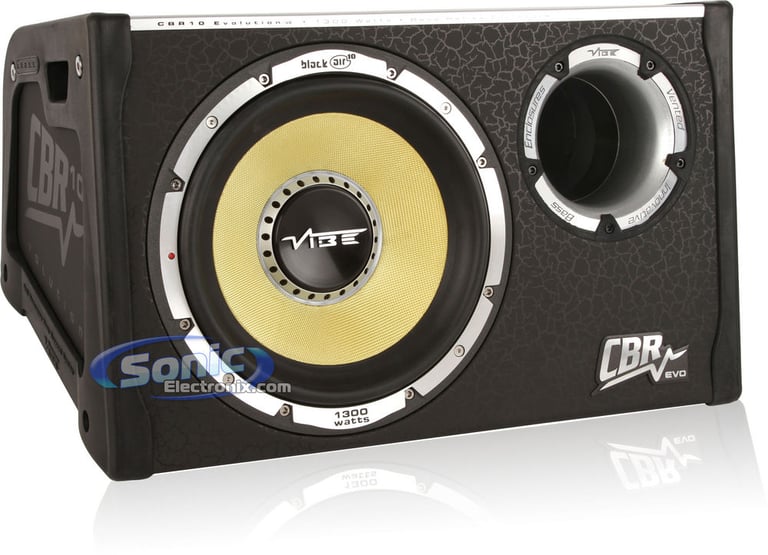

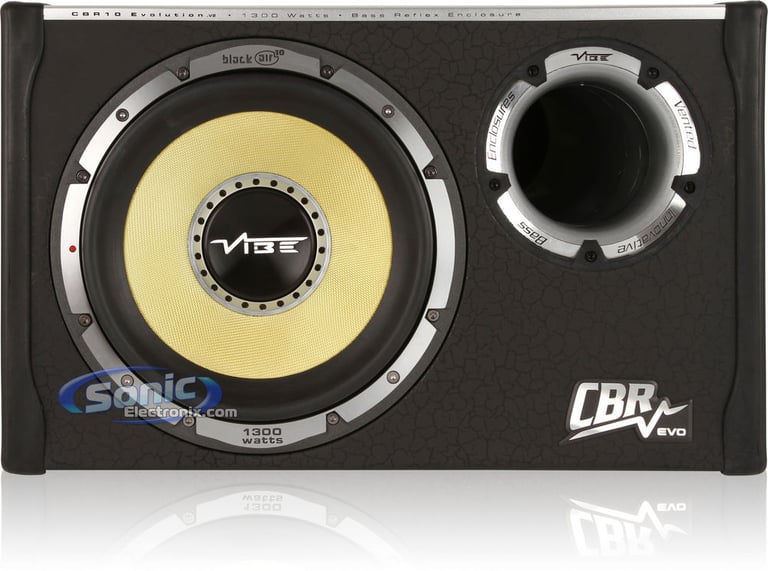

  • 10" Loaded Enclosure with BlackAir Subwoofer
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 450 watts
  • Aluminum cone woofer
  • High-roll rubber surround
  • Double stacked magnet structure
  • Dual 2 ohm or 4 ohm voice coil

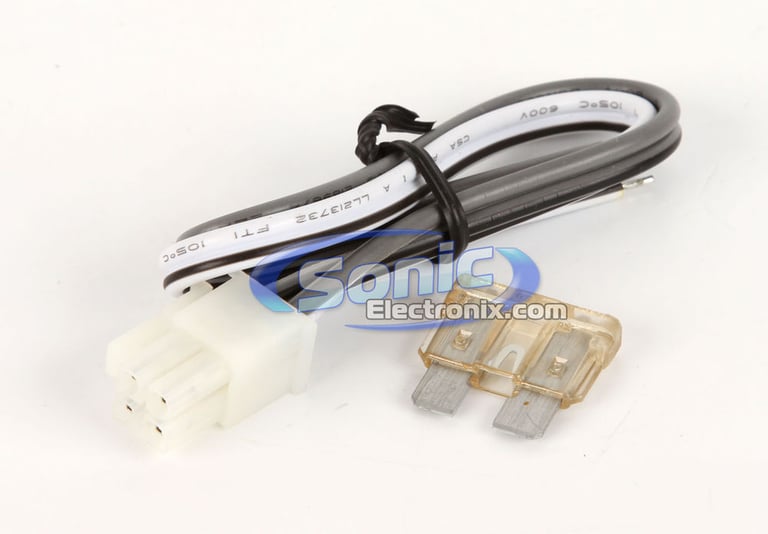

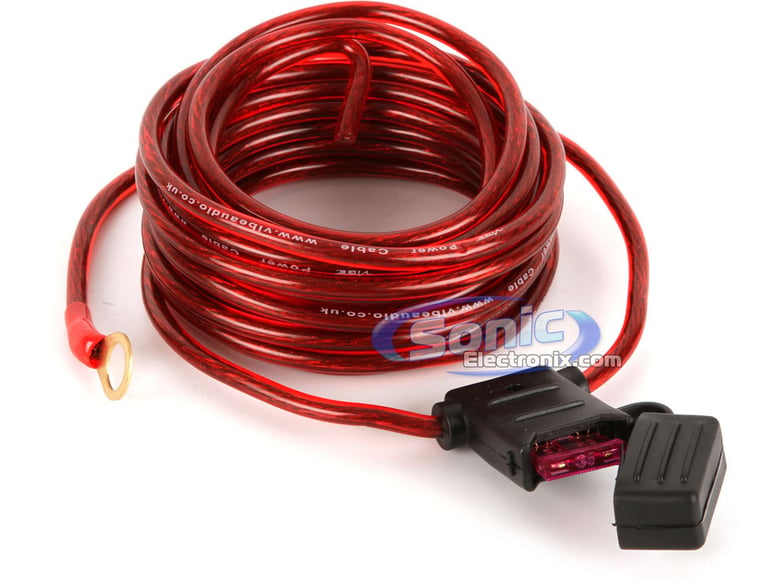

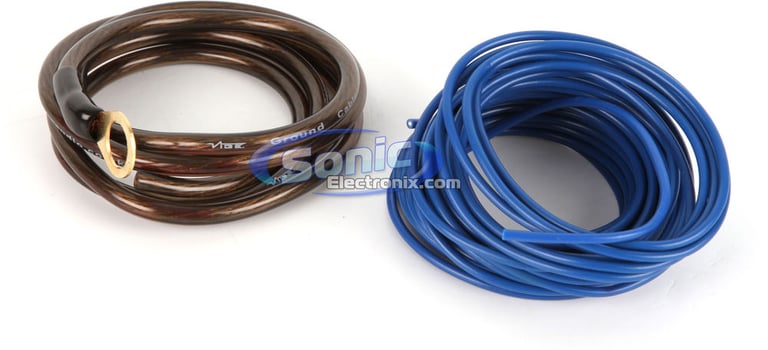

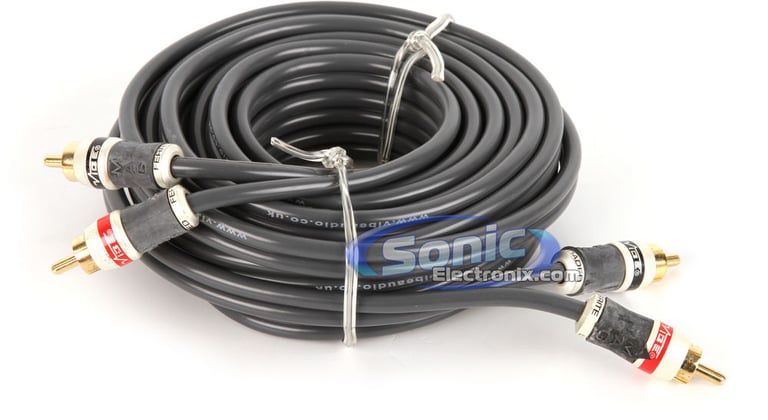

  • Wiring kit is included
  • Authorized Internet Dealer
  • 90-Day Manufacturer's warranty
  • Item Condition: Factory Refurbished

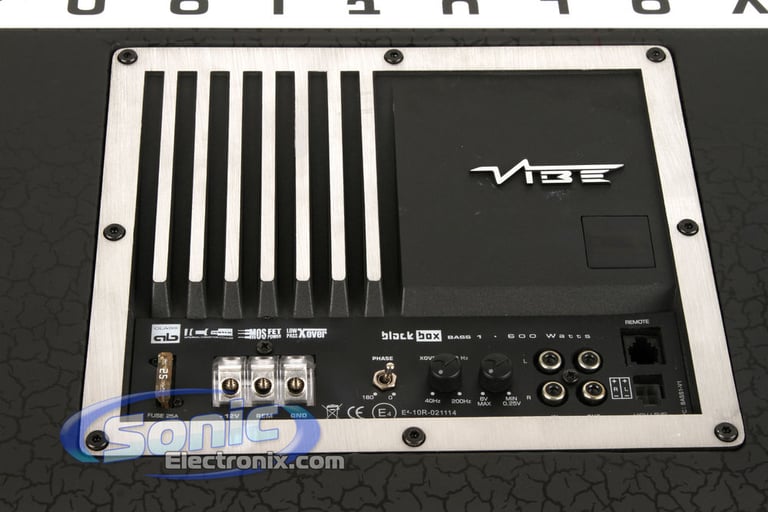

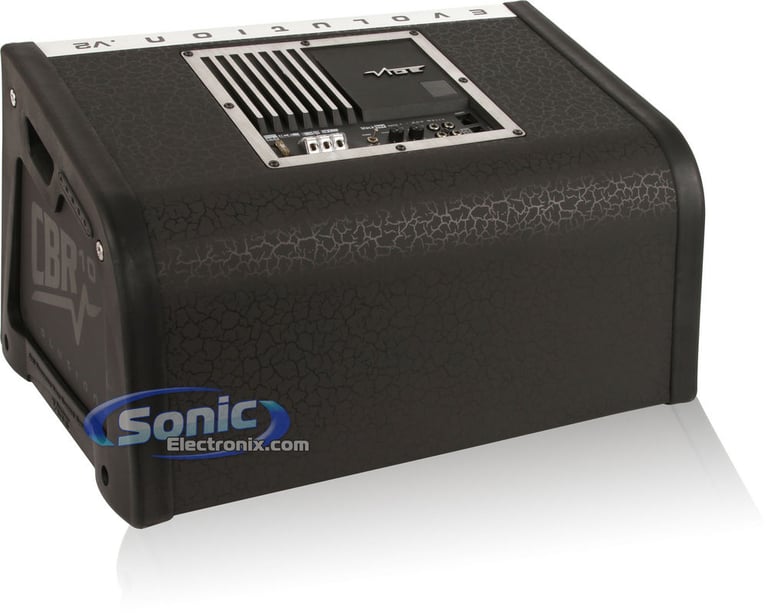

Amplifier Features:
  • Class D Monoblock Bass Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
  • Max power output: 600 watts
  • Amplifier gain can be controlled from the front of the vehicle
  • High switching speed and greater stability
  • Boost EQ for enhancing bass response
  • Built-in microprocessor to protect the amplifier
  • Subwoofer output
  • Adjustable phase control: 0-180 degrees
  • Adjustable gain control: 0.25V to 6V
  • Frequency response: 40-200Hz
  • Signal-to-noise ratio: 90dB
Enclosure Features:
  • 10" Single Ported Enclosure

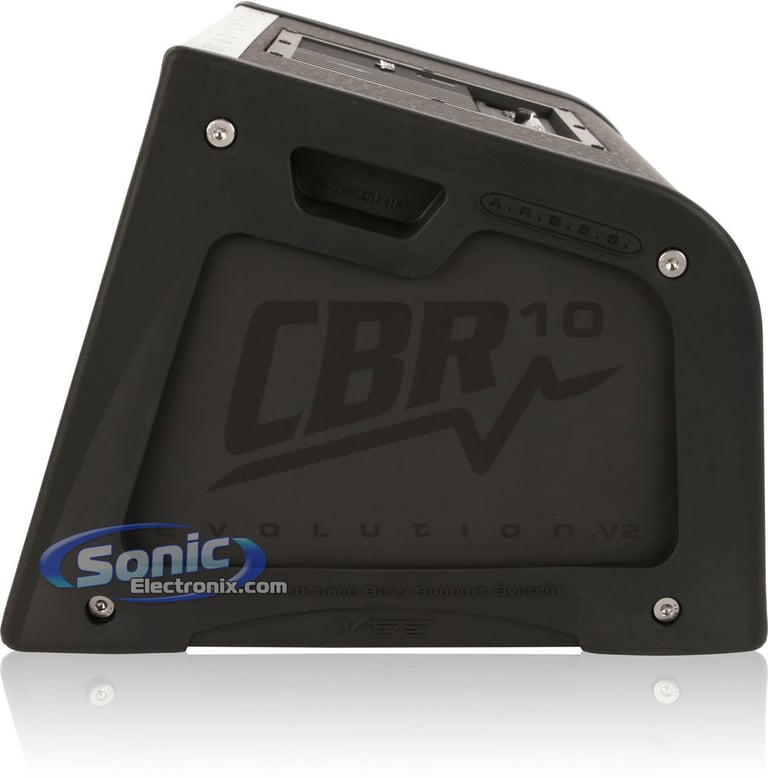

  • PressureWedge Design allows the box to be mounted facing towards or away from passengers
  • Anti-Resonance support system eliminates unwanted vibration
  • Dual flared port for smooth airflow and clean bass
  • Ported enclosure for maximum bass response
  • Extremely durable finish

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.08%
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
450 watts
Peak Power Handling
1300 watts
Woofer Surround
Rubber
Woofer Composition
Polyglass
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
88 dB
Frequency Response
30 - 1,700 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
12"
Width
20"
Depth
15-1/2"
Box Exterior Color
Black
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CBR10ACTIVE-RB

Weight:

40.00lbs

Internal SKU:

LS-cbr10active-RB

Internal Product ID:

35163
