2400W Complete Kenwood + Pioneer Bass Package

Kenwood KAC-8105D Class D Amplifier + 2 Pioneer TS-W303R Subs + 4 Gauge Amp Kit + Dual 12" Sealed Box

Kenwood
Shop all Kenwood
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: Kenwood KAC-8105D + 2 Pioneer TS-W303R + Kit + Box • 2400 Watts Max • Class D Amplifier • CEA-2006 Compliant • Includes Everything You Need To Add Bass To Your Car

Learn more about the kac8105d_2-tsw303r

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

82-8147 main

Metra 82-8147

6"-6 3/4" Speaker Adapter for select 2002-2024 vehicles from Toyota, Subaru, Lexus

7
-44.45%

$24.99

List price $44.99

82-8154 main

Metra 82-8154

6x9" Speaker Mounting Adapters for select 2012-2019 Avalon and Corolla and Camry

1
-55.18%

$11.65

List price $25.99

95-8244HG main

Metra 95-8244HG Dash Kit

Install a new Double-DIN car stereo in select 2013-2018 Avalon (High Gloss Black)

-42.11%

$32.99

List price $56.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Product Highlights

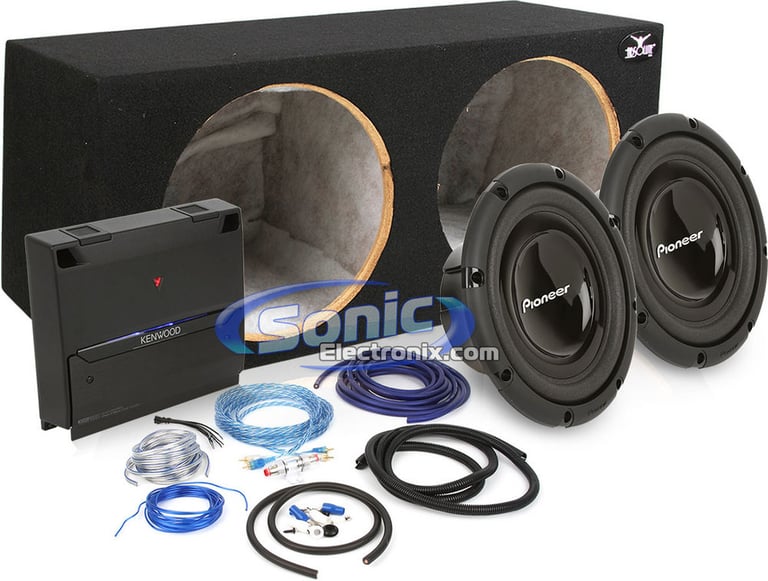

Bass Package: Kenwood KAC-8105D + 2 Pioneer TS-W303R + Kit + Box • 2400 Watts Max • Class D Amplifier • CEA-2006 Compliant • Includes Everything You Need To Add Bass To Your Car

Description


Kenwood brand icon

Authorized dealer

Bass Powered By Kenwood

Adding some hard hitting bass has never been easier! This exclusive combo from Sonic Electronix features two Pioneer subwoofers and a Kenwood amplifier. When wired properly at 2 ohms, this package perfectly matches the subwoofers with the amplifier for quality, deep bass. The Kenwood KAC-8105D amplifier features Class D circuitry that is efficient and provides excellent bass output. Also included in the package is a enclosure pre-lined with poly-fil and a 4 gauge amp kit. Everything you need to get great bass is included in this package!

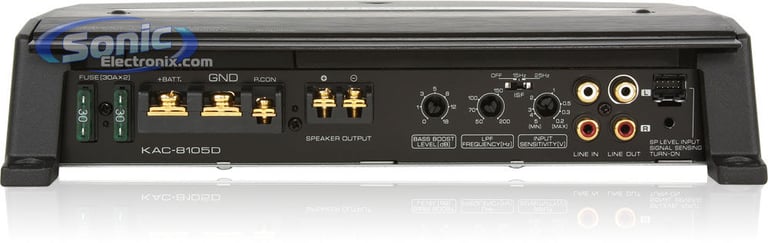

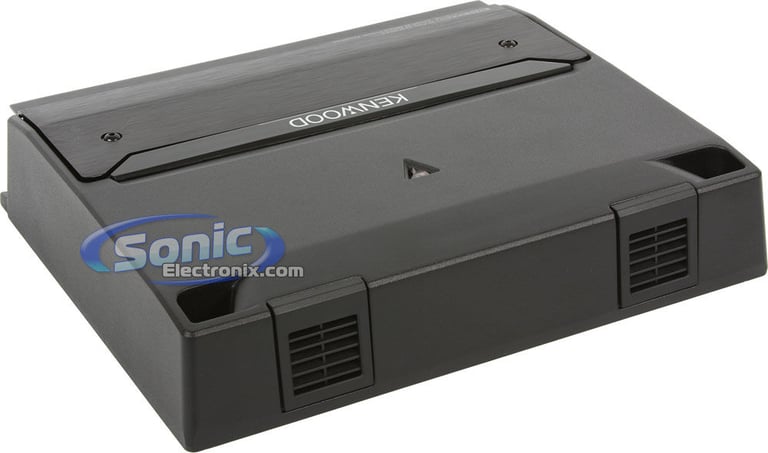

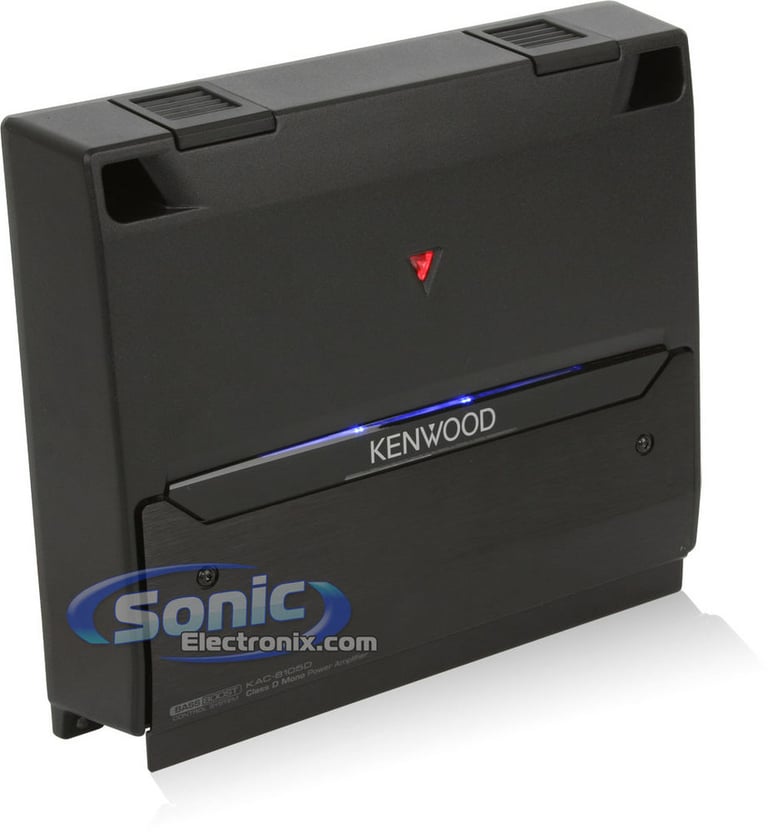

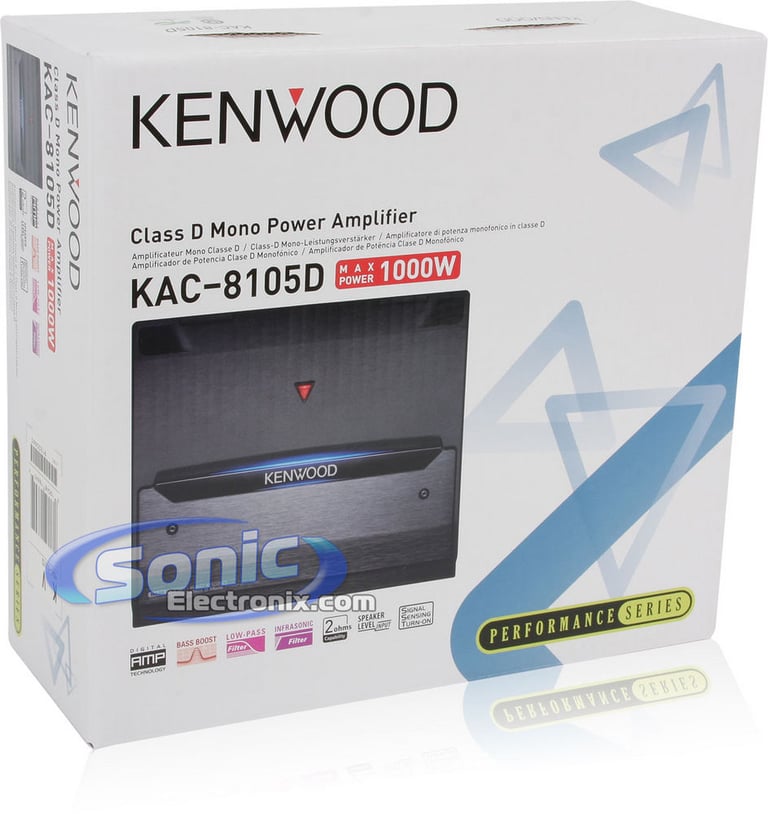

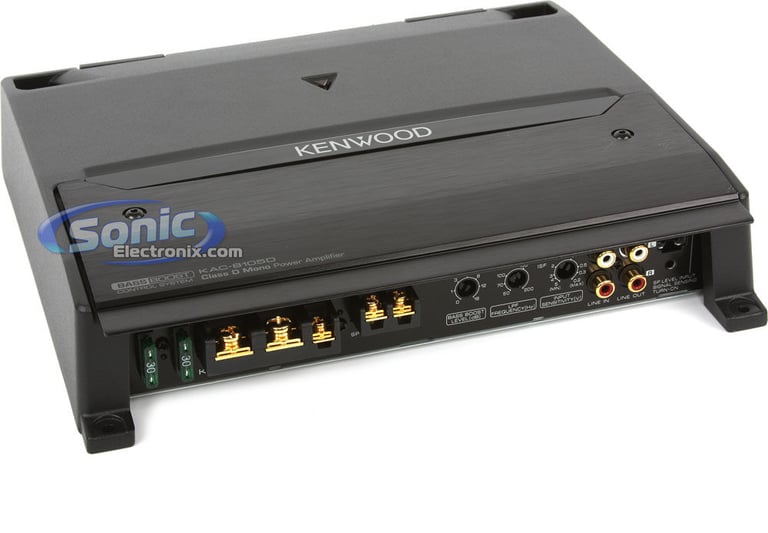

Amplifier Features:
  • Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • MOSFET power supply
  • LED power indicator
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs
  • Short circuit, DC offset, overload, and thermal protection circuitry
  • Aluminum die cast heat sink
  • Speaker impedance: 2-8 ohm
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity: 0.2-5 Volts
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Subsonic filter (15/25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-200 Hz
  • Dimensions: 11"L x 2-5/16"H x 9-3/8"D
  • 4-gauge power and ground leads recommended
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

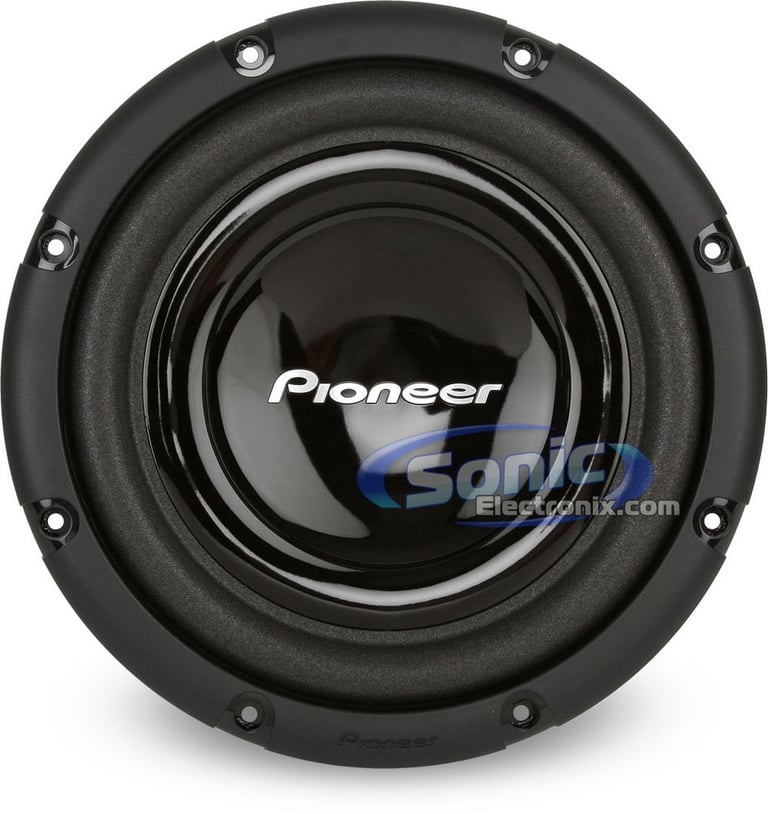

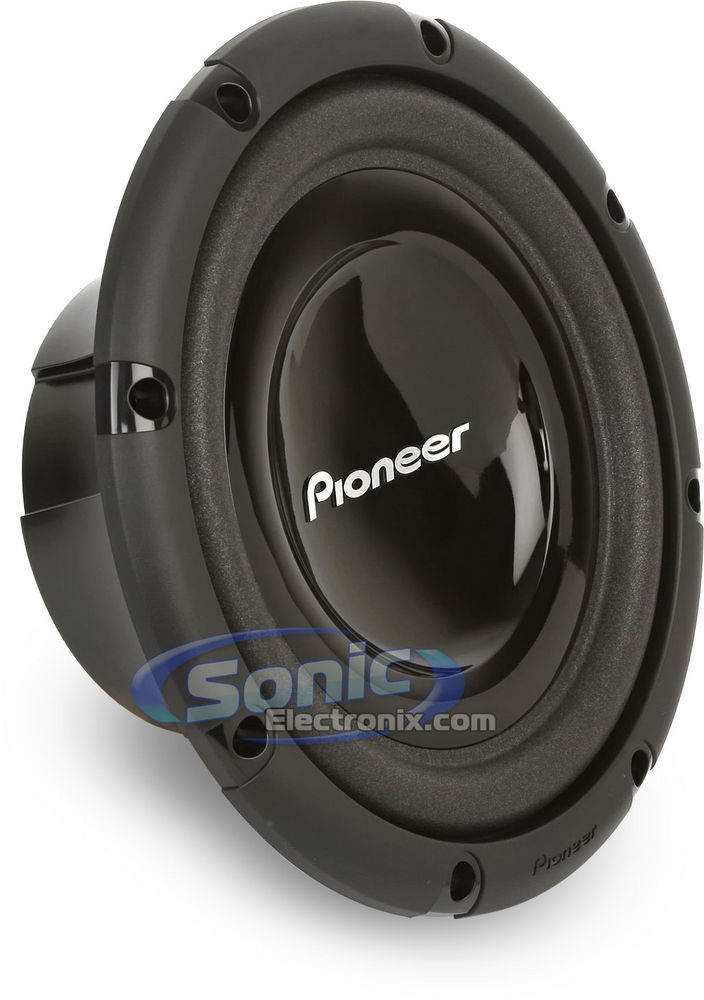

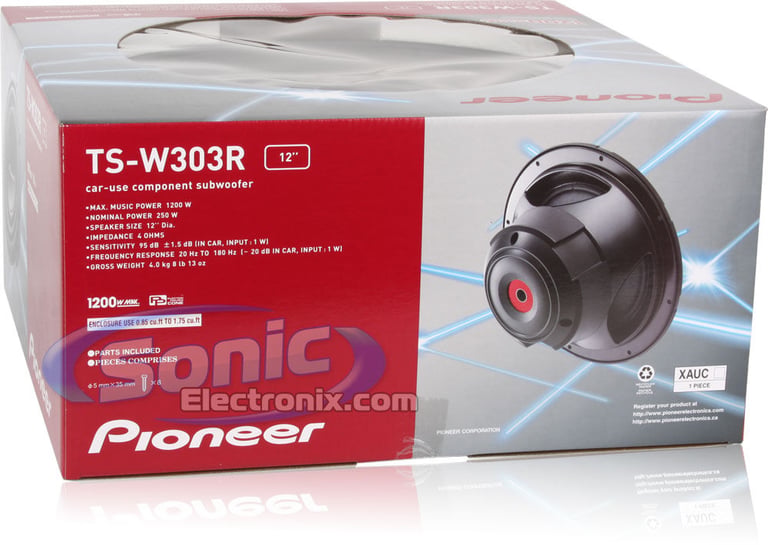

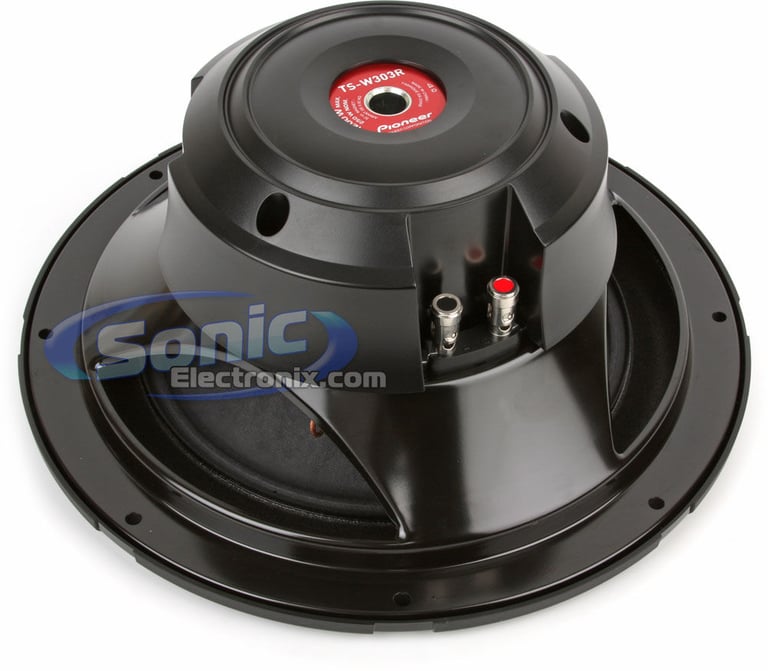

Subwoofer Features:
  • Two 12" Single 4 ohm Champion Series Subwoofers
  • Power Handling:
    • Peak: 2400 watts total / 1200 watts each
    • RMS: 500 watts total / 250 watts each
  • IMPP Composite and paper cone woofer
  • Double cone design with reinforcement nodes
  • Urethane surround
  • Nomex spider
  • Projected pole yoke with vented pole
  • 6 Layer, long copper voice coil
  • 32oz. Strontium magnet structure
  • Stamped basket with magnet cover
  • Integrated single-sided spring compression terminals
  • 1-year Sonic Electronix warranty

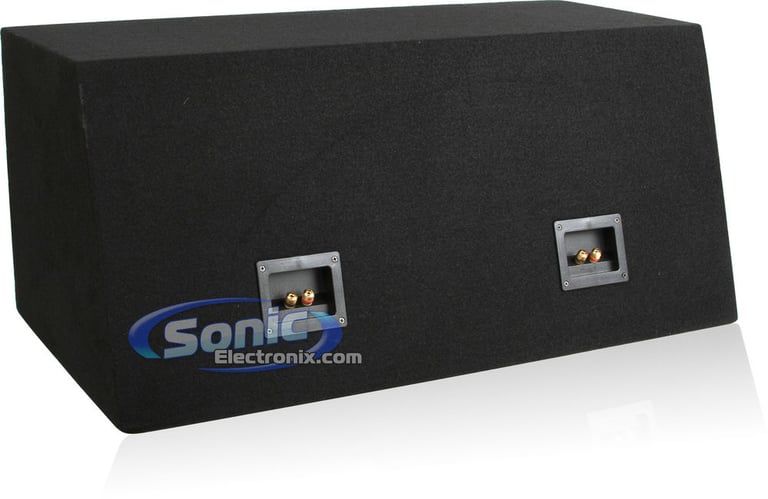

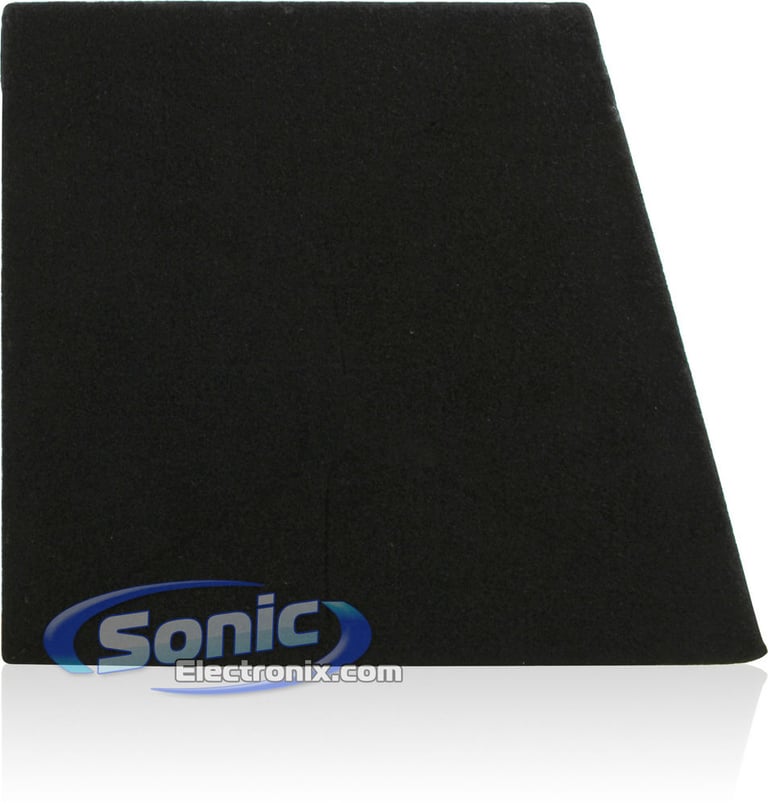

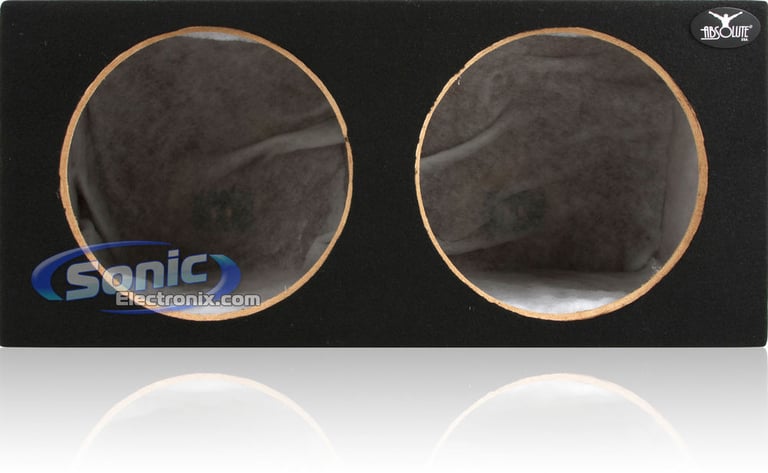

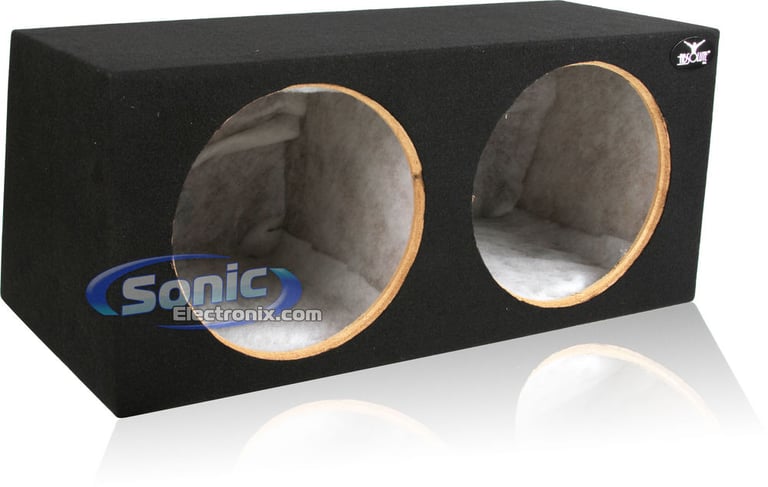

Enclosure Features:
  • Dual 12" Sealed Subwoofer Enclosure
  • Made from durable 3/4" Medium Density Fiberboard (MDF)
  • PolyFil pre-installed for deeper bass
  • Covered in black carpet
  • Absolute logo places on the front of the enclosure

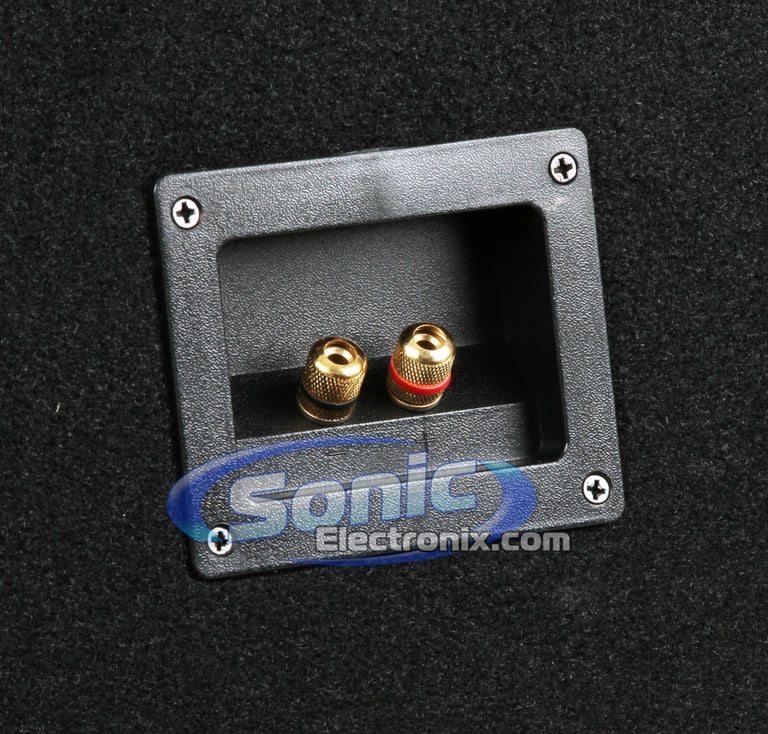

  • Two binding post terminals on the back of the enclosure
  • Square box enclosure universal for most vehicles
  • Mounting depth: 13-3/8"
  • Cutout diameter: 11-1/8"
  • Box volume: 2.8 total cubic feet (1.4 cubic feet per chamber)
  • Dimensions: 15-3/8"D x 28-1/2"W x 14-1/2"H
  • Authorized Internet Dealer
Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:
  1. 17 ft. of 4 Gauge blue power cable
  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable
  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire
  6. 6 ft. of Split loom tubing
  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse
  9. All Necessary Hardware for Installation

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.8%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
15 - 25 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
250 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
2400 watts
Woofer Surround
Urethane
Woofer Composition
Injection Molded Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
13-1/2"
Width
30"
Depth
12"
Second Width
15-3/4"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAC-8105D_2-TS-W303R

Weight:

67.80lbs

Internal SKU:

kac8105d_2-tsw303r

Internal Product ID:

28426
