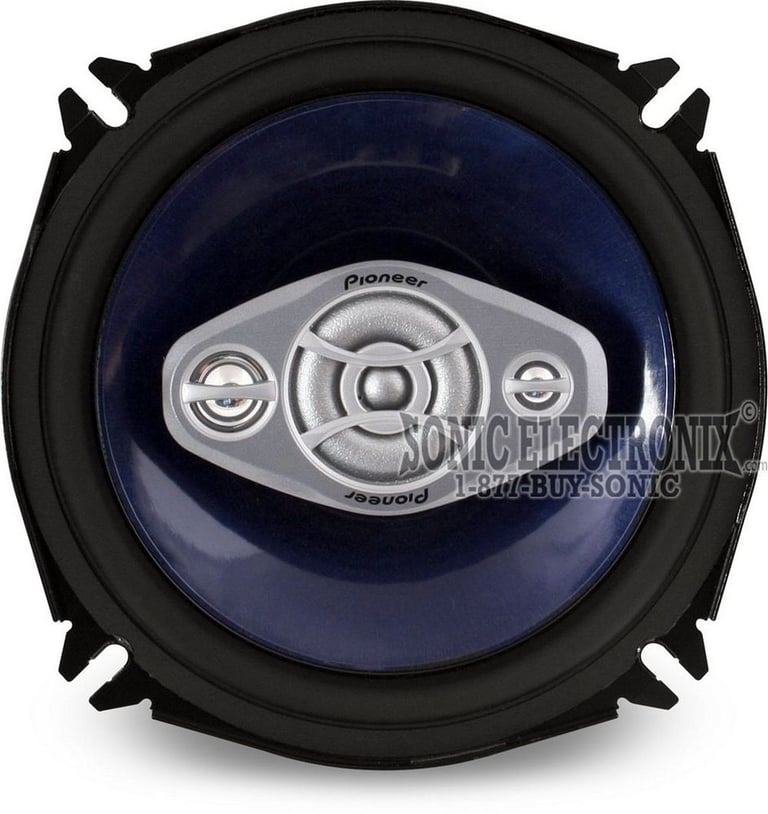

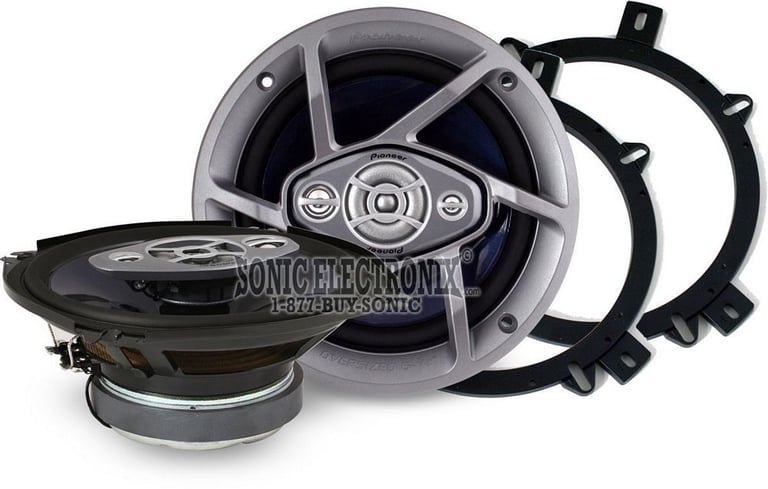

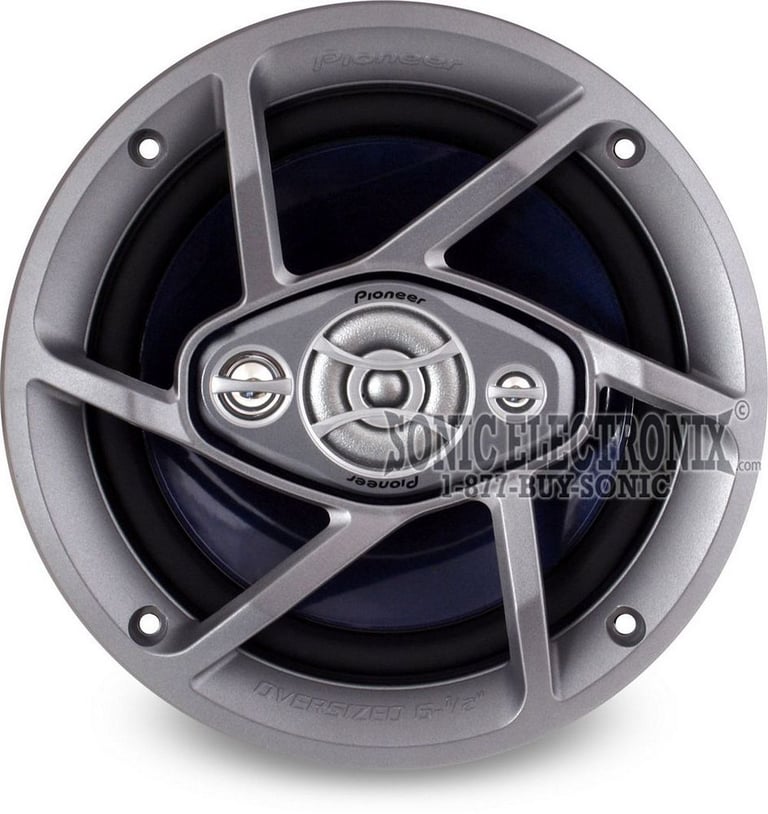

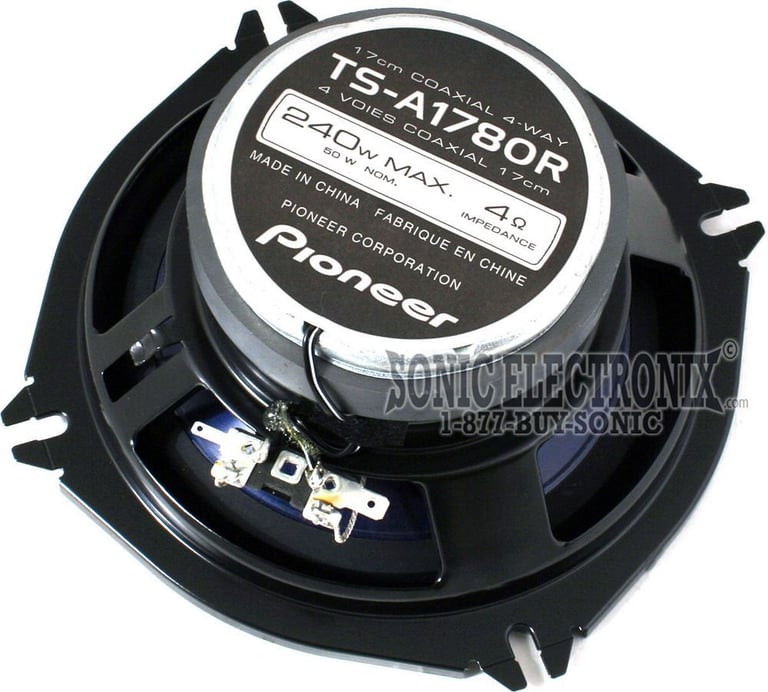

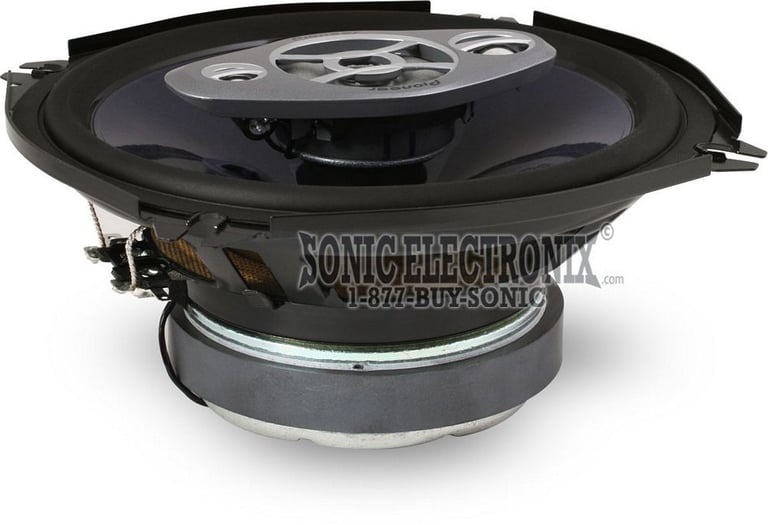

Pioneer TS-A1780R

6-3/4" (Oversized 6-1/2") 4-way Car Speakers with GM/Chrysler Adapters Included

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

6-1/2" 4-Way Speakers • RMS Power: 50W • Peak Power: 240W • Sensitivity: 91dB • Frequency Response: 28Hz-30kHz • Full depth basket for rich bass response • Butyl rubber surround

Learn more about the tsa1780r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsa1782r thumbnail

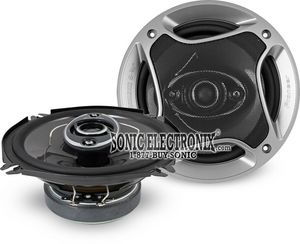

Pioneer TS-A1782R

OUR PRICE: $75.99

View item

Loading...
82-9601 main

Metra 82-9601

6.5" to 6.75" Speaker Mounting Adapters for

11
-10.00%

$26.99

List price $29.99

Limited time!
46CSC674 main

Kicker CSC67 (46CSC674)

600W Peak (200W RMS) 6.75” CS Series 2 Way Coaxial 4-ohm Speakers

9
-33.36%

$79.96

List price $119.99

KD-X560BT main

JVC KD-X560BT

Single DIN Marine Digital Audio Receiver with Bluetooth

4
-7.65%

$239.00

List price $258.80

Product Highlights


6-1/2" 4-Way Speakers • RMS Power: 50W • Peak Power: 240W • Sensitivity: 91dB • Frequency Response: 28Hz-30kHz • Full depth basket for rich bass response • Butyl rubber surround

Description


Pioneer brand icon

Authorized dealer

  • 6-1/2" 4-Way A-Series Car Speakers

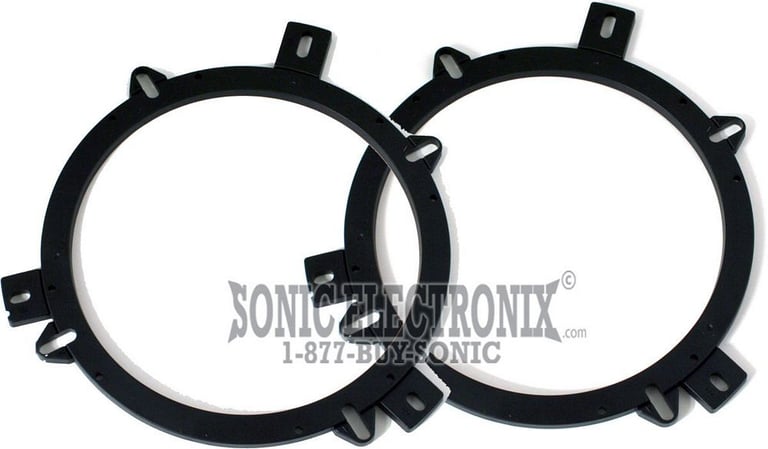

  • Free GM/Chrysler Speaker Adapters Included in the Box to mount in oversized 6-1/2" GM/Chrysler openings!
  • Power Handling:
    • Peak: 480 watts per pair / 240 watts each
    • RMS: 100 watts per pair / 50 watts each
  • IMPP Composite cone woofer with interlaced Kevlar brand fiber
  • Butyl rubber surround
  • 1-5/8" foamed PPC(Pearl Poly-Carbon) balanced dome with magnetic fluid
  • Latex treated damper
  • Full depth basket for rich bass response
  • 4 ohm impedance
  • Top-mount depth: 2-1/2"
  • 1-year SonicElectronix.com warranty

Priced Per Pair

Product history:

Pioneer TS-A1782R thumbnail
(newest, current model)
Pioneer TS-A1781R thumbnail
(previous model, replaced by Pioneer TS-A1782R)
Pioneer TS-A1780R thumbnail
(previous model, replaced by Pioneer TS-A1781R)

Loading...
HD13.SBWR main

Precision Power HD13.SBWR

300W RMS Loaded Single 10" Amplified Sealed Saddlebag Enclosure for select 1998-2013 vehicles from Harley Davidson (Brake Side)

2
-20.00%

$999.99

List price $1249.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(122)

$79.96

List price $119.99

Club 622 small

JBL Club 622

• 180 watts Peak Each, 60 watts RMS Each
• Silk Edge Driven Dome tweeters with 0dB or -3dB adjustable output levels
• UV-Resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 93 dB

(5)

$99.95

List price $139.95

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

Specifications & Details


Speaker Specifications
Speaker Size
6-1/2"
Design
4-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Composition
PPC(Pearl Poly-Carbon)
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
240 watts
RMS Power Handling
50 watts
Sensitivity
91 dB
Frequency Response
28 - 30000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/2"
Cutout Dimensions
5-1/2"

Item Details


Manufacturer:

Model Number:

TS-A1780R

Weight:

7.00lbs

Internal SKU:

tsa1780r

Internal Product ID:

2888
