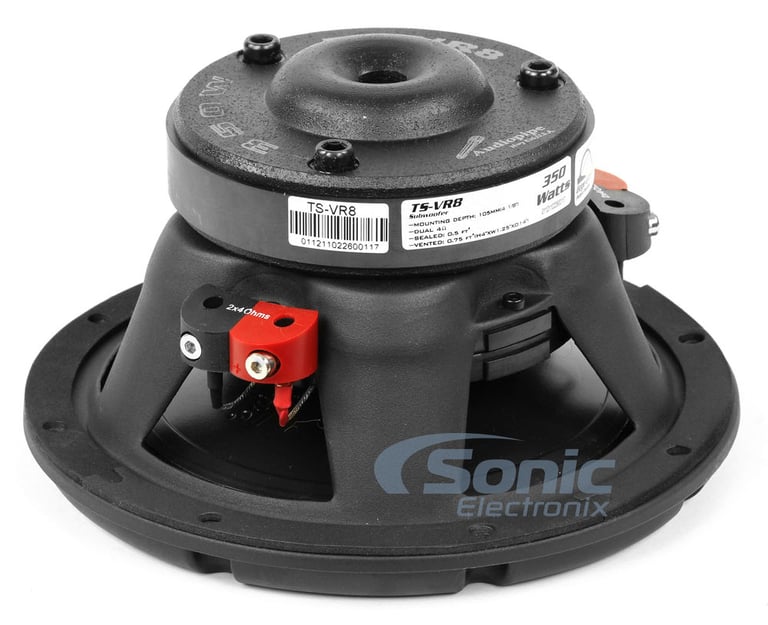

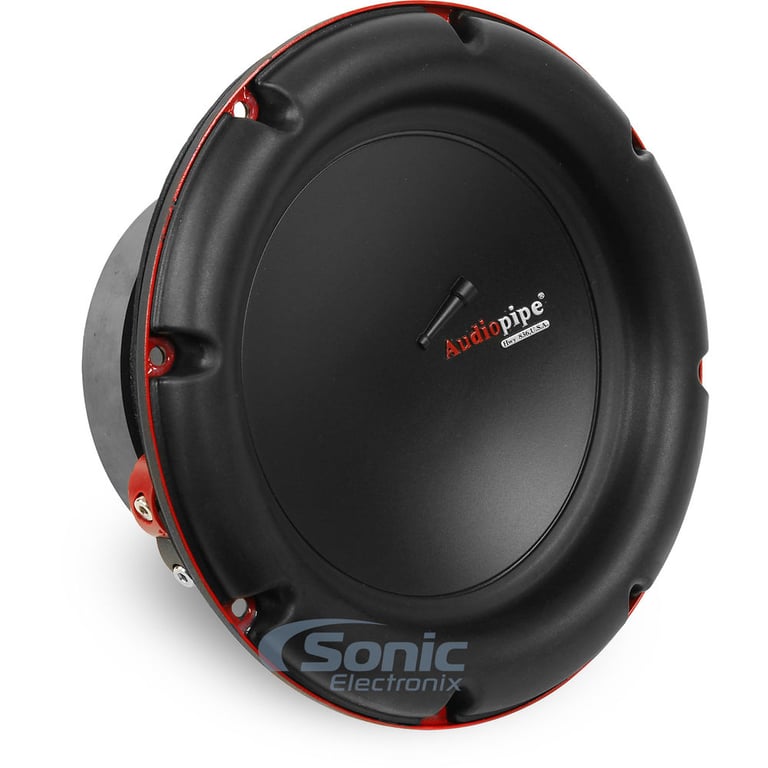

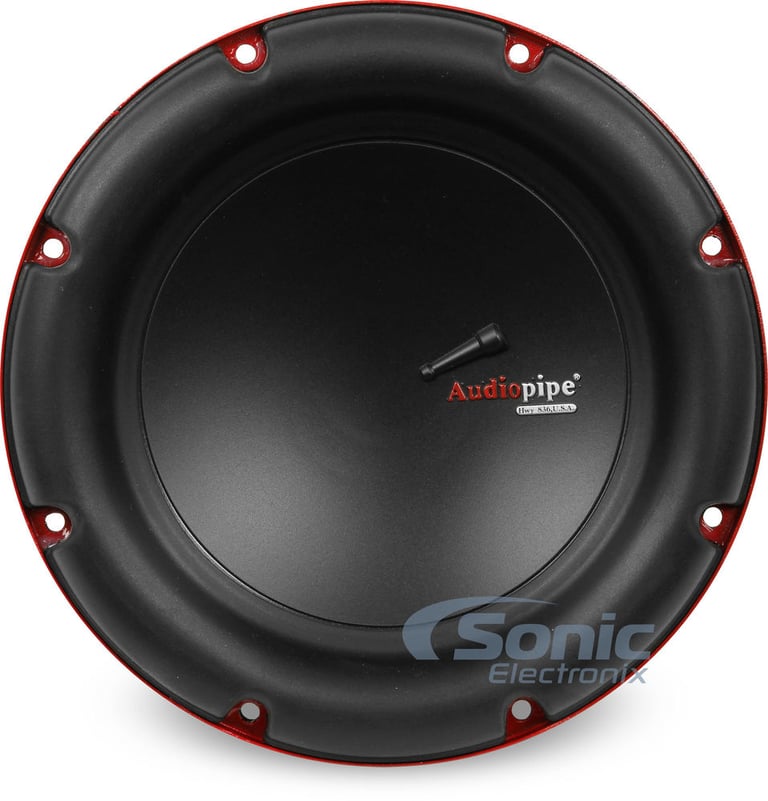

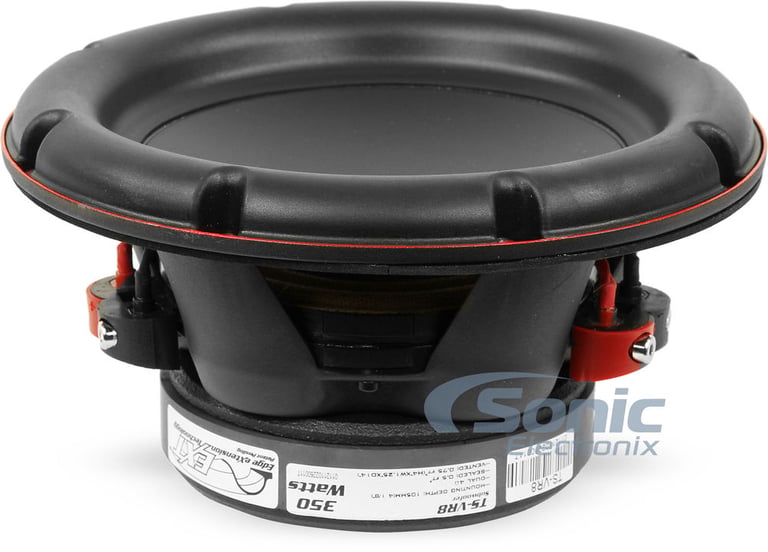

Audiopipe TS-VR8

8" Dual 4 Ohm EXT Series Subwoofer

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 8" EXT Series Subwoofer
• Dual 4 Ohm
• 300 Watts Max
• 150 Watts RMS
• One Piece Polypropylene Cone
• Butyl Rubber Surround
• Multi-Connect Terminals
• 30 oz Magnet
• Powdered Black Paint Steel Basket

Learn more about the tsvr8

We apologize

This item has been discontinued


Loading...
95-7510HG main

Metra 95-7510HG Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2004-2008 RX-8

7
-55.70%

$209.99

List price $473.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

KW-X850BTS main

JVC KW-X850BTS

Double DIN Digital Media Receiver with Bluetooth and Amazon Alexa (SiriusXM Ready)

3
-11.83%

$149.00

List price $169.00

Product Highlights


• 8" EXT Series Subwoofer
• Dual 4 Ohm
• 300 Watts Max
• 150 Watts RMS
• One Piece Polypropylene Cone
• Butyl Rubber Surround
• Multi-Connect Terminals
• 30 oz Magnet
• Powdered Black Paint Steel Basket

Description


Audiopipe brand icon

Authorized dealer

Successfully introducing the TS-V series back in 2003, Audiopipe was one of the first major car audio brands to perfect a one piece cone capable of holding power. Combining performance, reliability and a distinct ability to handle high levels of power, this series has always outlived installer's expectations in every aspect of what a true entry level subwoofer should be.

So what better way to perfect an already perfected product? Audiopipe answers with the EXT subwoofer! Edge Extension Technology allows for the rubber butyl surround to reach the very edge of the basket allowing the cone area to be increased. So what does this mean? More bass same space! The added space allows for all subwoofers incorporating EXT technology to move more air as it cycles through every bass note. This delivers an unbelievable smooth bass response while maximizes the space being used.

Along with the new EXT technology, the TS-AR and TS-VR series have increased the magnet structure by 15% for increased power handling. Audiopipe has implemented these improvements, all while maintaining the entry level pricing structure for both series

General Features:

  • 8" Dual 4 ohm EXT Series Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: 4 ohm
  • One piece polypropylene cone
  • Butyl rubber surround
  • Powdered black paint steel basket
  • Patent Pipe multi-connect terminals
  • 1-1/2" Four-layer dual voice coil BASV
  • 30 oz Single magnet structure
  • Frequency response: 30-2,000 Hz
  • Sensitivity: 85 dB
  • Mounting Depth: 4-1/2"
  • Also available in a single voice coil configuration: Audiopipe TS-AR8
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiopipe TS-VR8 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiopipe TS-VR8 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiopipe TS-VR8 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiopipe TS-VR8 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 2,000 Hz
Sensitivity
85 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Optimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
0.65 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Optimum Ported Box Volume
0.75 cubic feet
Maximum Ported Box Volume
0.85 cubic feet
Top-Mount Depth (Mounting Depth)
4-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-VR8

Weight:

6.80lbs

Internal SKU:

tsvr8

Internal Product ID:

29036

Product and How-to Videos


Customer Ratings & Reviews


Audiopipe TS-VR8 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4.5
Features
4.3
Design
4.8
Usability
4.5

Customer Reviews

Sort by:

Loading...

Not impressed

Not sure if it's the cone or the surround but this is a farty woofer with excessive cone distortion. Might be -ok- if you only ran 100w to it. 25+ years experience here. Find something else.

By Kicker on August 24, 2017

1 found this helpful


Better than expected.

I loaded this into a home audio 150 watt powered subwoofer enclosure and hammered on it a while, the suspension is really stiff for such a small subwoofer.

After the suspension loosened up the woofer really started to sound nice, response and build quality is that of a much more expensive subwoofer.

Powder coated basket, stitched tinsel leads, robust terminals, great bass response...what's not to like.

I haven't really had a chance to test durability so I could only give it three stars in this area.

By Tim on August 7, 2017 Checkmark Icon Verified purchase

1 found this helpful


Little sub hits

I bought this little sub for my 2010 Subaru Legacy gt running about 150 watts to it and this little sub hits

By Junior8575 on April 24, 2016

1 found this helpful


Great

I really like the sound and quality. I'm very happy with it

By Shawna on November 10, 2016




iLX-W670 small

Alpine iLX-W670

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

(63)

$349.95

List price $420.00

10C158 small

Kicker C158 (10C158)

15" Single 8 ohm Comp Series Car Subwoofer

(4)

$79.95

List price $169.95

ZR4 small

Escort ZR4 Laser Shifter

Standalone or Add-on Laser Shifter / Detector for Select Escort & Beltronics Radar / Laser Detectors

$449.95

List price $449.95

8W0-4 small

JL Audio 8W0-4

8" Single 4 ohms W0 Series Subwoofer 8w0

(1)

$44.99

List price $99.99

99-2023B small

Metra 99-2023B

Single/Double DIN Installation Kit for select 2011-2012 Regal (Black)

(1)

$289.99

List price $657.99

99-7820B small

Metra 99-7820B Dash Kit

Install a new Single-DIN car stereo in select 2007-2013 MDX

$59.99

List price $55.99

BLX44 small

Massive Audio BLX44

690W Max (240W RMS) Bluetooth, Water and Dust Proof Nano Blu Class-D 4-Channel 2 Ohm Stable Amp

$219.95

List price $449.95

99-3051 small

Metra 99-3051 Dash Kit

Install a new Single/Double-DIN car stereo in select 1990-1996 Corvette (Matte Black)

(5)

$18.99

List price $34.99

H2.15.2 small

Orion H2.15.2

15" Dual 2 Ohms Subwoofer

(1)

$259.99

List price $599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Dodge Challenger

2002 Mitsubishi Eclipse

2004 Mazda RX-8

2003 Mazda B3000

2013 Kia Optima

1990 Eagle Premier

2013 Ford Expedition

2015 Mazda CX-5

2021 Tesla Model 3

2004 Ford Freestar

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
