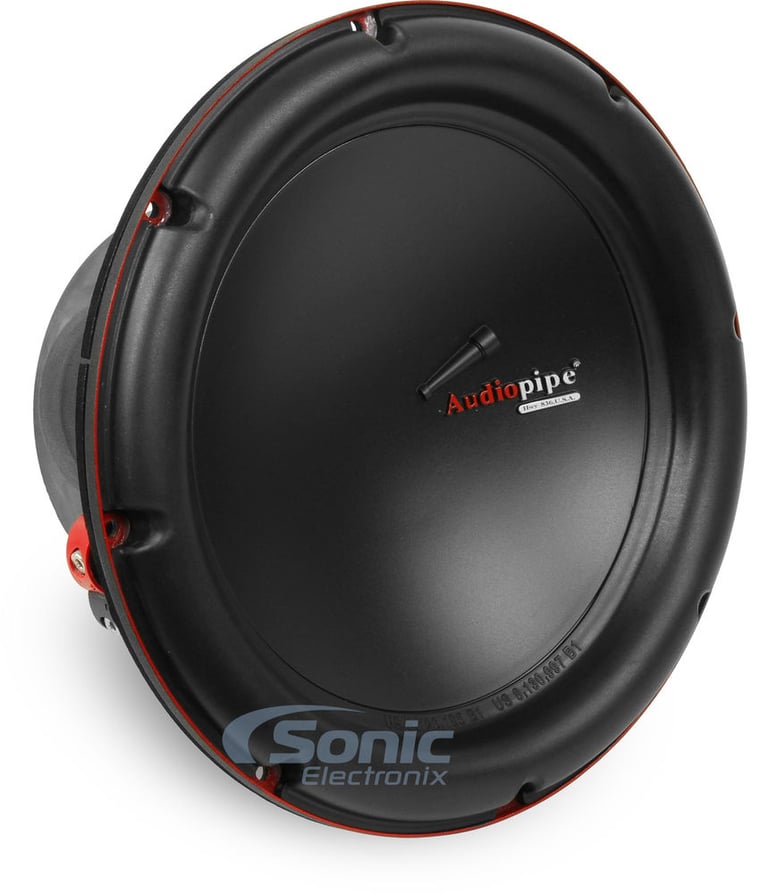

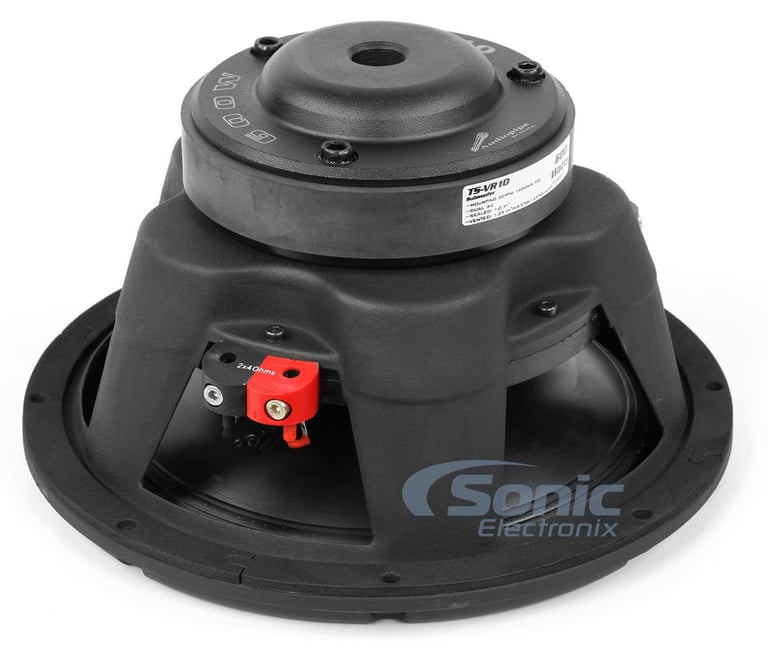

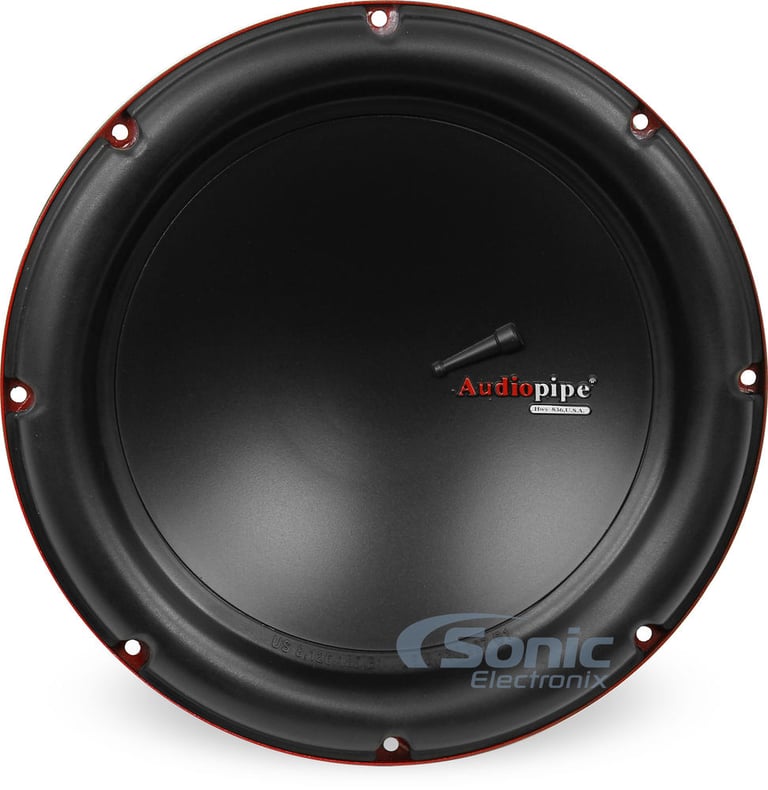

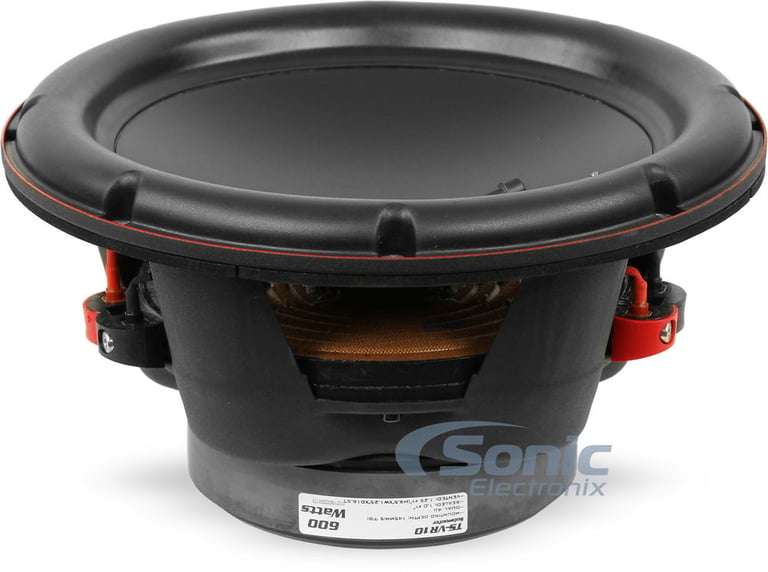

Audiopipe TS-VR10 Open Box Complete

600W Peak (300W RMS) 10" Dual 4 ohm EXT Series Subwoofer

Audiopipe
Shop all Audiopipe
highlight-star-icon

• Item Condition: Open Box Compete
• 10" EXT Series Subwoofer
• Dual 4 Ohm
• 600 Watts Max
• 300 Watts RMS
• One Piece Polypropylene Cone
• Butyl Rubber Surround
• Multi-Connect Terminals
• 50 Oz Magnet
• Powdered Black Paint Steel Basket

Learn more about the ls-tsvr10-obc6

We apologize

This item has been discontinued

Description


Audiopipe brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Successfully introducing the TS-V series back in 2003, Audiopipe was one of the first major car audio brands to perfect a one piece cone capable of holding power. Combining performance, reliability and a distinct ability to handle high levels of power, this series has always outlived installer's expectations in every aspect of what a true entry level subwoofer should be.

So what better way to perfect an already perfected product? Audiopipe answers with the EXT subwoofer! Edge Extension Technology allows for the rubber butyl surround to reach the very edge of the basket allowing the cone area to be increased. So what does this mean? More bass same space! The added space allows for all subwoofers incorporating EXT technology to move more air as it cycles through every bass note. This delivers an unbelievable smooth bass response while maximizes the space being used.

Along with the new EXT technology, the TS-AR and TS-VR series have increased the magnet structure by 15% for increased power handling. Audiopipe has implemented these improvements, all while maintaining the entry level pricing structure for both series

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.

General Features:

  • 10" Dual 4 ohm EXT Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Recommended power range: 150 - 300 watts RMS
  • Impedance: 4 ohm
  • One piece polypropylene cone
  • Butyl rubber surround
  • Powdered black paint steel basket
  • Patent Pipe multi-connect terminals
  • 2" Four-layer dual voice coil BASV
  • 50 oz Single magnet structure
  • Frequency response: 27-1,300 Hz
  • Sensitivity: 87 dB
  • Mounting Depth: 5-3/4"
  • Also available in a single voice coil configuration: Audiopipe TS-AR10
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiopipe TS-VR10 Open Box Complete Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiopipe TS-VR10 Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiopipe TS-VR10 Open Box Complete Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiopipe TS-VR10 Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
27 - 1,300 Hz
Sensitivity
87 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
5-3/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-VR10 Open Box Complete

Weight:

10.40lbs

Internal SKU:

ls-tsvr10-obc6

Internal Product ID:

132497
