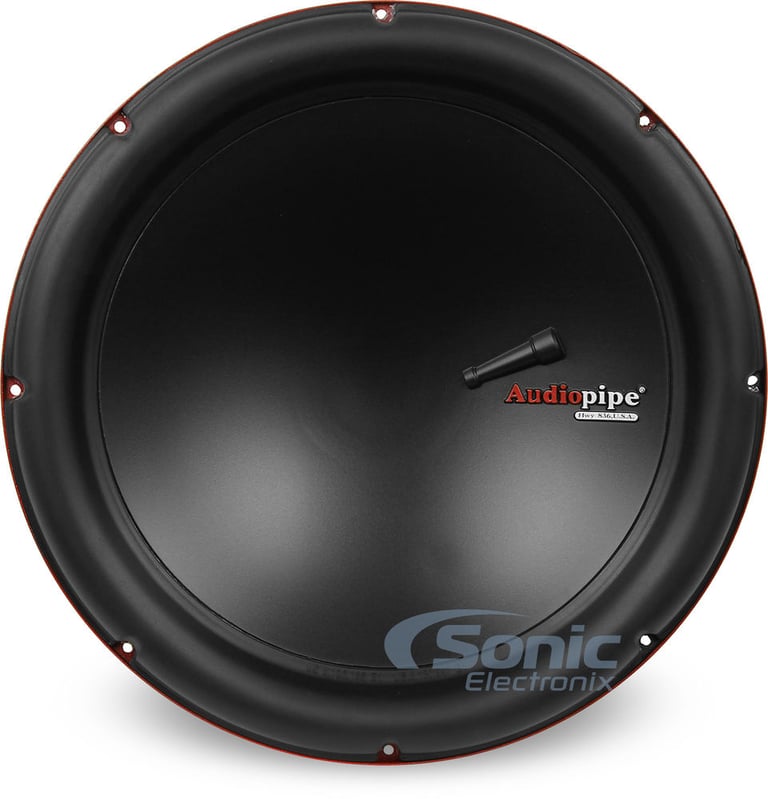

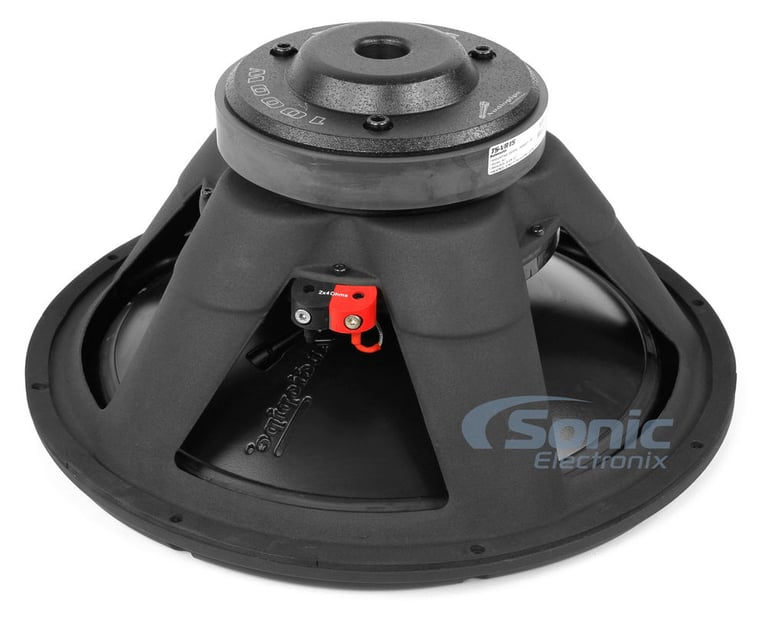

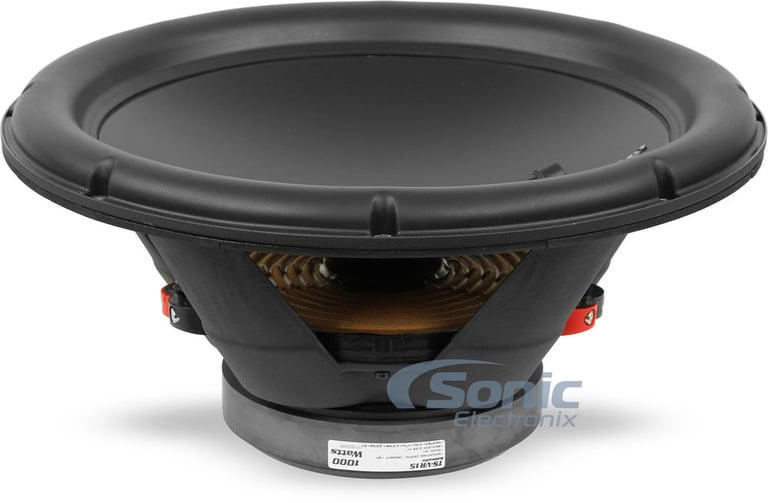

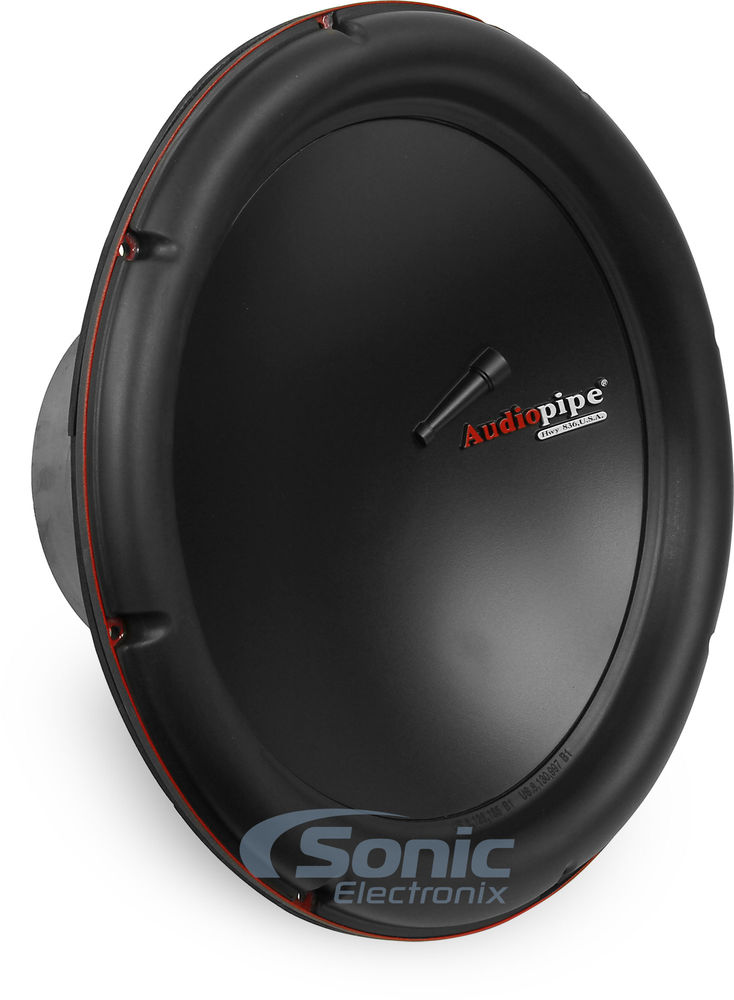

Audiopipe TS-VR15

15" Dual 4 ohm EXT Series Subwoofer

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 15" EXT Series Subwoofer
• Dual 4 ohm
• 1000 Watts Max
• 500 Watts RMS
• One Piece Polypropylene Cone
• Butyl Rubber Surround
• Multi-Connect Terminals
• 73 oz Magnet
• Powdered Black Paint Steel Basket

Learn more about the tsvr15

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

Product Highlights


• 15" EXT Series Subwoofer
• Dual 4 ohm
• 1000 Watts Max
• 500 Watts RMS
• One Piece Polypropylene Cone
• Butyl Rubber Surround
• Multi-Connect Terminals
• 73 oz Magnet
• Powdered Black Paint Steel Basket

Description


Audiopipe brand icon

Authorized dealer

Successfully introducing the TS-V series back in 2003, Audiopipe was one of the first major car audio brands to perfect a one piece cone capable of holding power. Combining performance, reliability and a distinct ability to handle high levels of power, this series has always outlived installer's expectations in every aspect of what a true entry level subwoofer should be.

So what better way to perfect an already perfected product? Audiopipe answers with the EXT subwoofer! Edge Extension Technology allows for the rubber butyl surround to reach the very edge of the basket allowing the cone area to be increased. So what does this mean? More bass same space! The added space allows for all subwoofers incorporating EXT technology to move more air as it cycles through every bass note. This delivers an unbelievable smooth bass response while maximizes the space being used.

Along with the new EXT technology, the TS-AR and TS-VR series have increased the magnet structure by 15% for increased power handling. Audiopipe has implemented these improvements, all while maintaining the entry level pricing structure for both series

General Features:

  • 15" Dual 4 Ohm EXT Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: 4 ohm
  • One piece polypropylene cone
  • Butyl rubber surround
  • Powdered black paint steel basket
  • Patent Pipe multi-connect terminals
  • 2-1/2" Four-layer dual voice coil BASV
  • 73 oz Single magnet structure
  • Frequency response: 20-1,000 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 7"
  • Also available in a single voice coil configuration: Audiopipe TS-AR15
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiopipe TS-VR15 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiopipe TS-VR15 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiopipe TS-VR15 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiopipe TS-VR15 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 1,000 Hz
Sensitivity
91 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.0 cubic feet
Optimum Sealed Box Volume
2.25 cubic feet
Maximum Sealed Box Volume
2.5 cubic feet
Minimum Ported Box Volume
2.25 cubic feet
Optimum Ported Box Volume
2.5 cubic feet
Maximum Ported Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-VR15

Weight:

19.00lbs

Internal SKU:

tsvr15

Internal Product ID:

29039
