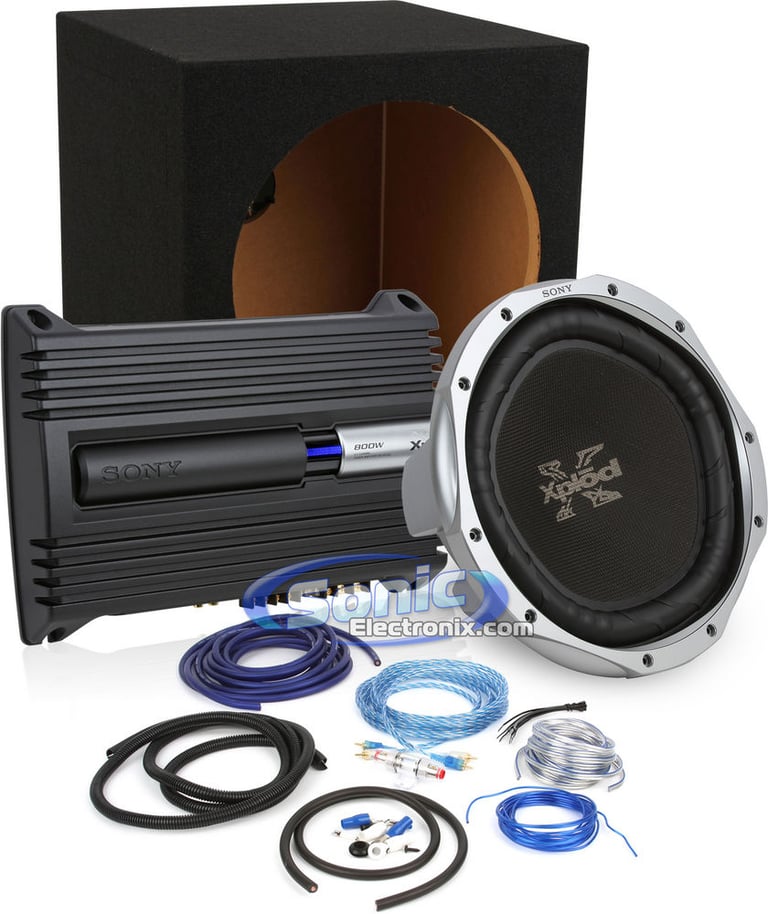

800W Complete Sony Bass Package

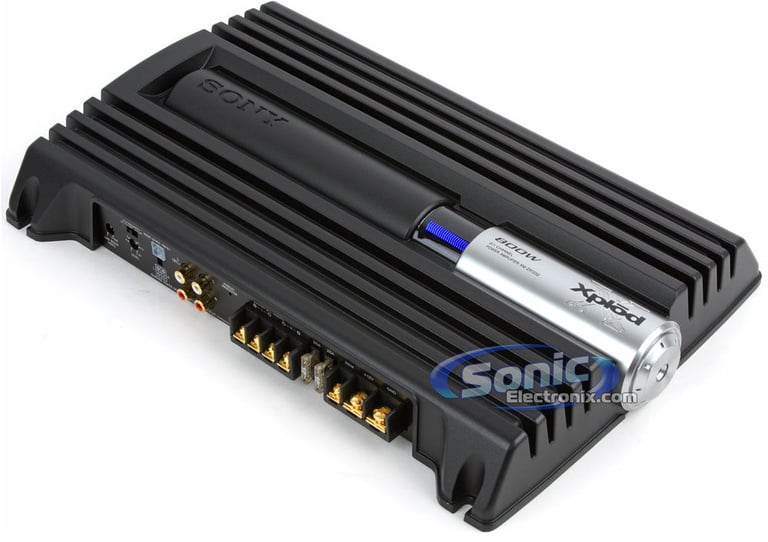

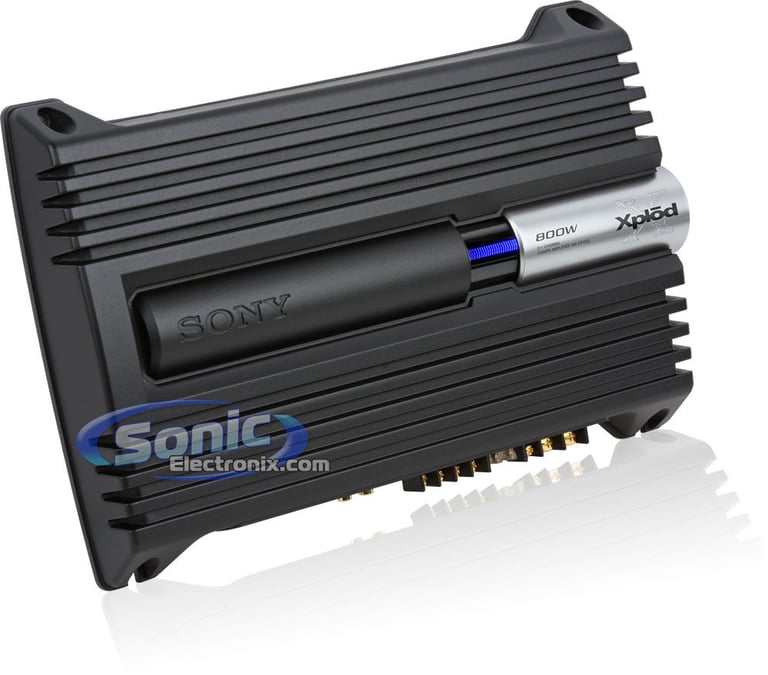

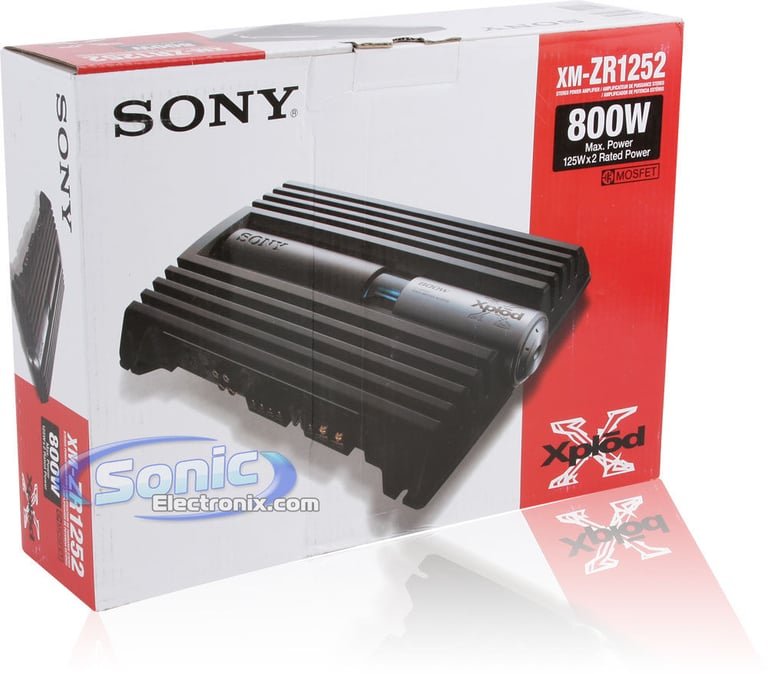

• ZR Series 2-Channel Power Amplifier
• RMS Power Rating:
• 4 ohm: 125 watts x 2 chan.
• 2 ohm: 170 watts x 2 chan.
• Bridged, 4 ohm: 340 watts x 1 chan.
• Max power output: 800 watts
• Pulse power supply
• OTL (output transformerless circuit) circuit
• LED power/protection indicator
• Bass Boost (0-10 dB at 40 Hz)
• High-level sensing power on feature

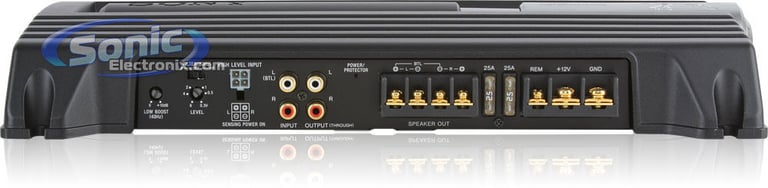

• RCA inputs
• Gold plated speaker terminals
• High level input connector
• Speaker terminal outputs
• High-pass filter (80 Hz, 12 dB/octave)
• Low-pass filter (80 Hz, 18 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response: 5-50,000 Hz
• Dimensions: 15-5/8L x 10-1/8W x 2-3/4H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year SonicElectronix.com warranty

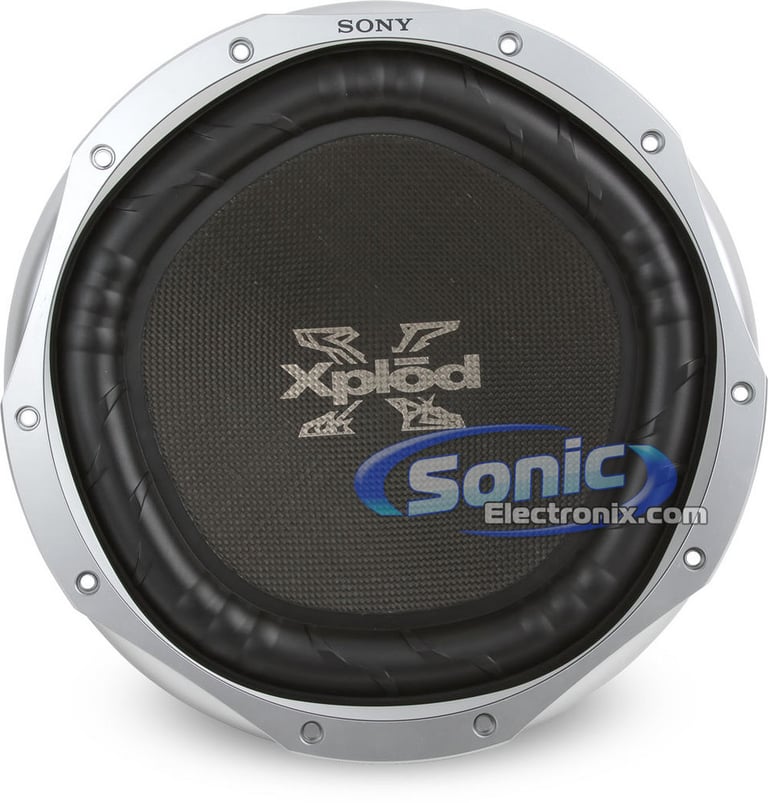

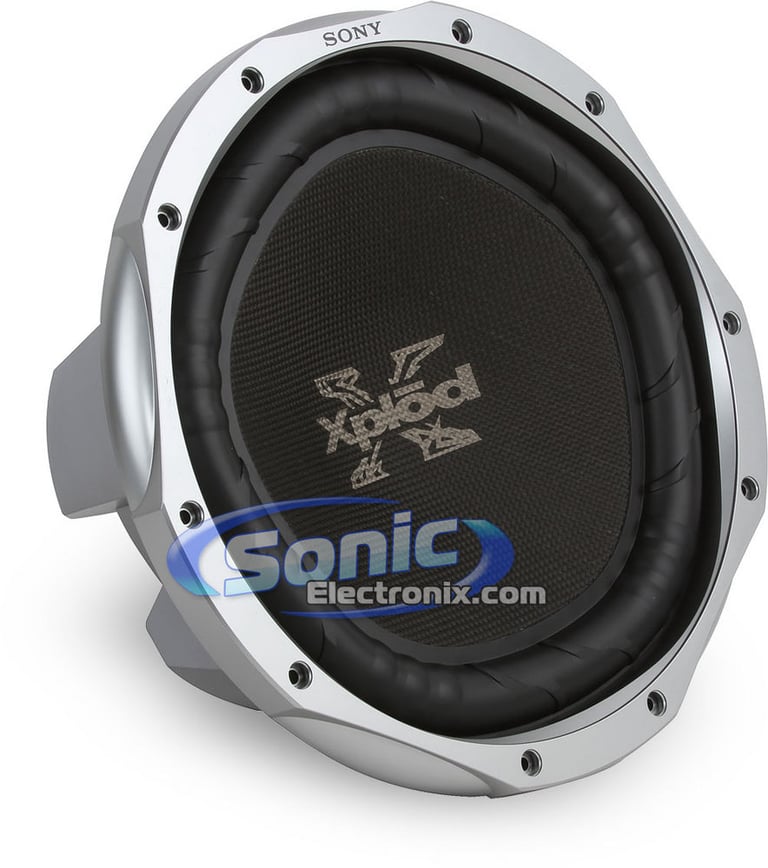

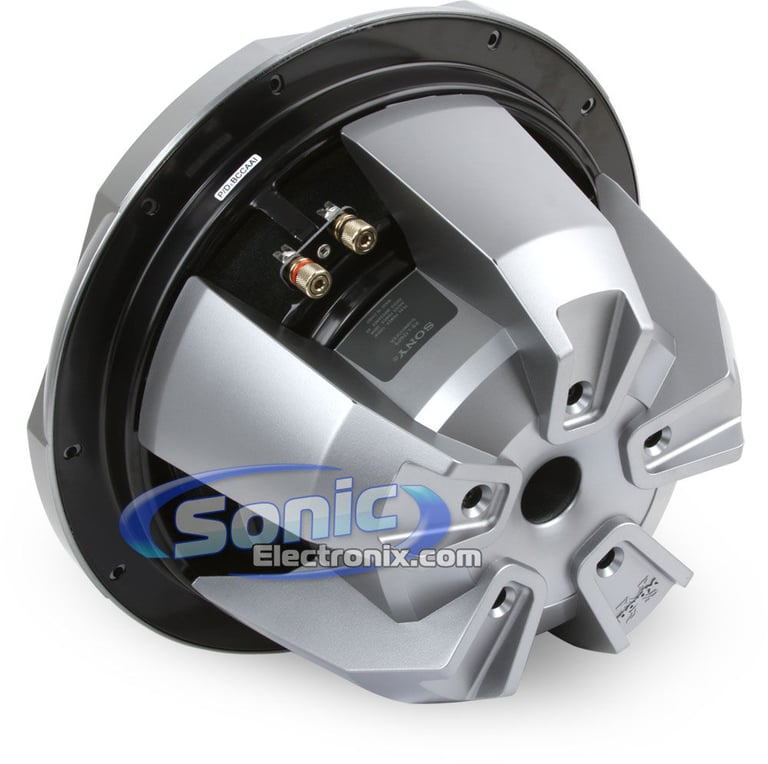

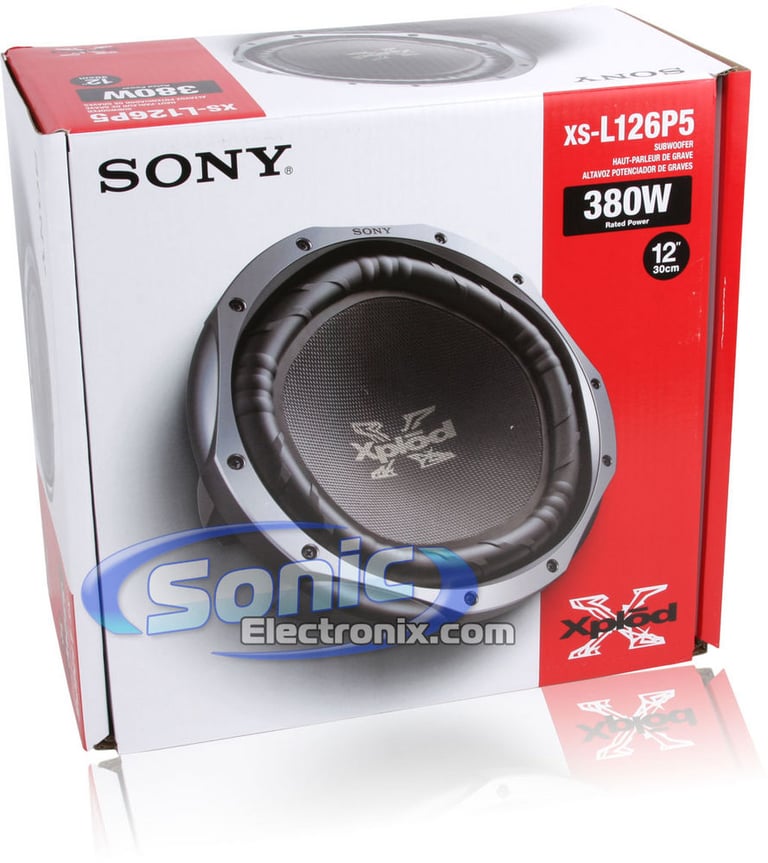

• 12" Single 4 Ohm Xplod Series Subwoofer
• Power Handling:
• Peak: 1300 watts
• RMS: 380 watts
• Impedance: Single 4 Ohm
• 5-Sided MRC (Mica Reinforced Cellular) diaphragm with glass-fiber composite
• Stroke stabilizer rubber surround
• In-car output sound pressure level: 94 dB
• Effective frequency response: 22-1,000 Hz
• Recommended enclosure: Sealed
• Recommended enclosure volume: 0.77 cu. ft.
• 1-year SonicElectronix.com warranty

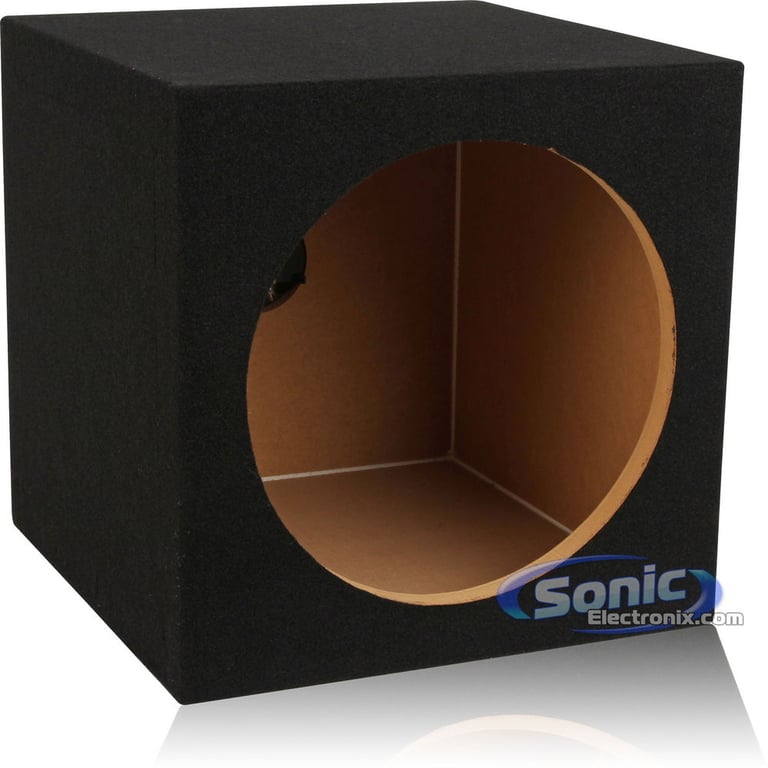

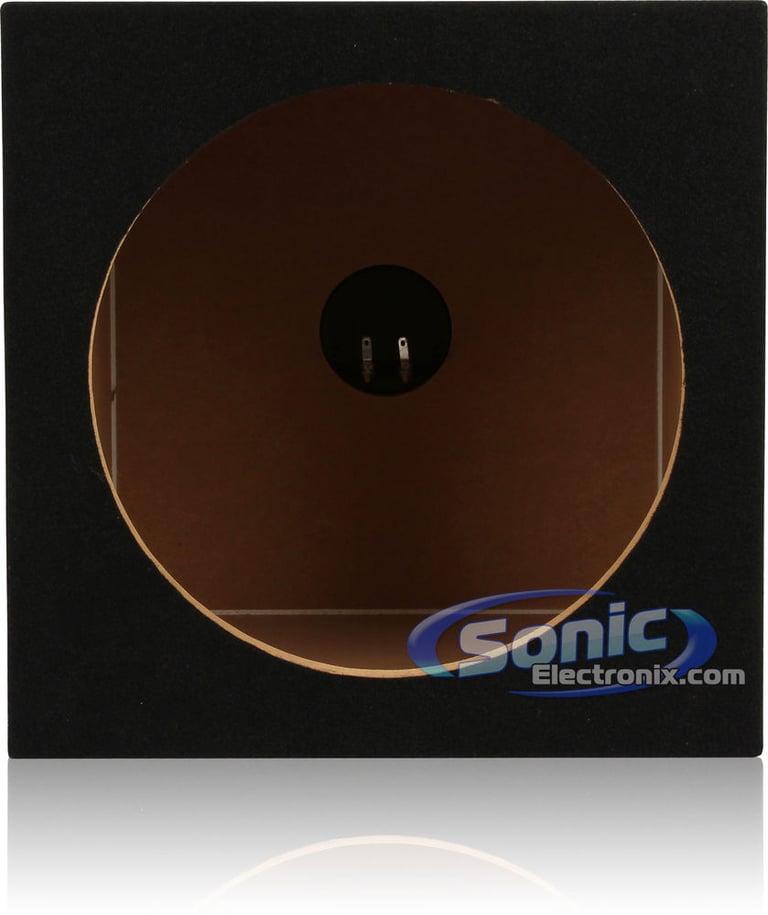

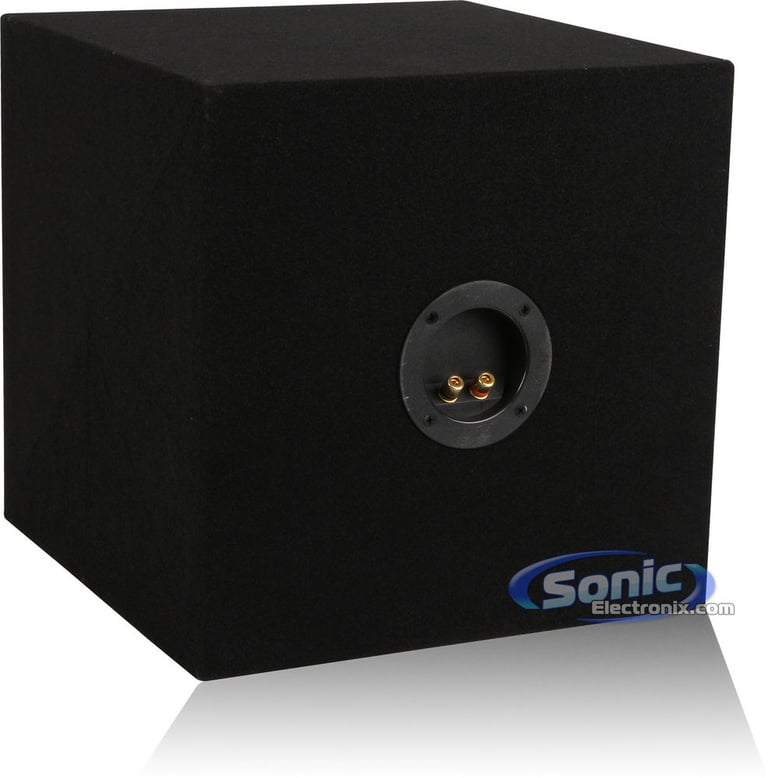

• 12" Sealed Square Subwoofer Enclosure
• Black carpet

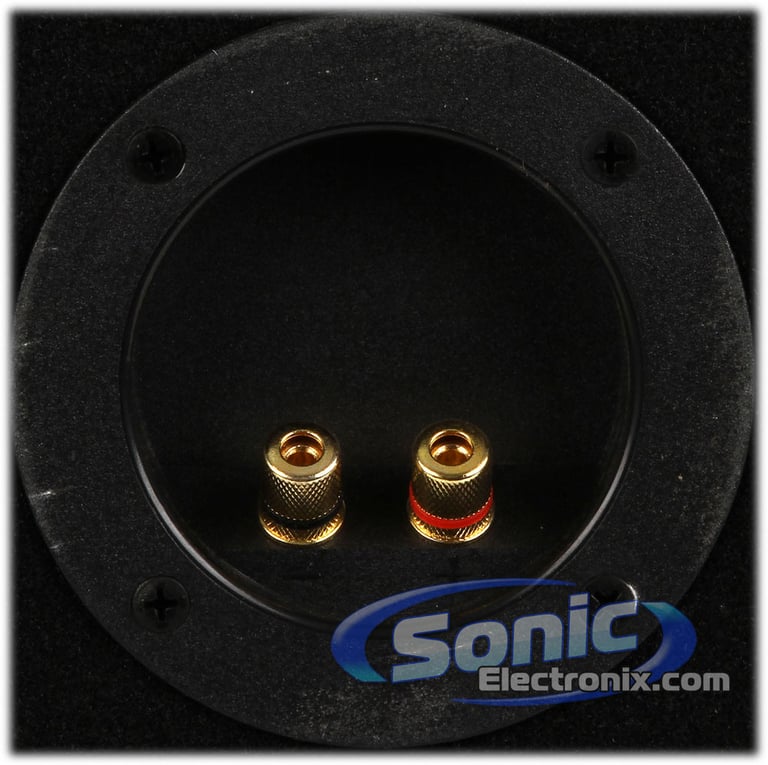

• Gold plated binding posts
• Banana clip ready
• Mounting depth: 13"
• Cutout diameter: 11-1/8"
• Box volume: 1.13 cubic feet
• Made from 3/4" Medium Density Fiberboard (MDF)
• Dimensions: 14"D x 14"W x 14"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

• Amplifier Installation Kit with RCA Interconnect Cable
• 4 Gauge Power and ground cable for excellent power transfer
• Designed for systems up to 1500W
• Comes with everything needed to install an amplifier
• RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
• Speaker cable is easy to install with clean and clear sound
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

1. 17 ft. of 4 Gauge blue power cable
2. 3 ft. 4 Gauge black ground cable
3. 17 ft. Neon blue series RCA cable
4. 16 ft. of Speaker wire
5. 17 ft. of 18 Gauge blue remote turn-on wire
6. 6 ft. of Split loom tubing
7. 1 AGU Fuse Holder
8. 60 AGU Fuse
9. All Necessary Hardware for Installation
