Product Highlights


Bass Package: Rockford Fosgate Amplifier + Alpine Type R Subwoofer + 4 GA Amp Kit + Sealed Sub Box • 500W RMS • Includes Everything You Need To Add Bass To Your Car

Description


Rockford Fosgate brand icon

Authorized dealer

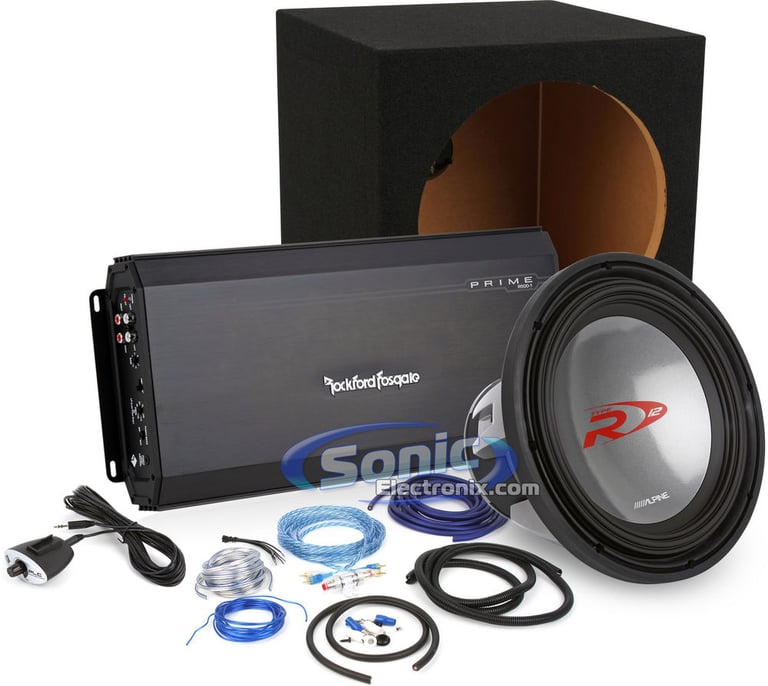

Sonic Electronix Exclusive Bass Package

This combo package includes one Alpine Type R Series 12" Subwoofers and a Rockford Fosgate Prime Series Amplifier. This monoblock amplifier is a perfect match for the 12" subwoofer when wired at 2 ohms. The amplifier is equipped with radial vented VC heat sink and airflow management system that helps protect from overheating and keeps the subwoofer bumpin for extended periods of time. This exclusive package also includes a sealed 12" enclosure and a 4 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

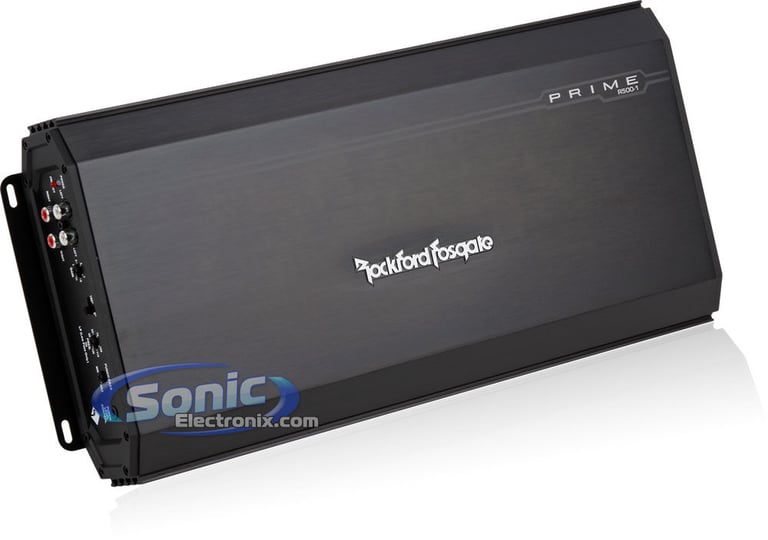

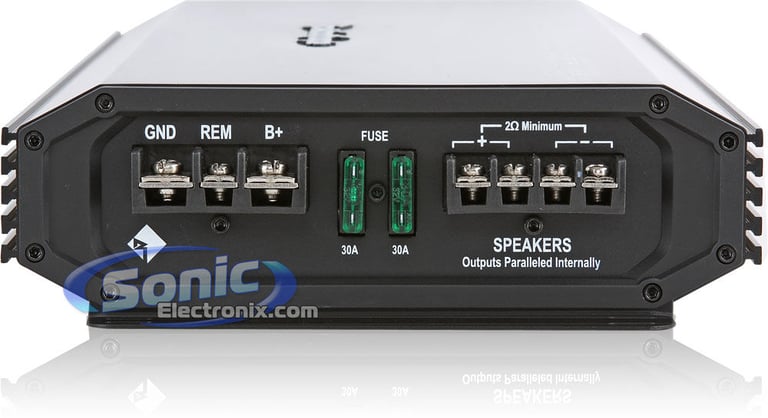

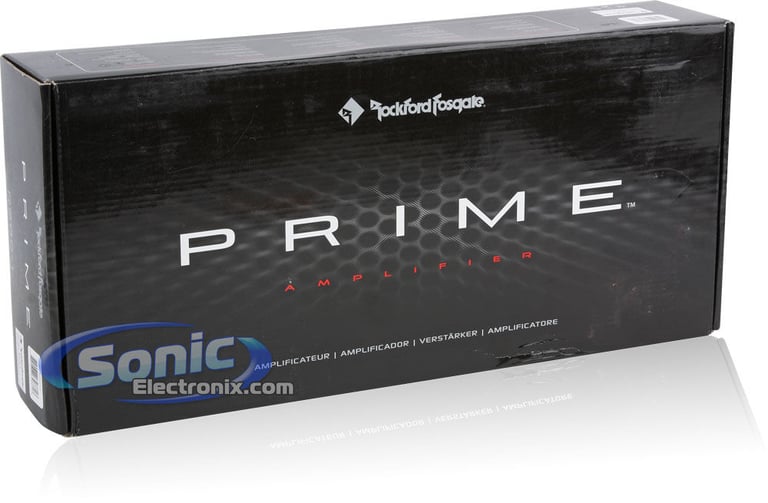

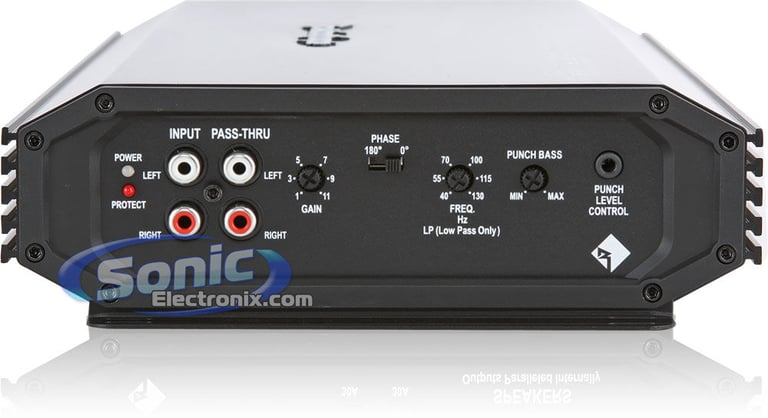

Rockford Fosgate Amplifier Features
  • PRIME Series Single-Channel Monoblock Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 320 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • MOSFET Power supply
  • Power and protection LED indicators
  • Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
  • Single-channel operation
  • 1 Pair of Preamp RCA outputs
  • Heavy duty extruded aluminum alloy heatsink for optimal heat dissipation
  • RCA level inputs
  • Screw terminals
  • Variable low-pass filter (40-130 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-250 Hz
  • Dimensions: 16-5/8"L x 7-5/8"W x 2-1/2"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

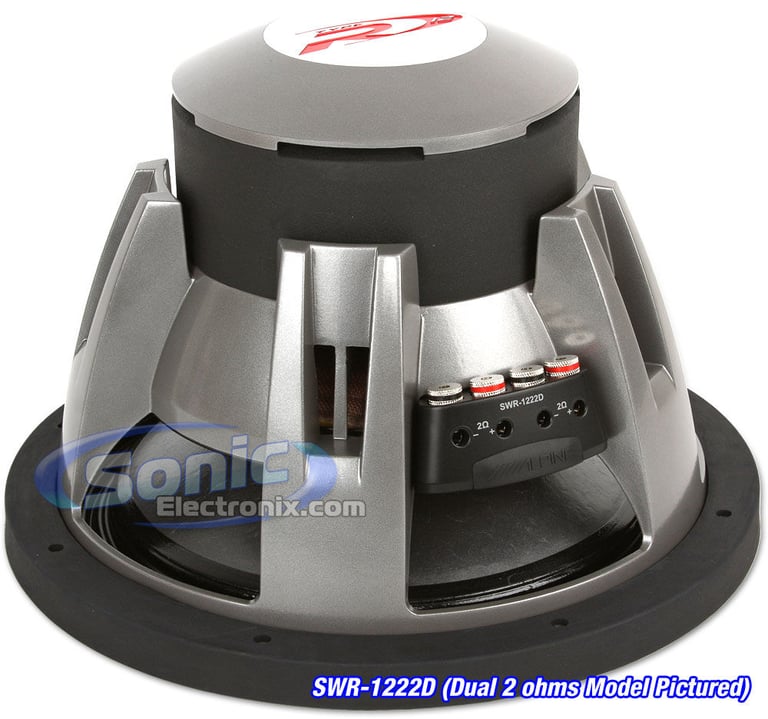

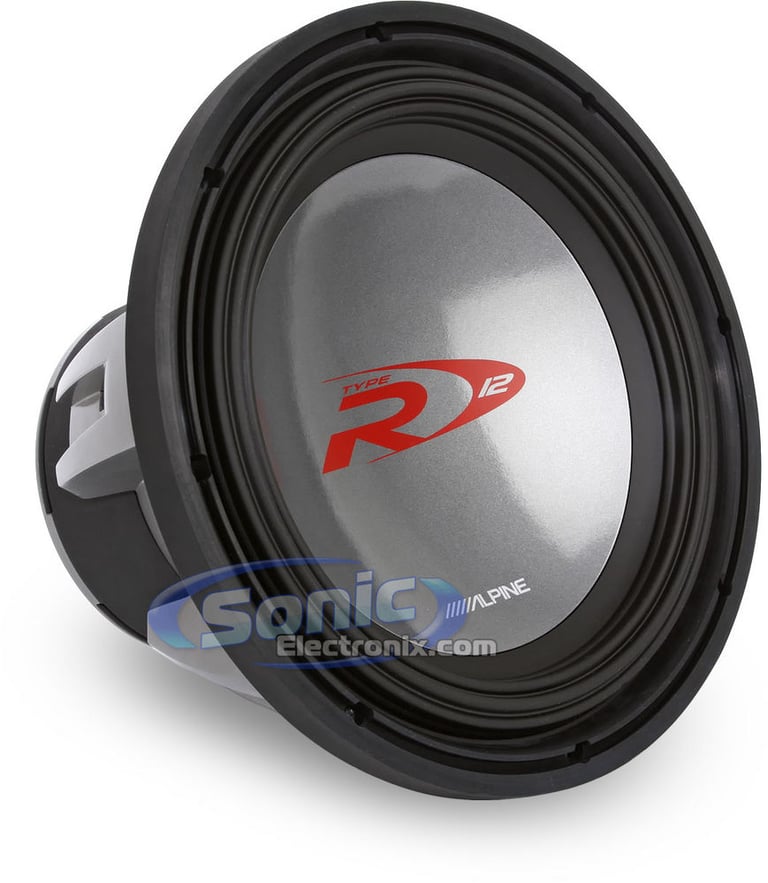

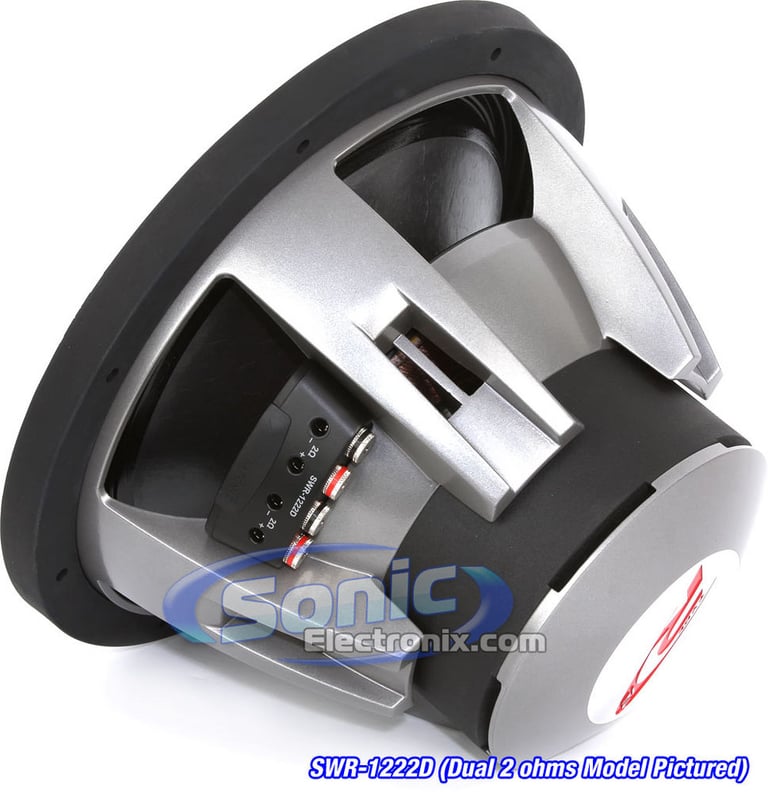

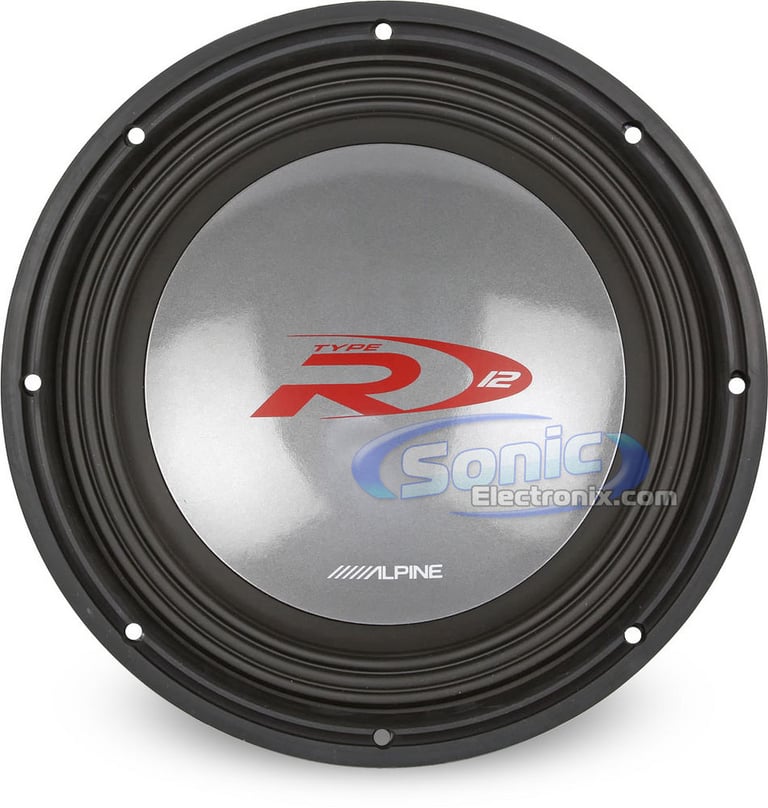

Alpine Subwoofer Features
  • 12" Dual 4 Ohm Type R Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Parabolic Kevlar reinforced pulp fiber cone woofer

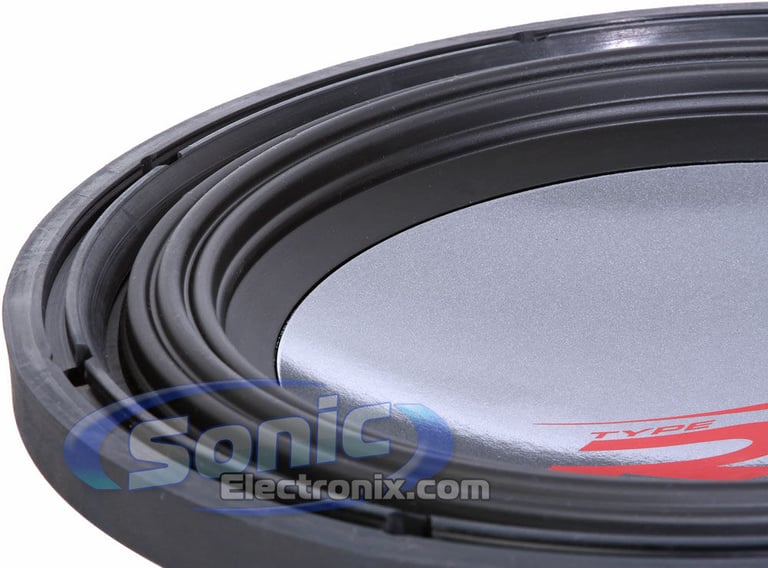

  • High Amplitude Multi-Roll (HAMR) Santoprene surround
  • HAMR Surround integrates a concealed mount gasket for Alpint Type-R grille
  • Custom Cast Aluminum Frame with Integrated Perimeter Venting and Heat Transfer Plate
  • Cast aluminum perimeter vented heat transfer frame
  • Compound Radius Curve (CRC) Motor structure
  • Spiral cut aluminum former with high temperature DVC Winding
  • Radial Vented VC Heat sink and Airflow Management System
  • Mirrored progressive Nomex Spiders with reinforced layer integrated tinsel leads

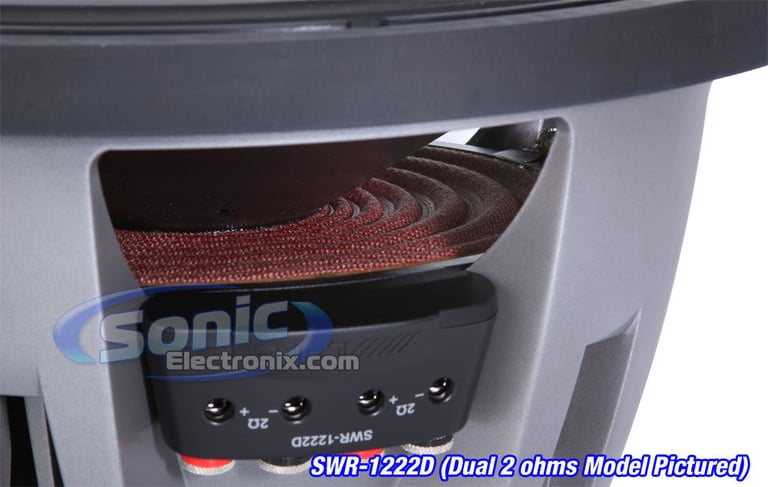

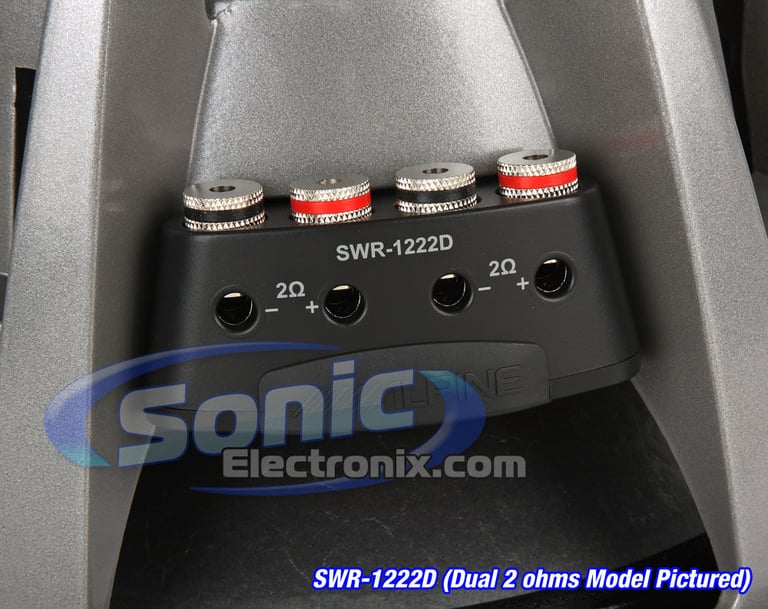

  • Insert push terminals with one-sided layout
  • One-sided terminal layout
  • 1-year SonicElectronix.com warranty

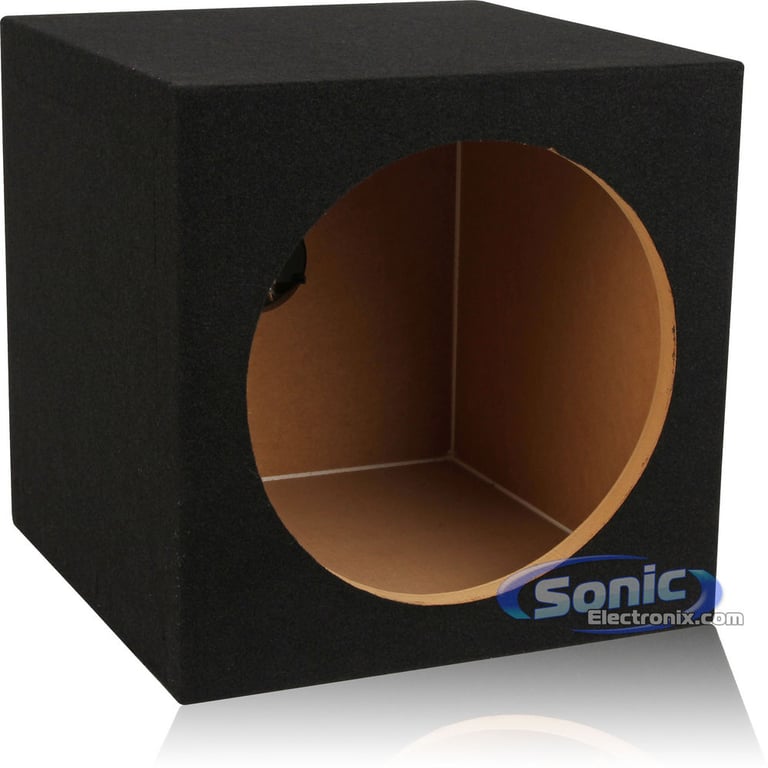

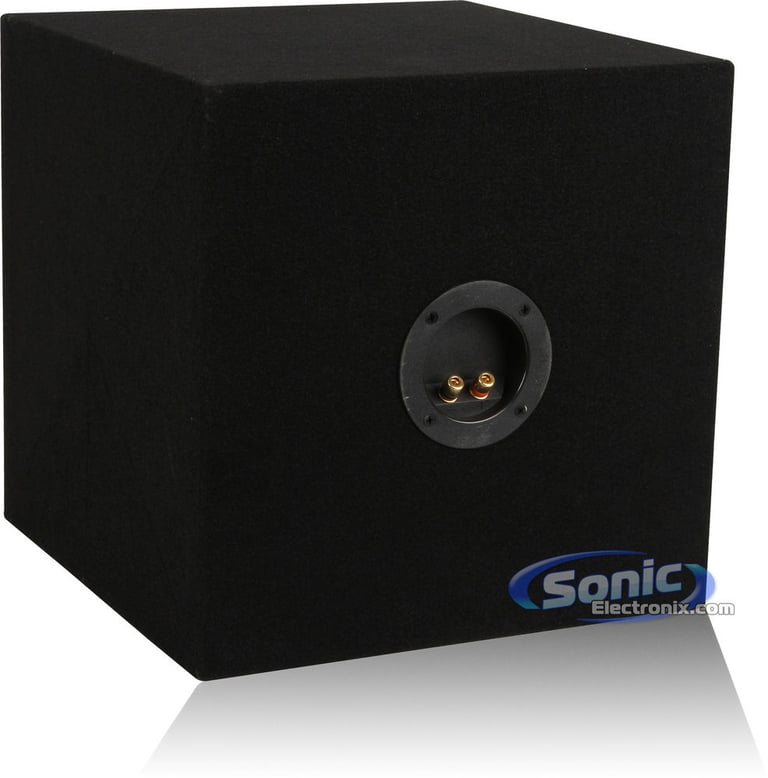

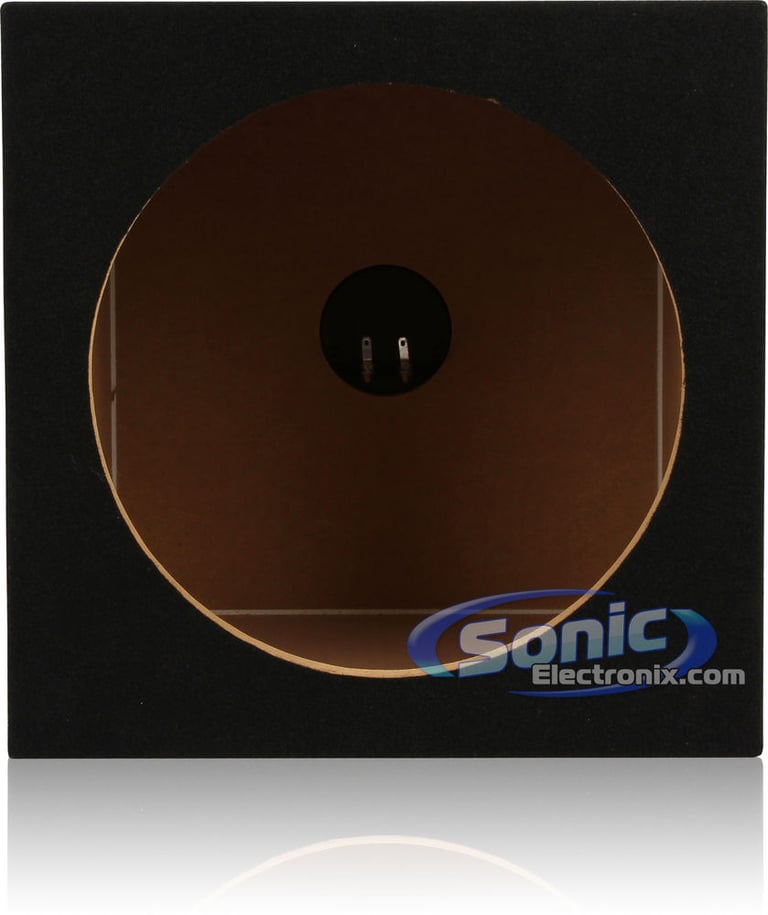

Absolute Subwoofer Enclosure Features
  • 12" Sealed Square Subwoofer Enclosure
  • Black carpet

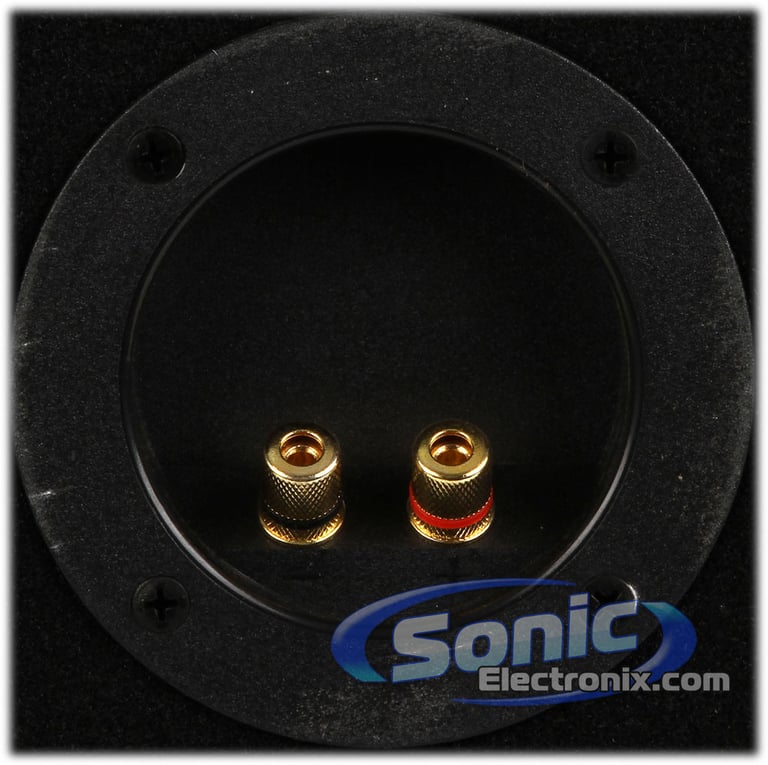

  • Gold plated binding posts
  • Banana clip ready
  • Mounting depth: 13"
  • Cutout diameter: 11-1/8"
  • Box volume: 1.13 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 14"D x 14"W x 14"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

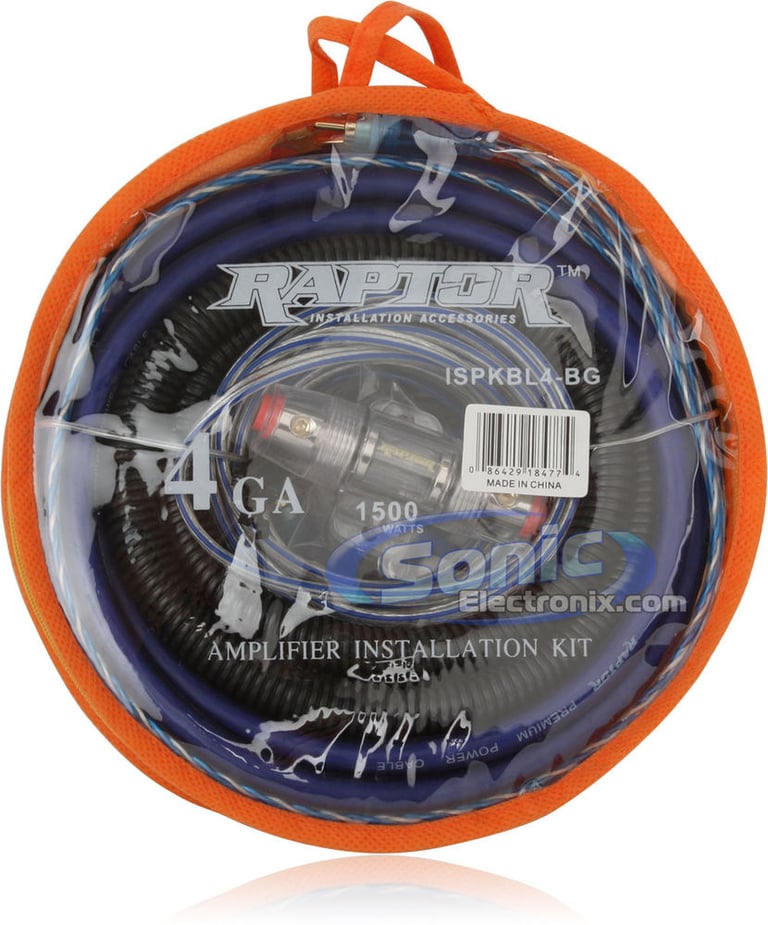

Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier

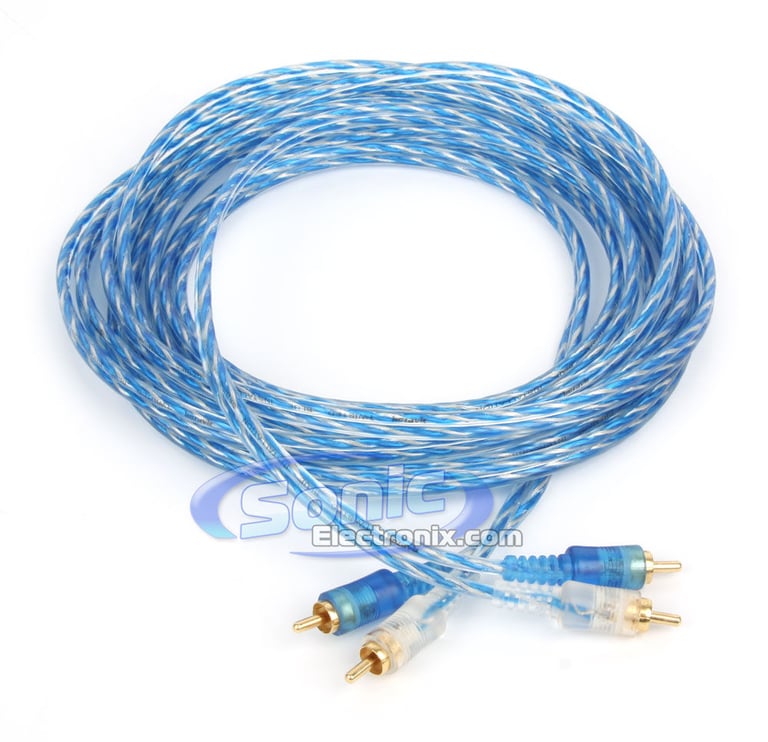

  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:

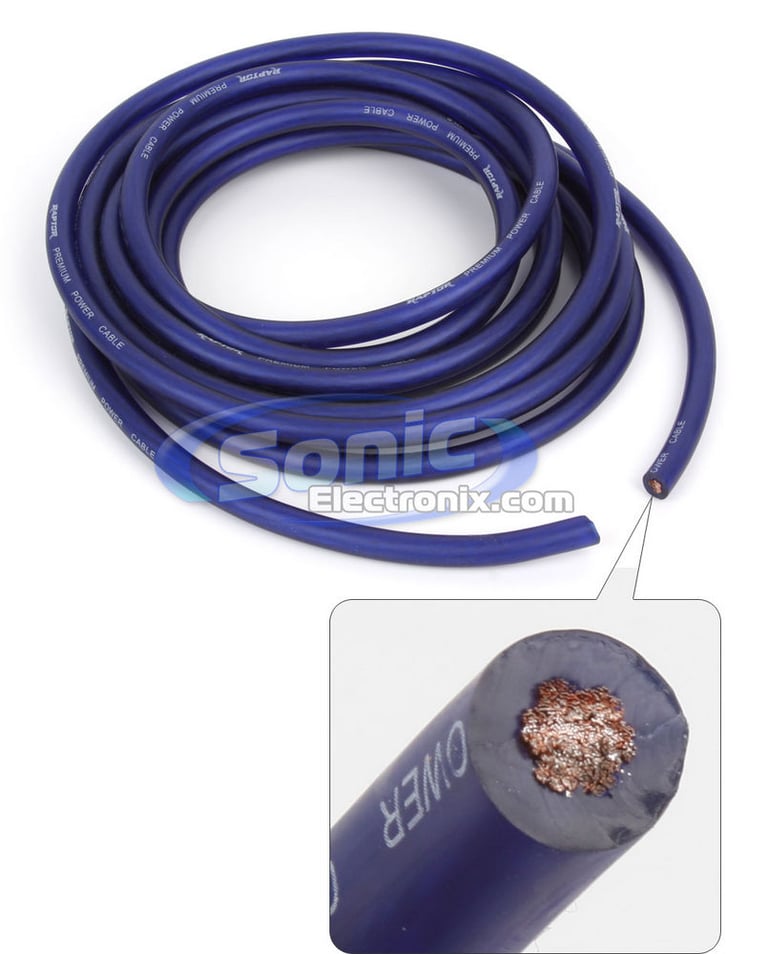

  1. 17 ft. of 4 Gauge blue power cable

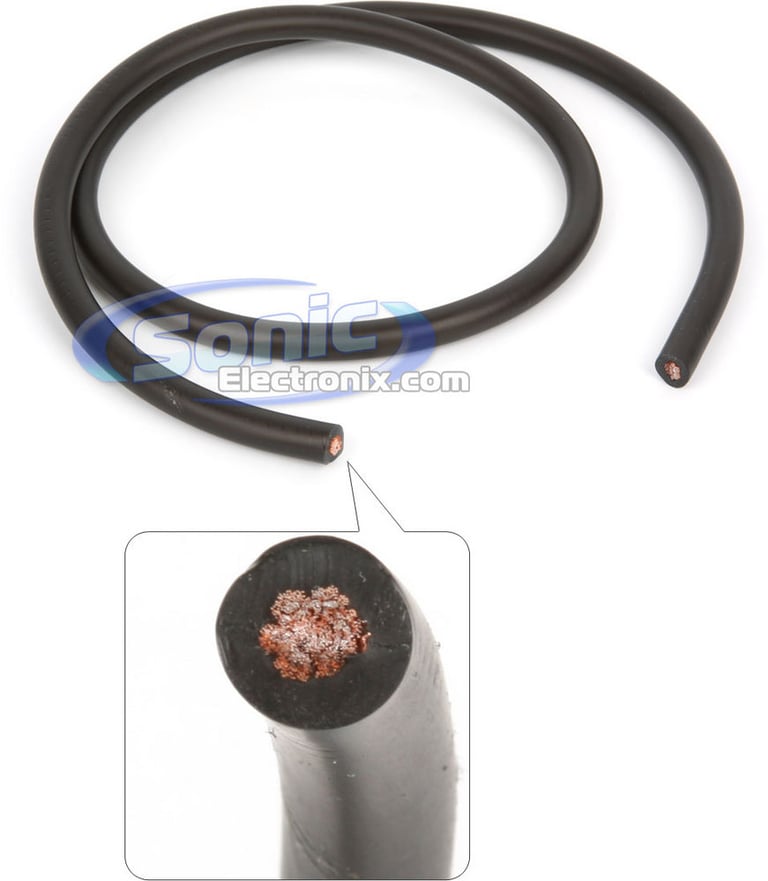

  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable

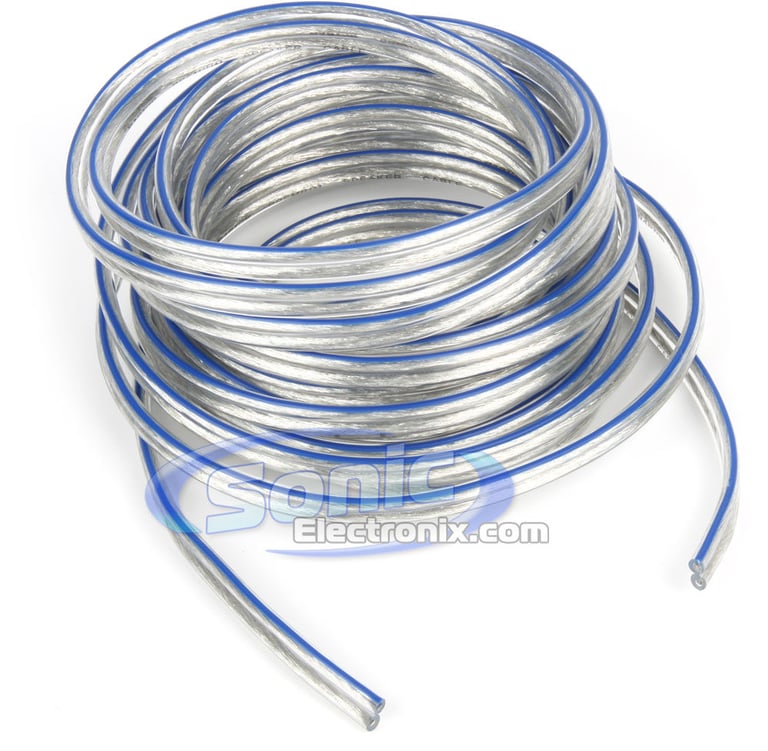

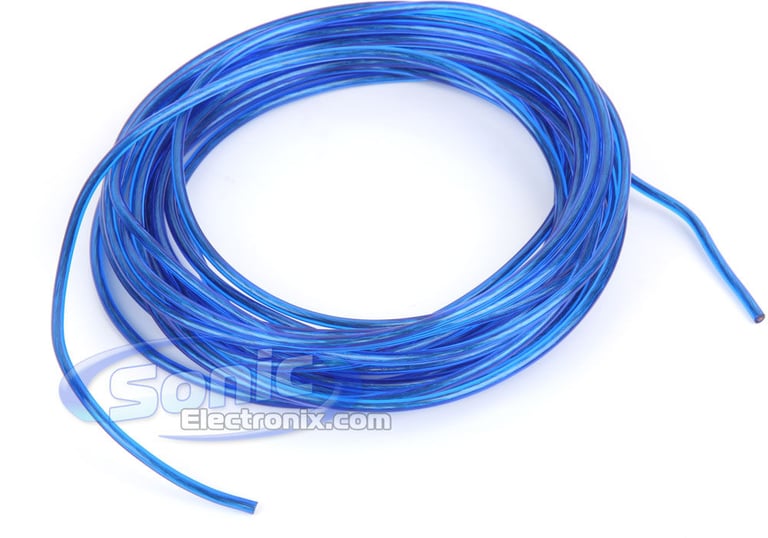

  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire

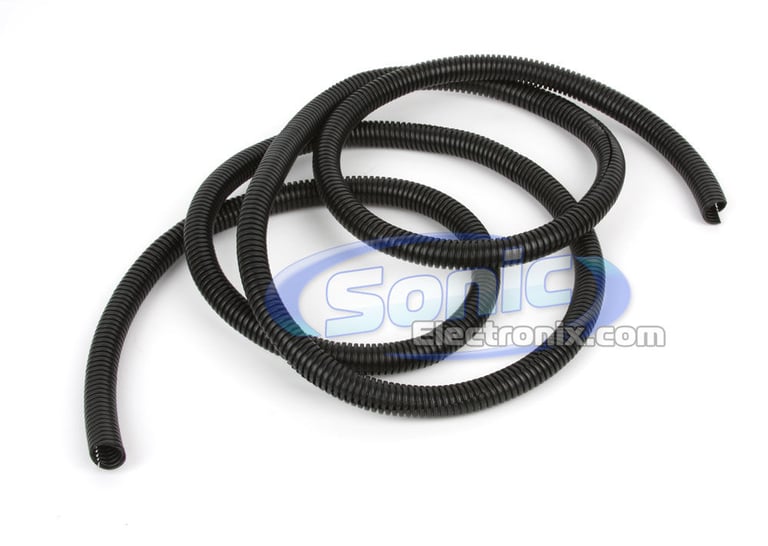

  6. 6 ft. of Split loom tubing

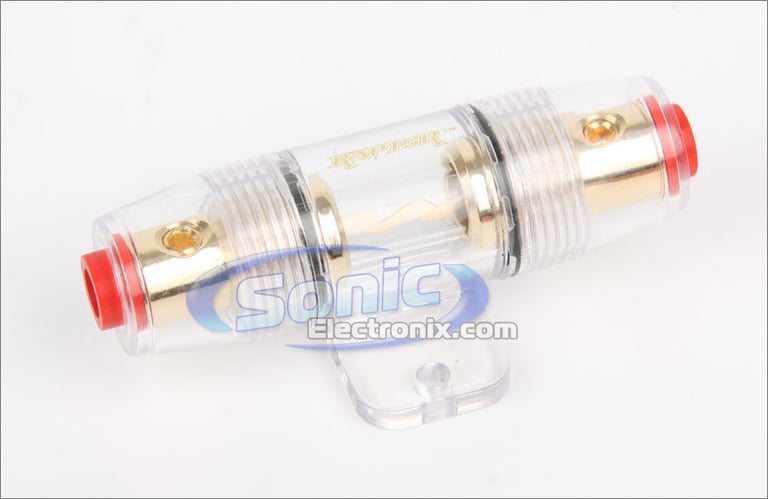

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

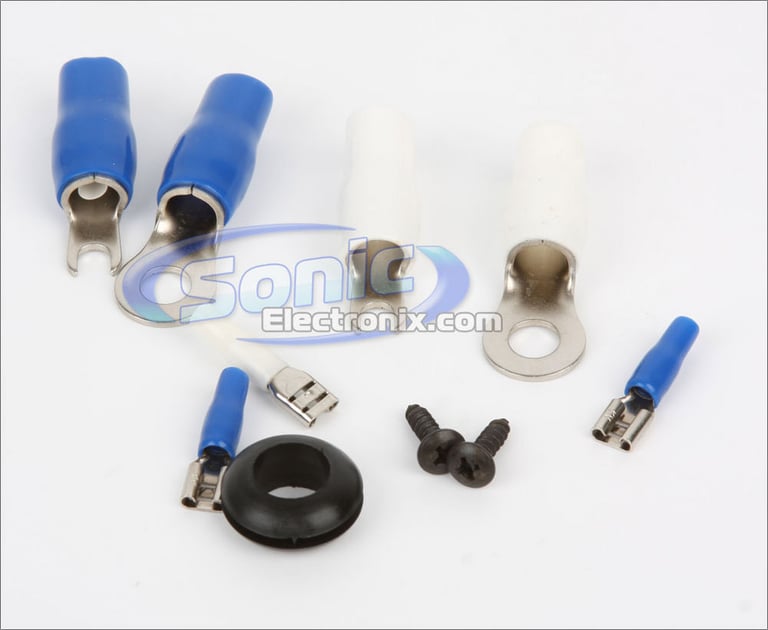

  9. All Necessary Hardware for Installation

Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

188
-38.14%

$255.32

List price $412.71

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
320 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 130 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB

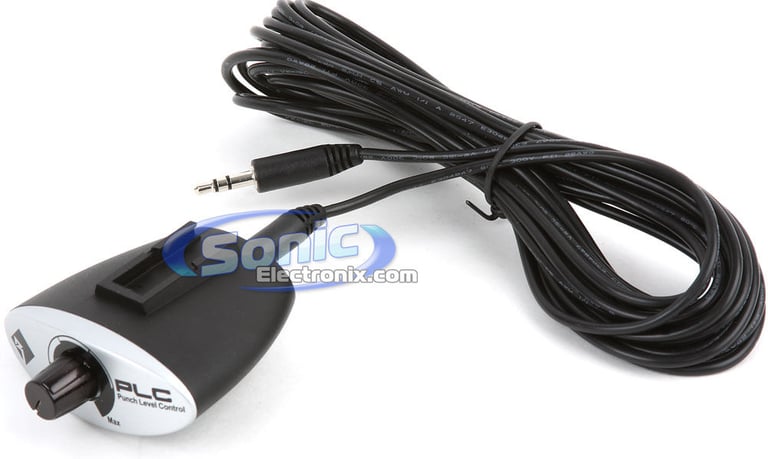

Remote bass/level controller
Yes
Fuse Rating
30A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
500 watts
Peak Power Handling
1500 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Kevlar Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85 dB
Frequency Response
23 - 500 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R500-1_SWR-1242D

Weight:

59.80lbs

Internal SKU:

r5001_swr1242d

Internal Product ID:

29426
