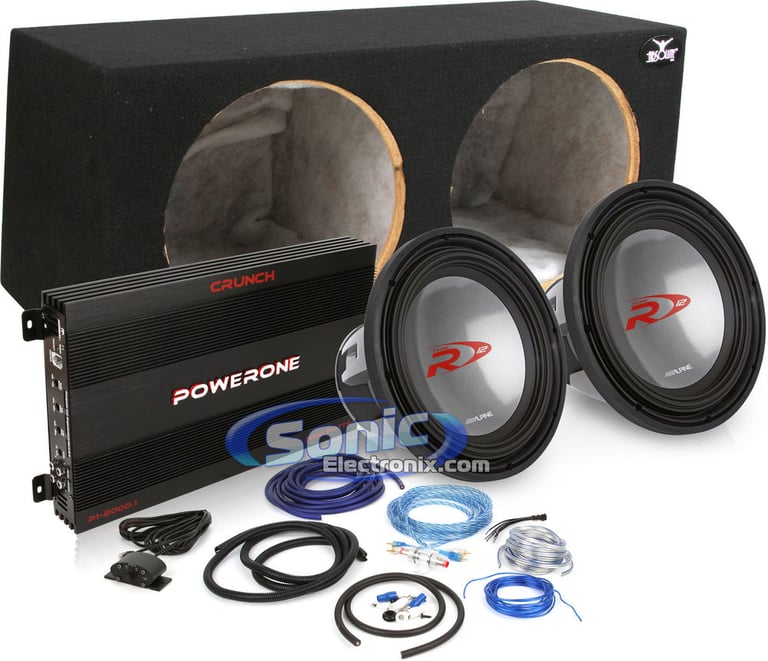

2000W Complete Crunch + Alpine Bass Package

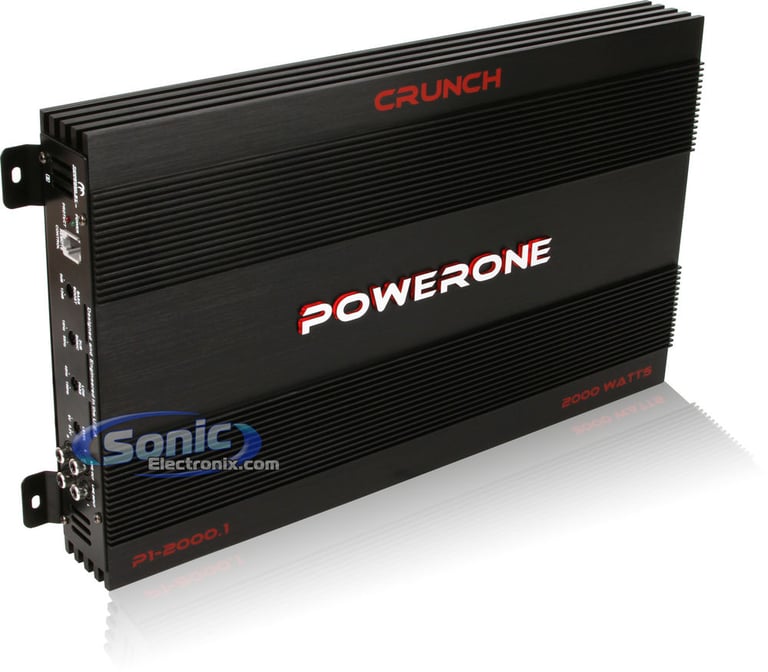

• Power One Series Monoblock Class A/B Car Amplifier
• RMS Power Rating:
  • 4 ohm: 250 watts x 1 chan.
  • 2 ohm: 500 watts x 1 chan.
  • 1 ohm: 1000 watts x 1 chan.
• MAX Power Rating:
  • 4 ohm: 500 watts x 1 chan.
  • 2 ohm: 1000 watts x 1 chan.
  • 1 ohm: 2000 watts x 1 chan.
• SEPP Class A/B analog amplifier
• Pulse Width Modulated MOSFET power supply

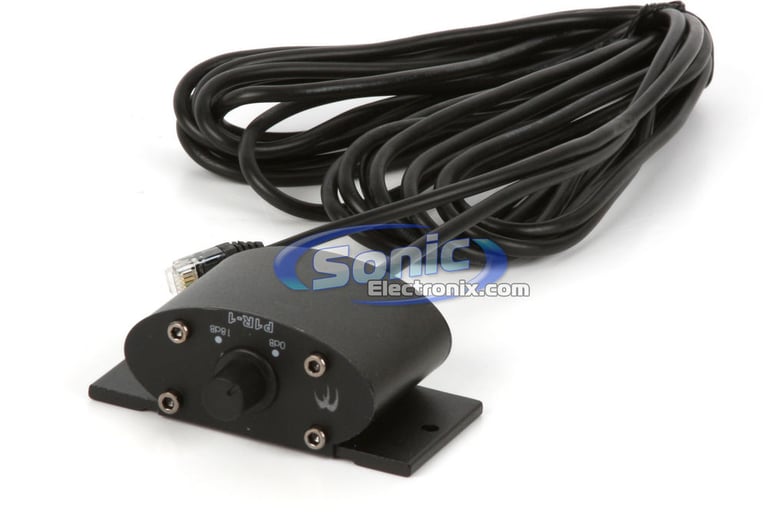

• Wired remote bass level control included
• LED power (green) and protect (red) indicators

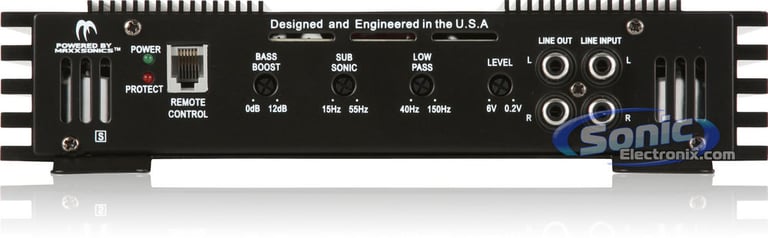

• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
• Slow un-mute soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

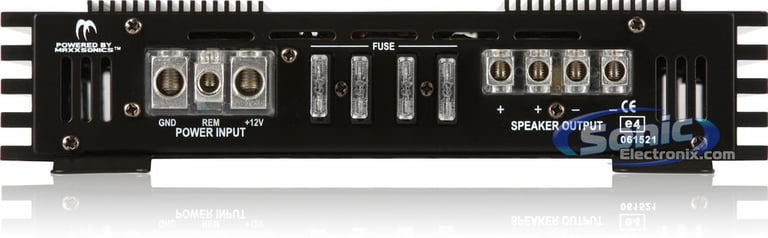

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Input sensitivity:
  • Level: 200mV-6V
• Variable low-pass filter (40-150 Hz, 12 dB/octave)
• Subsonic filter (15-55 Hz)
• Damping factor: >200
• Frequency response: 10-300 Hz
• Dimensions: 15-3/4"L x 9-7/8"W x 2-1/16"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

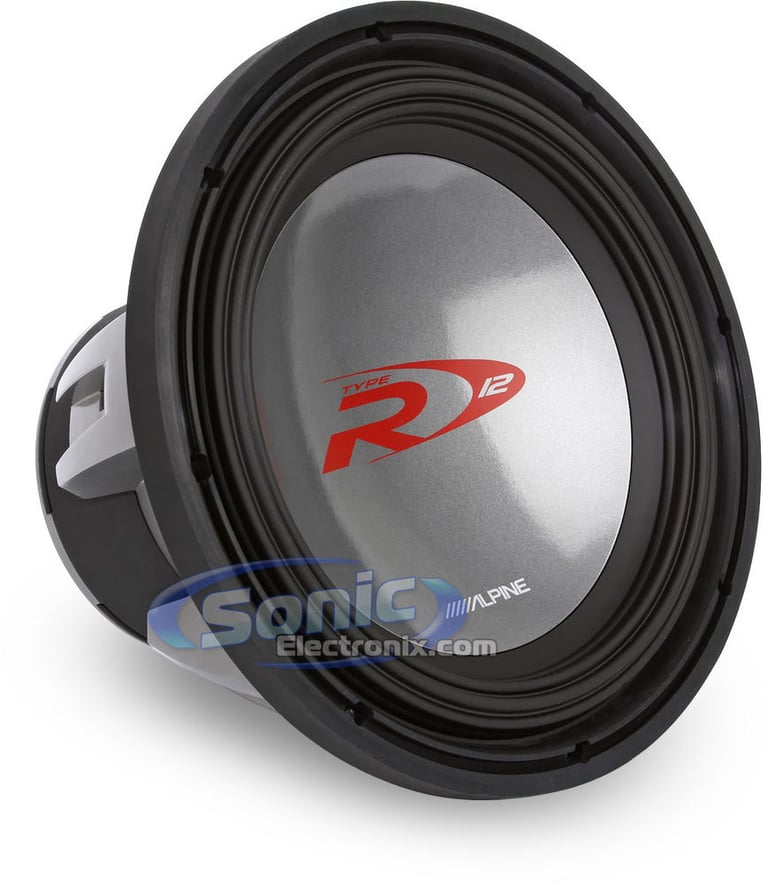

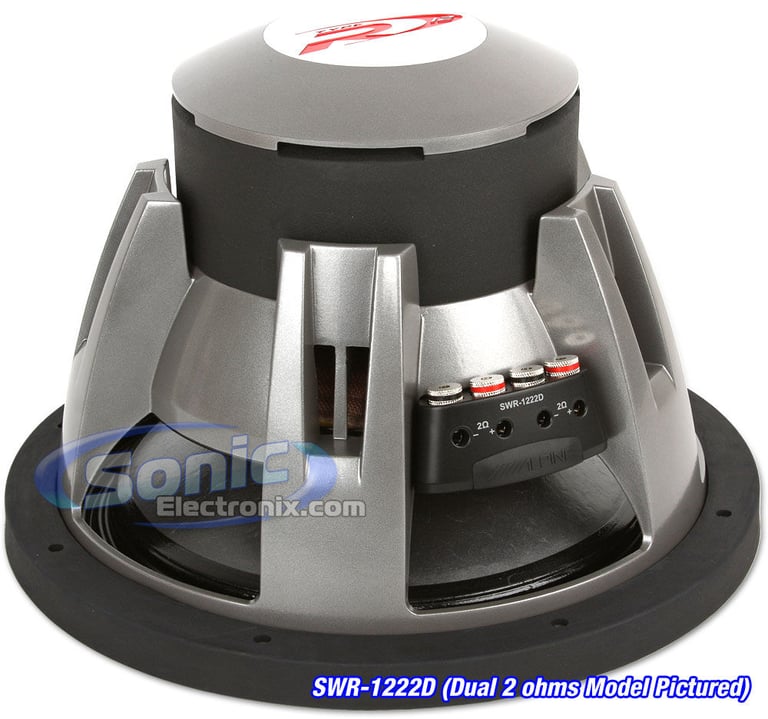

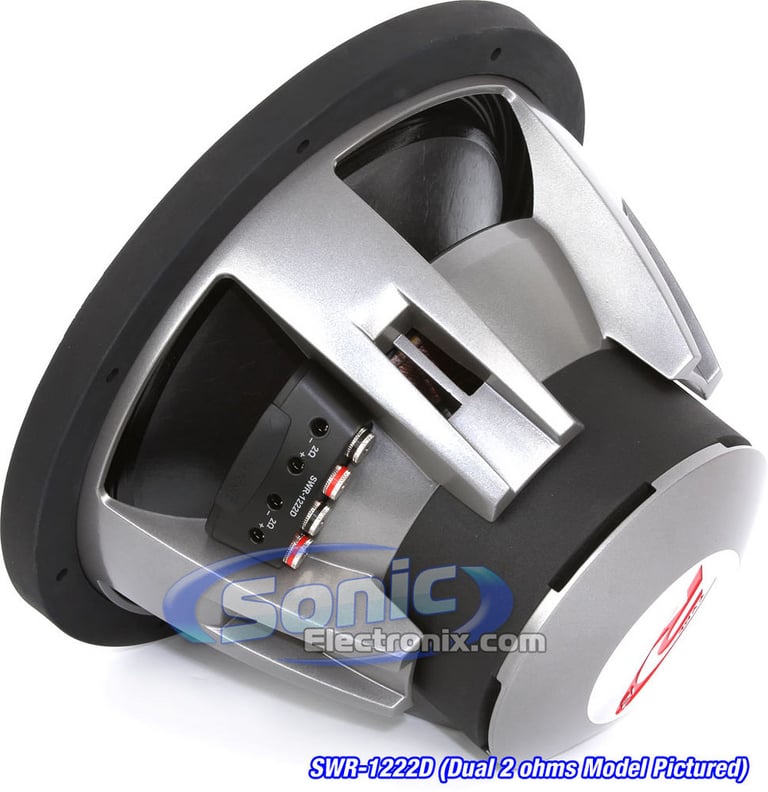

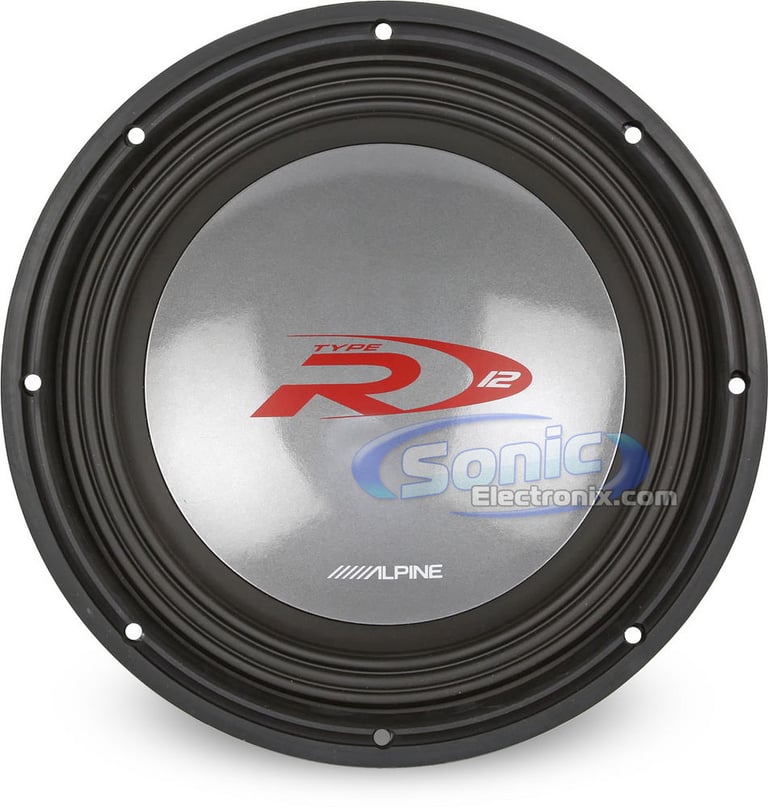

• Two 12" Dual 4 Ohm Type R Series Subwoofers
• Power Handling:
• Peak: 3000 watts total / 1500 watts each
• RMS: 1000 watts total / 500 watts each
• Impedance: Dual 4 ohm
• Parabolic Kevlar reinforced pulp fiber cone woofer

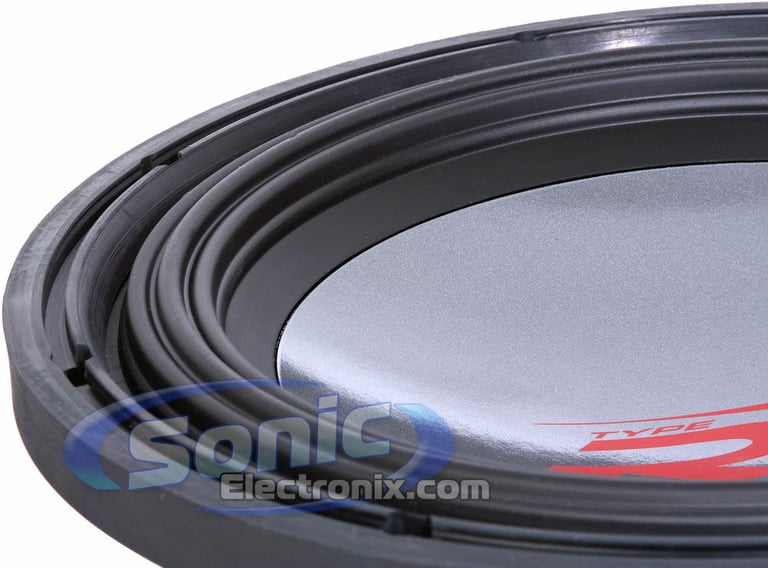

• High Amplitude Multi-Roll (HAMR) Santoprene surround
• Custom Cast Aluminum Frame with Integrated Perimeter Venting and Heat Transfer Plate
• Compound Radius Curve (CRC) Motor structure
• Spiral cut aluminum former with high temperature DVC Winding
• Radial Vented VC Heat sink and Airflow Management System
• Mirrored progressive Nomex Spiders with reinforced layer integrated tinsel leads

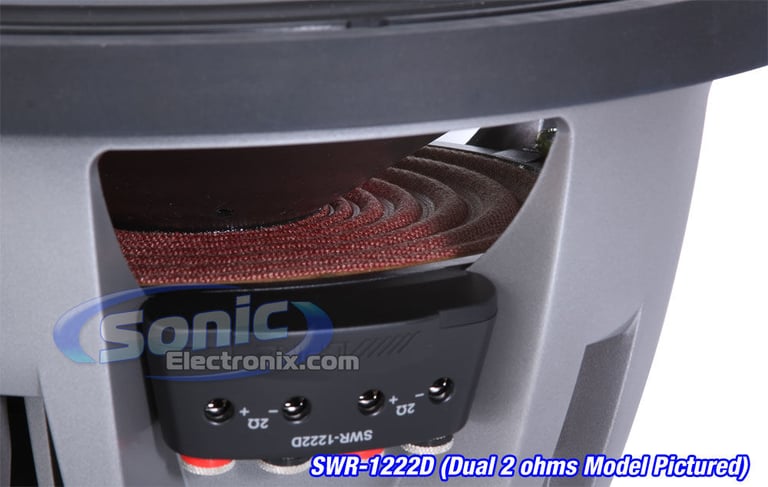

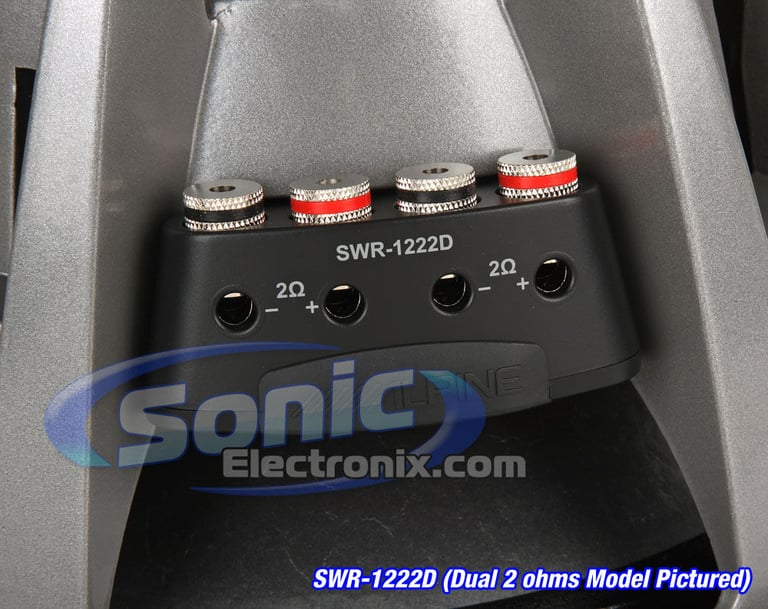

• One-sided terminal layout
• 1-year SonicElectronix.com warranty

Read more about the Alpine SWR-1242D in our blog!

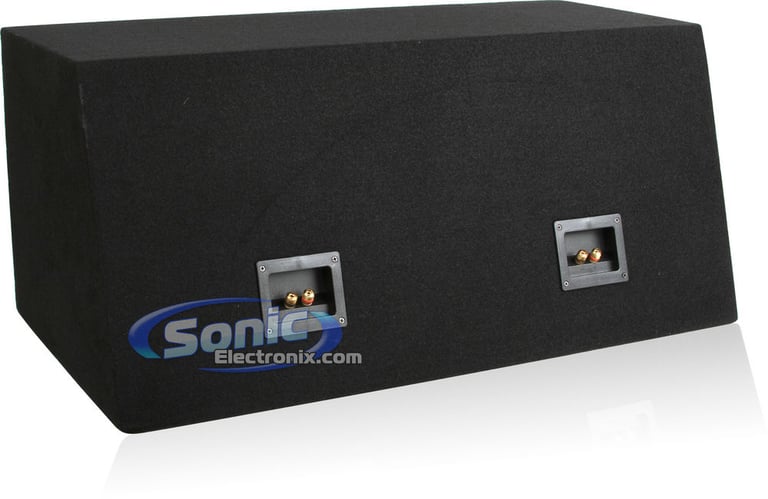

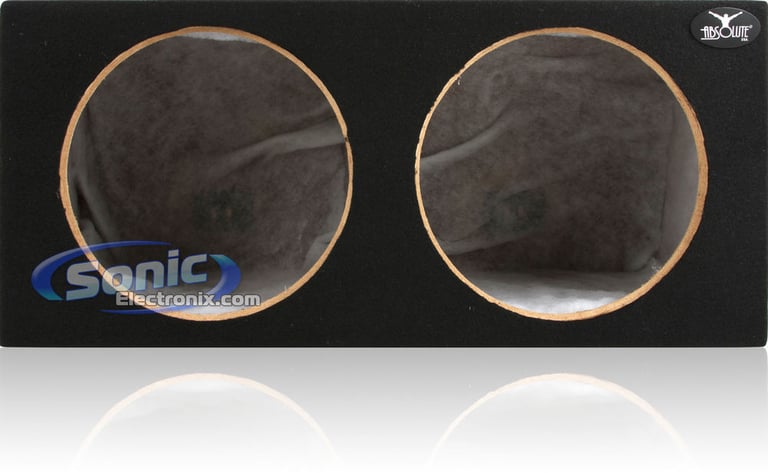

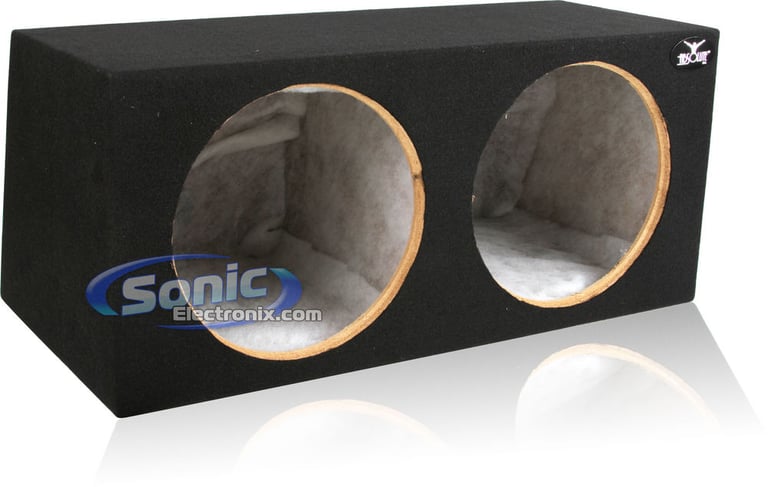

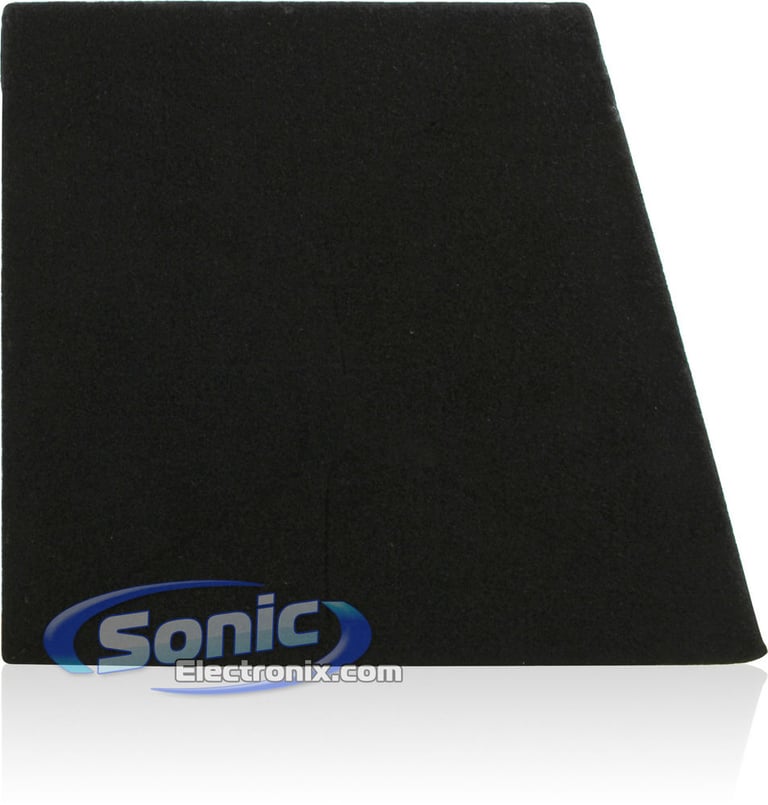

Enclosure Features:

• 12" Dual Universal Sealed Enclosure
• Covered in black carpet for durability

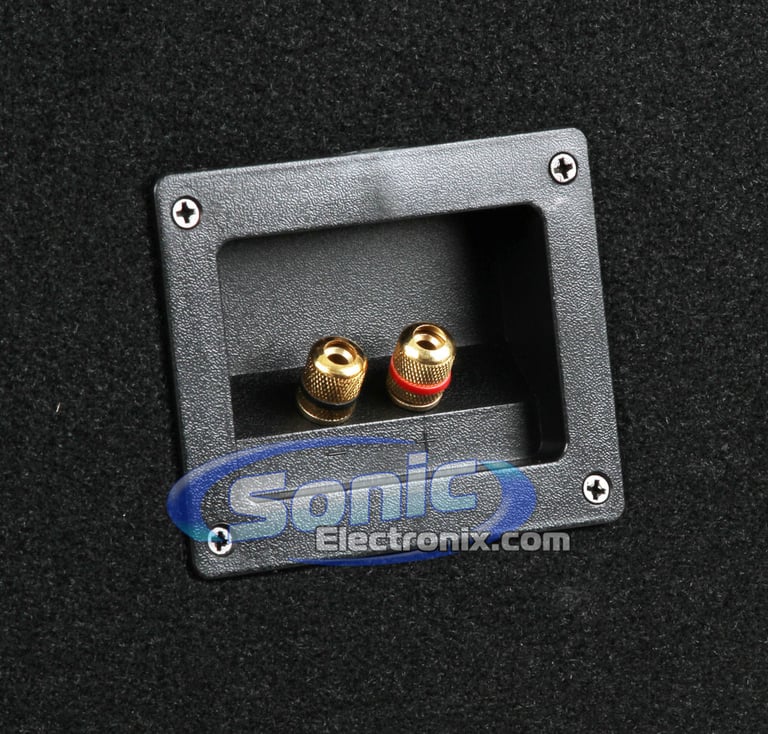

• Two sets of binding posts
• Banana clip ready for easy wiring
• Two sealed chambers gives each subwoofer its own air space
• Poly-fil lining for enhanced bass
• 3/4" MDF(Medium Density Fiberboard) construction
• Subwoofer mounting depth: 12-1/4"
• Subwoofer cutout diameter: 11-1/4"
• Box volume: 1.15 cubic feet (per chamber)
• Total box volume: 2.29 cubic feet
• Dimensions: 12"TD x 15-3/4"BD x 30"W x 13-1/2"H
• Authorized Internet Dealer

• Amplifier Installation Kit with RCA Interconnect Cable
• 4 Gauge Power and ground cable for excellent power transfer
• Designed for systems up to 1500W
• Comes with everything needed to install an amplifier
• RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
• Speaker cable is easy to install with clean and clear sound
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

1. 17 ft. of 4 Gauge blue power cable
2. 3 ft. 4 Gauge black ground cable
3. 17 ft. Neon blue series RCA cable
4. 16 ft. of Speaker wire
5. 17 ft. of 18 Gauge blue remote turn-on wire
6. 6 ft. of Split loom tubing
7. 1 AGU Fuse Holder
8. 60 AGU Fuse

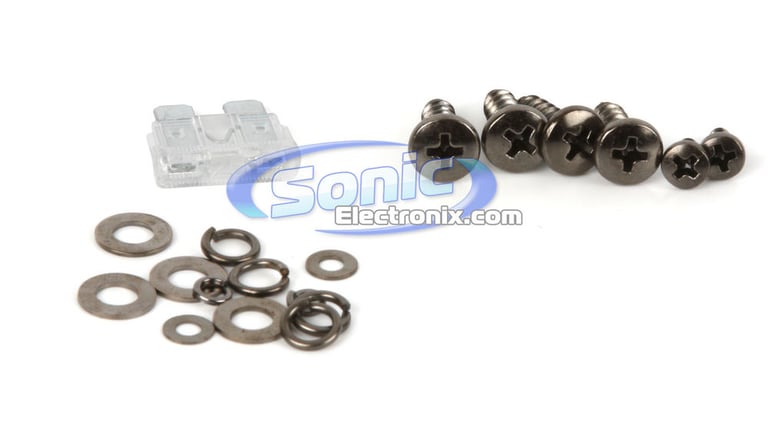

9. All Necessary Hardware for Installation
