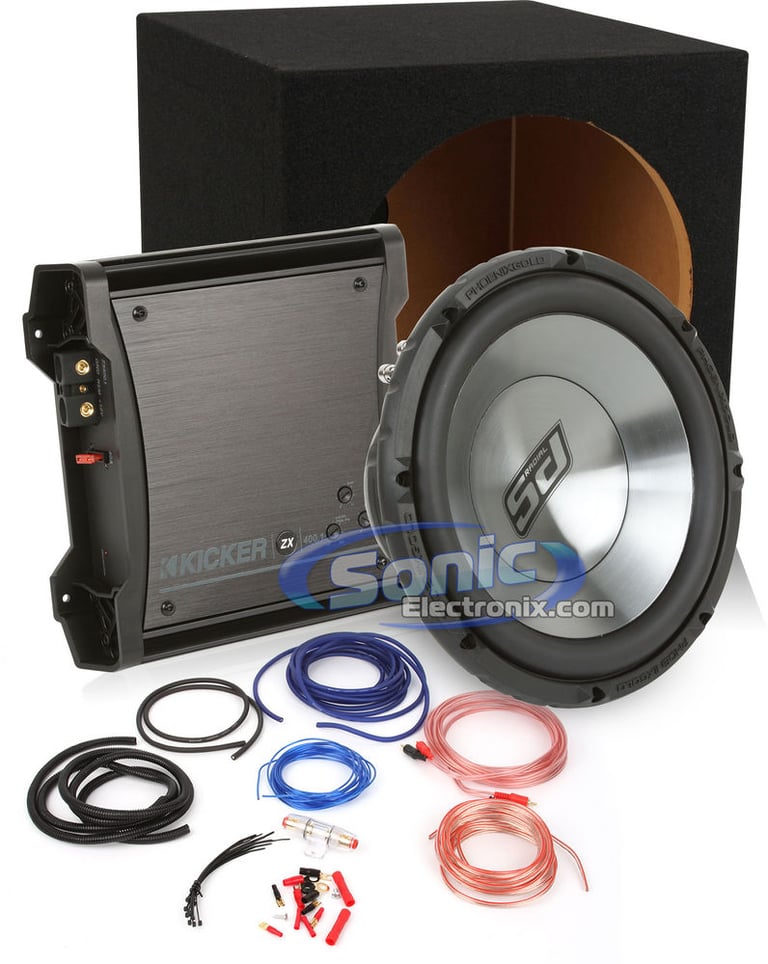

700W Complete Kicker + Phoenix Gold Bass Package

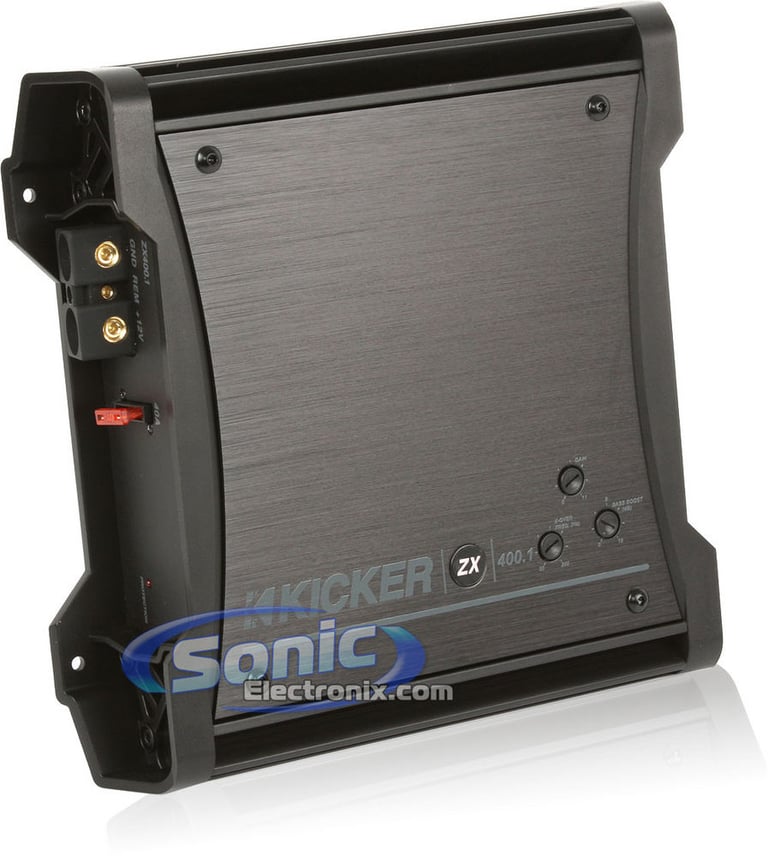

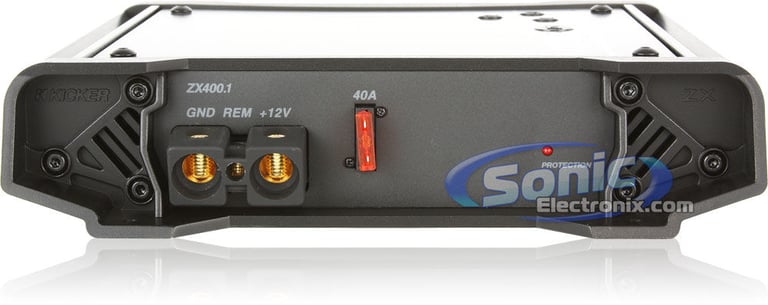

Kicker ZX400.1 Amplifier Features:

• ZX Series Class D Monoblock Car Amplifier
• RMS Power Rating (14.4V):
  • 4 ohm: 200 watts x 1 chan.
  • 2 ohm: 400 watts x 1 chan.
• High efficiency MOSFET power supply
• LED power and protection indicators
• Remote bass level input (Kicker 10ZXRC remote level control sold separately)
• Tuned Bass EQ (0-18 dB bass boost at 40 Hz)

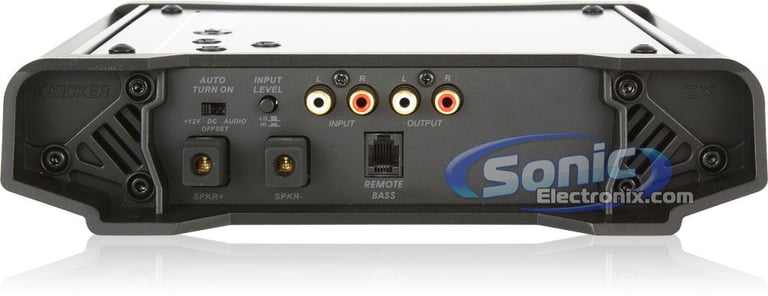

• Preamp RCA outputs
• Muting circuit cancels out unwanted noise

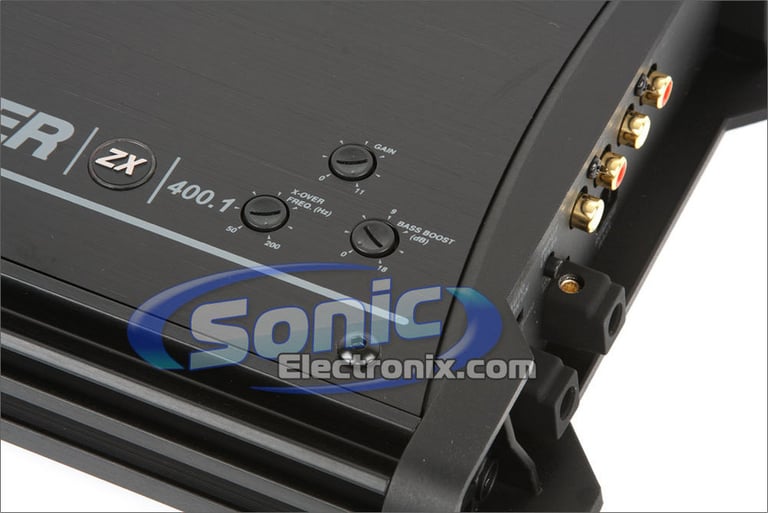

• Boost, gain, and crossover frequencies are top-mounted for easy access
• Balanced differential inputs for noise elimination and factory-radio compatibility
• 3 Automatic turn-on modes (remote, DC offset, signal sense)
• Optional edgy vinyl skins for personalizing heat sinks available
• Optional Kicker 08ZXEC endcaps are available for all ZX amplifier models
• High-density convection heat sink for extreme heat dissipation
• Gold-plated RCA level inputs
• Gold-plated screw terminals
• Input sensitivity:
  • Low level: 125mV-5V
  • High level: 250mV-10V
• Variable low-pass filter (50-200 Hz, 24 dB/octave)
• High-pass subsonic filter (24 dB at 25 Hz)
• CEA-2006 compliant amplifier
• Frequency response: 25-200 Hz
• Dimensions: 10-1/4"L x 9-5/8"W x 2-1/8"H
• Actual power exceeds rated power, documented inside each carton
• 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

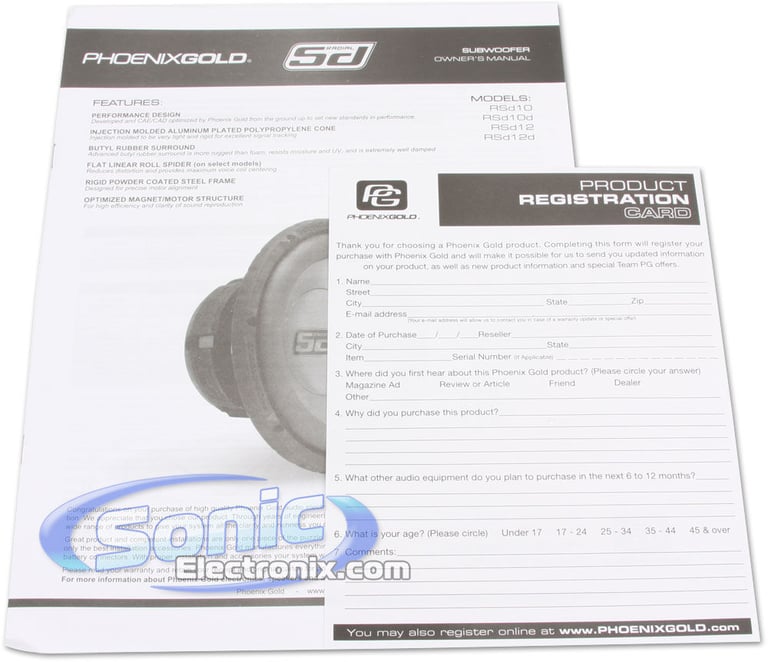

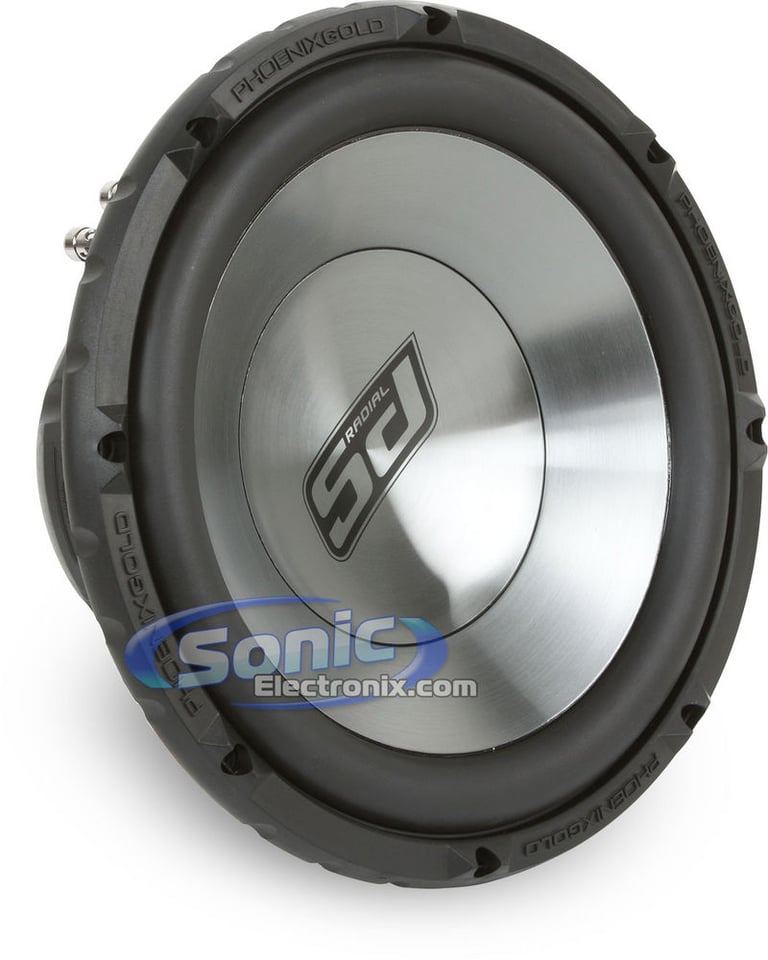

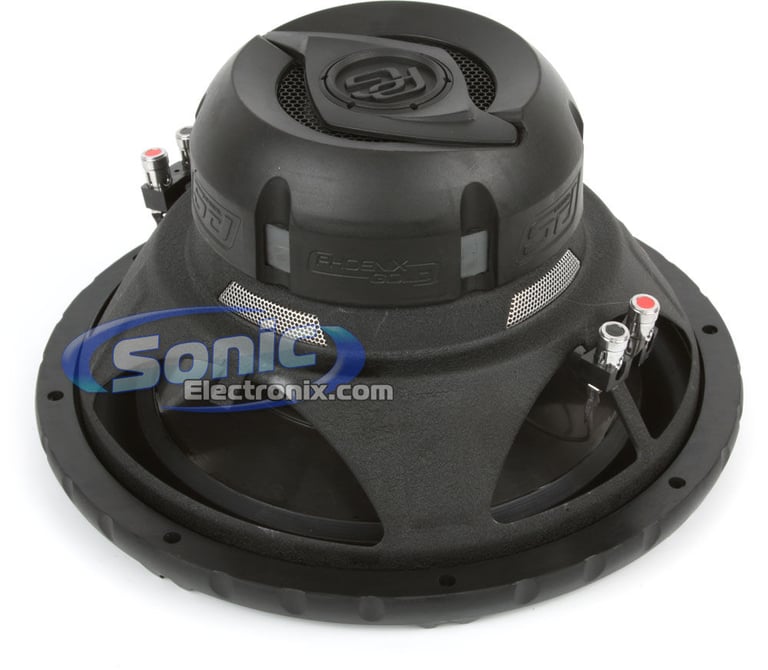

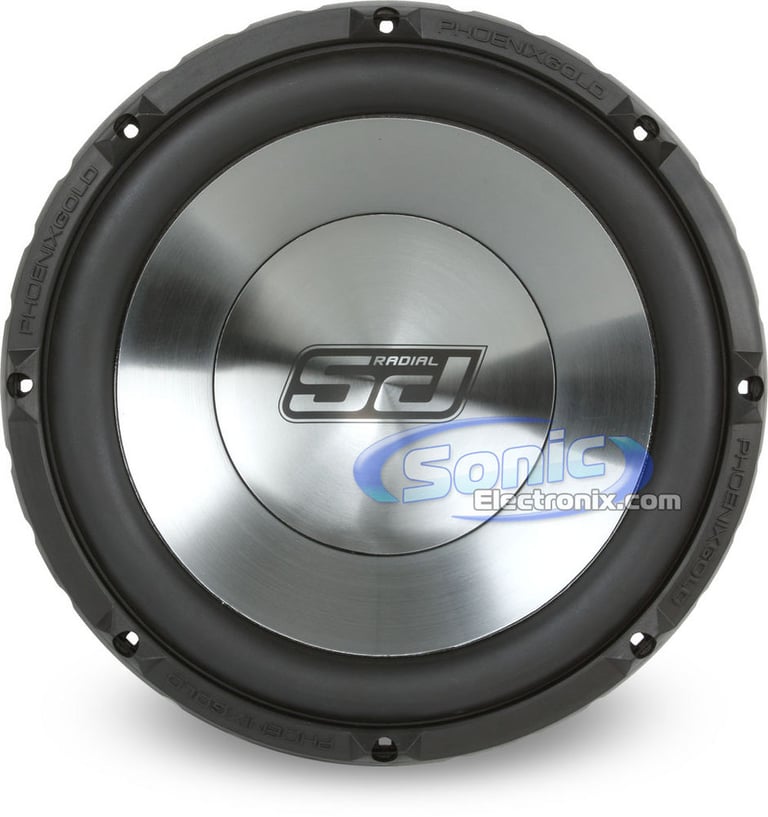

Phoenix Gold RSd 12d Subwoofer Features:

• RSd Dual 4 ohm 12" Subwoofer
• Power Handling:
• Peak Power Handling: 700 Watts
• RMS Power Handling: 500 Watts
• Injection Molded, Aluminum Plated Polypropylene Cone
• Butyl Rubber Surround
• Rigid Powder Coated Steel Frame
• Flat, Linear Roll Spider
• Optimized Magnet/Motor Structure
• Reversible Rubber Mounting Gasket
• Sensitivity: 91 dB
• Frequency Response: 25 - 200 Hz
• Exclusive Authorized Internet Dealer
• 2-year Manufacturer's warranty

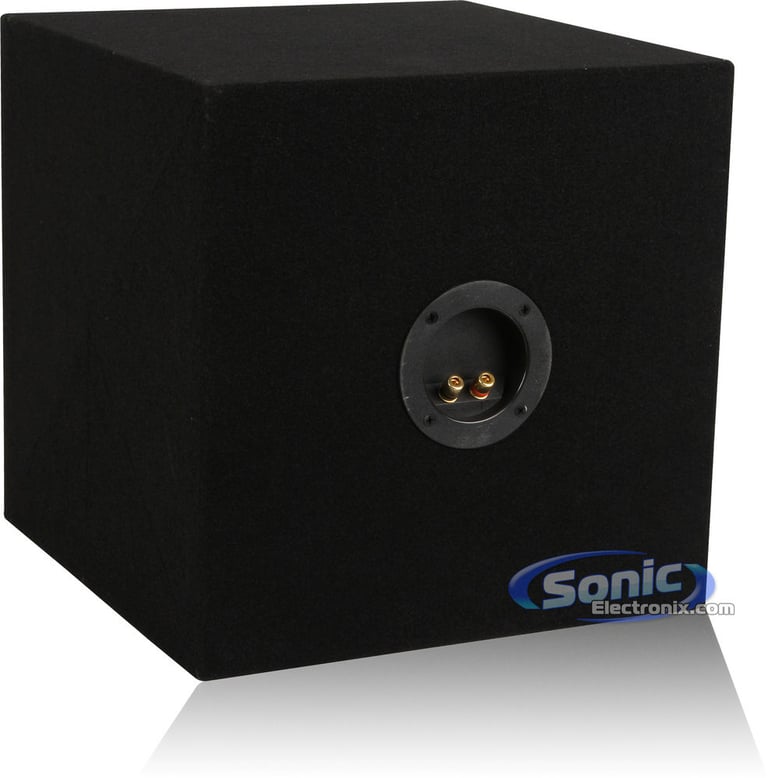

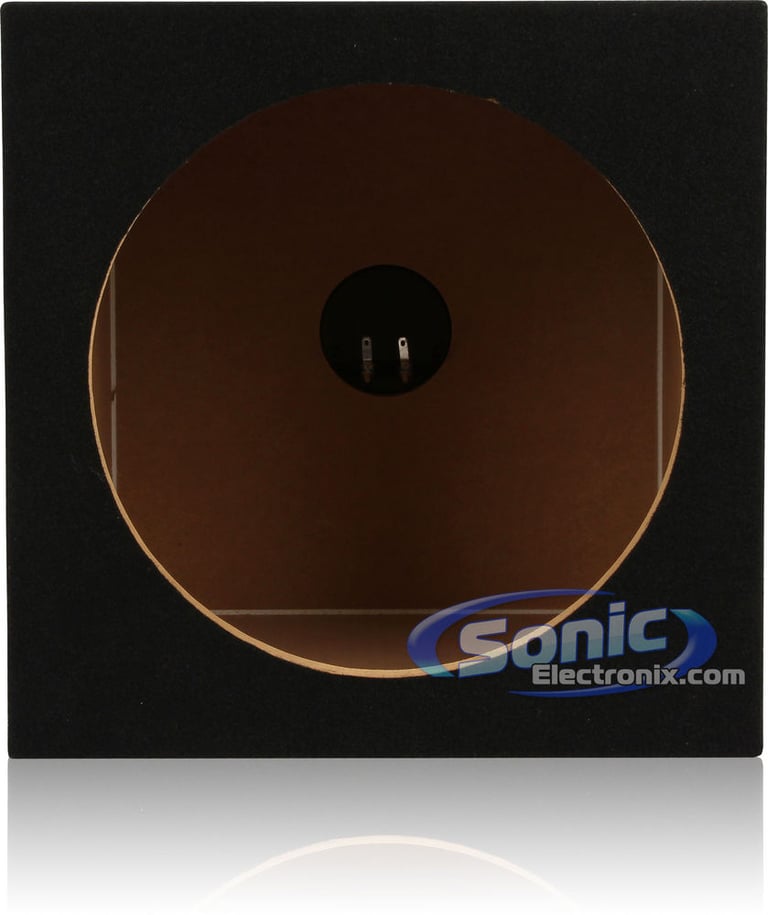

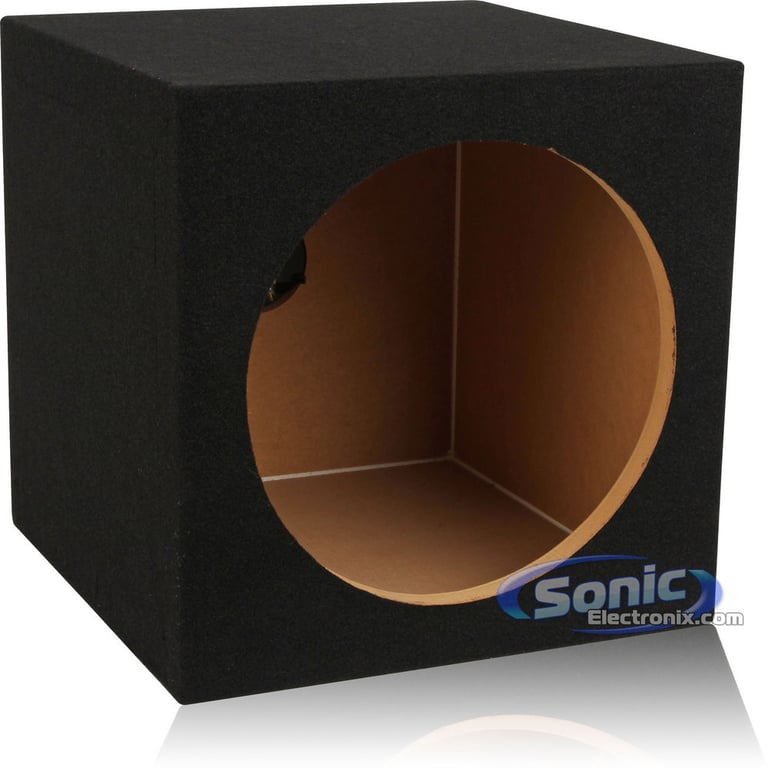

Absolute SS-12 Enclosure Features:

• 12" Sealed Square Subwoofer Enclosure
• Black carpet

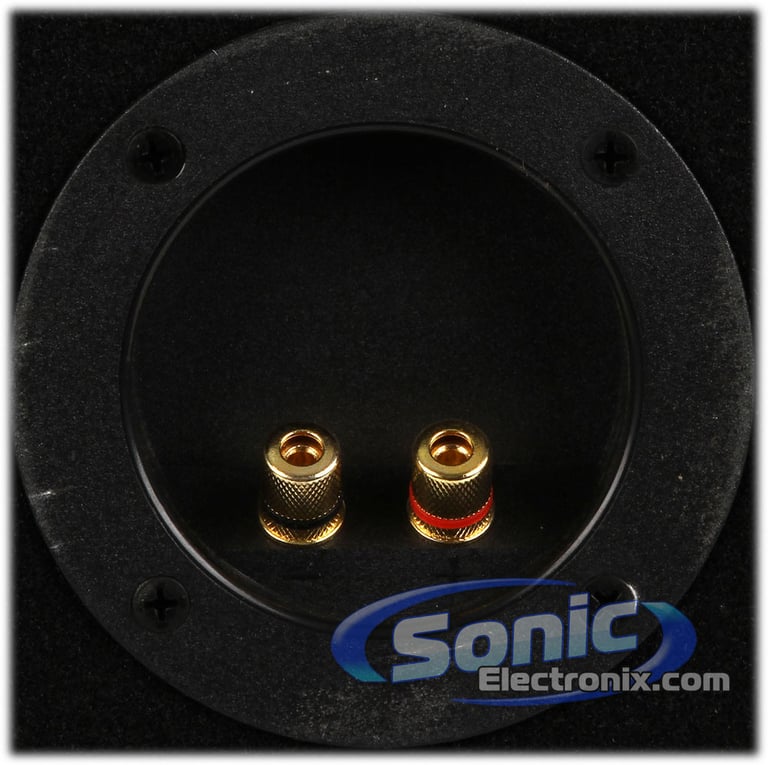

• Gold plated binding posts
• Banana clip ready
• Mounting depth: 13"
• Cutout diameter: 11-1/8"
• Box volume: 1.13 cubic feet
• Made from 3/4" Medium Density Fiberboard (MDF)
• Dimensions: 14"D x 14"W x 14"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Raptor Amplifier Installation Kit Features:

• Amplifier Installation Kit with RCA Interconnect Cable
• 4 Gauge Power and ground cable for excellent power transfer
• Designed for systems up to 1500W
• Comes with everything needed to install an amplifier
• RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
• Speaker cable is easy to install with clean and clear sound
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

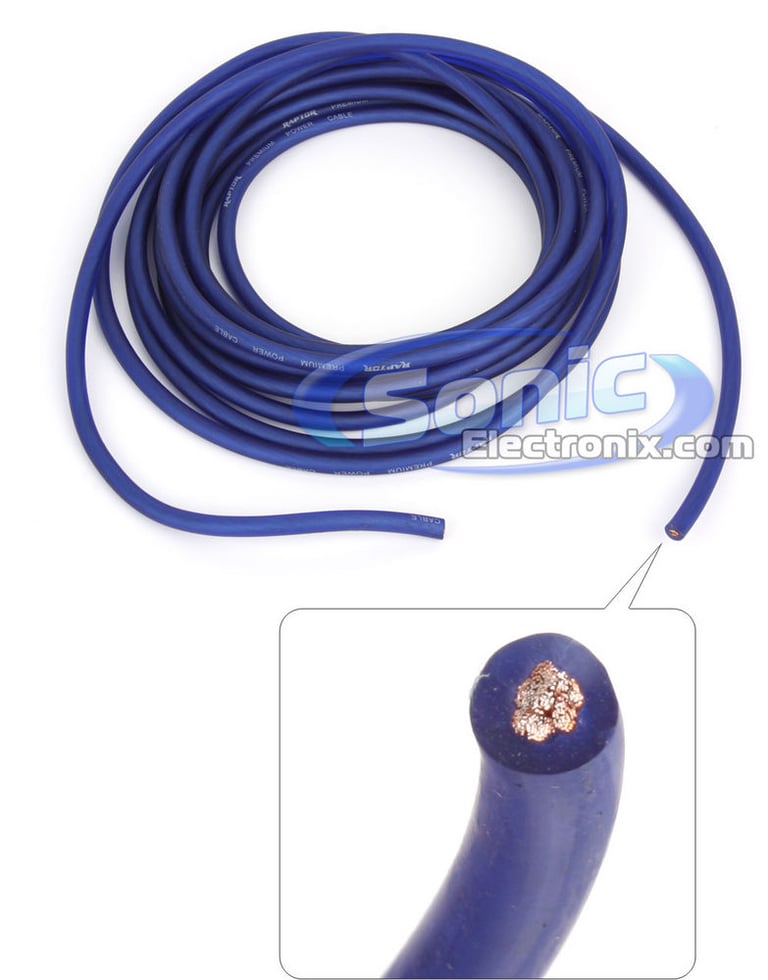

1. 17 ft. of 4 Gauge blue power cable

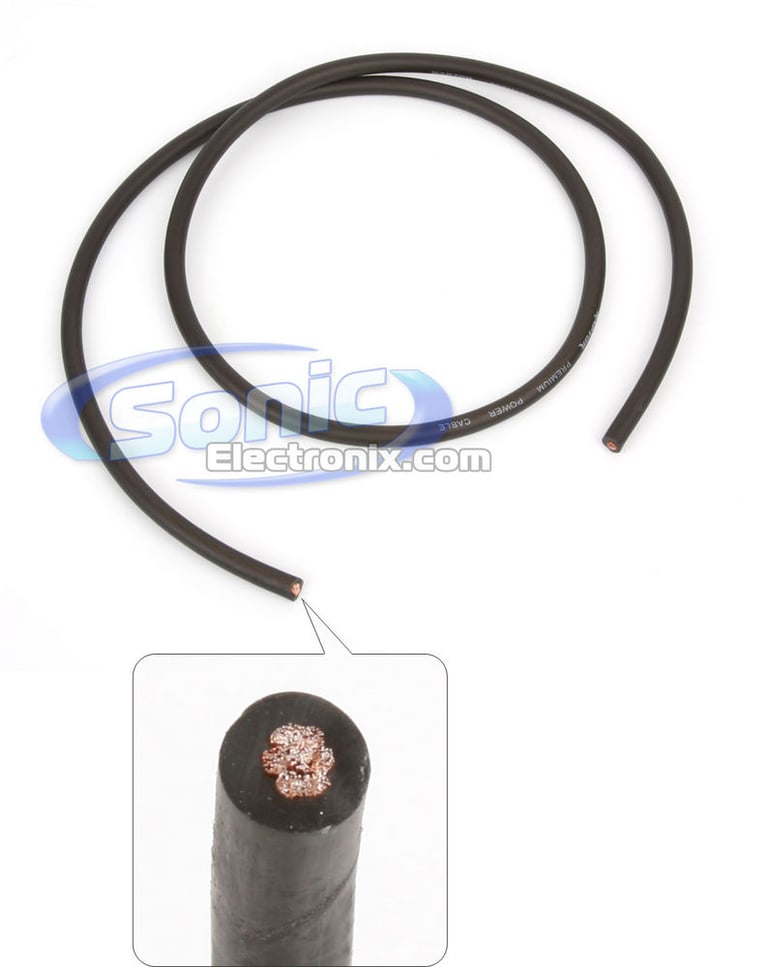

2. 3 ft. 4 Gauge black ground cable
3. 17 ft. Neon blue series RCA cable

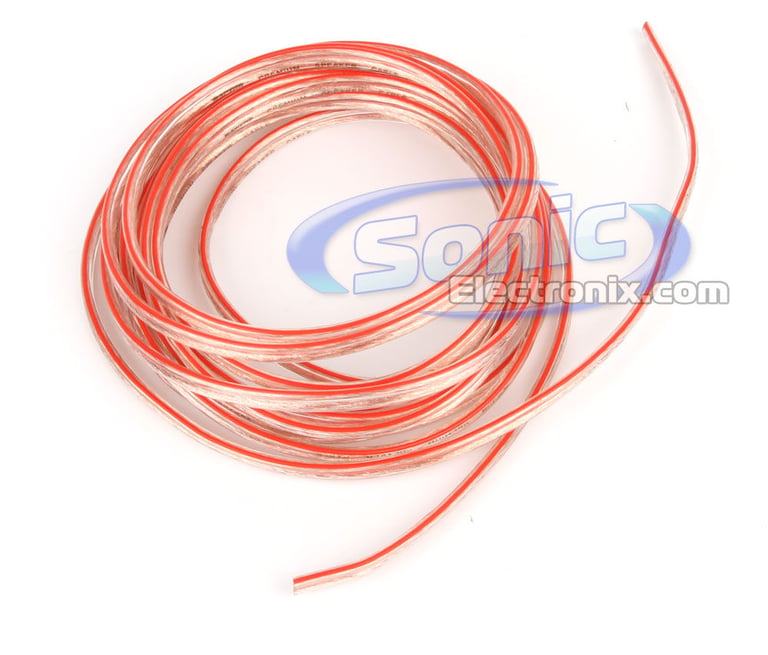

4. 16 ft. of Speaker wire

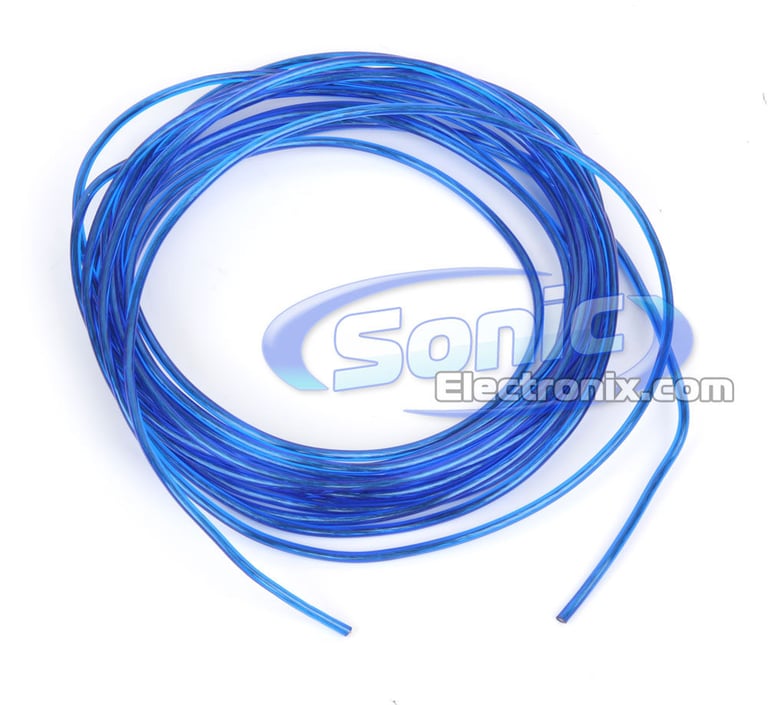

5. 17 ft. of 18 Gauge blue remote turn-on wire

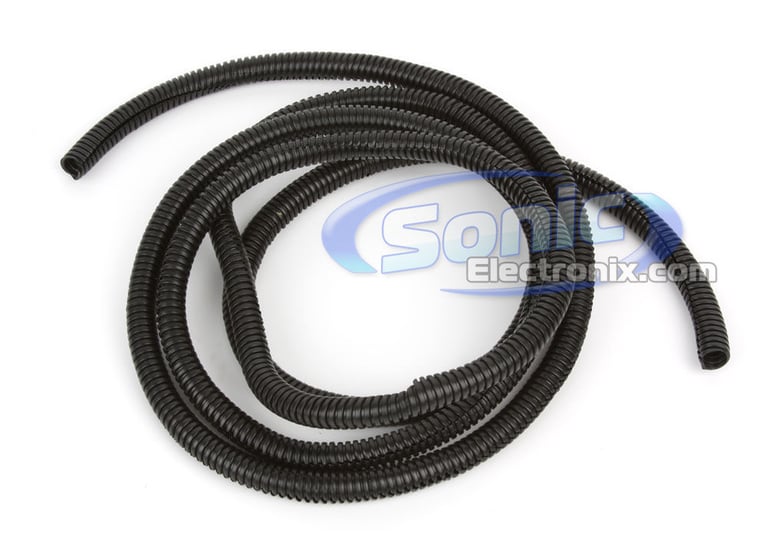

6. 6 ft. of Split loom tubing
7. 1 AGU Fuse Holder
8. 60 AGU Fuse

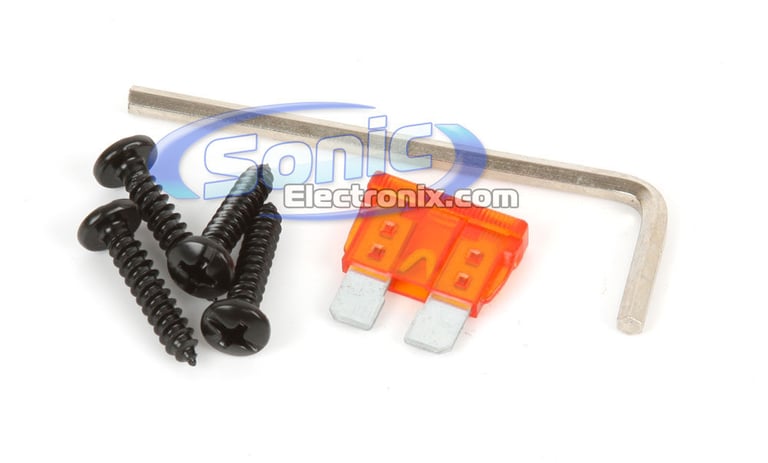

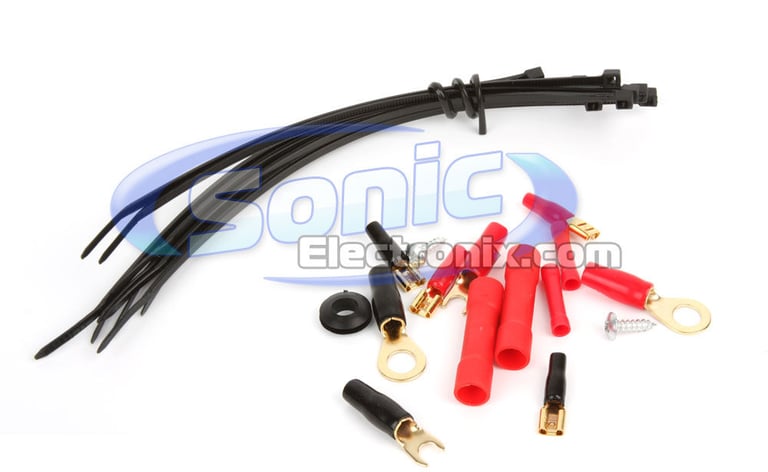

9. All Necessary Hardware for Installation
