Product Highlights


ZX Series Class D Monoblock Car Amplifier • 200W x 1 chan. @ 4 ohm • 400W x 1 chan. @ 2 ohm • Balanced Differential Inputs • Muting Circuit • Optional Vinyl Skins For Personalization • Includes Everything You Need To Add Bass To Your Car

Description


Kicker brand icon

Authorized dealer

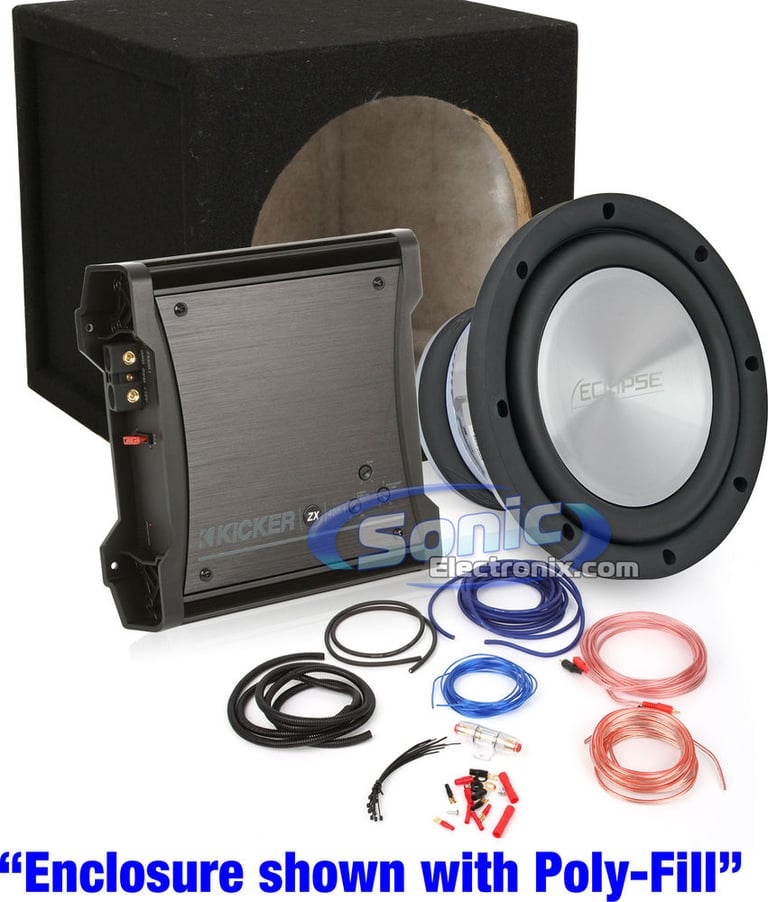

Sonic Electronix Exclusive Bass Package

This Exclusive Bass package includes a Kicker ZX400.1 Amplifier along with an Eclipse SW6010 10" Subwoofer. This excellent bass package pushes 400 watts of clean, continuous RMS power. The Eclipse Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Eclipse subwoofer requires around 450 watts of RMS power. The included Kicker ZX400.1 amplifier will compliment this required power by supplying 400 watts of certified Kicker power. Since Kicker under-rates their power, you'll get additional bass response with this Kicker amplifier. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

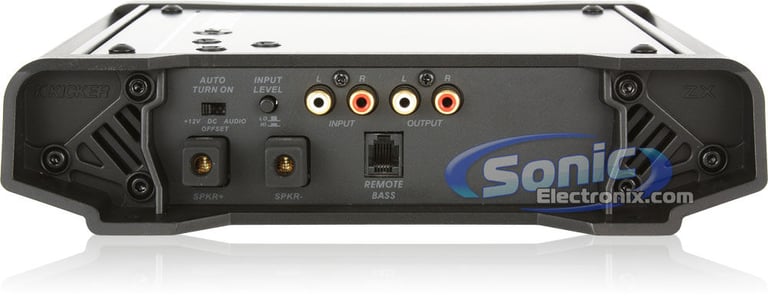

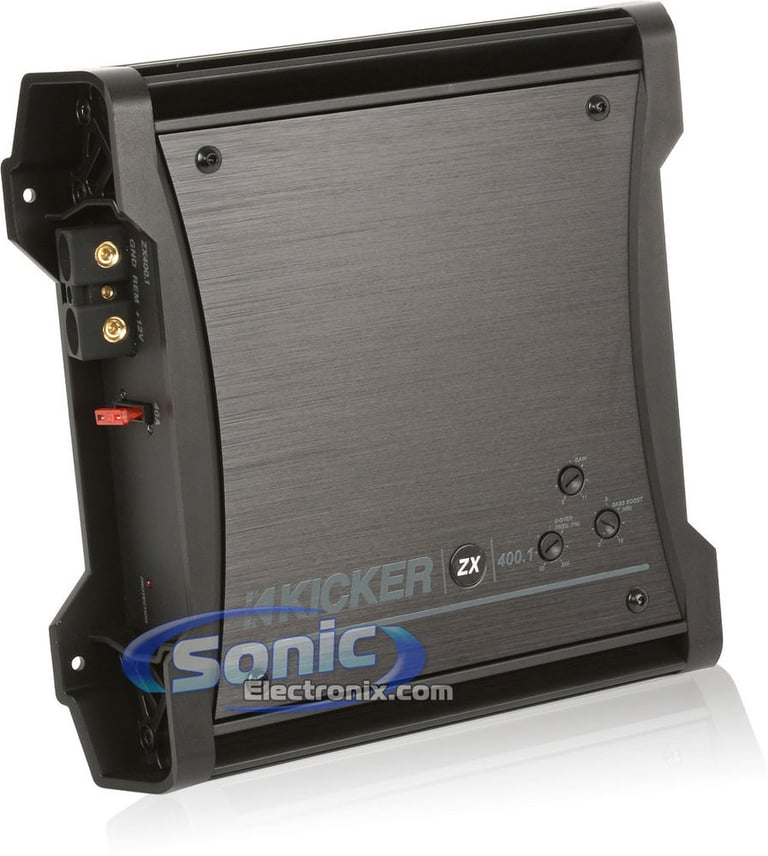

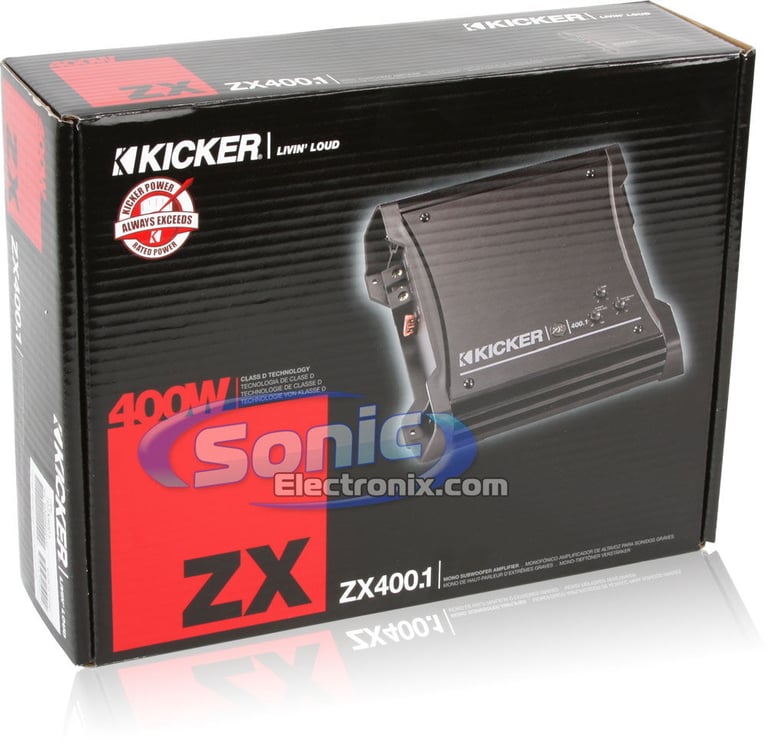

Kicker ZX Amplifier Features:
  • ZX Series Class D Monoblock Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
  • High efficiency MOSFET power supply
  • LED power and protection indicators
  • Remote bass level input (Kicker 10ZXRC remote level control sold separately)
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Preamp RCA outputs
  • Muting circuit cancels out unwanted noise

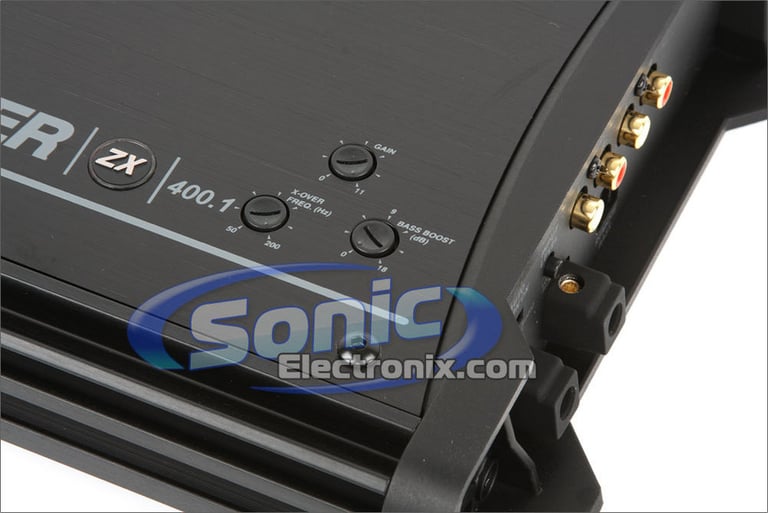

  • Boost, gain, and crossover frequencies are top-mounted for easy access
  • Balanced differential inputs for noise elimination and factory-radio compatibility
  • 3 Automatic turn-on modes (remote, DC offset, signal sense)
  • Optional edgy vinyl skins for personalizing heat sinks available
  • Optional Kicker 08ZXEC endcaps are available for all ZX amplifier models
  • High-density convection heat sink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • High-pass subsonic filter (24 dB at 25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 25-200 Hz
  • Dimensions: 10-1/4"L x 9-5/8"W x 2-1/8"H
  • Actual power exceeds rated power, documented inside each carton
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

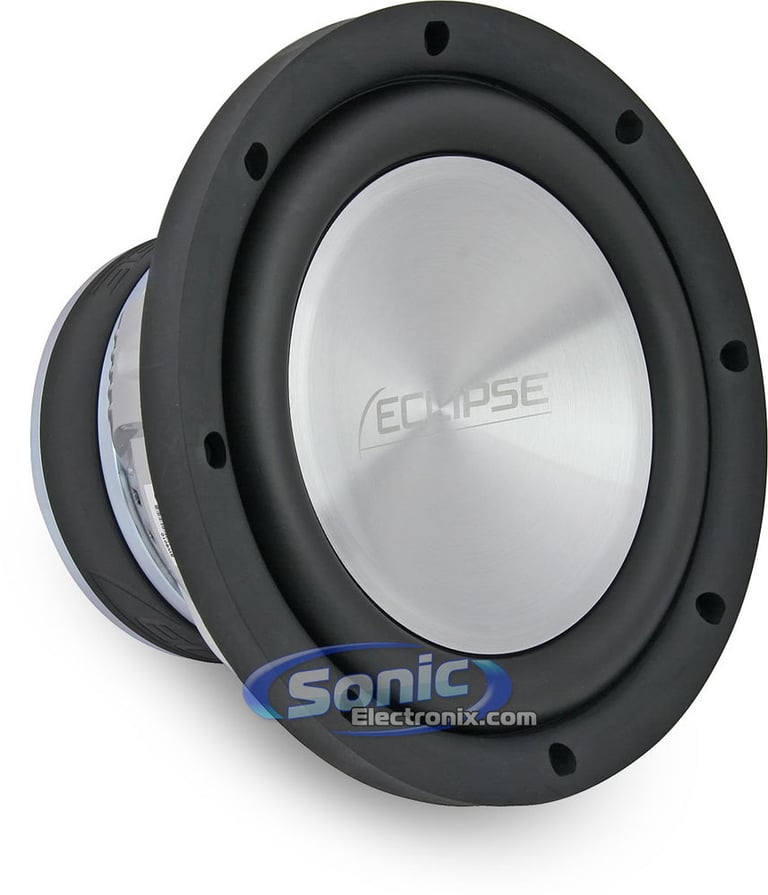

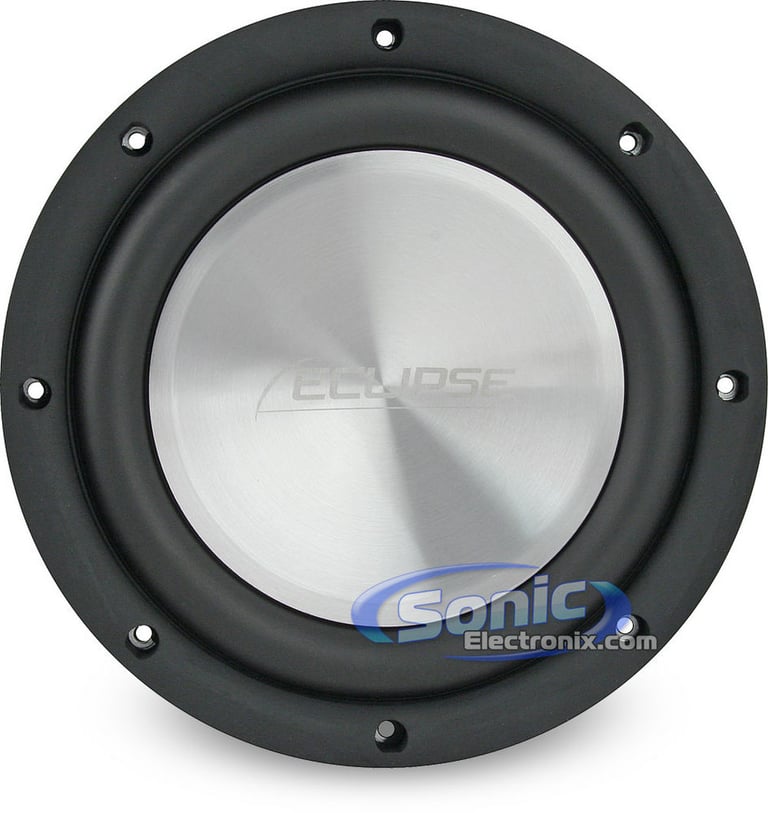

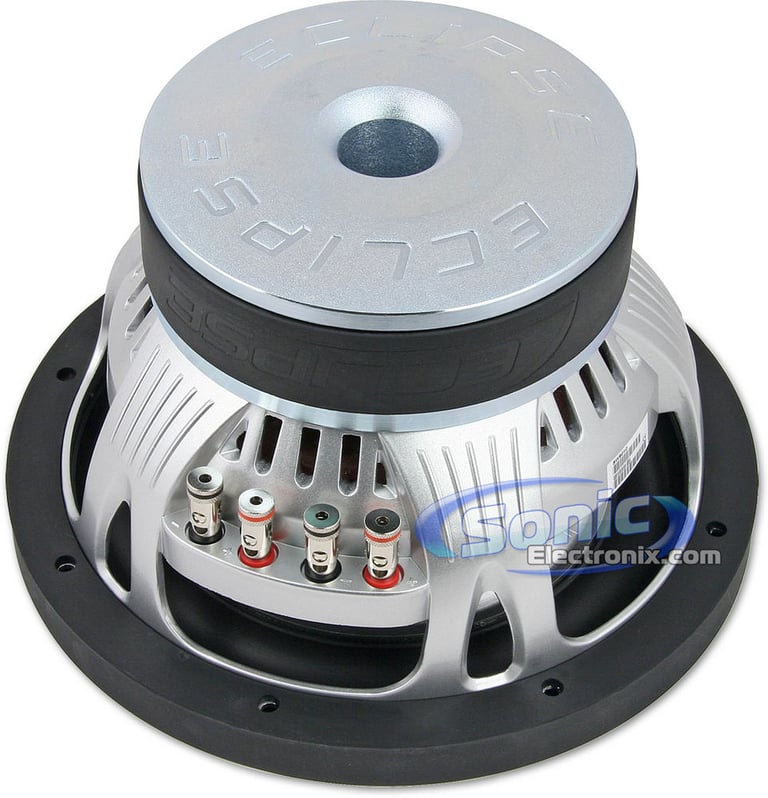

Eclipse Subwoofer Features:
  • 10" Dual 4 Ohm SW 6200 Series Subwoofer
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 450 watts
  • Impedance: Dual 4 ohm
  • Kevlar-aluminum composite cone woofer
  • Santoprene surround
  • ABS + 15% Fiber filled construction
  • Rubber gasket
  • Flat PC spider
  • Four 10-gauge chrome terminals (2 pairs)
  • Air vent cooling system
  • 4-Layer dual 4 ohm aluminum voice coil
  • 30oz. Ferrite magnet
  • Sensitivity: 88 dB
  • 1-year SonicElectronix.com warranty

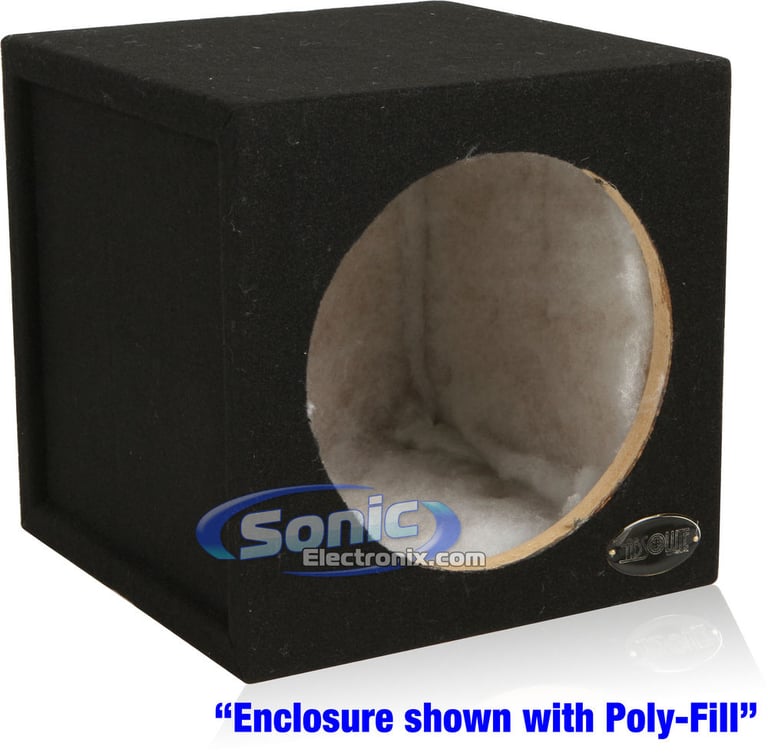

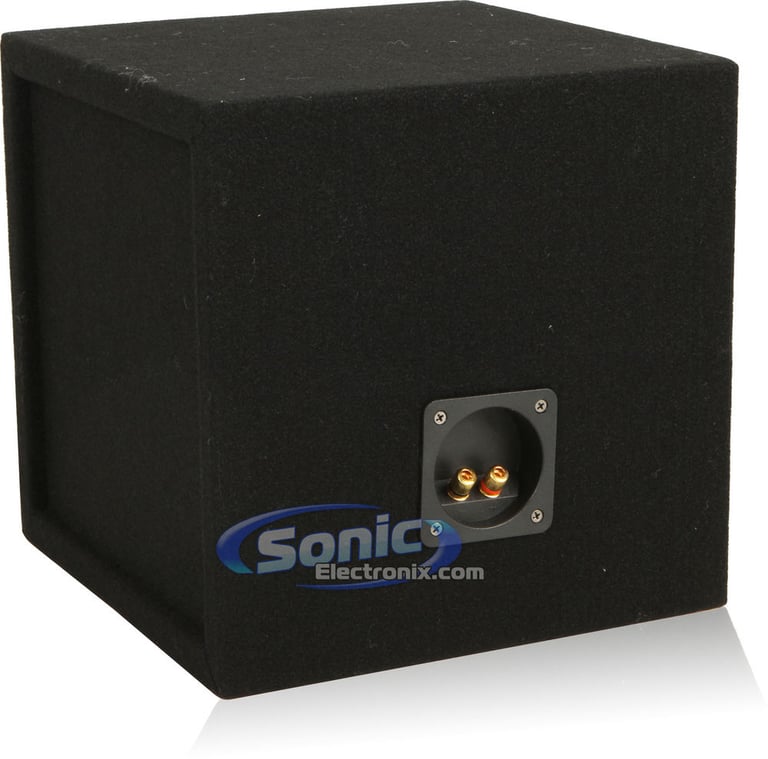

Enclosure Features
  • 10" Sealed Square Subwoofer Enclosure
  • Black carpet with Poly-fill inside
  • Gold plated screw terminals (banana clip ready)
  • Mounting depth: 10-5/8"
  • Cutout diameter: 9-1/8"
  • Box volume: 0.66 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 12"D x 12"W x 12"H
  • Authorized Internet Dealer

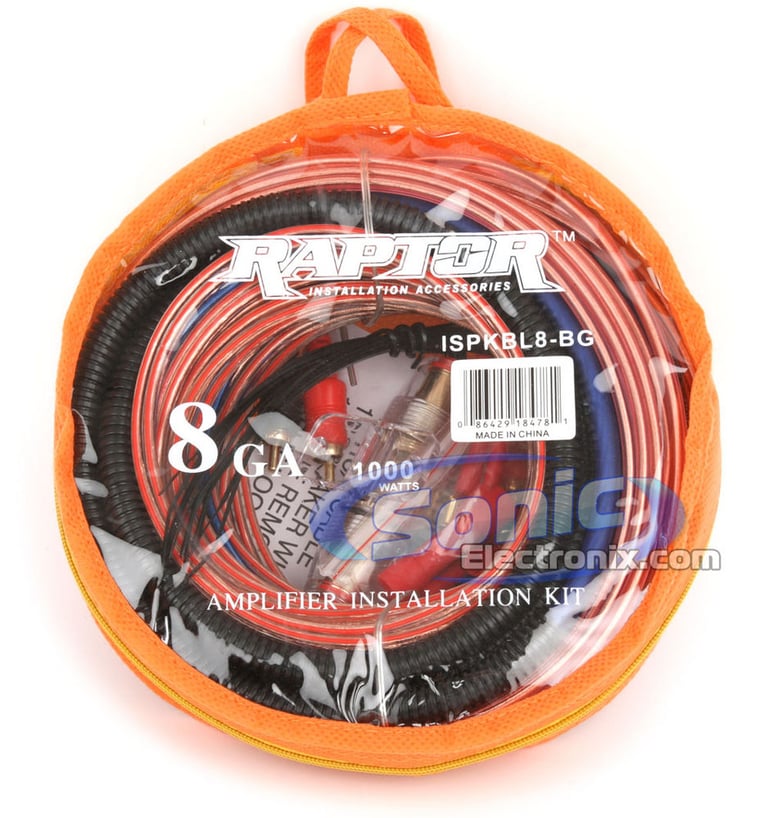

Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier

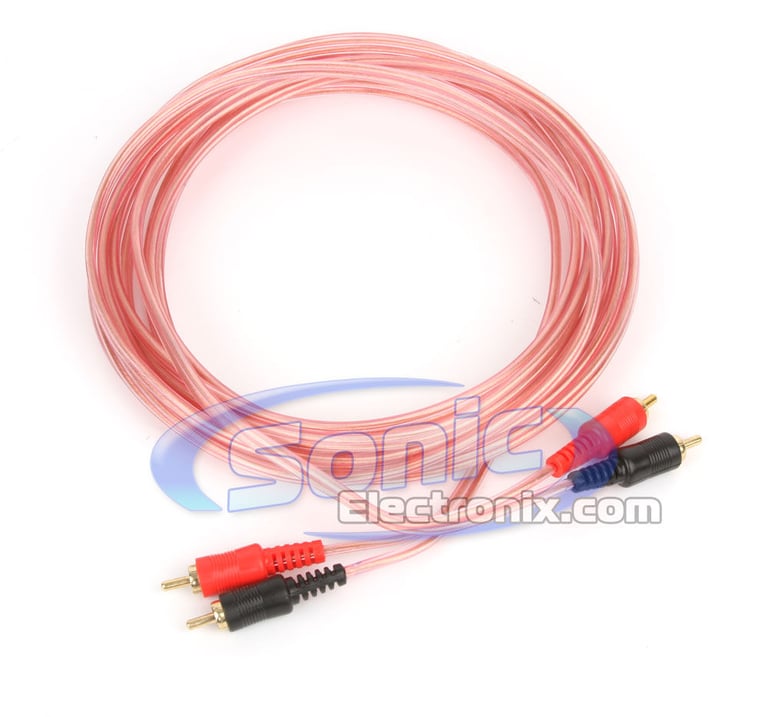

  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:

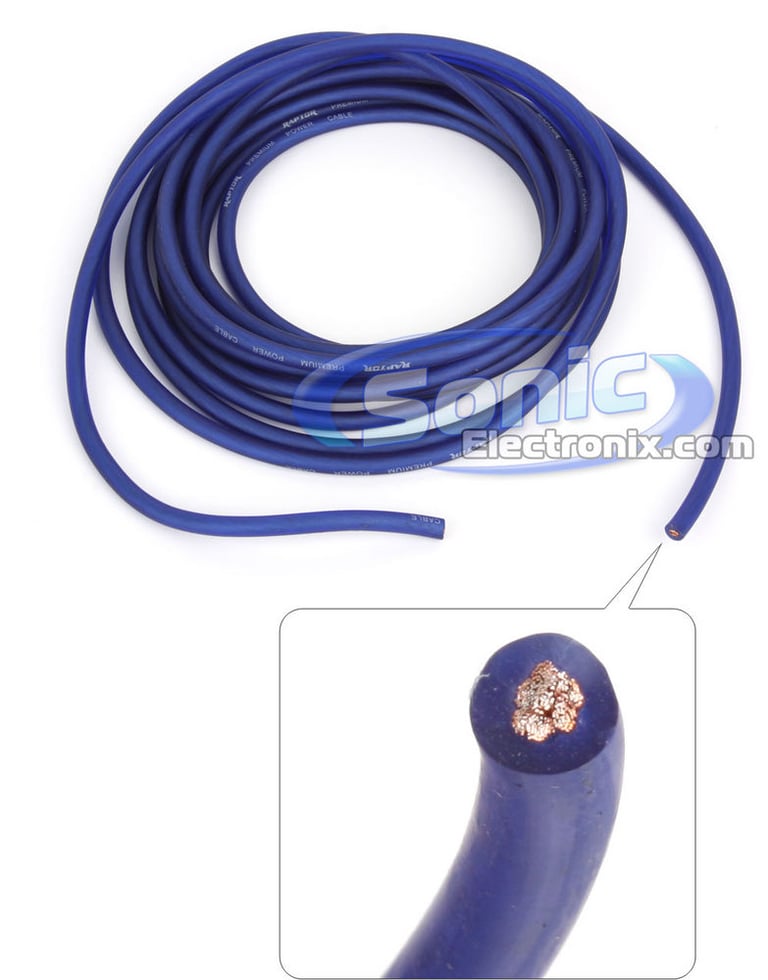

  1. 17 ft. of 8 Gauge blue power cable

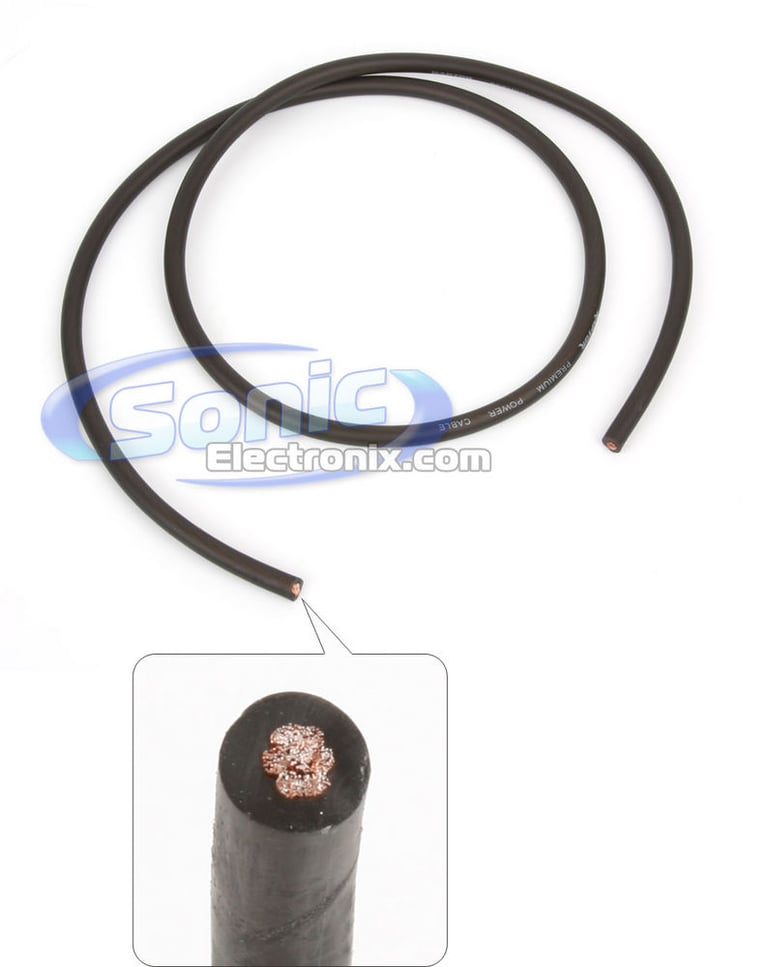

  2. 3 ft. 8 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable

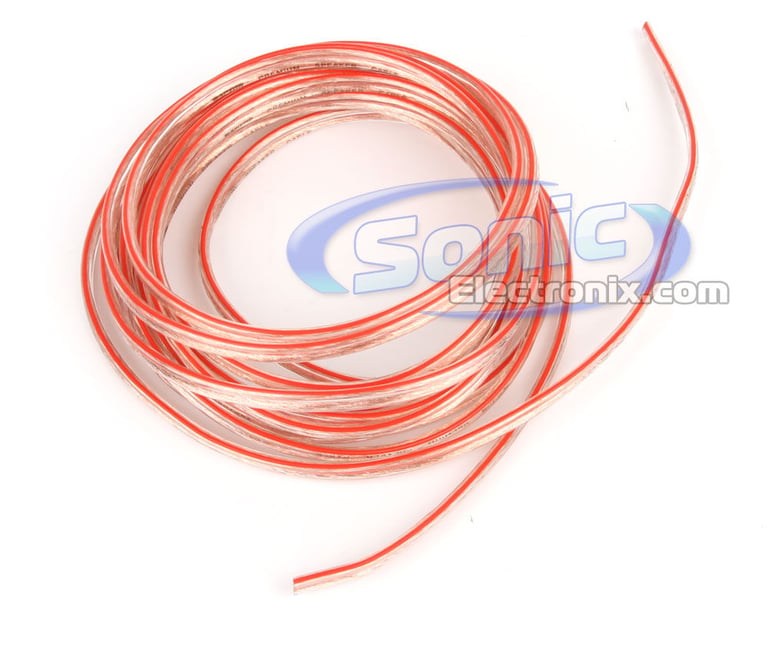

  4. 16 ft. of Premium speaker cable

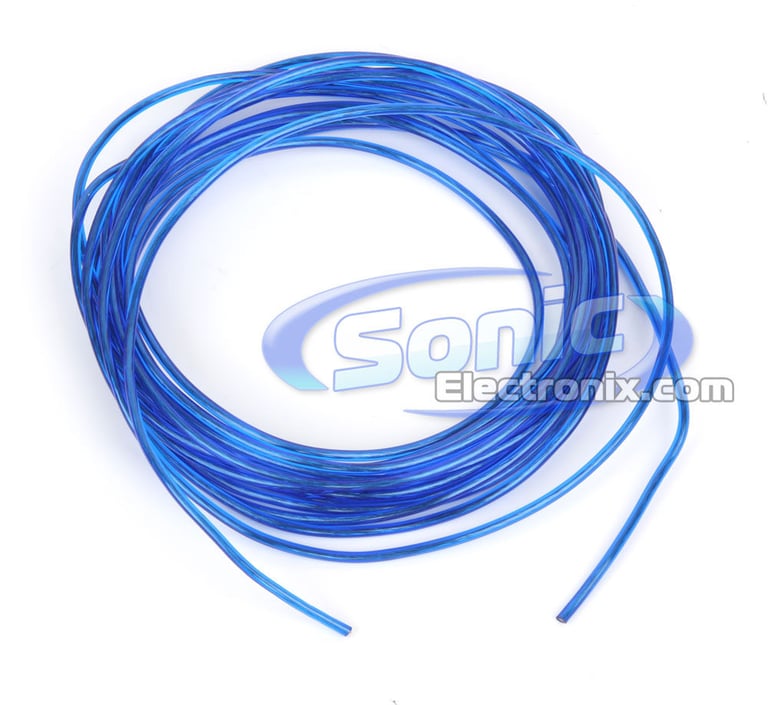

  5. 17 ft. of 18 Gauge blue remote turn-on wire

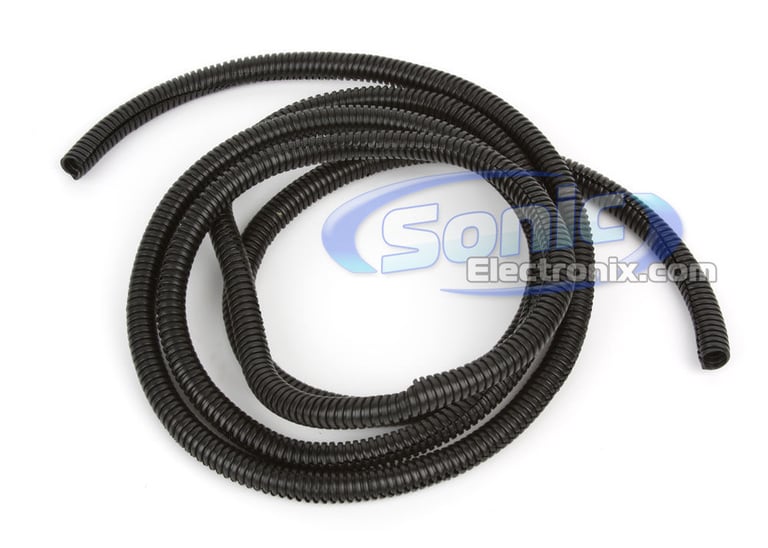

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

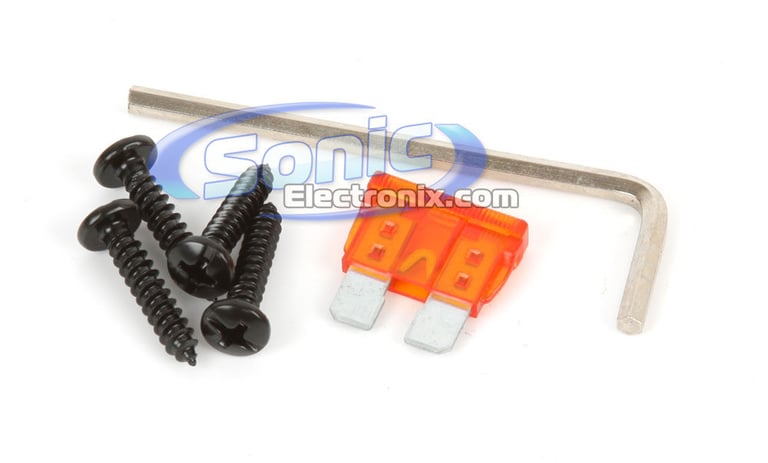

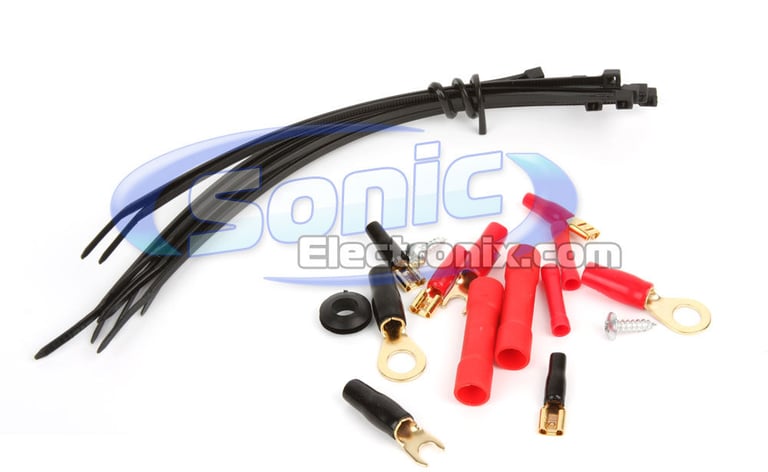

  9. All Necessary Hardware for Installation

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)

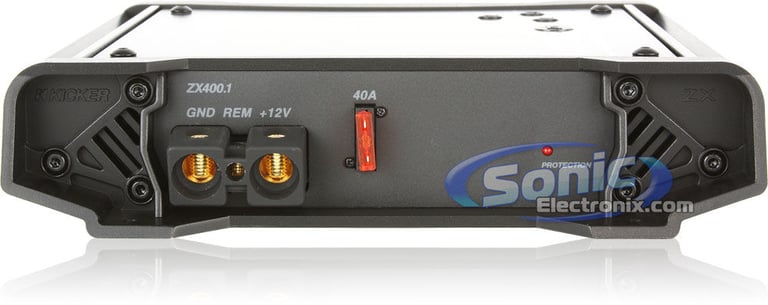

Fuse Rating
40A x 1
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
450 watts
Peak Power Handling
1300 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Kevlar-Aluminum Composite
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88 dB
Frequency Response
20 - 500 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
12"
Width
12"
Depth
12"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10ZX400.1_SW6010

Weight:

44.00lbs

Internal SKU:

10zx4001_sw6010

Internal Product ID:

29434
