1000W Complete Kenwood + Alpine Bass Package

Kenwood Performance Series KAC8105D Amplifier + Alpine SWR1042D Type R 10" Sub + 4GA Kit +Sealed Box

Kenwood
Shop all Kenwood
EXCLUSIVE
Product videos
highlight-star-icon

Class D Monoblock Car Amplifier • 500W x 1 chan. @ 2 ohm • Speaker-level inputs • Gold Plated Preamp RCA outputs • 10" Dual 4 Ohm Type-R Series Subwoofer • Multi-Roll Santoprene Surround • Includes Everything You Need To Add Bass To Your Car

Learn more about the kac8105d_swr1042d

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
C1-525x main

JL Audio C1-525x

100W RMS 5.25" C1 Series 2 Way Coaxial 4-ohm Car Speakers

6

$129.99

Add to cart

Product Highlights

Class D Monoblock Car Amplifier • 500W x 1 chan. @ 2 ohm • Speaker-level inputs • Gold Plated Preamp RCA outputs • 10" Dual 4 Ohm Type-R Series Subwoofer • Multi-Roll Santoprene Surround • Includes Everything You Need To Add Bass To Your Car

Description

Kenwood brand icon

Authorized dealer

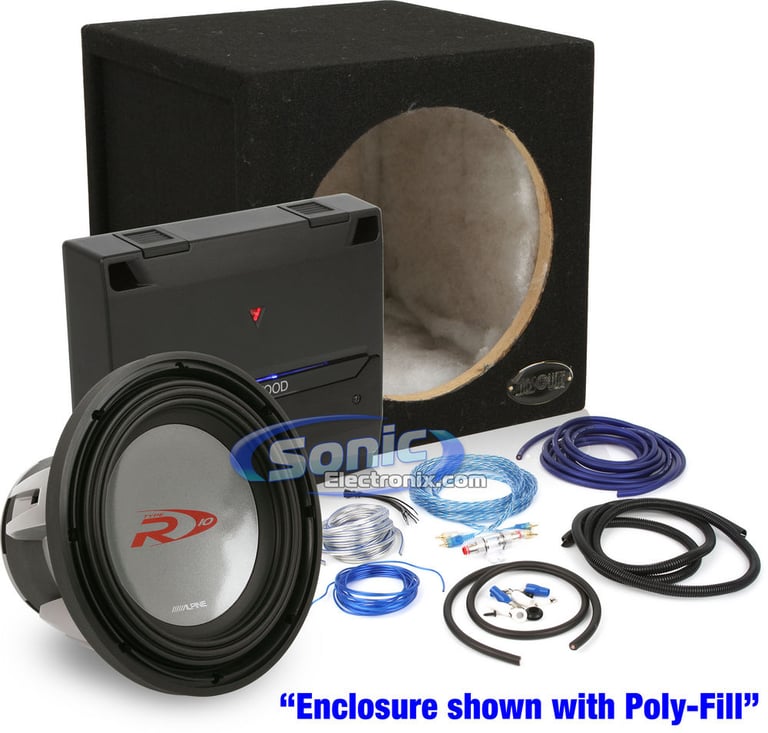

Kenwood and Alpine Complete Bass Package

This Sonic Electronix Exclusive Bass package showcases a Kenwood KAC-8105D Series Amplifier along with an Alpine Type R 10" Subwoofer. This excellent bass package pushes 500 watts of clean, continuous RMS power. The Alpine Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Alpine Type R subwoofer requires 500 watts of RMS power. The included Kenwood KAC-8105D amplifier will compliment this required power by supplying a perfect matchup of certified RMS continuous power. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

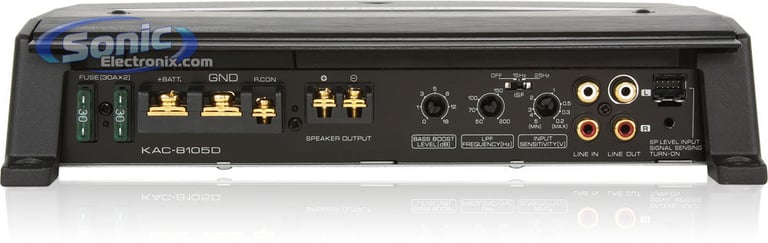

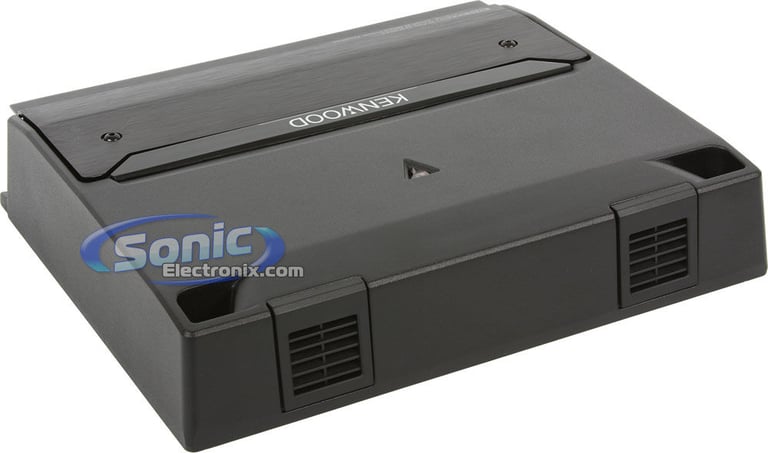

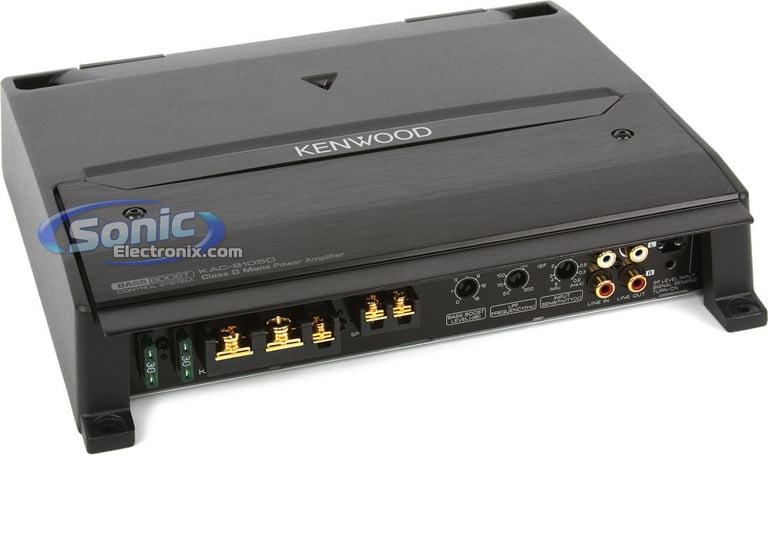

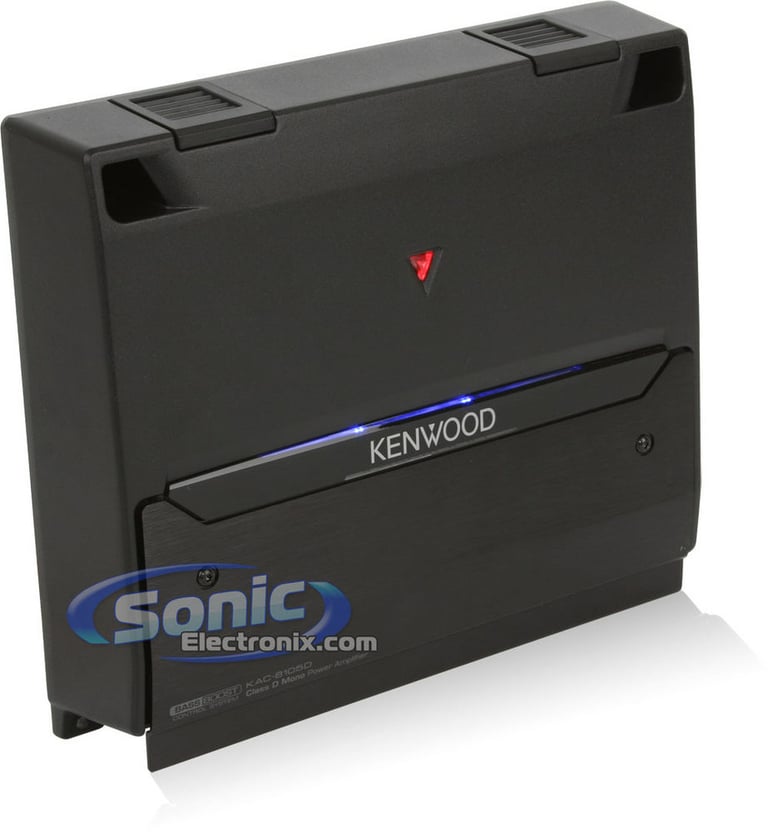

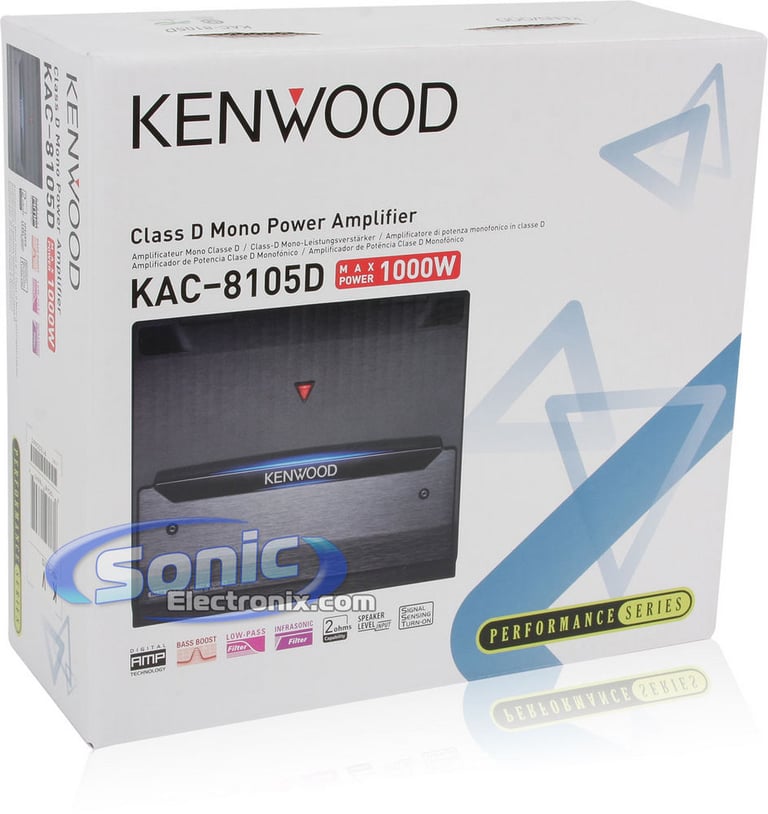

Kenwood KAC Amplifier Features:
  • Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • MOSFET power supply
  • LED power indicator
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs
  • Short circuit, DC offset, overload, and thermal protection circuitry
  • Aluminum die cast heat sink
  • Speaker impedance: 2-8 ohm
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity: 0.2-5 Volts
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Subsonic filter (15/25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-200 Hz
  • Dimensions: 11"L x 2-5/16"H x 9-3/8"D
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

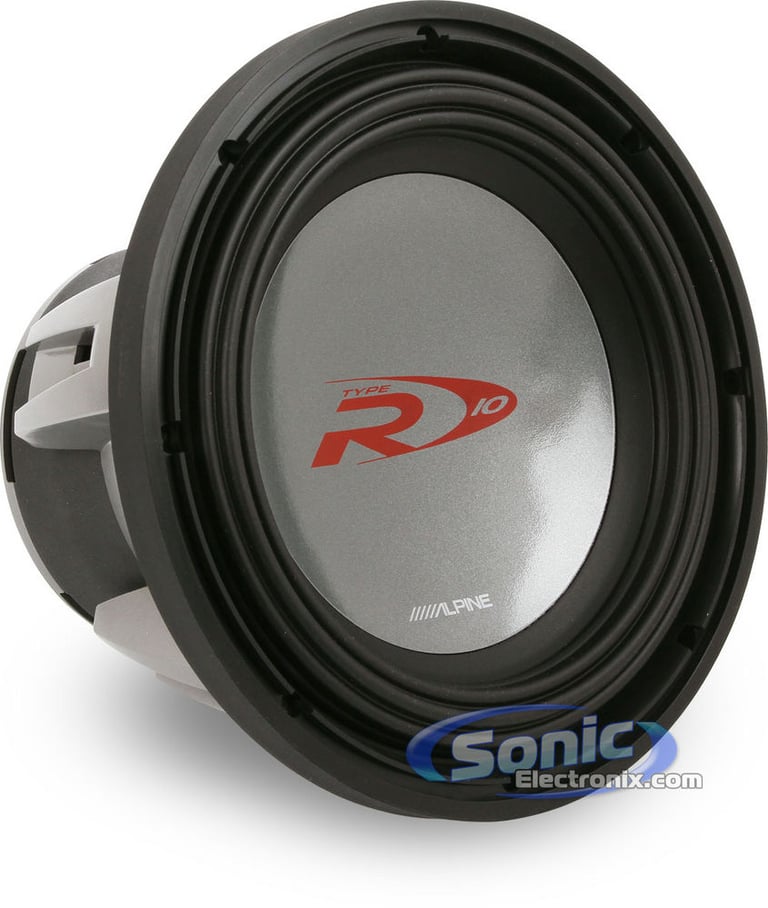

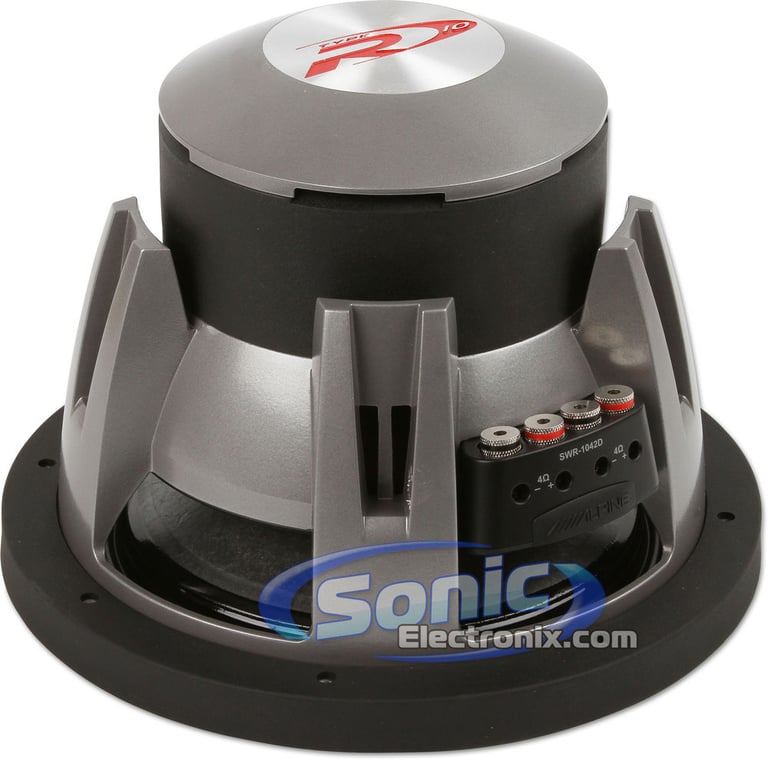

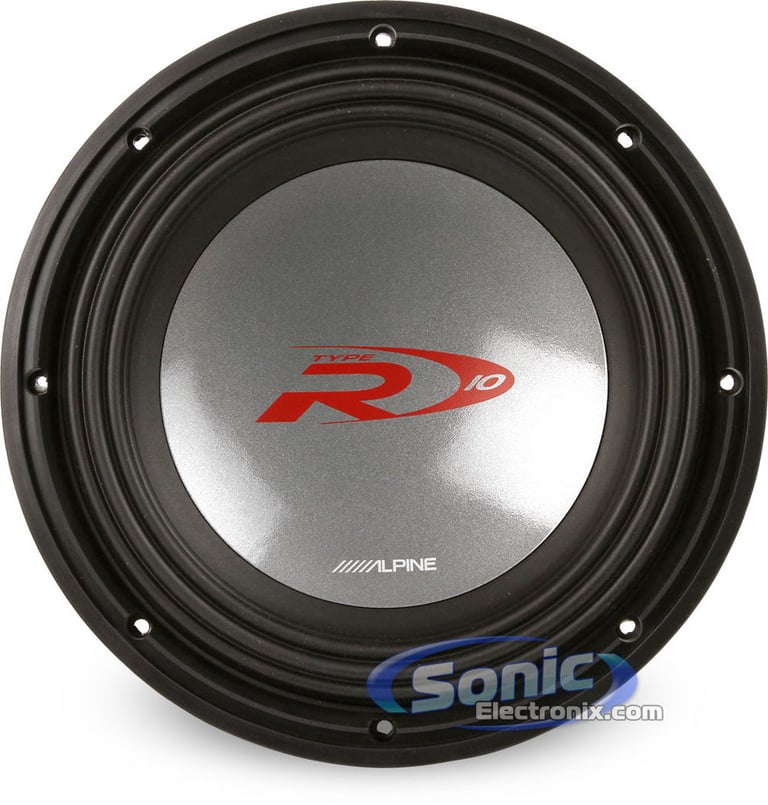

Alpine Type R Subwoofer Features:
  • 10" Dual 4 Ohm Type-R Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Kevlar reinforced pulp cone
  • Custom Cast Aluminum Frame with Integrated Perimeter Venting and Heat Transfer Plate
  • Mirrored Progressive Nomex ® Spiders with Reinforced Layer Integrated Tinsel Leads
  • Compound Radius Curve (CRC) Motor Structure
  • Multi-Stage Thermal Management System

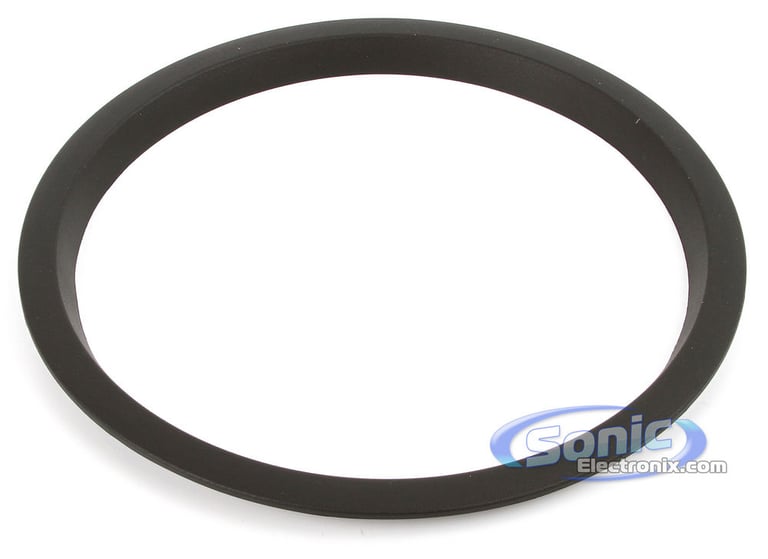

  • HAMR Surround and Concealed Mount Gasket
  • Aluminum Airflow Motor Cover

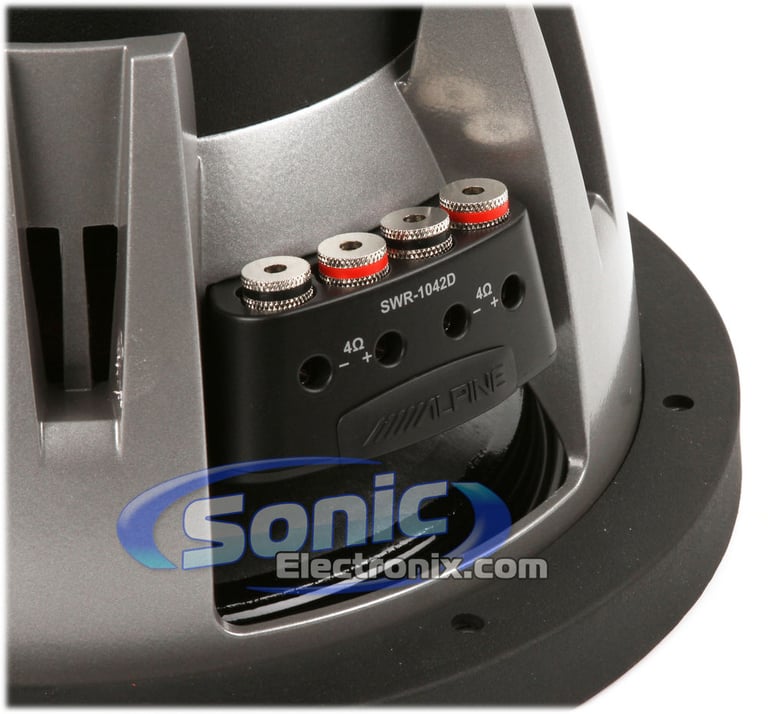

  • Insert Push Terminals with One-sided Layout
  • Bumped Backplate
  • Compound Radius Curve Pole Geometry
  • Dual Stacked Magnets
  • Extra Length Extended Pole
  • Flared Pole Vent
  • High Strength Brass Voice Coil Bobbin
  • Magnetically Optimized Motor Structure (Pat. Pend.)
  • Oversized Parabolic Dustcap
  • Frequency Response: 26Hz – 500Hz
  • Designed and Engineered in the USA
  • 1-year SonicElectronix.com warranty

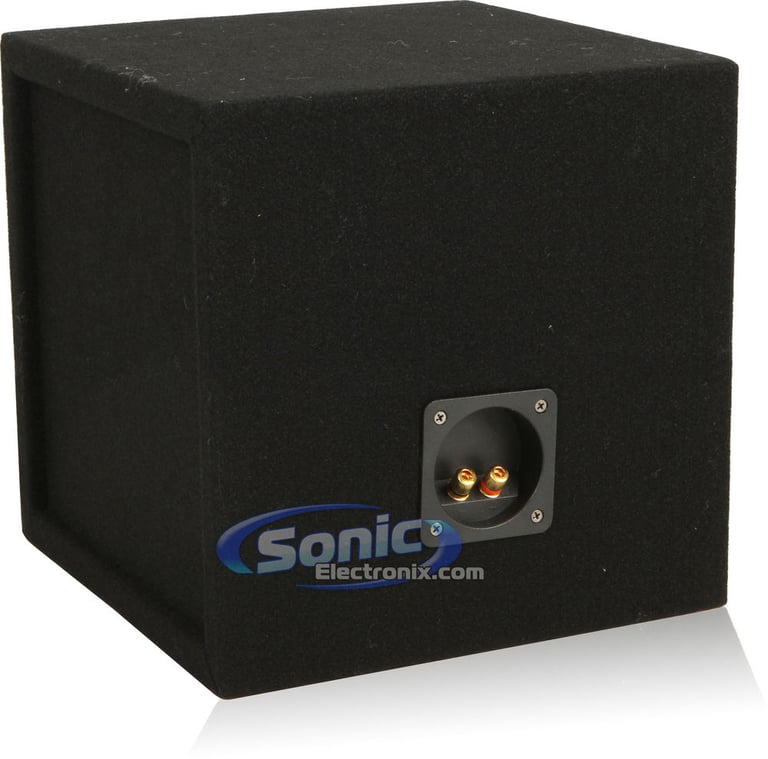

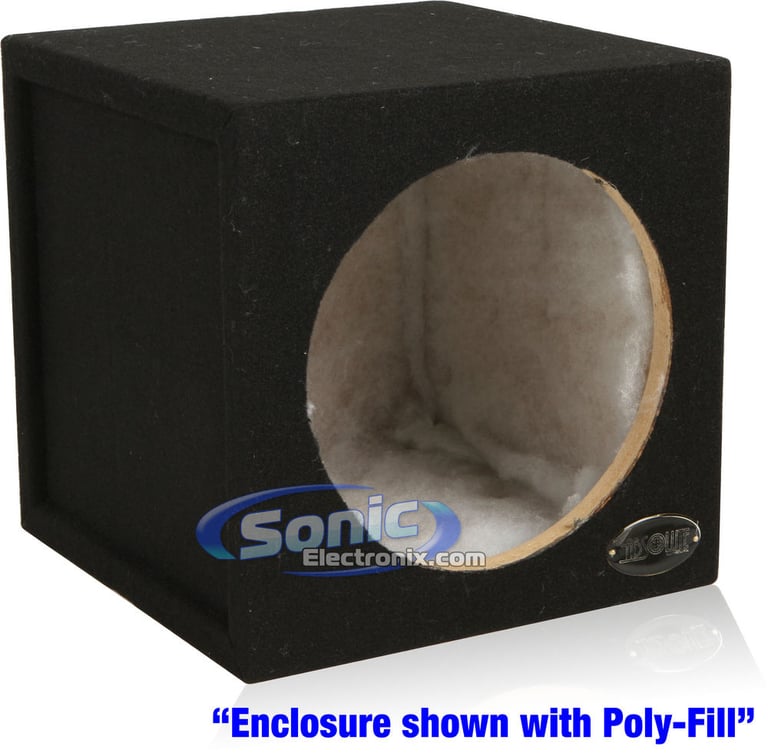

Enclosure Features:
  • 10" Sealed Square Subwoofer Enclosure
  • Black carpet with Poly-fill inside
  • Gold plated screw terminals (banana clip ready)
  • Mounting depth: 10-5/8"
  • Cutout diameter: 9-1/8"
  • Box volume: 0.66 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 12"D x 12"W x 12"H
  • Authorized Internet Dealer
Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:
  1. 17 ft. of 4 Gauge blue power cable
  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable
  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire
  6. 6 ft. of Split loom tubing
  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

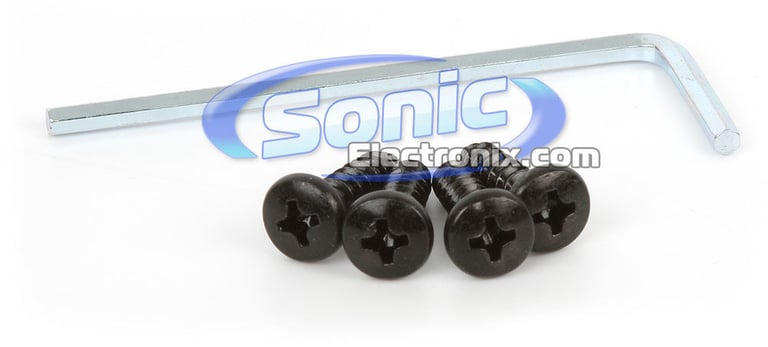

  9. All Necessary Hardware for Installation
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Add to cart
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Add to cart
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Add to cart
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Add to cart

Specifications & Details

Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.8%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
15 - 25 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1500 watts
Total Peak Power Handling
1500 watts
Woofer Surround
HAMR Rubber Surround
Woofer Composition
Kevlar Reinforced Pulp Paper
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
83 dB
Frequency Response
26 - 600 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
12"
Width
12"
Depth
12"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Kenwood

Model Number:

KAC-8105D_SWR-1042D

Weight:

49.00lbs

Internal SKU:

kac8105d_swr1042d

Internal Product ID:

29476
