6000W Complete Hifonics + Pioneer Premier Bass Package

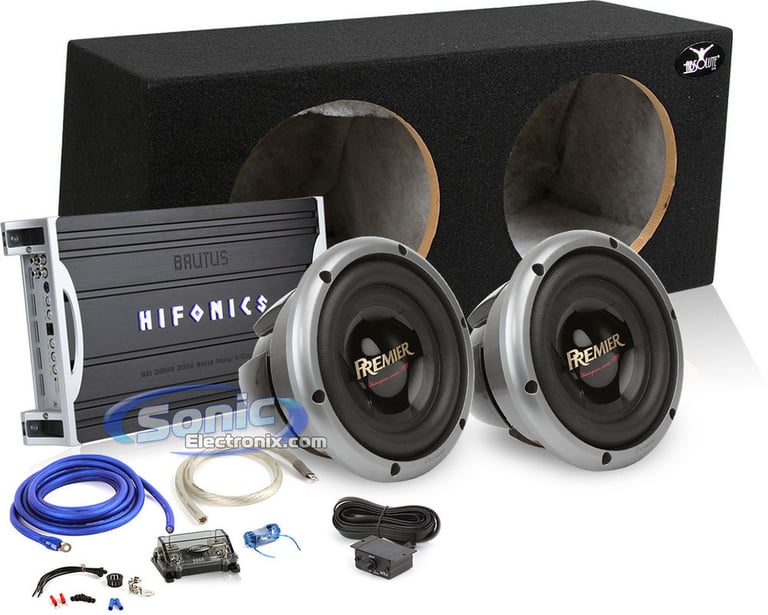

Hifonics BXi1608D Amplifier + 2 Pioneer Premier TSW2502D4 10" Subs + 4 GA Amp Kit + Sealed Sub Box

Hifonics
Shop all Hifonics
EXCLUSIVE
Product videos
highlight-star-icon

Brutus BXi Series Class D Monoblock Amplifier • 1600W x 1 chan. @ 1 ohm • Super D-Class • Two 10" Champion PRO Series Subwoofers • Fiber Woven Radial with Honeycomb Cloth Surround • Includes Everything You Need To Add Bass To Your Car

Learn more about the LS-bxi1608D-RB_2-tsw2502d4

We apologize

This item has been discontinued


Loading...
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


Brutus BXi Series Class D Monoblock Amplifier • 1600W x 1 chan. @ 1 ohm • Super D-Class • Two 10" Champion PRO Series Subwoofers • Fiber Woven Radial with Honeycomb Cloth Surround • Includes Everything You Need To Add Bass To Your Car

Description


Hifonics brand icon

Authorized dealer

Hifonics and Pioneer Bass Package

This Sonic Exclusive package is sure to excite with two 10" Pioneer Premier Champion Series Subwoofers, paired along with a Hifonics BXi1608D R/B amplifier. This excellent bass package pushes 1600 watts of continuous RMS power. The Pioneer Champion Subwoofers have Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

Each Pioneer Champion subwoofer requires 800 watts of RMS power. The included Hifonics BXi1608D amplifier will compliment this required power by supplying a perfect matchup of RMS continuous power. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 0 gauge amplifier kit which is perfect to supply power to the amplifier.

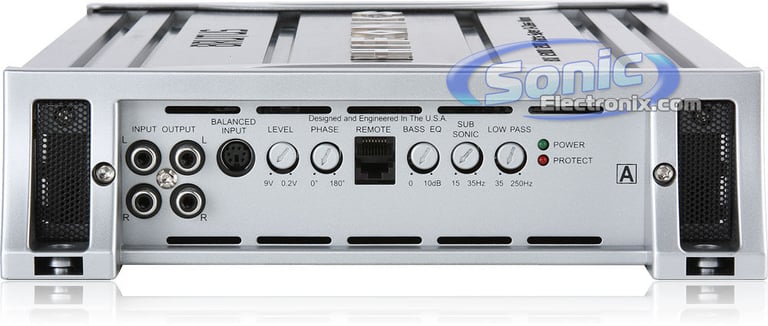

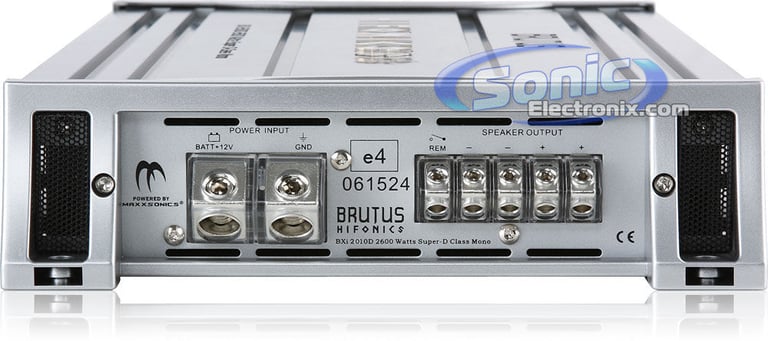

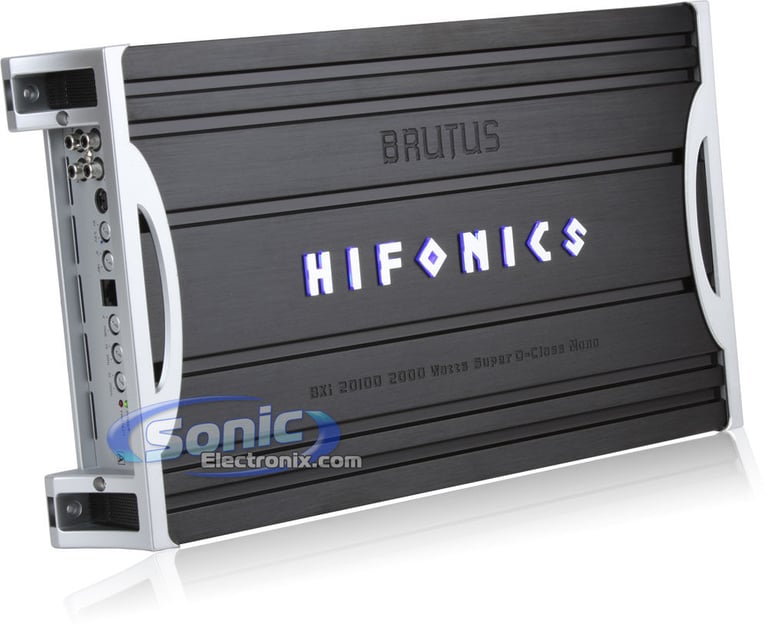

Hifonics Brutus BXi Amplifier Features:
  • Brutus BXi Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 550 watts x 1 chan.
    • 2 ohm: 1100 watts x 1 chan.
    • 1 ohm: 1600 watts x 1 chan.
  • MOSFET power supply

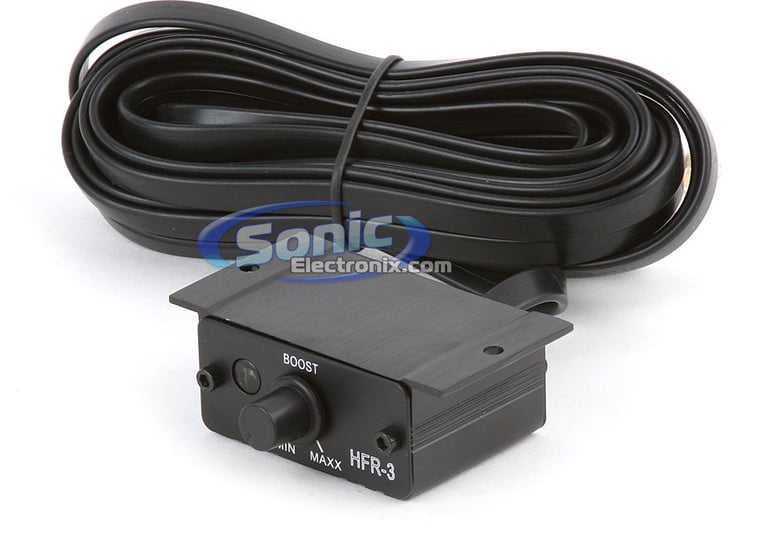

  • Wired remote bass level control included
  • LED power and protection indicators
  • Tuned Bass EQ (0-10 dB bass boost at 45 Hz)
  • Variable unbalanced input level control
  • Dampening factor: >250
  • Soft turn-on circuitry
  • Preamp RCA outputs
  • DC, speaker short, thermal, and overload protection circuitry
  • Heavy duty aluminum alloy heatsink
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic Filter (24 dB at 15-35 Hz)
  • Dimensions: 14.17"L x 9.45"W x 2.52"H
  • Authorized Internet Dealer
  • 90-Day Manufacturer's warranty
  • Item Condition: Factory Refurbished

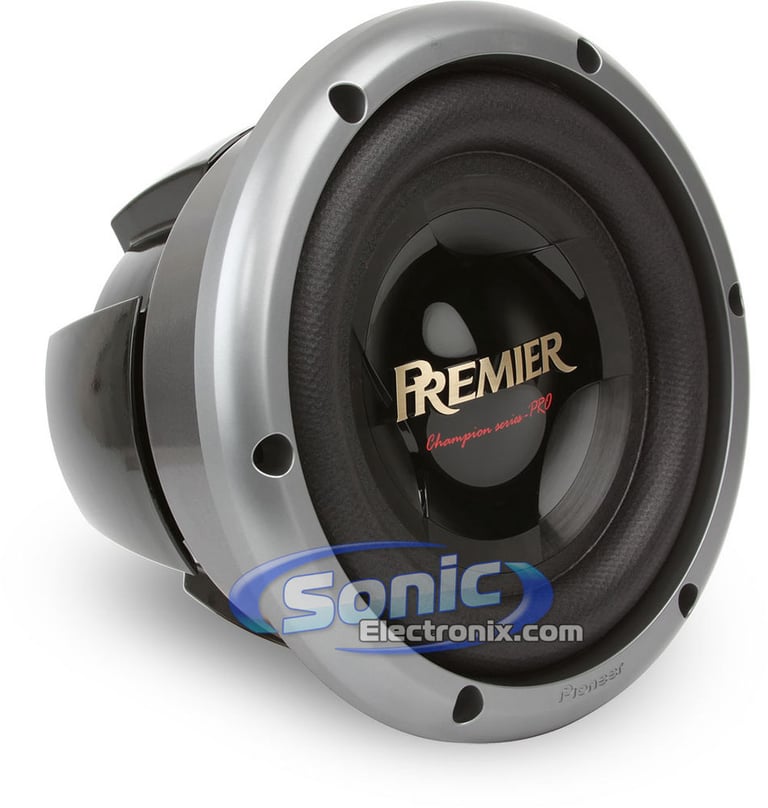

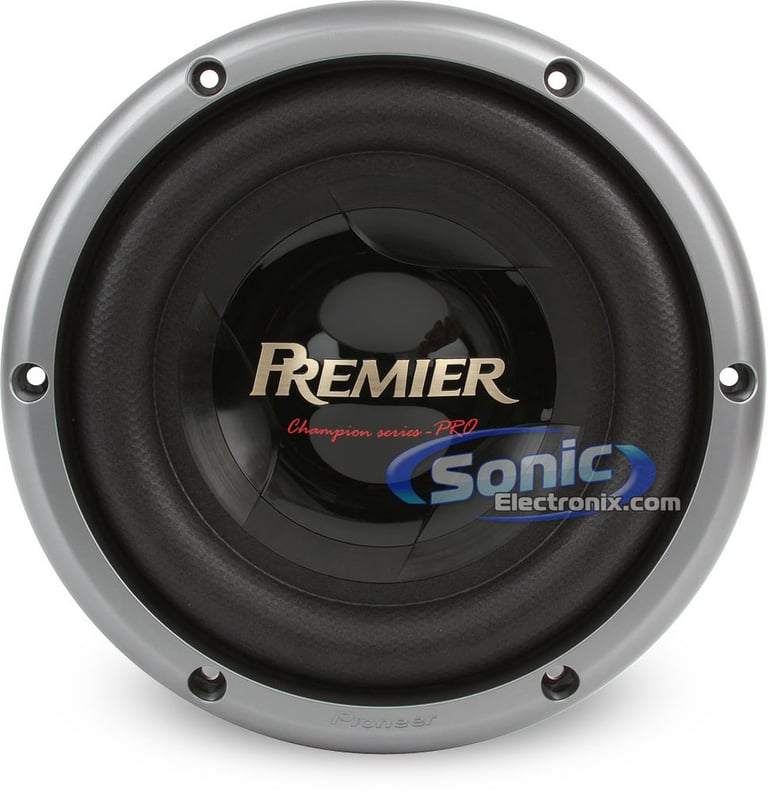

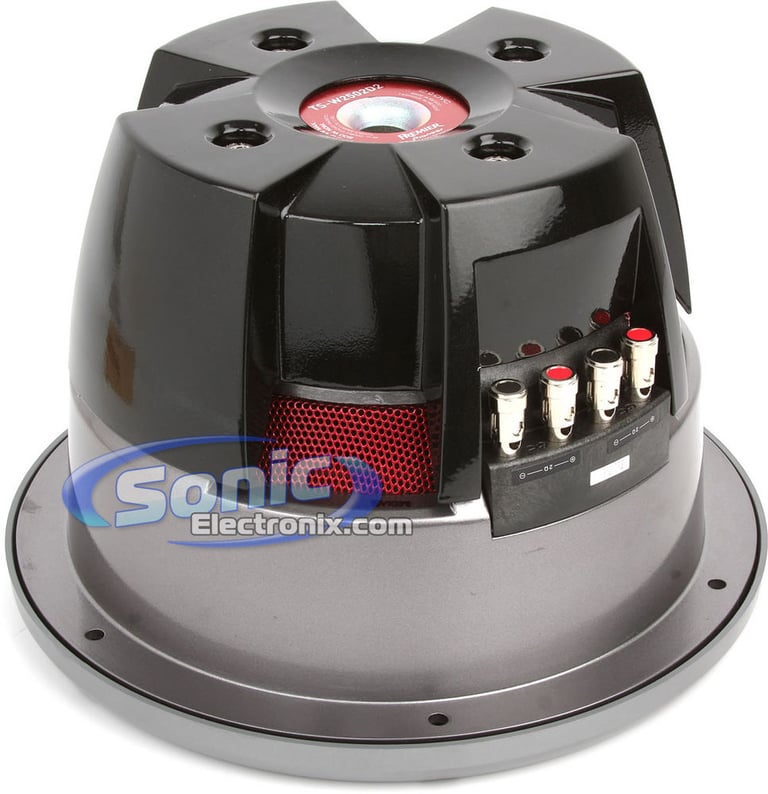

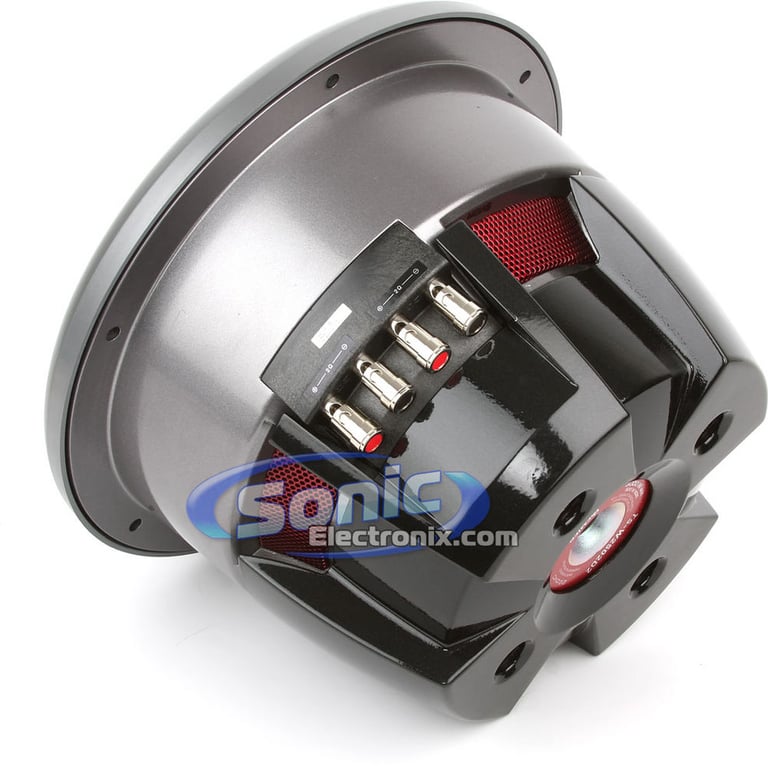

Pioneer Champion Series Subwoofer Features:
  • Two 10" Dual 4 ohm Champion PRO Series Subwoofers
  • Power Handling:
    • Peak: 6000 watts total / 3000 watts each
    • RMS: 1600 watts total / 800 watts each
  • Impedance: Dual 4 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Wide-roll, 3-layer fiber woven radial with honeycomb cloth surround
  • Copper voice coil wire
  • Phenol resin coated glass cloth voice coil bobbin
  • Dual 4-layer, long voice coil
  • Double stacked (85oz) magnet
  • Frequency response: 20-150 Hz
  • Sensitivity: 89 dB
  • Aluminum die-cast rigid chassis basket design
  • 1-Piece rubber gasket
  • Integrated single-sided silver compression terminals wire terminals
  • Mounting Depth: 6-5/8"
  • 2-year SonicElectronix.com warranty

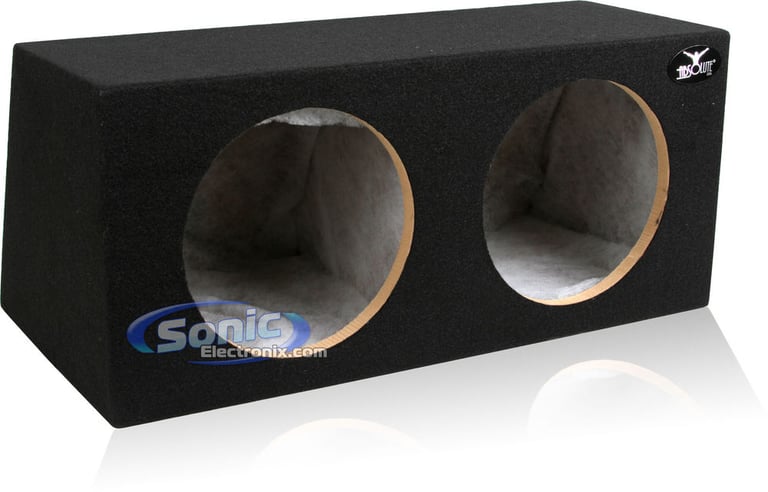

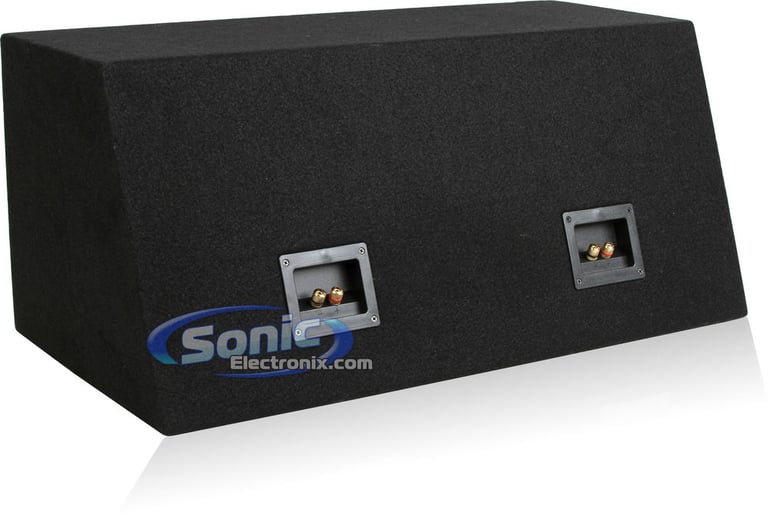

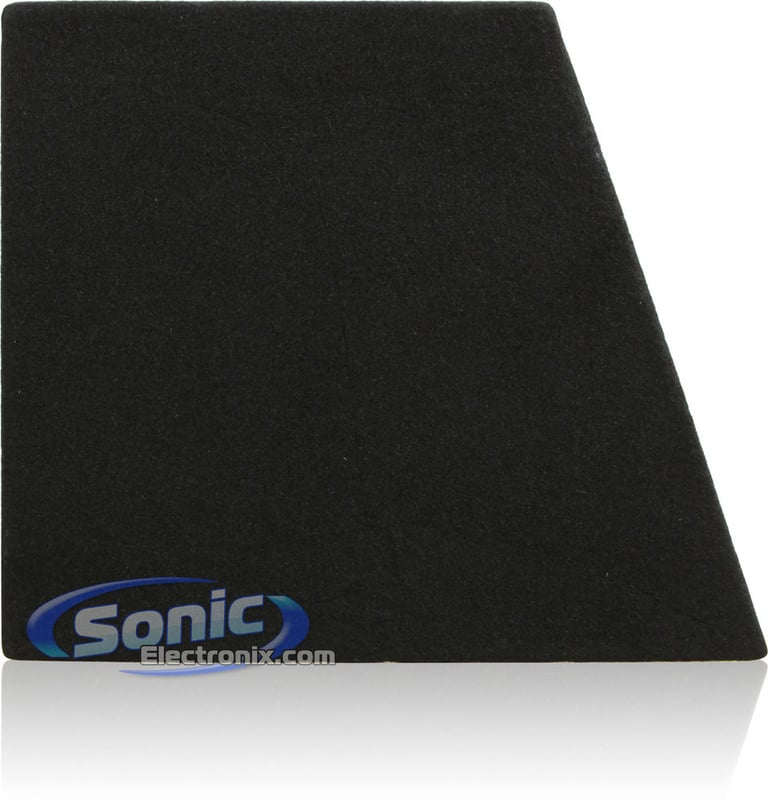

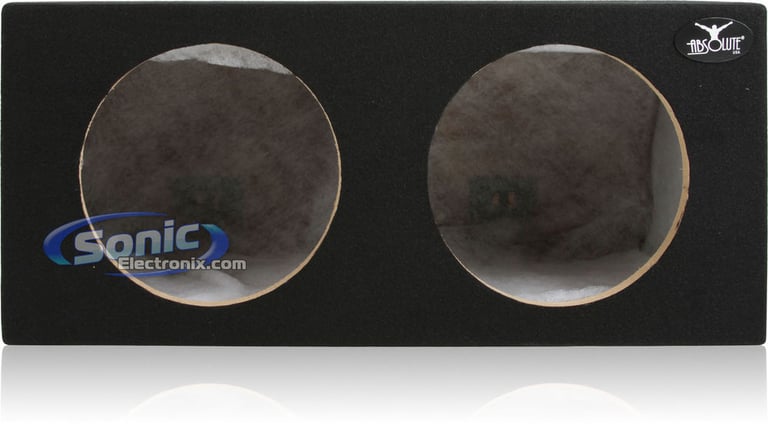

Enclosure Features:
  • Dual 10" Universal Sealed Subwoofer Enclosure
  • Hold two ten inch subwoofers
  • Pre-lined with polyfil for deeper bass
  • Two sets of rear binding posts
  • Terminals are banana clip ready
  • Covered in durable black carpet
  • Made from 3/4" MDF (Medium Density Fiberboard)
  • Subwoofer mounting depth: 10-1/4"
  • Subwoofer cutout diameter: 9-1/4"
  • Box volume: 0.78 cubic feet (per chamber)
  • Total box volume: 1.56 cubic feet
  • Dimensions: 10"TD x 14"BD x 27"W x 12"H
  • Authorized Internet Dealer
Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:
  1. 17 ft. of 4 Gauge blue power cable
  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable

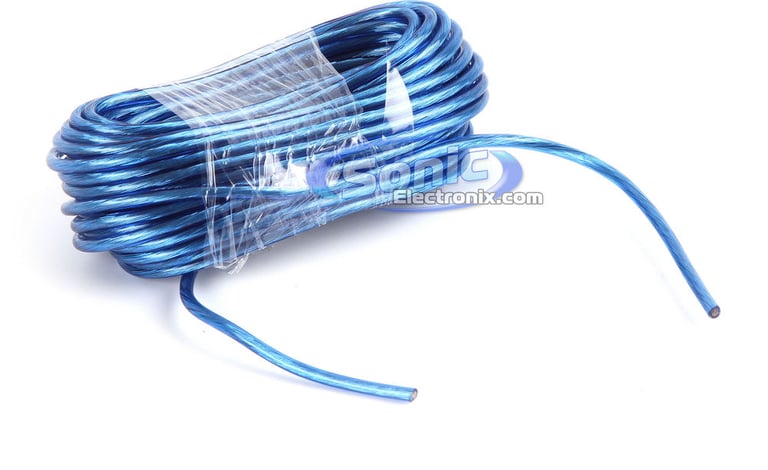

  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire
  6. 6 ft. of Split loom tubing

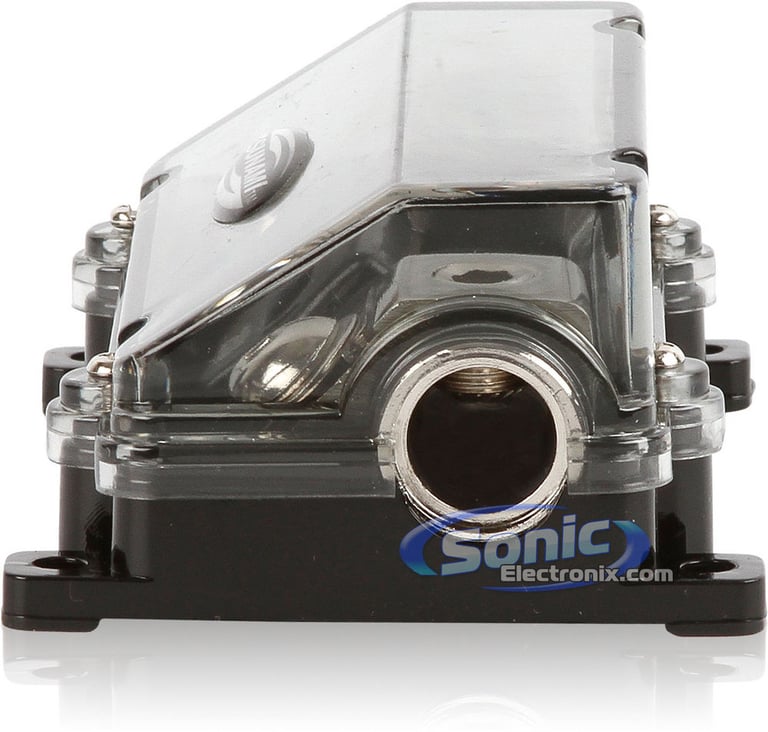

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

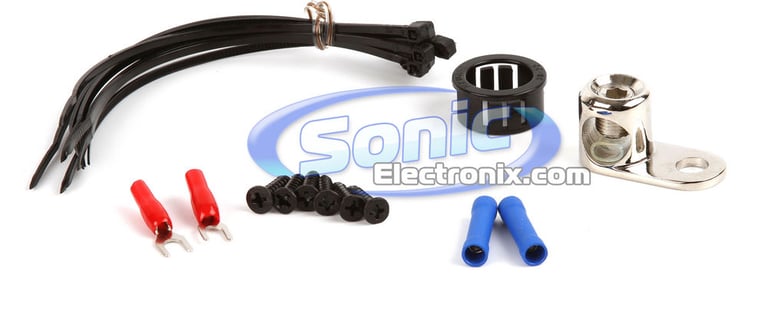

  9. All Necessary Hardware for Installation

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
550 watts x 1 channel
RMS Power @ 2 ohms
1100 watts x 1 channel
RMS Power @ 1 ohm
1600 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
THD at Rated RMS Power
0.08%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
15 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
800 watts
Total RMS Power Handling
1600 watts
Peak Power Handling
3000 watts
Total Peak Power Handling
6000 watts
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Woofer Composition
Carbon Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
89 dB
Frequency Response
20 - 150 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
12"
Width
27"
Depth
10"
Second Width
14"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BXi1608D-RB_TS-W2502D4

Weight:

87.80lbs

Internal SKU:

LS-bxi1608D-RB_2-tsw2502d4

Internal Product ID:

29565
