1200W Complete Infinity Reference + Kicker Bass Package

Infinity Reference 1600A Amplifier + Kicker Solo-Baric L5 12" Sub + 4 GA Amp Kit + Sealed Enclosure

Infinity
Shop all Infinity
EXCLUSIVE
Product videos
highlight-star-icon

Reference Series Class D Monoblock Amplifier • 600W x 1 chan. @ 2 ohm • 12" Solo-Baric L5 Series Subwoofer • Santoprene rubber surround • Includes Everything You Need To Add Bass To Your Car

Learn more about the 1600a_08s12l54

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Product Highlights


Reference Series Class D Monoblock Amplifier • 600W x 1 chan. @ 2 ohm • 12" Solo-Baric L5 Series Subwoofer • Santoprene rubber surround • Includes Everything You Need To Add Bass To Your Car

Description


Infinity brand icon

Authorized dealer

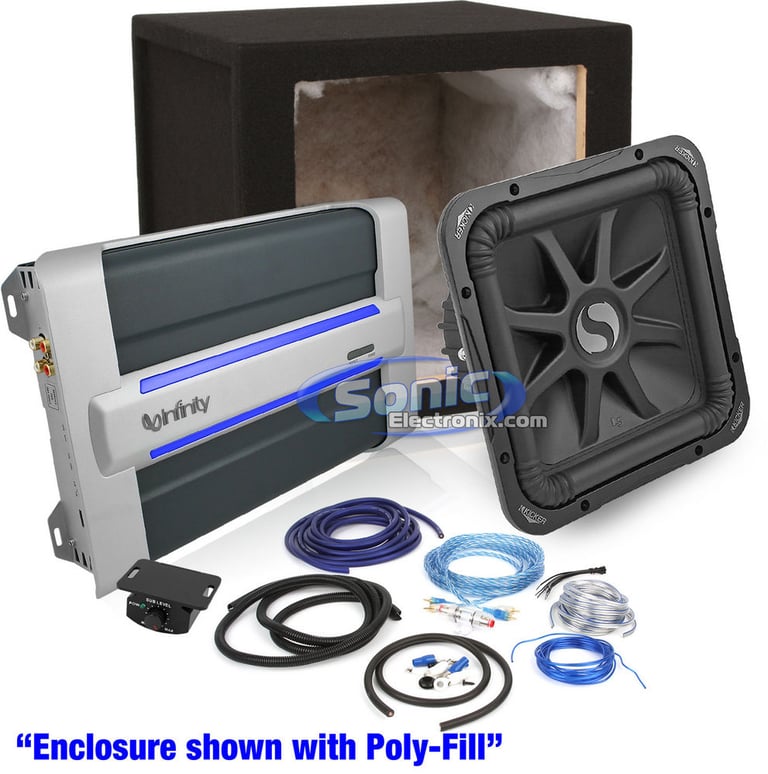

Kicker and Infinity Complete Bass Package

This Sonic Electronix Exclusive Bass package showcases an Infinity Reference 1600A Amplifier along with a Kicker Solo-Baric L5 12" Subwoofer. This excellent bass package pushes 600 watts of clean, continuous RMS power. The Kicker L5 Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Kicker L5 subwoofer requires 600 watts of RMS power. The included Infinity Reference 1600a amplifier will compliment this required power by supplying a perfect matchup of certified RMS continious power. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

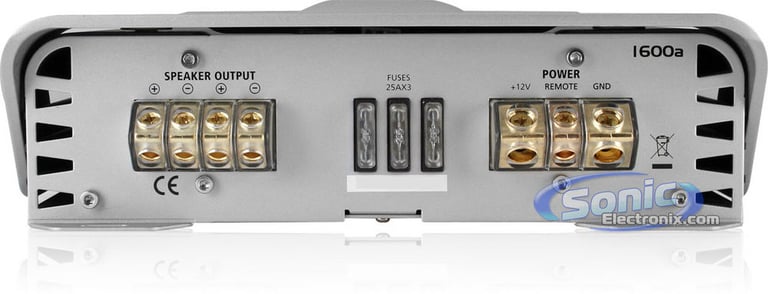

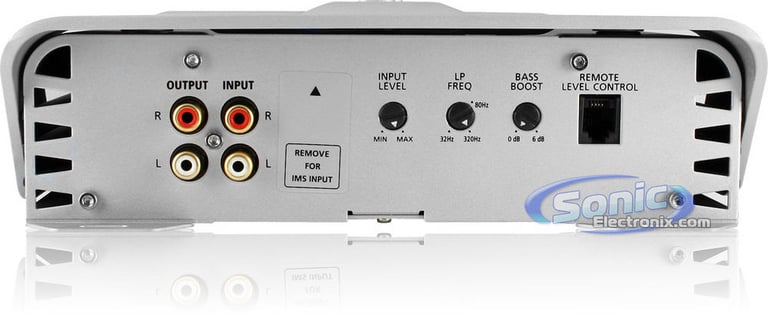

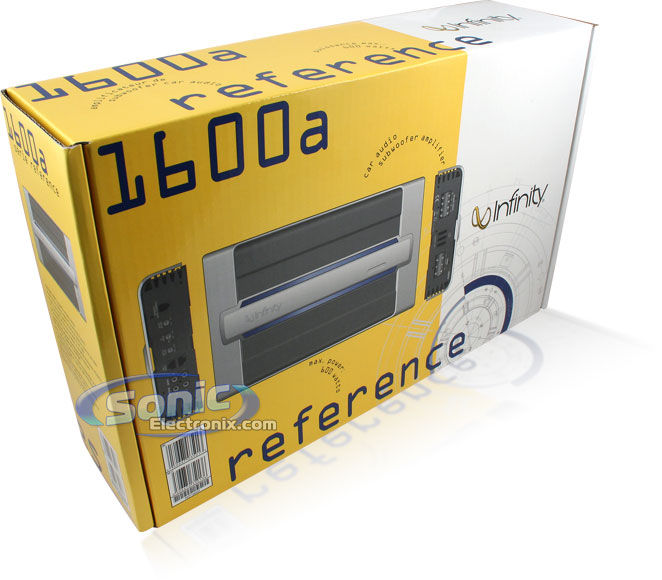

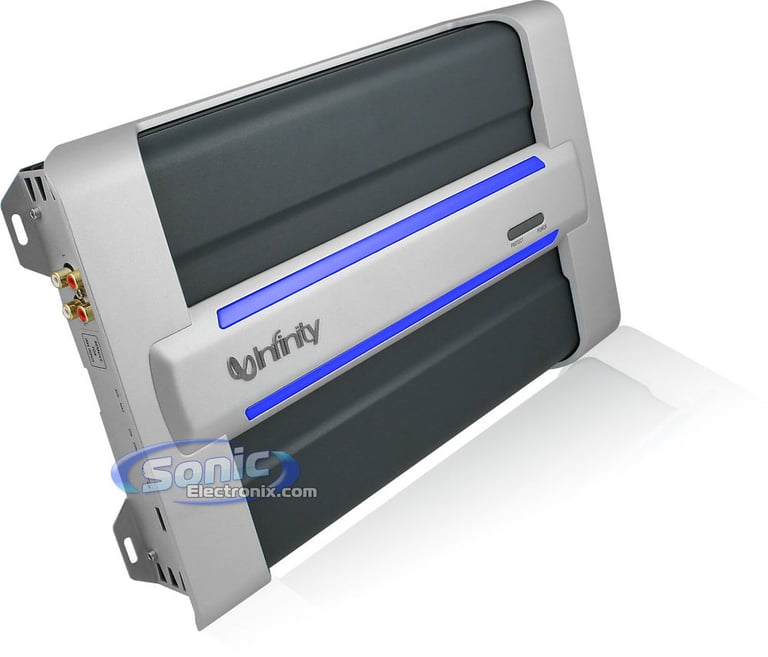

Infinity Reference Series Amplifier Features:
  • Reference Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • Max Power Output: 894 watts x 1 chan.
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • IMS inputs allows connection to other Infinity expansion products
  • Gold-plated preamp RCA outputs
  • DC, overheat, over or under voltage, and short circuit amplifier protection
  • Gold-plated RCA level inputs
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 11-330 Hz
  • Efficiency: 80 dB
  • Dimensions: 14-3/16"L x 9"W x 2-11/16H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

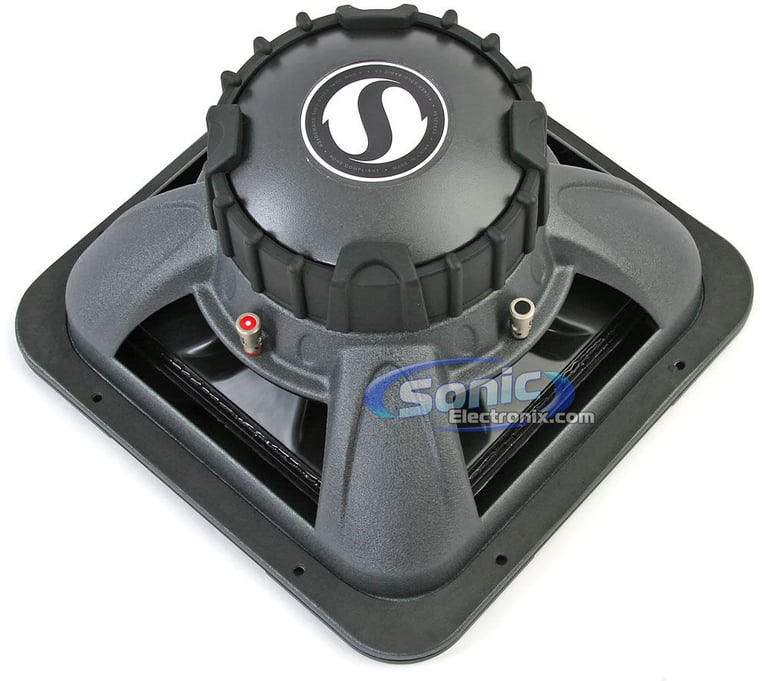

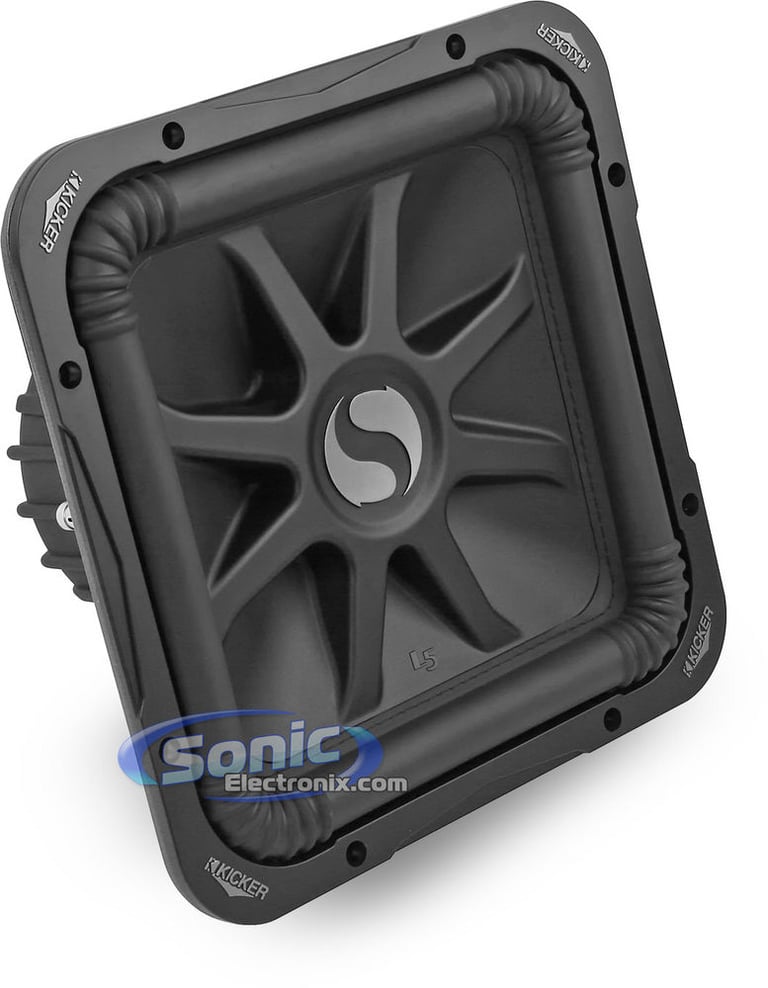

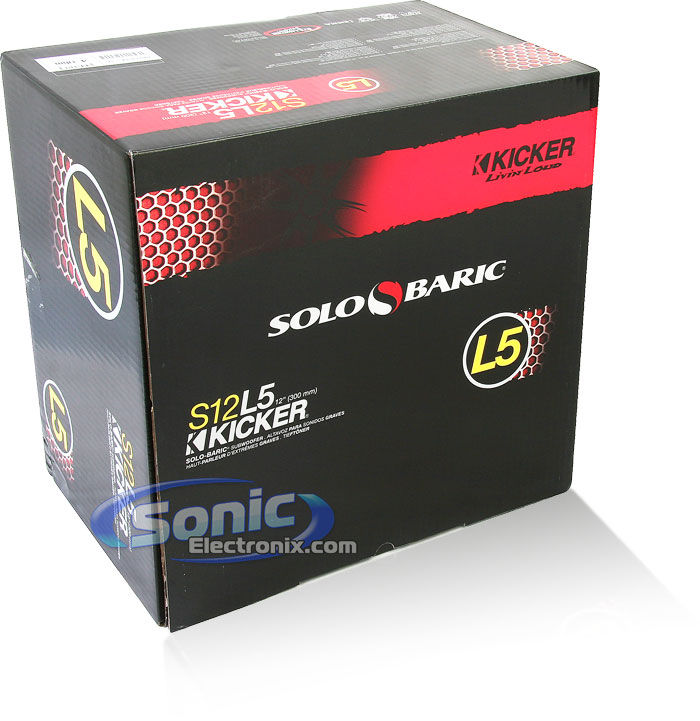

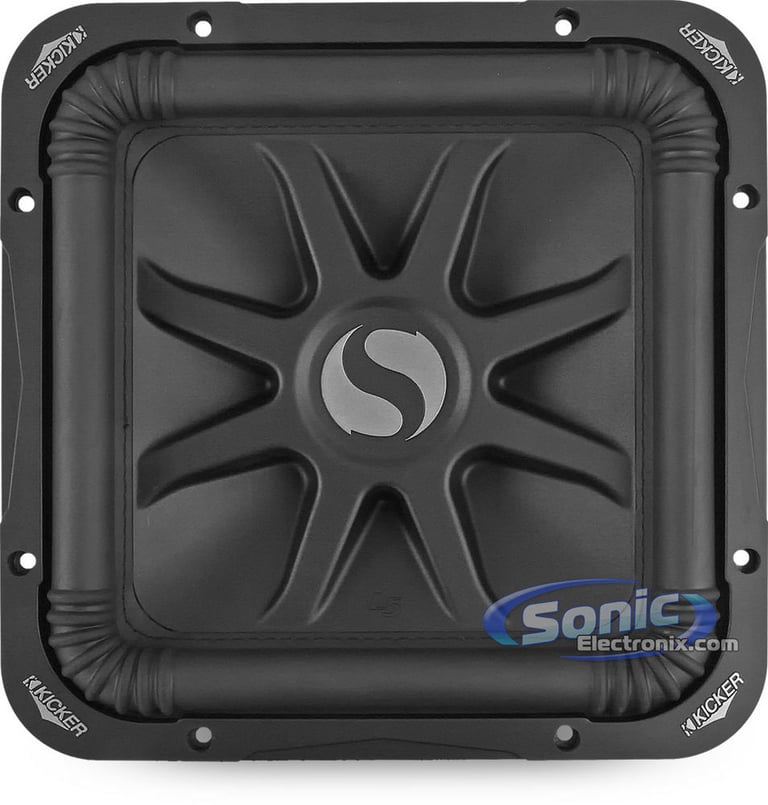

Kicker L5 Subwoofer Features:
  • 12" Solo-Baric L5 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Titanium deposit impregnated cone woofer with rolled outer edge
  • Santoprene rubber surround
  • Stamped steel basket
  • Vented 360° back bracing
  • Rear foam gasket
  • Spring loaded terminals
  • Poly-cotton semi-progressive spider
  • Heat-dispersing, solid pole piece
  • Spiralead™ tinsel leads
  • High-temperature dual 4 ohm voice coils
  • Frequency response: 20-100 Hz
  • Sensitivity: 87 dB
  • Other search terms: S12L5, S12L54, 12L5, 12L54, 08S12L54
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

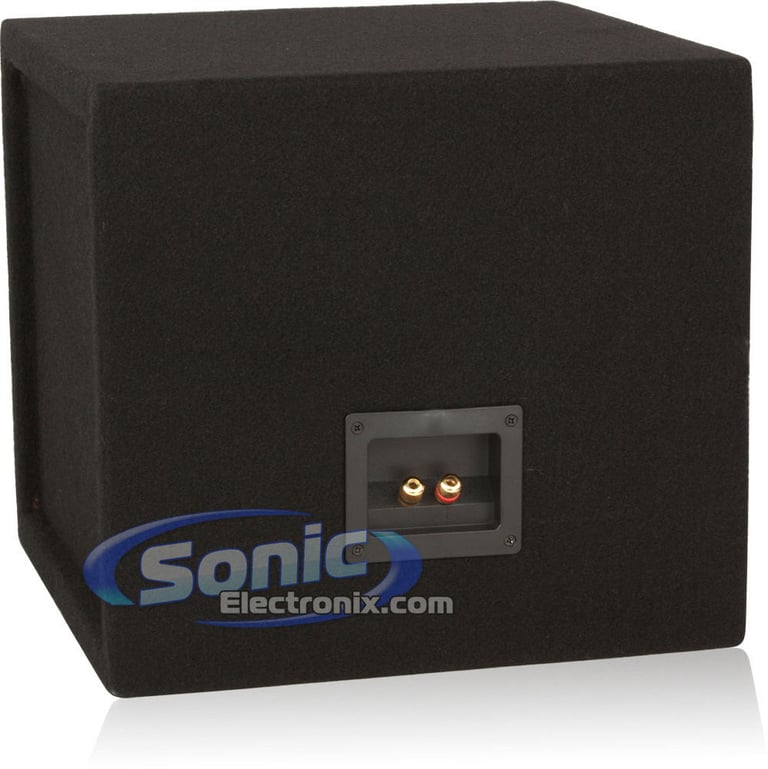

Enclosure Features:
  • 12" Square Vented Enclosure
  • Designed specifically for the Kicker Solo-Baric L5 and L7 subwoofers

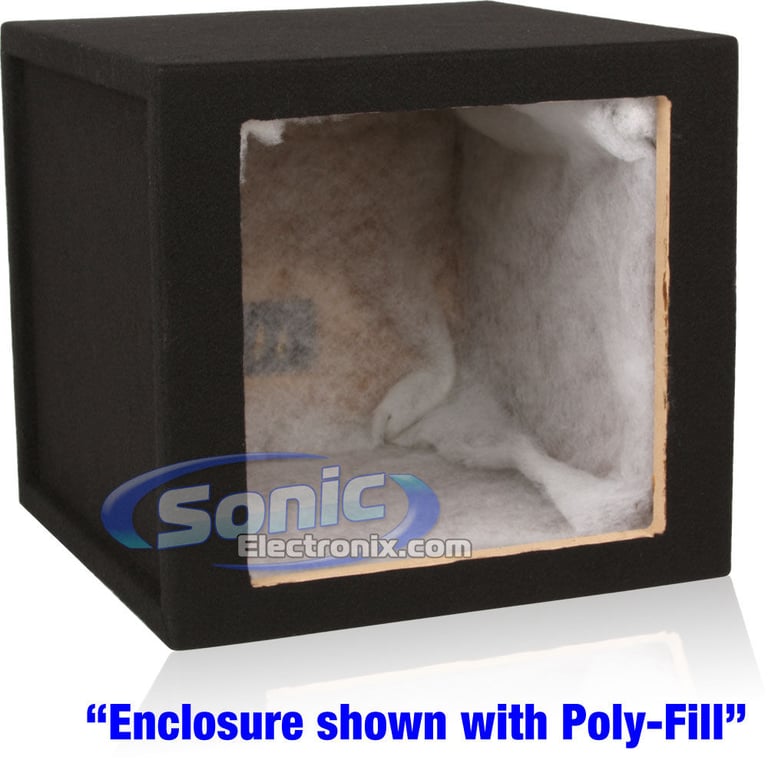

  • Pre-lined with a poly-fil lining delivering optimized sound quality
  • Gold plated terminals for premium signal transfer
  • Banana-clip ready allowing quick and easy access
  • Accommodating color coordinated binding post connections
  • Exceptional black carpet finish
  • Mounting depth: 14-3/8"
  • Cutout dimension: 11-1/4"
  • Box volume: 1.343 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 15-1/8"D x 15-1/8"W x 14"H
  • Authorized Internet Dealer

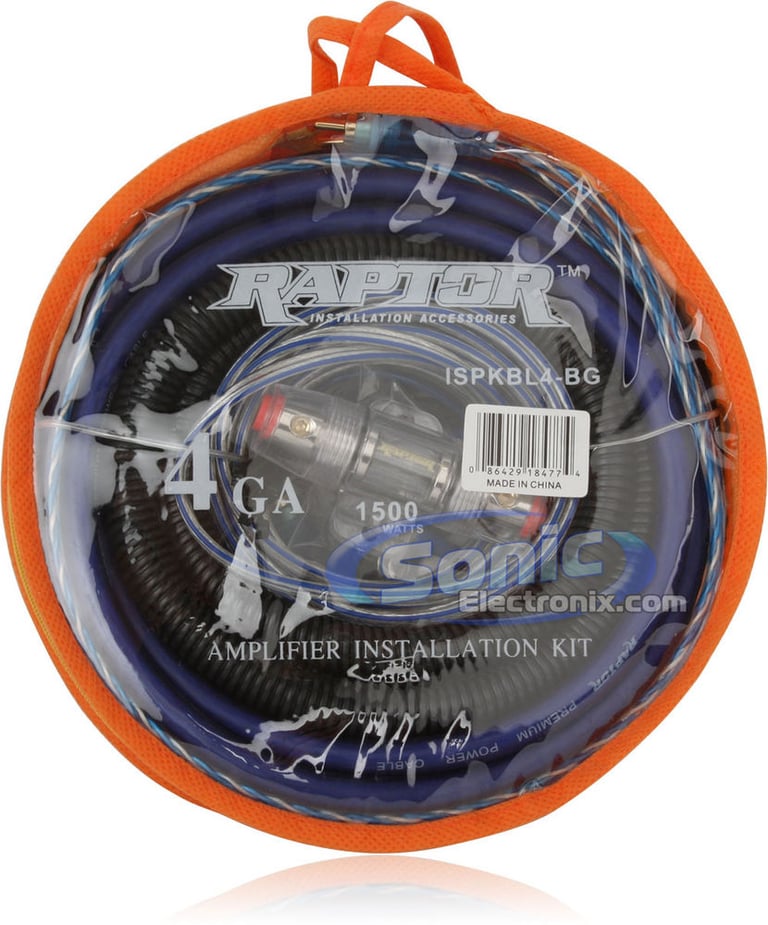

Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:

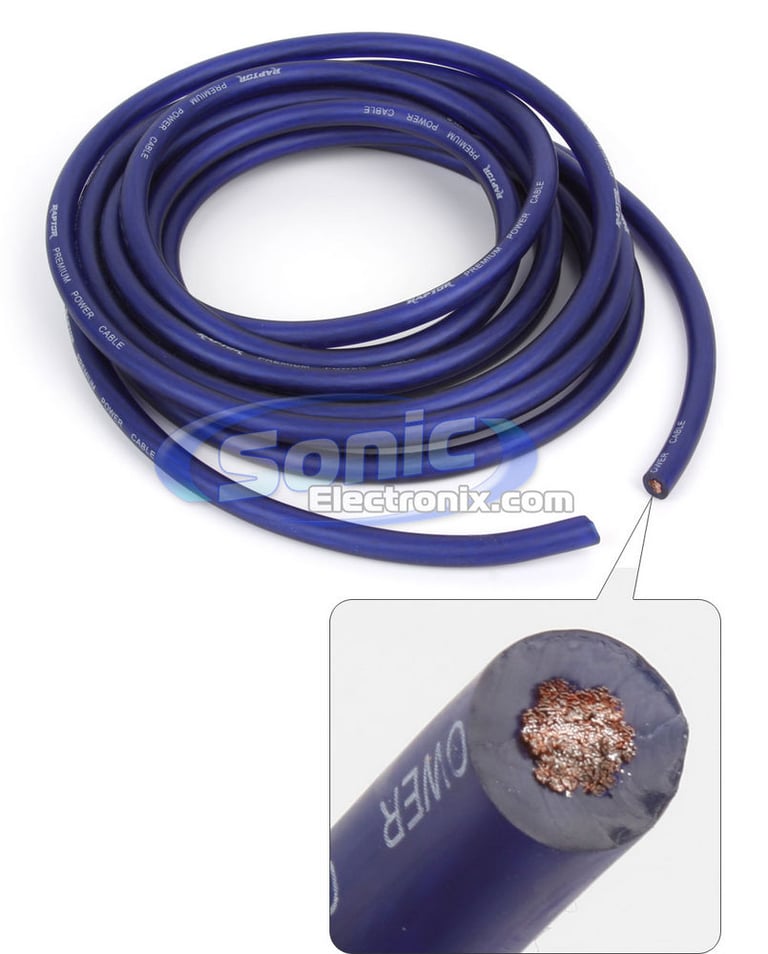

  1. 17 ft. of 4 Gauge blue power cable

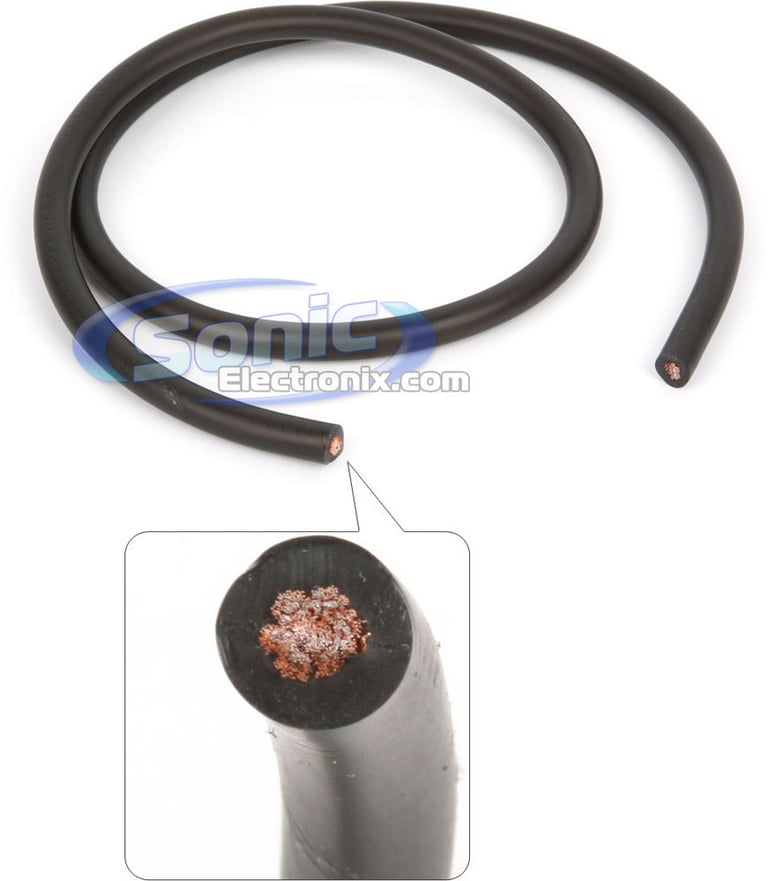

  2. 3 ft. 4 Gauge black ground cable

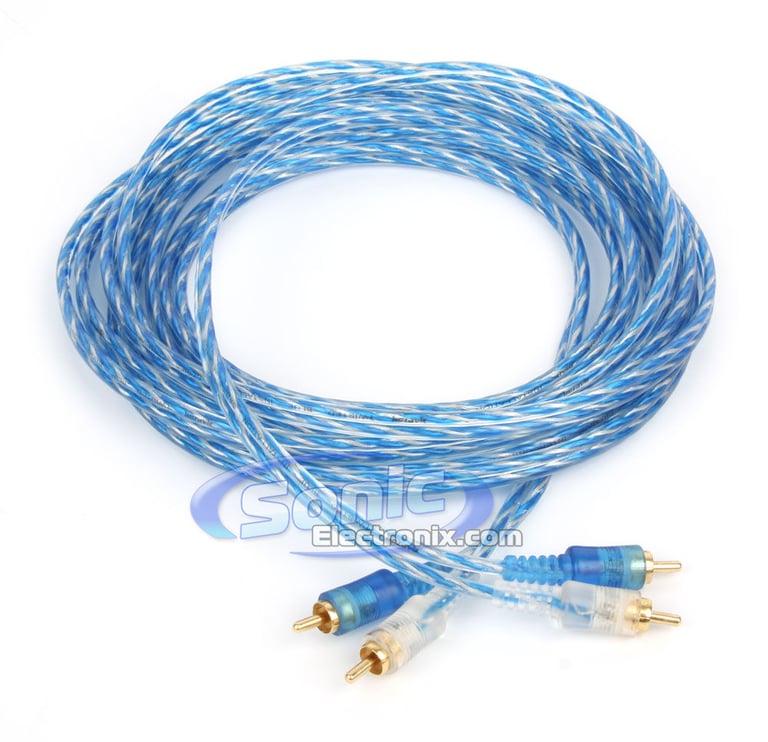

  3. 17 ft. Neon blue series RCA cable

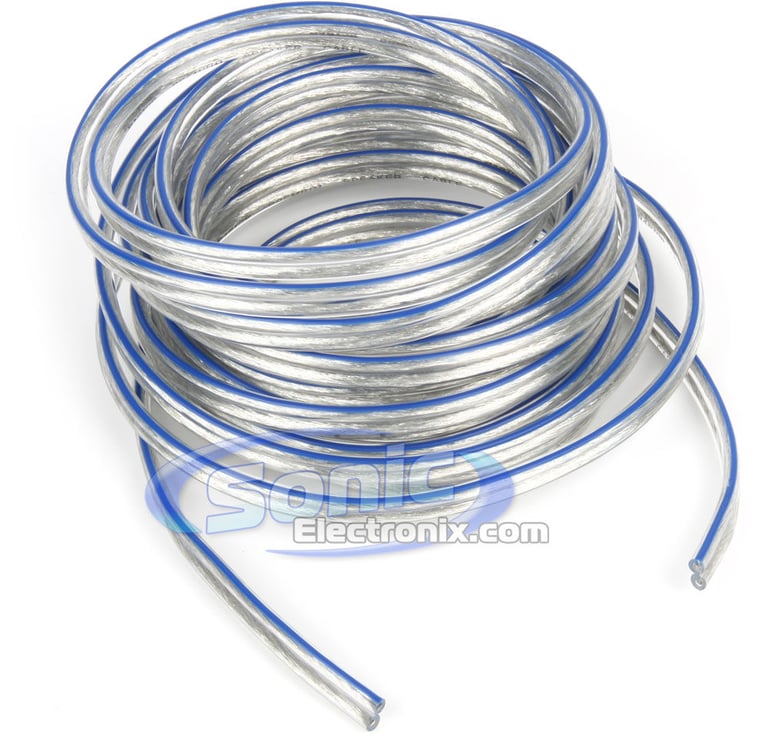

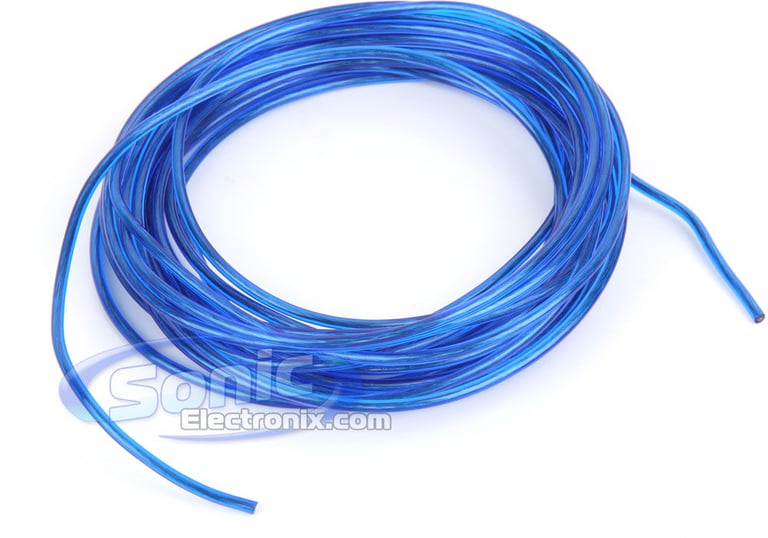

  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire

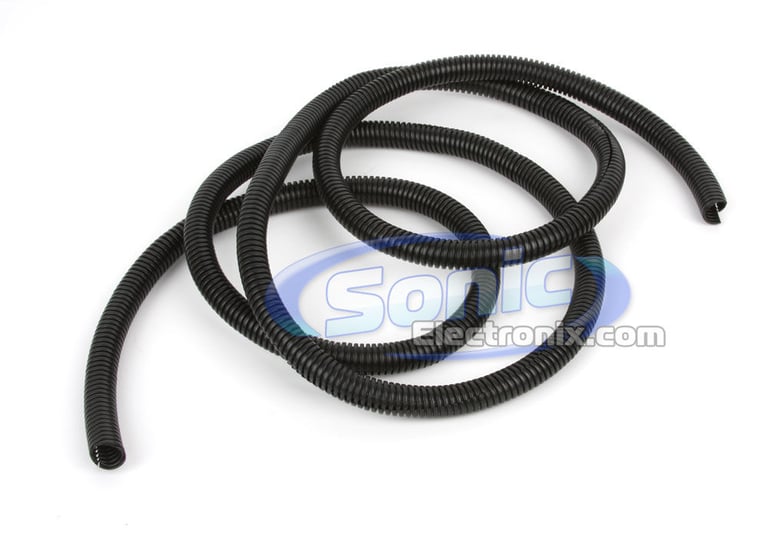

  6. 6 ft. of Split loom tubing

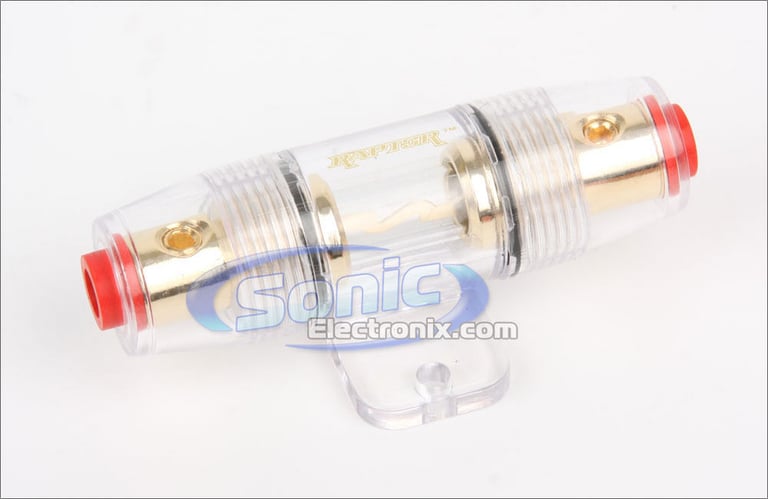

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

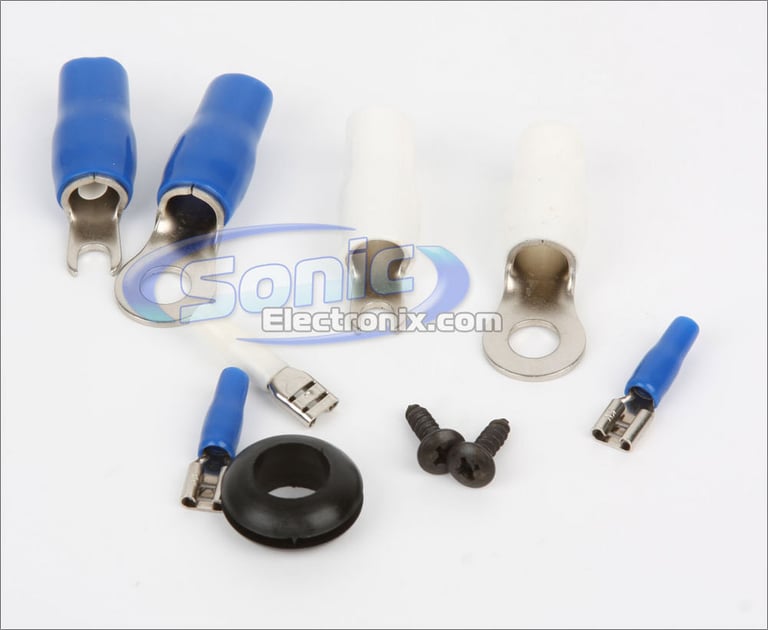

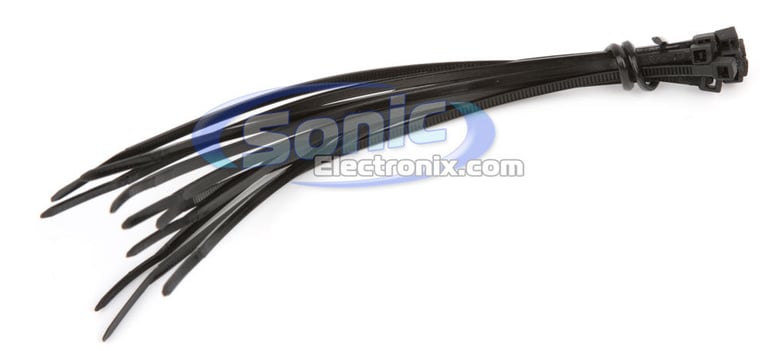

  9. All Necessary Hardware for Installation

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Peak Power Output
894 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
25A x 3
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87 dB
Frequency Response
20 - 100 Hz
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
15-1/8"
Depth
15-1/8"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

1600A_08S12L54

Weight:

64.80lbs

Internal SKU:

1600a_08s12l54

Internal Product ID:

29575
