2400W Complete Hifonics + Kicker Bass Package

Hifonics BRZ1700.1D Amplifier + 2 Kicker Solo-Baric L5 12" Subs + 4 GA Amp Kit + 12" Sealed Sub Box

Hifonics
Shop all Hifonics
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: Hifonics BRZ17001D Monoblock Amplifier + 2 Kicker 08S12L52 12" Subwoofers + Raptor 4 Gauge Amp Kit + Absolute Dual 12" Sub Enclosure • Includes Everything You Need To Add Bass To Your Car

Learn more about the brz17001d_2-08s12l52

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
BE7ACP.WX main

Boss Elite BE7ACP.WX

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

$369.99

Add to cart
DPX395MBT main

Kenwood eXcelon DPX395MBT

Double DIN Shallow Chassis Digital Media Receiver with Bluetooth and Built-in Alexa

6
-19.52%

$169.00

List price $210.00

Add to cart

Product Highlights

Bass Package: Hifonics BRZ17001D Monoblock Amplifier + 2 Kicker 08S12L52 12" Subwoofers + Raptor 4 Gauge Amp Kit + Absolute Dual 12" Sub Enclosure • Includes Everything You Need To Add Bass To Your Car

Description

Hifonics brand icon

Authorized dealer

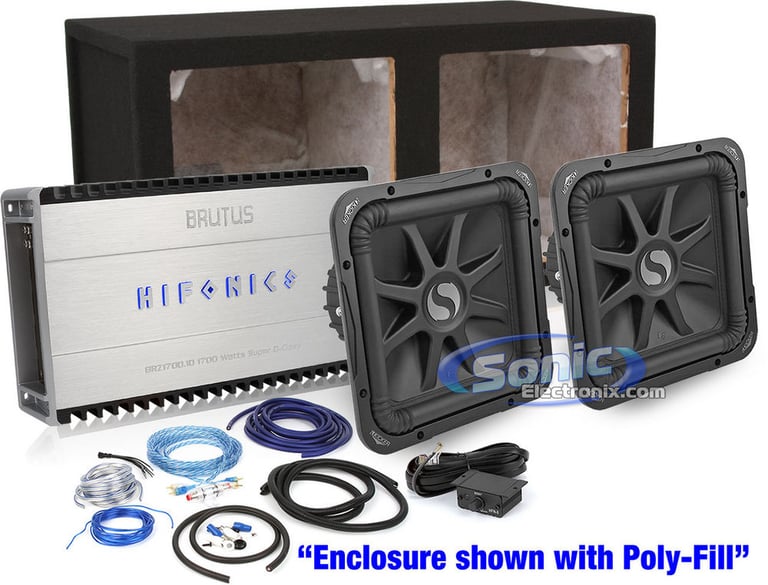

Sonic Electronix Exclusive Bass Package

This combo package includes two Kicker Solo-Baric L5 Series 12" Subwoofers and a Hifonics Class D Brutus Series Amplifier. This monoblock amplifier is a perfect match for the 12" subwoofers when wired at 2 ohms. The Kicker subwoofers feature a titanium deposit impregnated cone with santoprene rubber surrounds and a poly-cotton semi-progressive spider. The amplifier is a CEA-2006 compliant amp so you can be assured that the power ratings are accurate and not beefed up for marketing purposes. This exclusive package also includes an Absolute sealed 12" sub enclosure and a Raptor 4 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

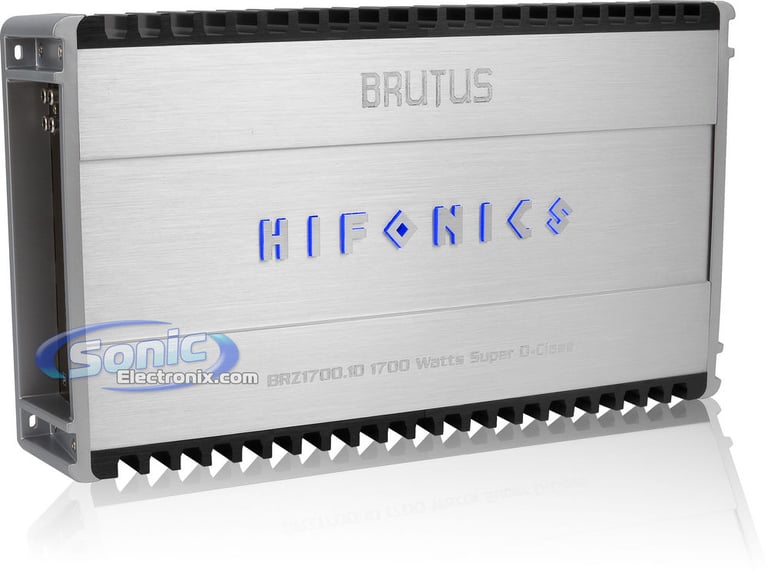

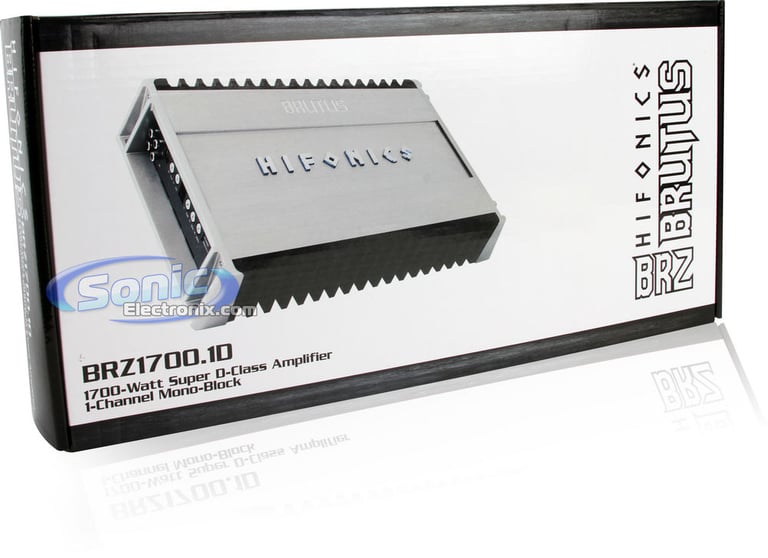

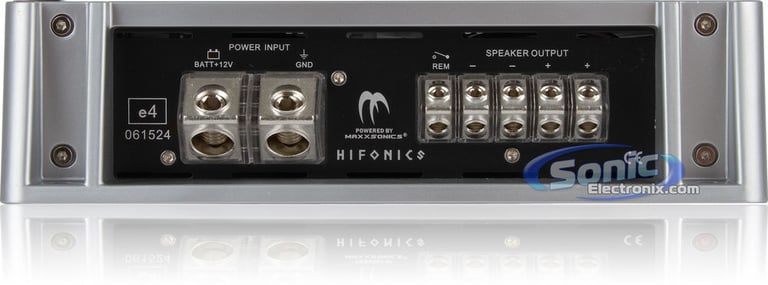

Hifonics Amplifier Features
  • Brutus Series Monoblock Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.
  • MOSFET power supply

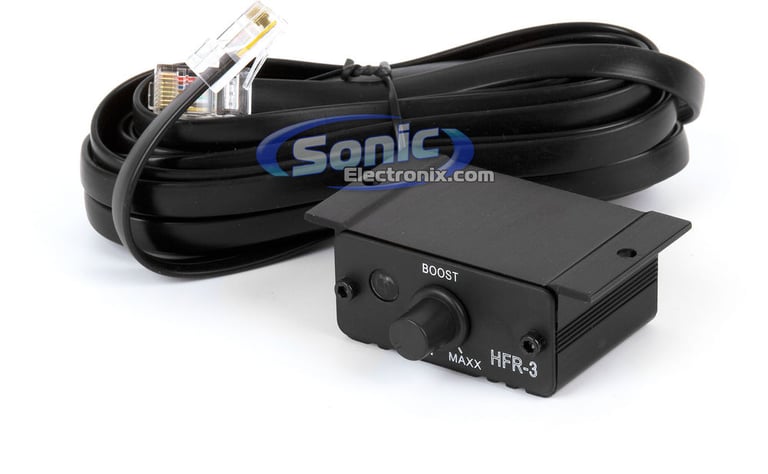

  • Wired HFR-3 remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, speaker short and DC protect)
  • Heavy duty aluminum alloy finned heatsink for maximum heat dissipation
  • Silver-plated unbalanced RCA level inputs
  • Silver-plated molded screw terminals

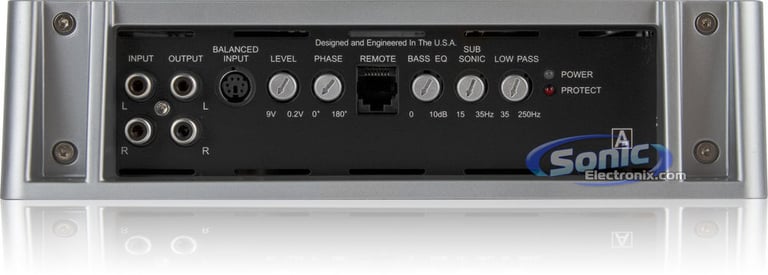

  • Input sensitivity:
    • Input Level (Unbalanced): 0.2V-9V
    • Input Level (Balanced): 0.04V-8V
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >290
  • Frequency response: 35-250 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 16-15/16"L x 9-1/4"W x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

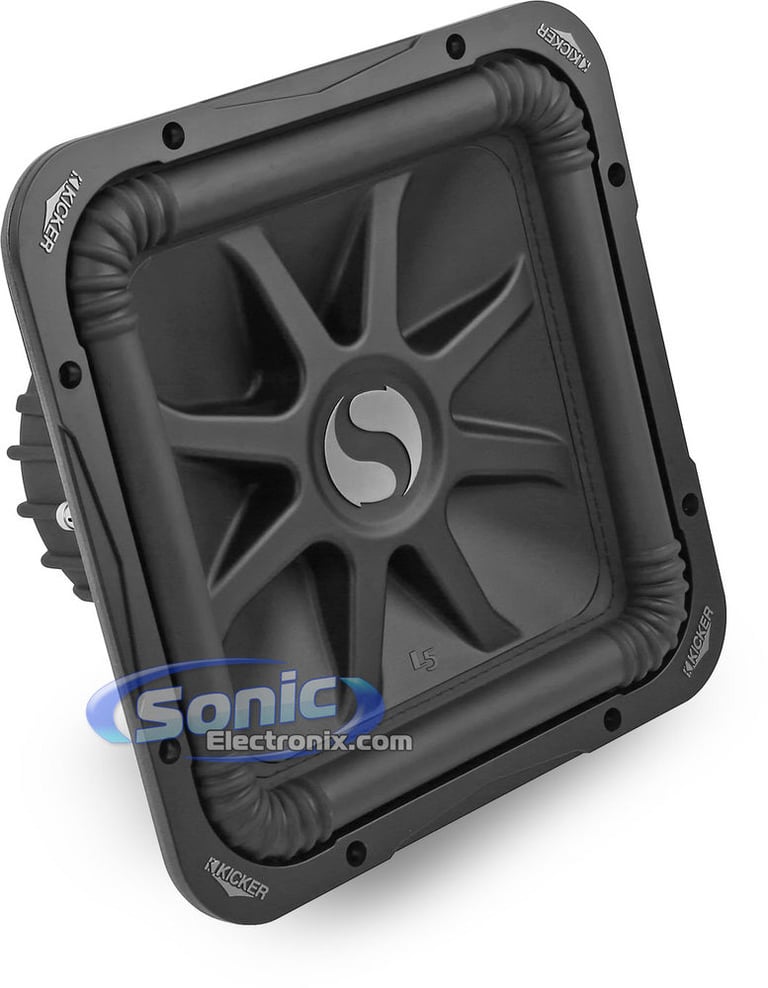

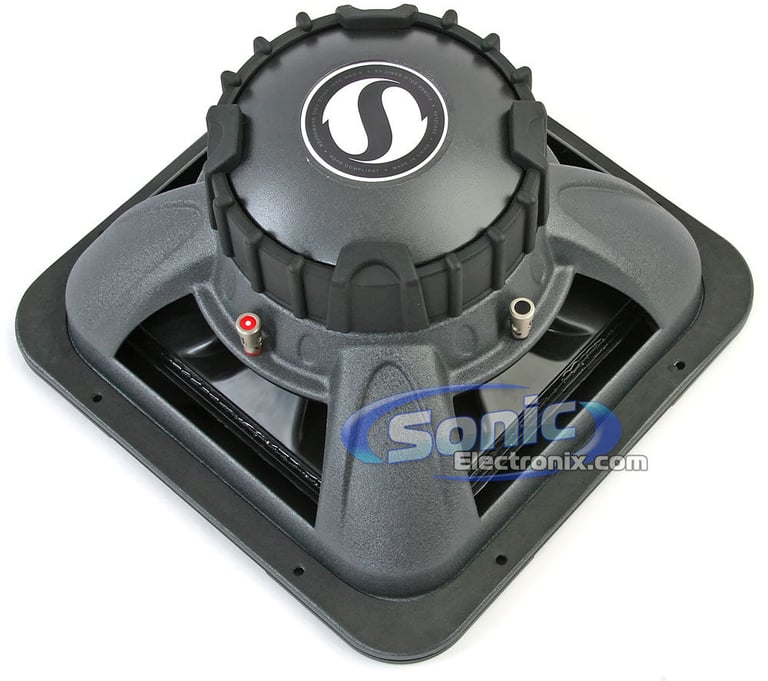

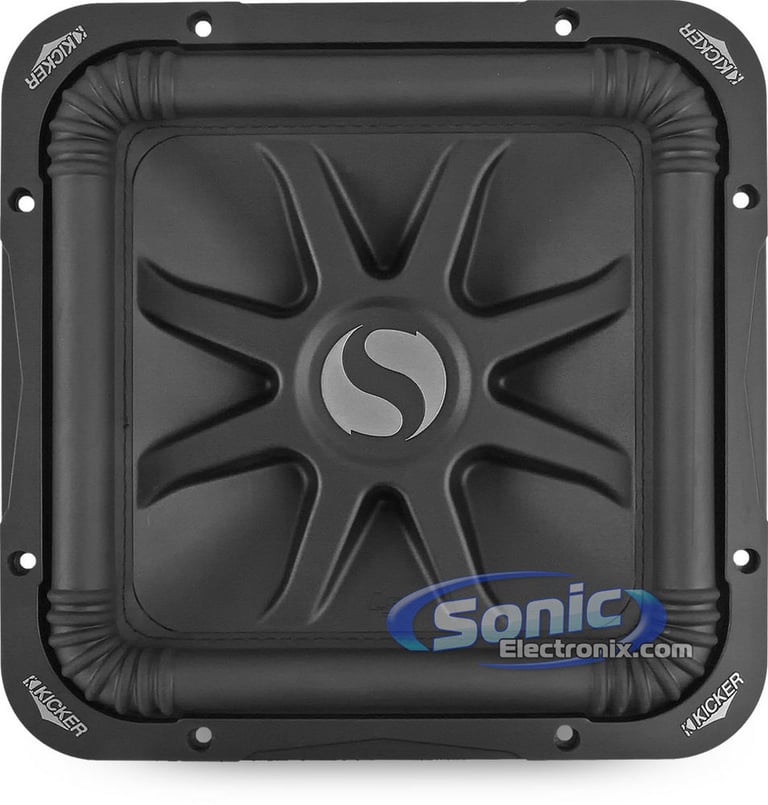

Kicker Subwoofer Features

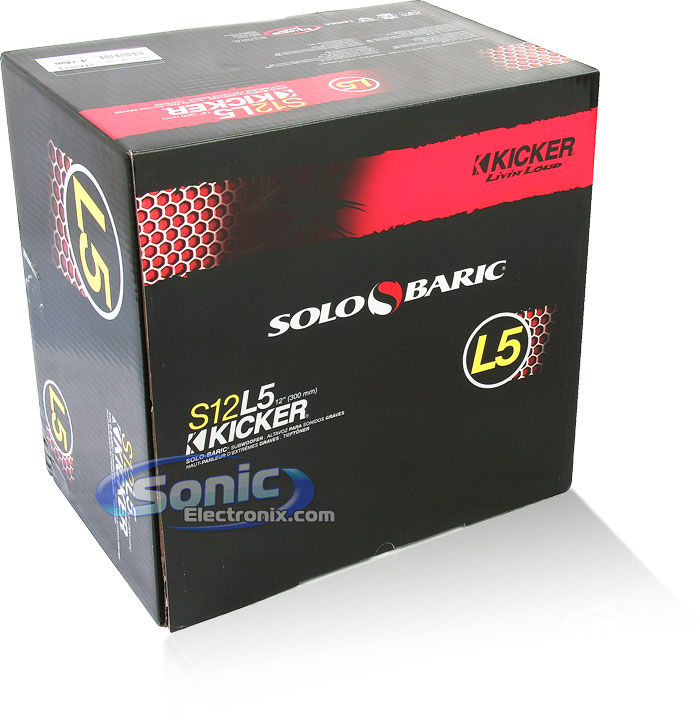

  • Two 12" Solo-Baric L5 Series Subwoofers
  • Power Handling:
    • Peak: 2400 watts total / 1200 watts each
    • RMS: 1200 watts total / 600 watts each
  • Titanium deposit impregnated cone woofer with rolled outer edge
  • Santoprene rubber surround
  • Stamped steel basket
  • Vented 360° back bracing
  • Rear foam gasket
  • Spring loaded terminals
  • Poly-cotton semi-progressive spider
  • Heat-dispersing, solid pole piece
  • Spiralead™ tinsel leads
  • High-temperature dual 2 ohm voice coils
  • Frequency response: 20-100 Hz
  • Sensitivity: 87 dB
  • Other search terms: S12L5, S12L52, 12L5, 12L52, 08S12L52
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

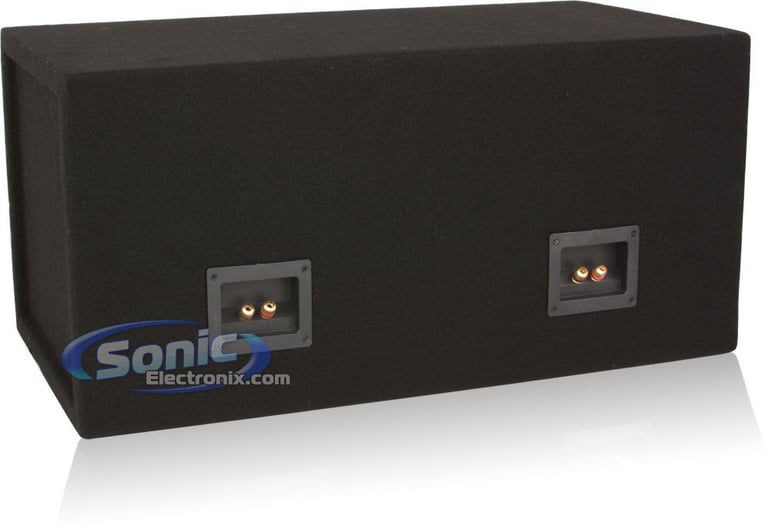

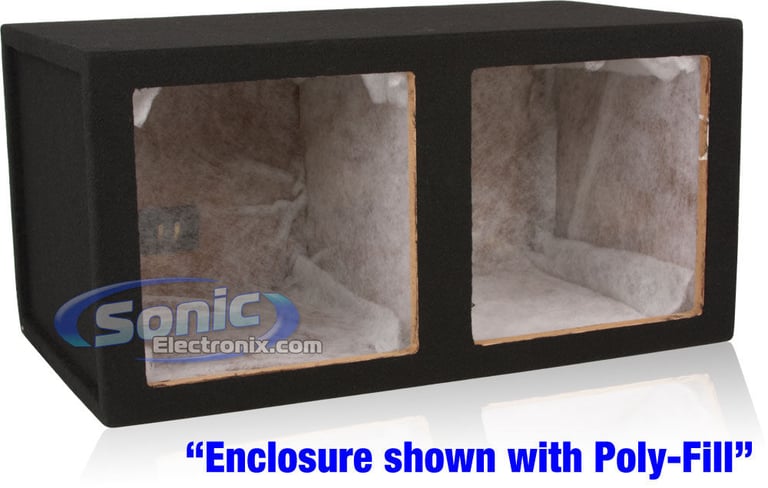

Absolute Subwoofer Enclosure Features
  • Dual 12" Square Sealed Enclosure
  • Designed specifically for the Kicker Solo-Baric L5 and L7 subwoofers
  • Pre-lined with a poly-fil lining delivering ultimate sound quality
  • Dual chambers allowing maximum individual power performance
  • Gold plated terminals for premium signal transfer
  • Banana-clip ready allowing quick and easy access
  • Convenient color coordinated binding post connections
  • Premium black carpet finish
  • Mounting depth: 14-1/2"
  • Cutout dimension: 11-1/4"W x 11-1/4"H
  • Box volume (total): 2.636 cubic feet
  • Box volume (per chamber): 1.318 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 15-1/4"D x 28"W x 14"H
  • Authorized Internet Dealer
Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes
  1. 17 ft. of 4 Gauge blue power cable
  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable
  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire
  6. 6 ft. of Split loom tubing
  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse
  9. All Necessary Hardware for Installation
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Add to cart
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

$299.00

Add to cart
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Add to cart

Specifications & Details

Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
2 AWG
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
160A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
600 watts
Total RMS Power Handling
1200 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
2400 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
87 dB
Frequency Response
20 - 100 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
14"
Width
28"
Depth
15-1/4"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Hifonics

Model Number:

BRZ1700.1D_2-08S12L52

Weight:

95.35lbs

Internal SKU:

brz17001d_2-08s12l52

Internal Product ID:

29586
