1800W Complete Kenwood + Kicker Bass Package

Kenwood KAC-9105D Amplifier + Kicker Solo-Baric L7 12" Subwoofer + 4 GA Amp Kit + 12" Sealed Sub Box

Kenwood
Shop all Kenwood
EXCLUSIVE
Product videos
highlight-star-icon

Performance Series Class D Monoblock Car Amplifier • 900W x 1 chan. @ 2 ohm • 12" Solo-Baric L7 Series Subwoofer • Titanium Deposit Impregnated Cone Woofer with Rolled Outer Edge • Santoprene rubber surround • Includes Everything You Need To Add Bass To Your Vehicle

Learn more about the kac9105d_08s12l74

We apologize

This item has been discontinued


Loading...
HON1B3 main

GROM Audio HON1B3 Bluetooth Streaming Kit (GROM-BT3-HON1)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2001 - 2015 Acura and Honda Factory Radios

5
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

82-7500 main

Metra 82-7500

5-1/4" - 6-1/2" Universal Speaker Adapter Brackets for select 1990-2013 vehicles from Honda, Acura, Mazda

9
-10.53%

$16.99

List price $18.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


Performance Series Class D Monoblock Car Amplifier • 900W x 1 chan. @ 2 ohm • 12" Solo-Baric L7 Series Subwoofer • Titanium Deposit Impregnated Cone Woofer with Rolled Outer Edge • Santoprene rubber surround • Includes Everything You Need To Add Bass To Your Vehicle

Description


Kenwood brand icon

Authorized dealer

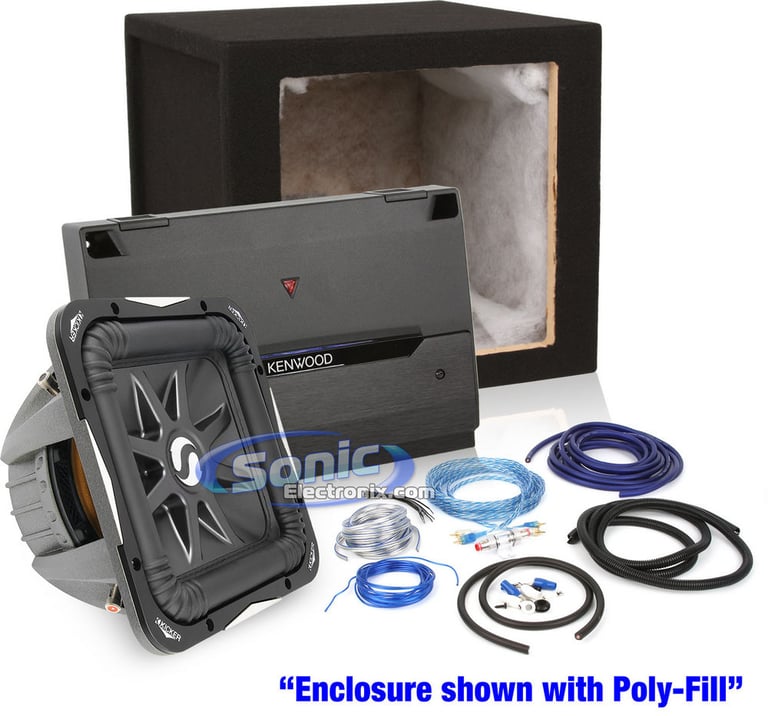

Kicker and Kenwood Complete Bass Package

This Sonic Electronix Exclusive Bass package showcases a Kenwood KAC-9105D Amplifier along with a Kicker Solo-Baric L7 12" Subwoofer. This excellent bass package pushes 900 watts of clean, continuous RMS power. The Kicker Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Kicker L7 subwoofer requires 750 watts of RMS power. The included Kenwood KAC-9105D amplifier will compliment this required power by supplying a perfect matchup of certified RMS continuous power. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

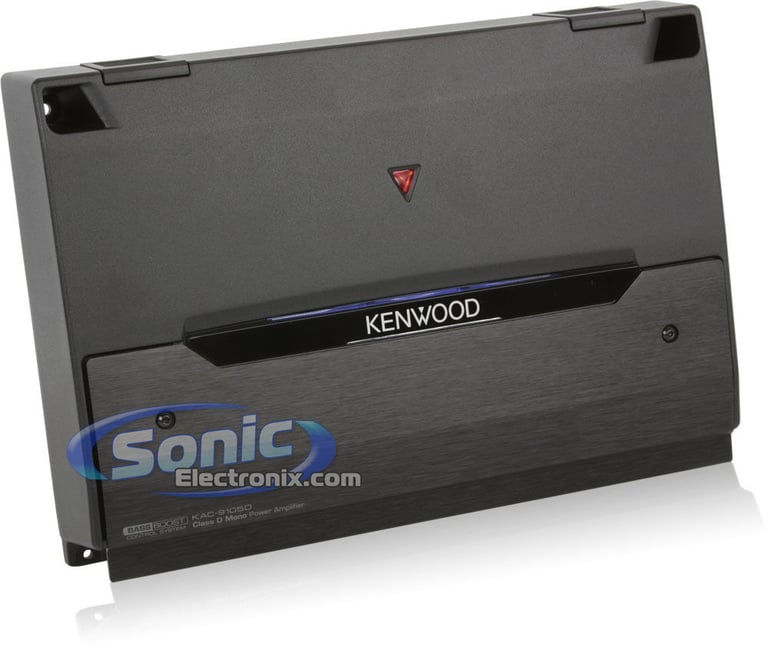

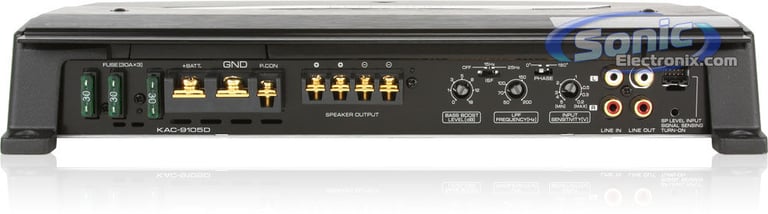

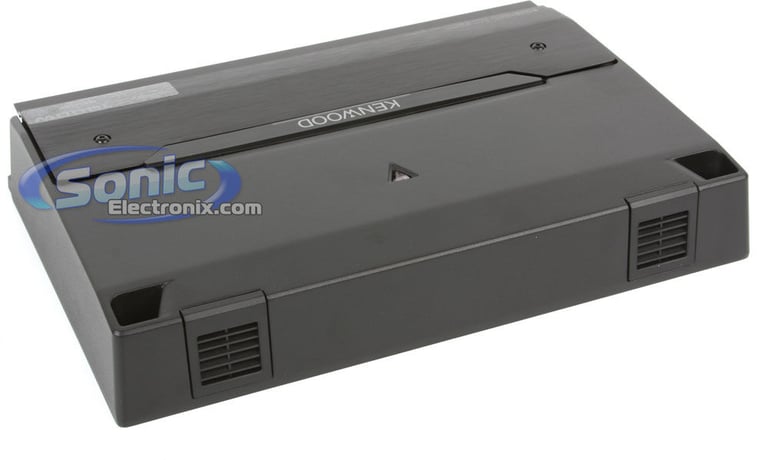

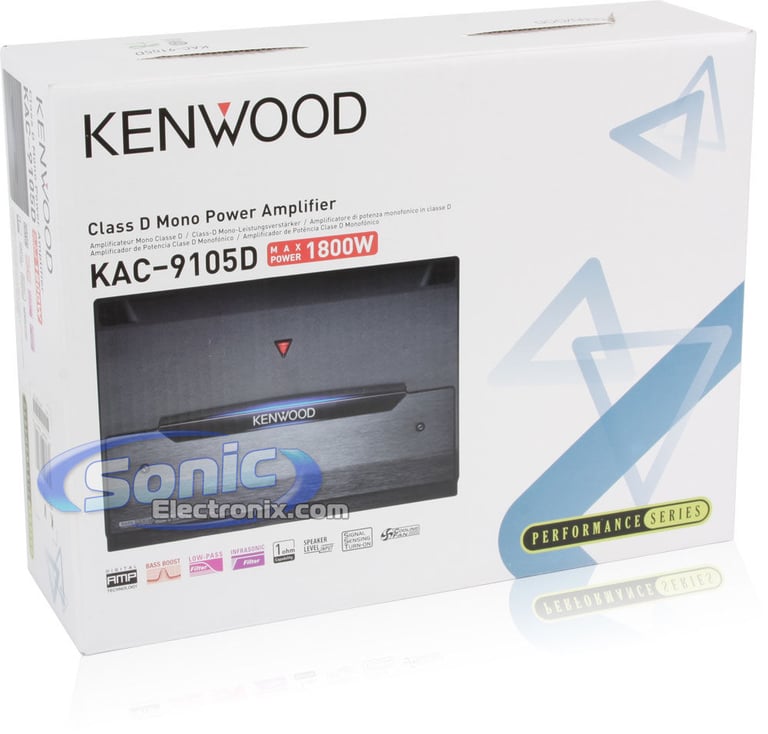

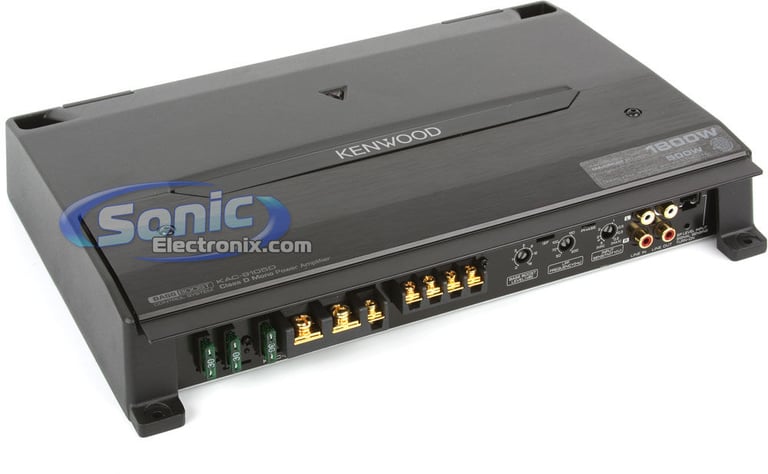

Kenwood Amplifier Features:
  • Performance Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.
    • 1 ohm: >900 watts x 1 chan.
  • Max power output: 1800 watts x 1 chan.
  • Digital amplifier technology
  • Dual mono driver ready
  • MOSFET power supply
  • LED power indicator
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Stackable operation capable
  • Phase inverter (0°,180°)
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs
  • Line output terminals for extension
  • Short circuit, DC offset, overload, and thermal protection circuitry
  • Aluminum die cast heat sink
  • Built-in cooling fan
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Single side exposure terminals for multi-installation
  • CEA-2006 compliant amplifier
  • Frequency response: 5-200 Hz
  • Dimensions: 13-3/4"L x 2-5/16"H x 9-3/8"D
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

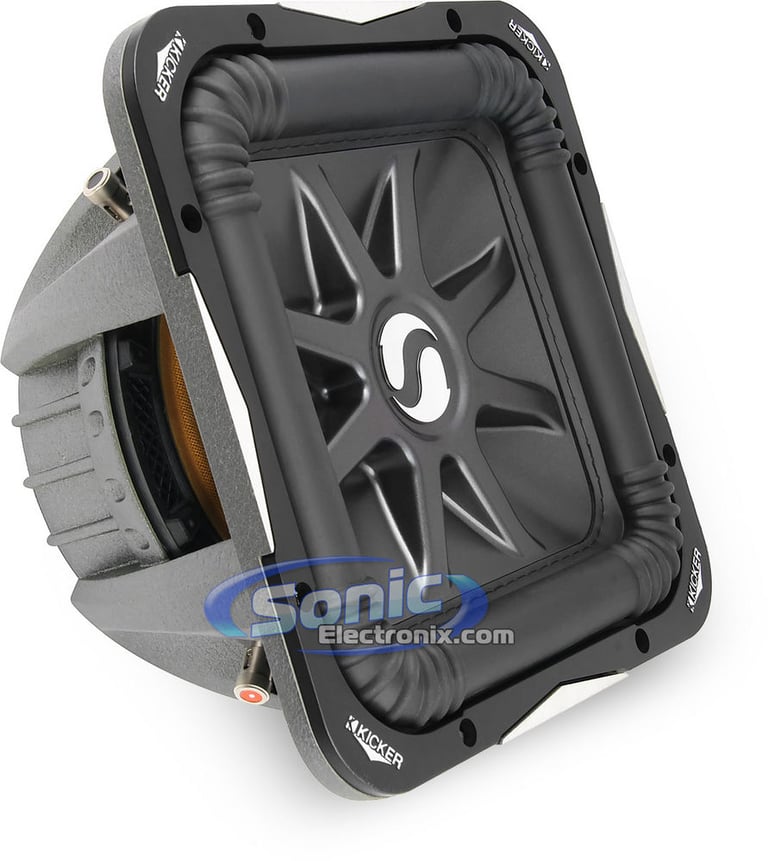

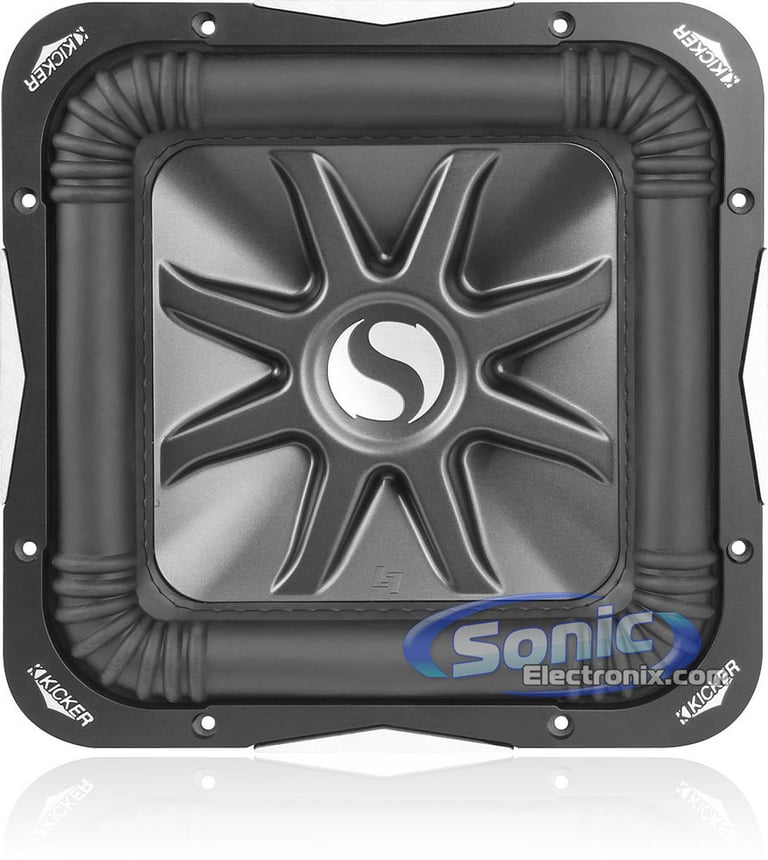

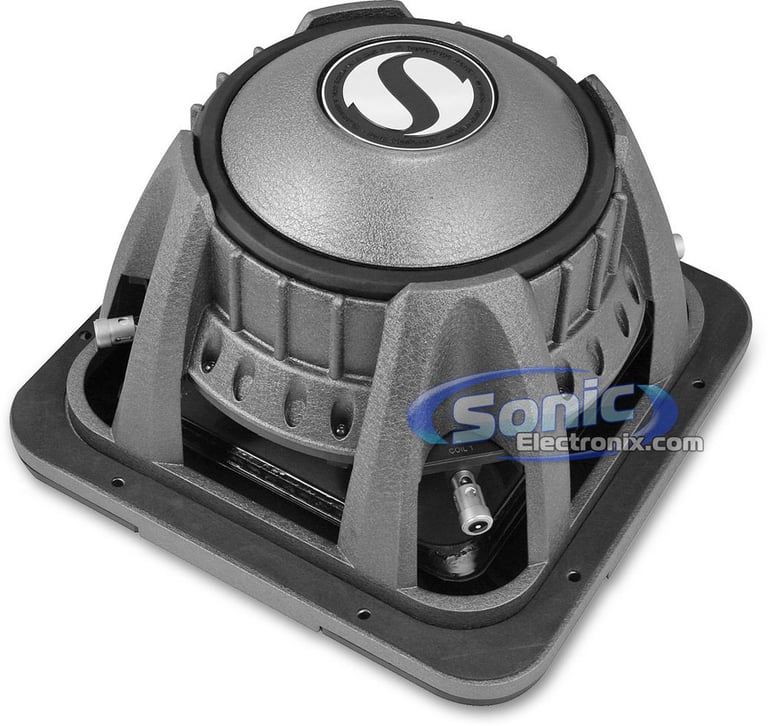

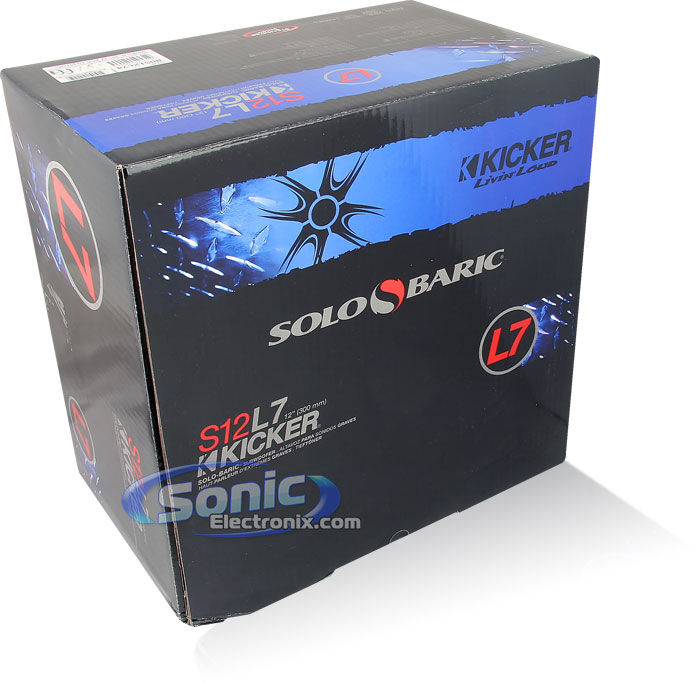

Kicker Solo-Baric L7 Subwoofer Features:
  • 12" Dual 4 ohm Solo-Baric L7 Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Titanium deposit impregnated cone woofer with rolled outer edge
  • Santoprene rubber surround
  • Full coverage back bracing
  • Poly-cotton semi-progressive spider
  • Spiralead™ tinsel-lead technology
  • Highly-efficient UniPlate™ pole-piece/back plate
  • Heat-reducing T-cut top plate
  • Solid pole piece
  • Cast-aluminum basket
  • Spring loaded terminals
  • High-temp dual 4 ohm voice coil
  • Frequency response: 20-100 Hz
  • Sensitivity: 89 dB
  • Other search terms: S12L7, S12L74, 12L7, 12L74, 08S12L74
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

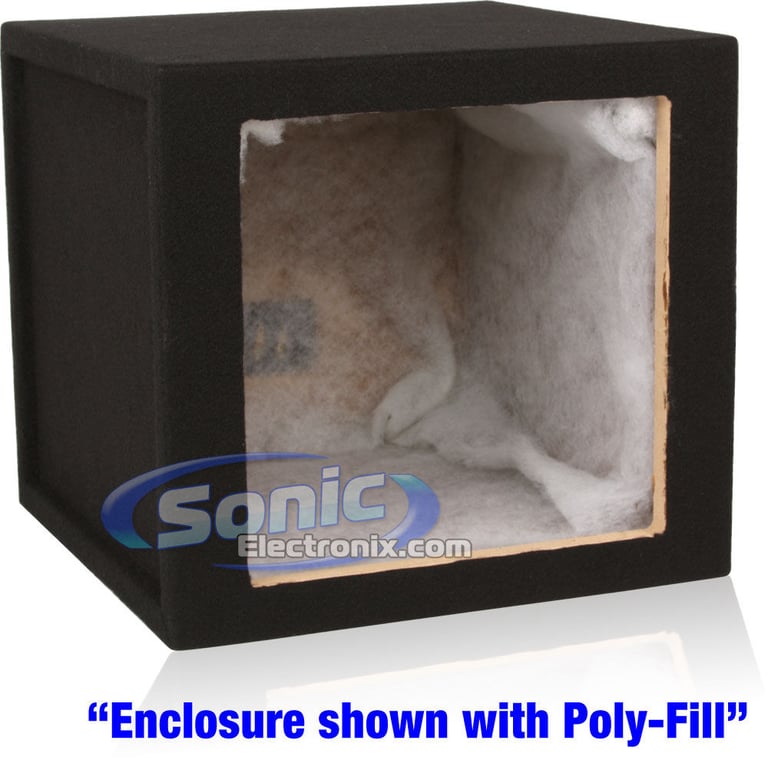

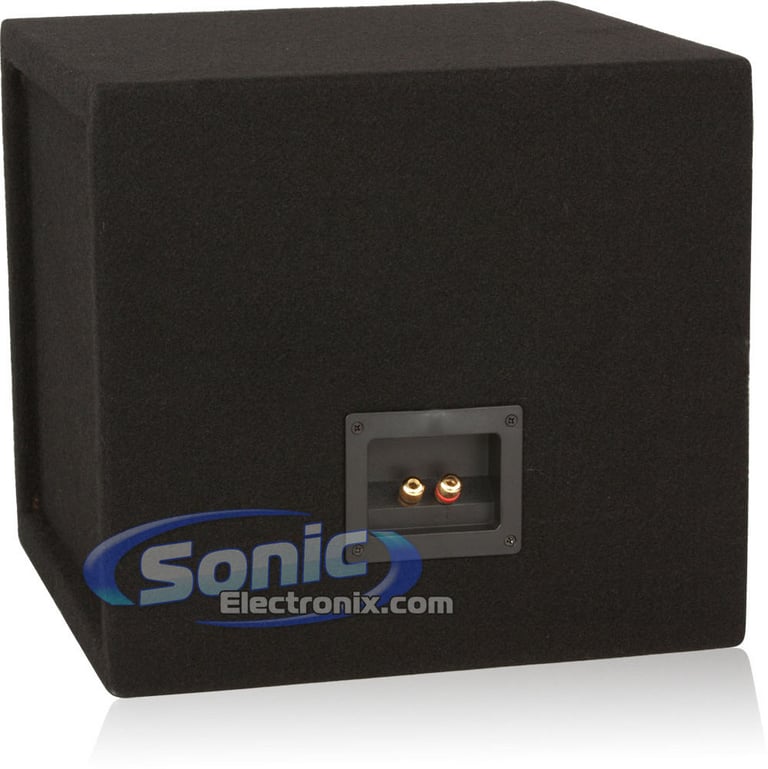

Enclosure Features:
  • 12" Square Vented Enclosure
  • Designed specifically for the Kicker Solo-Baric L5 and L7 subwoofers
  • Pre-lined with a poly-fil lining delivering optimized sound quality
  • Gold plated terminals for premium signal transfer
  • Banana-clip ready allowing quick and easy access
  • Accommodating color coordinated binding post connections
  • Exceptional black carpet finish
  • Mounting depth: 14-3/8"
  • Cutout dimension: 11-1/4"
  • Box volume: 1.343 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 15-1/8"D x 15-1/8"W x 14"H
  • Authorized Internet Dealer
Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:
  1. 17 ft. of 4 Gauge blue power cable
  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable
  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire
  6. 6 ft. of Split loom tubing
  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse
  9. All Necessary Hardware for Installation

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ 1 ohm
>900 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Peak Power Output
1800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.8%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
75 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
750 watts
Total RMS Power Handling
1500 watts
Peak Power Handling
1500 watts
Total Peak Power Handling
3000 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
89 dB
Frequency Response
20 - 100 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
15-1/8"
Depth
15-1/8"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAC-9105D_08S12L74

Weight:

60.50lbs

Internal SKU:

kac9105d_08s12l74

Internal Product ID:

29595
