See all parts that fit your 1973 Imperial

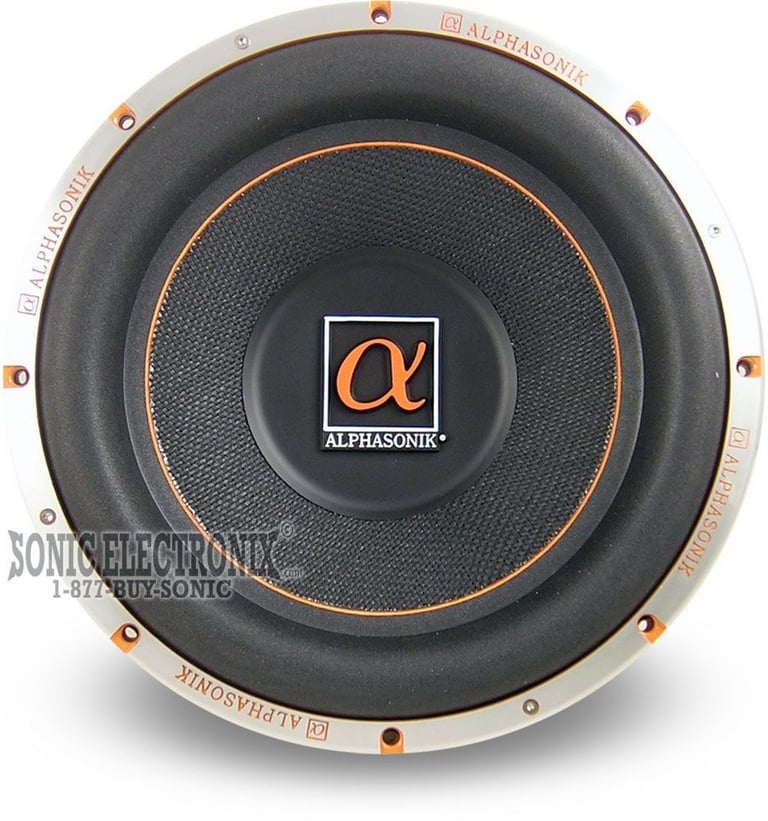

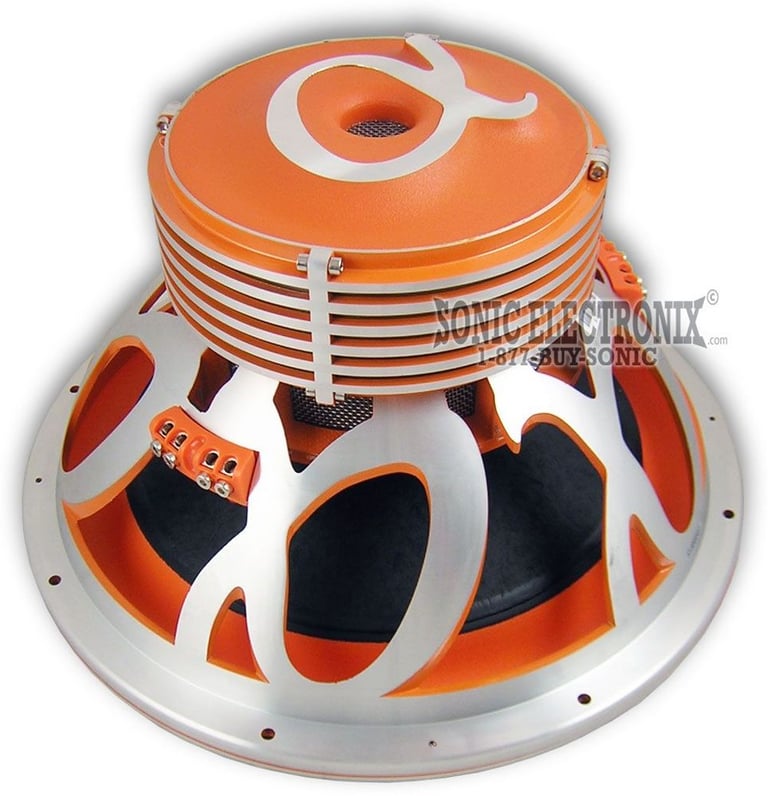

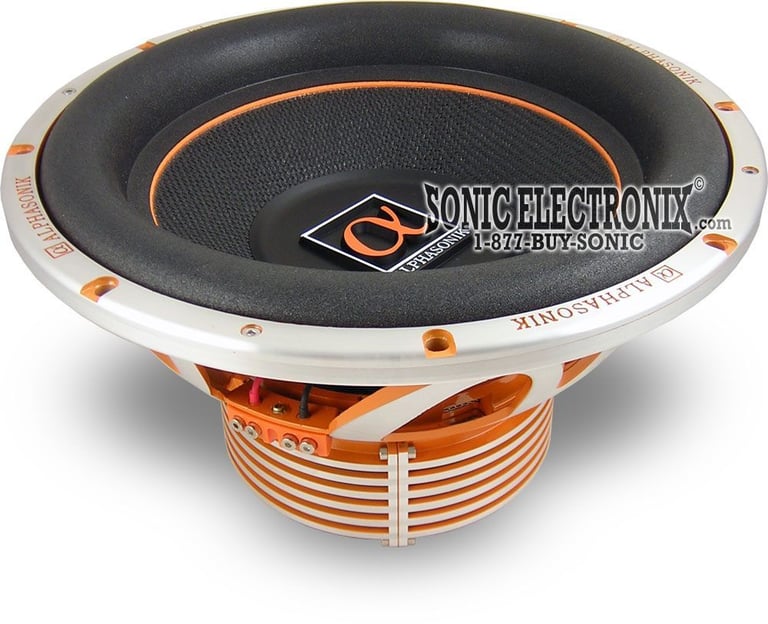

Alphasonik PSW815

800 Series 15" Dual 2 ohms Subwoofer

Product videos
highlight-star-icon

15" Alpha 800 Series Subwoofer • 1000 watts RMS • High Tensile Strength Two-Layer Surround • Dual 2 Ohm • Kevlar Reinforced Composite Balanced & Laminated Cone

Learn more about the psw815

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

H410 main

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

Limited time!
50CSC4104 main

Kicker CSC410 (50CSC4104)

450W Peak (150W RMS) 4x10" CS Series 2 Way Coaxial 4-ohm Speakers

1
-33.36%

$79.96

List price $119.99

51KSC41004 main

Kicker KSC410 (51KSC41004)

300W Peak (150W RMS) 4x10" KS Series 2 Way Coaxial 4-ohm Speakers

-13.33%

$129.99

List price $149.99

H7410 main

Cerwin Vega H7410

640W Peak (100W RMS) 4x10" HED Series 2-Way Coaxial 4-ohm Speakers

14
-16.67%

$69.99

List price $83.99

V410 main

Cerwin-Vega V410

540W Peak (180W RMS) 4x10" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

DMDX410 main

Diamond Audio DMDX410

270W Peak (90W RMS) 4x10" DMDX Series 2-Way Coaxial 4-ohm Car Speakers

H7410, SDSK2, SDRLR1, BTK106 main

Cerwin-Vega H7410 with Speaker Installation Kit

Includes: (Pair) 4" x10" Coaxial Speakers, Sound Damping , Roller and Panel Removal Kit

153
-28.22%

$98.13

List price $136.71

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

Product Highlights


15" Alpha 800 Series Subwoofer • 1000 watts RMS • High Tensile Strength Two-Layer Surround • Dual 2 Ohm • Kevlar Reinforced Composite Balanced & Laminated Cone

Description


  • 15” ALPHA 800 SERIES SUBWOOFER
  • Proprietary Cast Aluminum Alloy Machine Cut "Alpha" Basket
  • Proprietary Cooling Rings for Motor Assembly (Patent Pending)
  • Kevlar Reinforced Composite Balanced & Laminated Cone
  • High Tensile Strength Two-Layer Surround for Enhanced Control
  • Flat Progressive Rate Nomex® Damper w/ Spiral-Woven Leads
  • 150 oz. Double Stack Magnet
  • Rated at 1000 Watts RMS
  • 94 dB Efficiency
  • Frequency Response of 24Hz to 500Hz
  • Dual 2 ohm 3” Voice Coils
  • 8-Gauge Lug-Lock Input Terminals
  • Mounting Dimensions — Depth: 201mm / 8”
  • Through Hole: 351mm / 13-7/8” Diameter: 388mm / 15-1/16”
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alphasonik PSW815 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alphasonik PSW815 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alphasonik PSW815 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alphasonik PSW815 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

SW-XV315D2 small

Sundown Audio X-15 v.3 D2 15" (X12V3D2)

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Mega Roll V2 Surround
• Mount depth: 11.6"
• Sensitivity: 85.9 dB

(1)

$749.99

List price $983.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
2000 watts approx.
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
24 - 500 Hz
Sensitivity
94 dB
Woofer Surround
High-Tensile Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
8"
Cutout Diameter
13-7/8"

Item Details


Manufacturer:

Model Number:

PSW815

Weight:

33.50lbs

Internal SKU:

psw815

Internal Product ID:

2981

Product and How-to Videos


Customer Ratings & Reviews


Alphasonik PSW815 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
5
Usability
4.7

Customer Reviews

Sort by:

Loading...

best subs under 300 dollars. dont waste your money on anything but these subs

By james on April 10, 2005

3 found this helpful


this is one of the best woofers on the market you must consider this woofer if u want to compete and win i have 4 of these and i have one six competition already

By ryan on May 17, 2005

1 found this helpful


Alphasonik PSW815 Sub Woofer

Very good sub! Built like a tank and very pretty too. Must be in a tuned ported box. I have mine in a ProBox and the more juice I give it the more it wants. Incredibly strong deep bass that makes the panels on my Bonneville flex like crazy! At 94d it is very loud too. I have a Hifonics Brutus bxi1600d running it and the two make a great pair. I'm extremely pleased with this sub. One of the best on the market in my opinion. I would put one of these up against a Kicker CVX or L7 anytime! I had originally bought two but got all the sound I needed just off one of these bad boys, worth every little penny.

By El Oso on May 3, 2010
