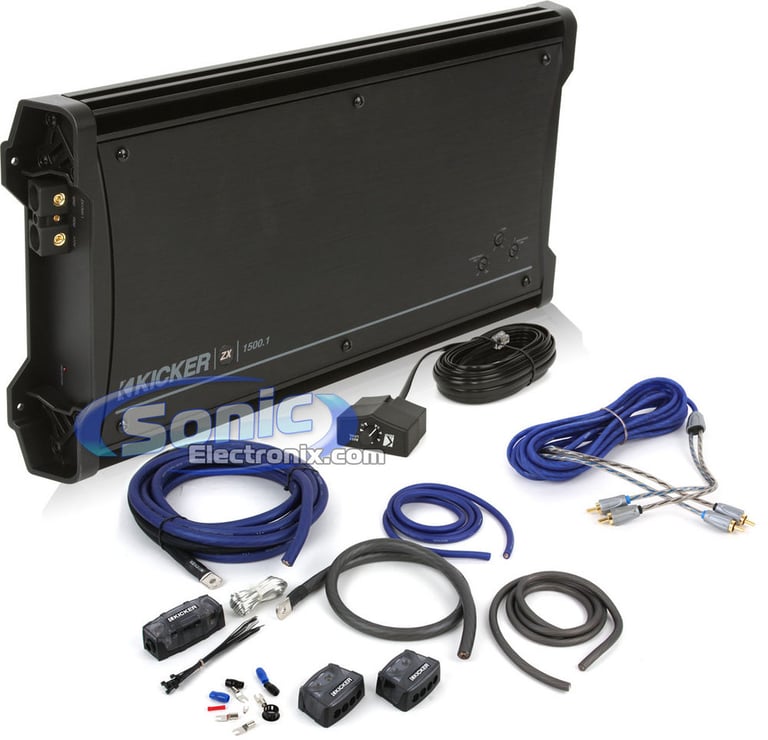

Kicker ZX1500.1 (10ZX1500.1) + Amplifier Kit

1500W RMS, Class D Monoblock ZX Series Amplifier with Included 0 Gauge Amplifier Kit (ZX15001)

Kicker
Shop all Kicker
EXCLUSIVE
Product videos
highlight-star-icon

ZX Series Class D Monoblock Car Amplifier • 750W x 1 chan. @ 4 ohm • 1500W x 1 chan. @ 2 ohm • Balanced Differential Inputs • Muting Circuit • Optional Vinyl Skins For Personalization • Included Matching Kicker 0 Gauge Amplifier Kit • 3-Year Manufacturer Warranty

Learn more about the 10zx15001_09pkd1

We apologize

This item has been discontinued


Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

H672 main

Cerwin-Vega H672

540W Peak (180W RMS) 6.75" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$159.99

List price $191.99

DMDX675 main

Diamond Audio DMDX675

300W Peak (100W RMS) 6.75" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

CK 165 main

Hertz CK 165

570W Peak (190W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

1
-16.67%

$399.99

List price $480.00

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
CK 165L main

Hertz CK 165L

600W Peak (200W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

2
-13.05%

$399.99

List price $460.00

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48

Product Highlights


ZX Series Class D Monoblock Car Amplifier • 750W x 1 chan. @ 4 ohm • 1500W x 1 chan. @ 2 ohm • Balanced Differential Inputs • Muting Circuit • Optional Vinyl Skins For Personalization • Included Matching Kicker 0 Gauge Amplifier Kit • 3-Year Manufacturer Warranty

Description


Kicker brand icon

Authorized dealer

Why Choose Kicker Amplifiers:

Kicker Always Exceeds Rated Power

Kicker Performance Audio has been around since 1980 and has been producing amazing products since then. Kicker’s drive to consistently produce products that not only are great but also push the standards of the car audio industry is very apparent in all series of their amplifiers. All Kicker amplifiers are CEA-206 Compliant, assuring you are receiving a continuous certified RMS power rating. Kicker will always exceed the rated power because Kicker is notorious for under rating their amplifiers. So really you will be getting more power than you actually pay for, which is not true for other lower end performance amplifiers that generally over rate their amplifiers. Kicker amplifiers will provide a choice of three automatic turn-on modes; remote, DC offset, or signal sense, which make then compatible with any car audio system. Along with their high-density convection heat sink for extreme heat dissipation and high efficiency MOSFET power supply, Kickers amplifiers are great way to go when selecting the perfect amplifier for your car audio system.

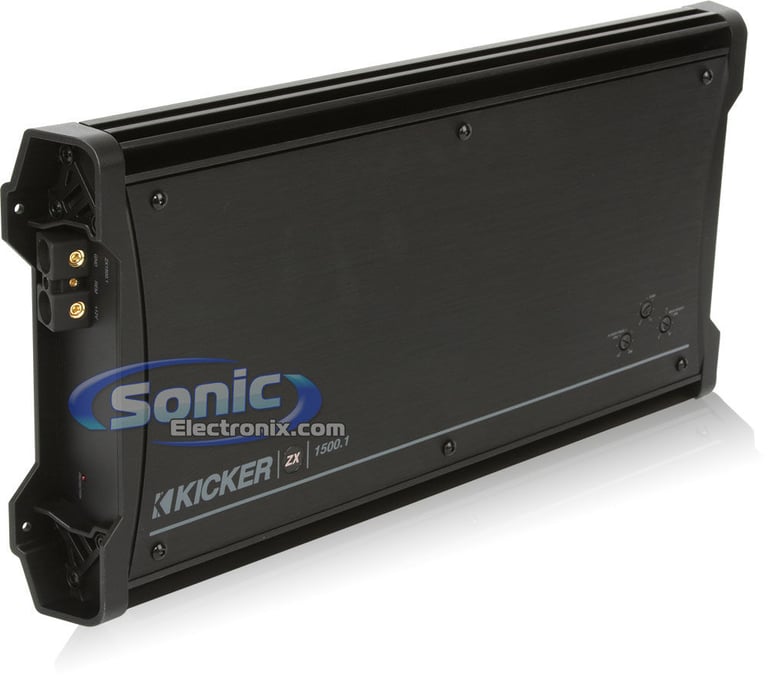

Kicker ZX1500.1 Amplifier Features:
  • ZX Series Class D Monoblock Car Amplifier
  • Includes 0 Gauge Kicker Amplifier Kit and 2 Channel Kicker RCA's
  • RMS Power Rating (14.4V):
    • 4 ohm: 750 watts x 1 chan.
    • 2 ohm: 1500 watts x 1 chan.
  • High efficiency MOSFET power supply
  • LED power and protection indicators

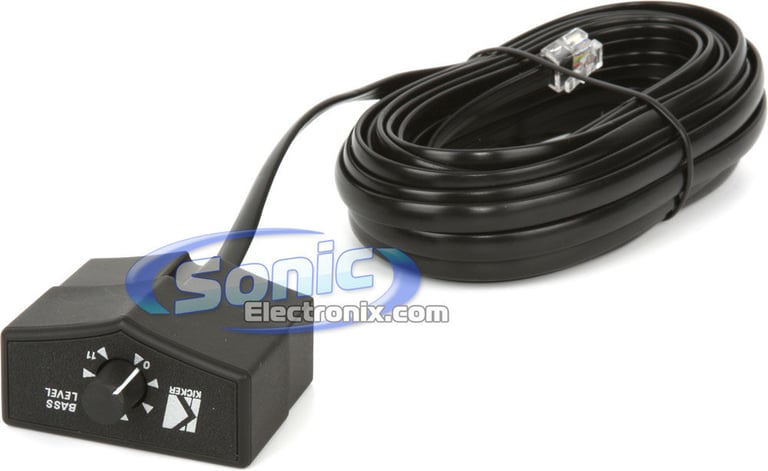

  • Remote bass level included
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)

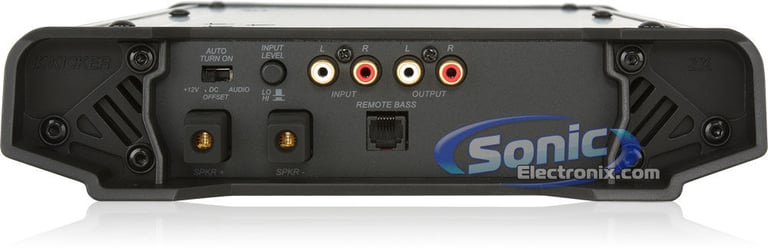

  • Preamp RCA outputs
  • Muting circuit cancels out unwanted noise
  • Boost, gain, and crossover frequencies are top-mounted for easy access
  • Balanced differential inputs for noise elimination and factory-radio compatibility
  • 3 Automatic turn-on modes (remote, DC offset, signal sense)
  • Optional edgy vinyl skins for personalizing heat sinks available
  • Optional Kicker 08ZXEC endcaps are available for all ZX amplifier models
  • High-density convection heat sink for extreme heat dissipation
  • Gold-plated RCA level inputs

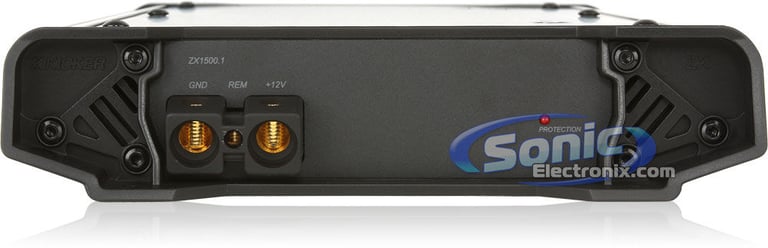

  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • High-pass subsonic filter (24 dB at 25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 25-200 Hz
  • Dimensions: 20"L x 9-5/8"W x 2-1/8"H
  • Actual power exceeds rated power, documented inside each carton
  • Kicker Warranty Program extends amplifiers warranty to 3 Years
  • Authorized Internet Dealer
  • 3-year Manufacturer's warranty
Amplifier Kit Features:

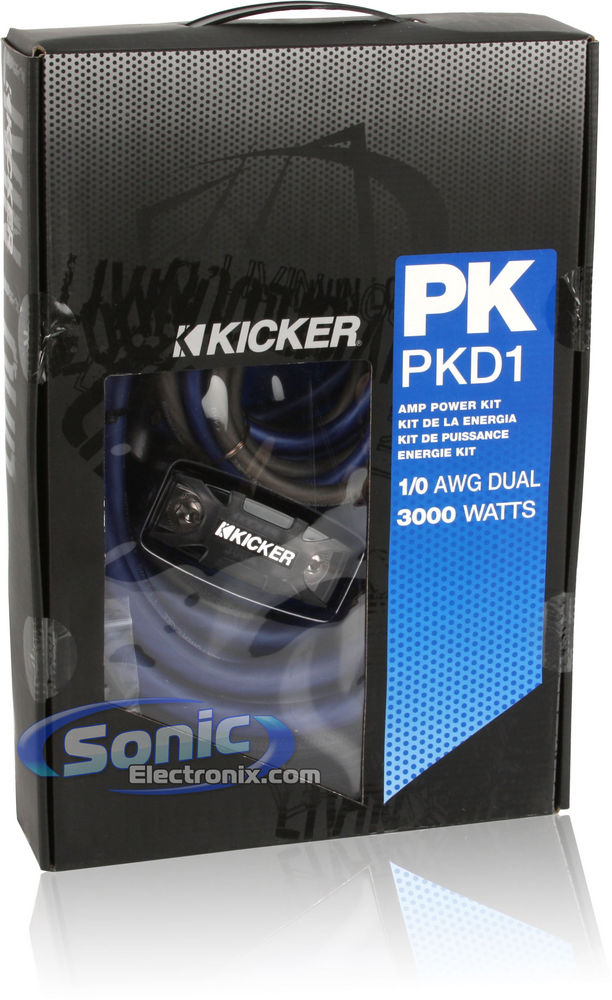

  • Dual Amplifier 1/0 Gauge Power Installation Kit
  • 3000 Watts max
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit includes:

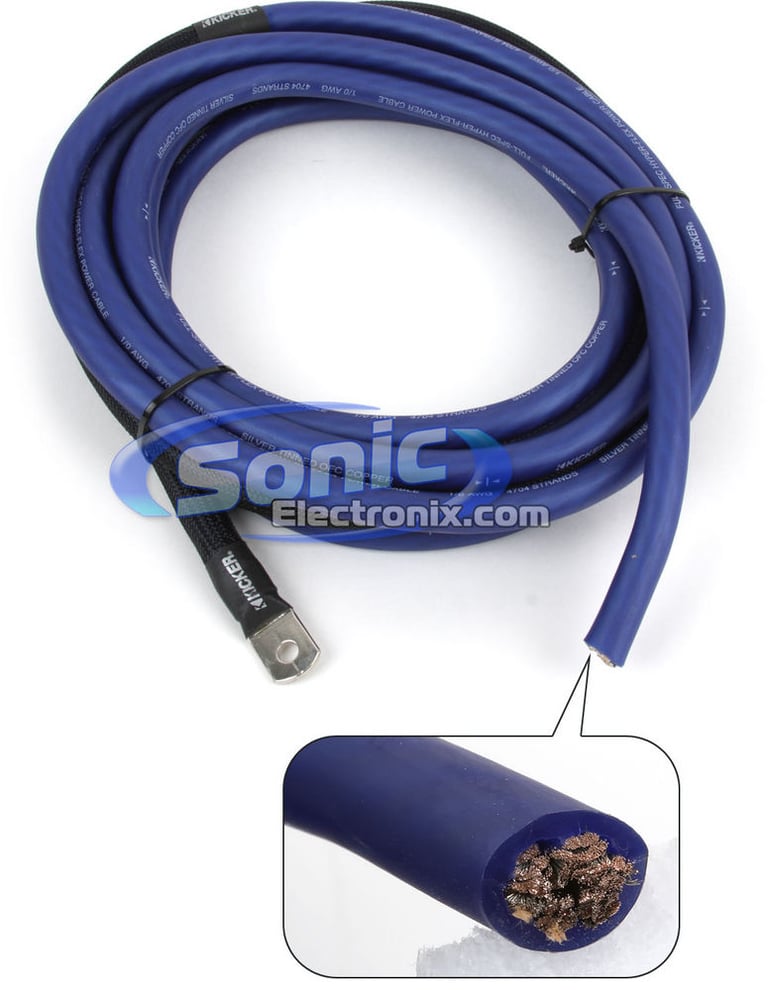

  1. 20ft(6.1m) Blue 1/0AWG power wire

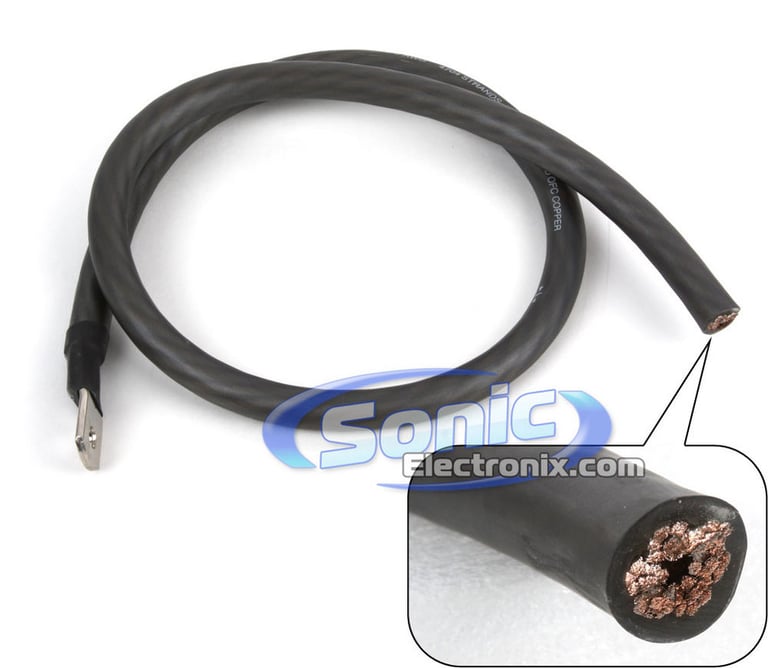

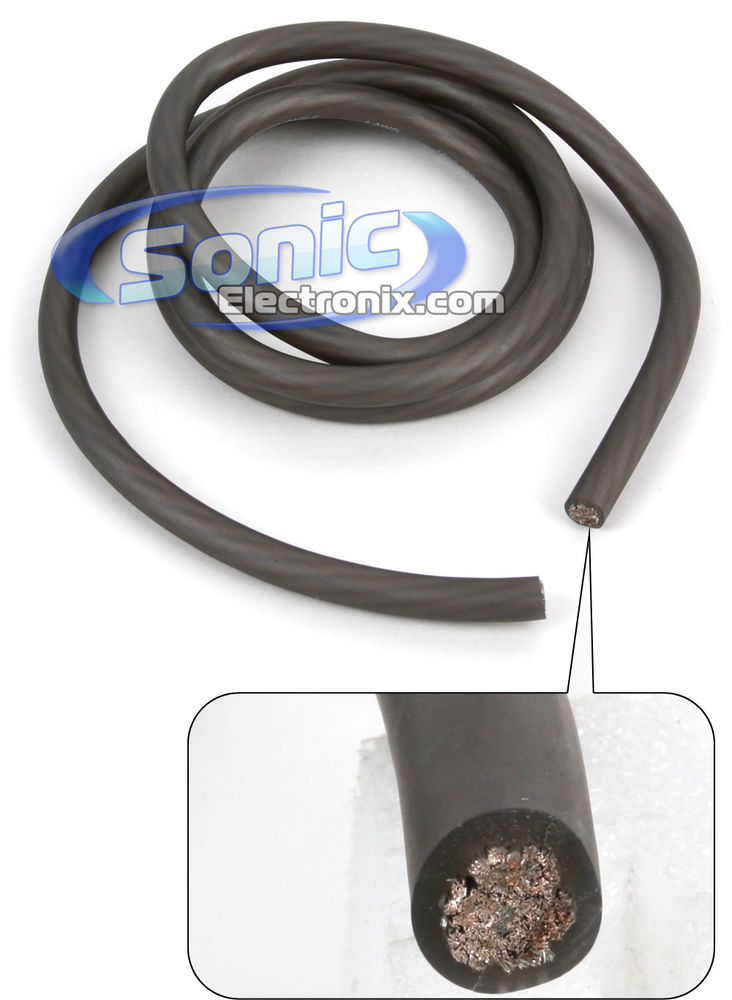

  2. 3ft(0.9m) Black 1/0AWG ground wire

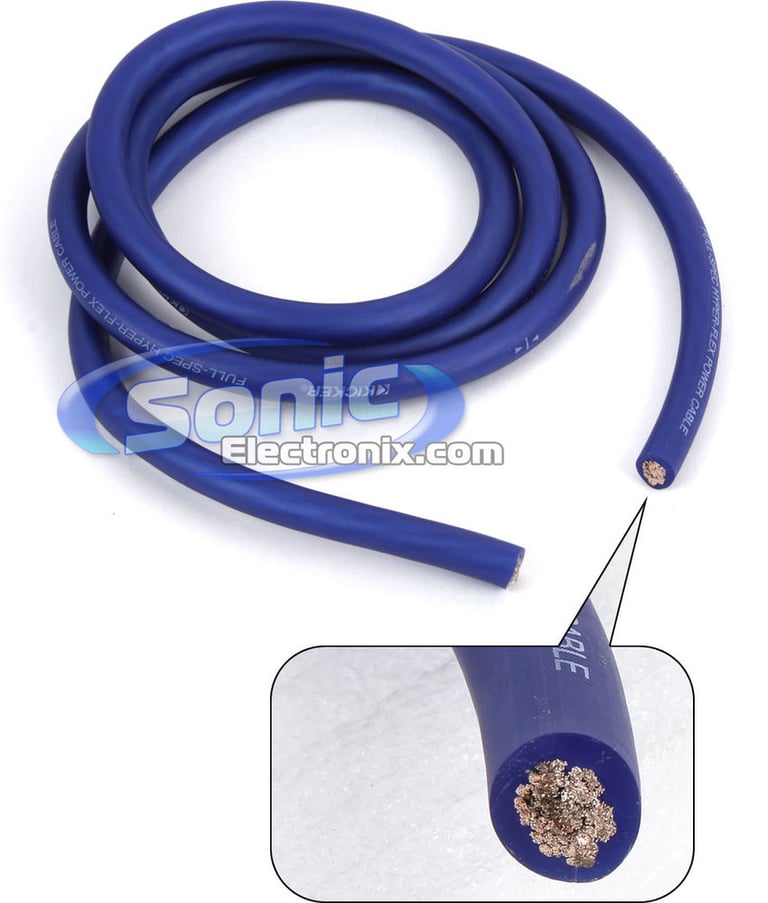

  3. 5ft(1.5m) Blue 4AWG power wire
  4. 5ft(1.5m) Blue 4AWG ground wire

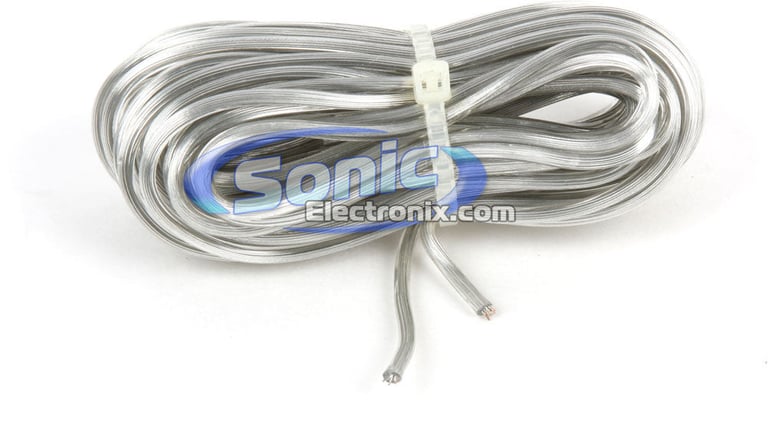

  5. 20ft(6.1m) Blue 18AWG remote lead wire

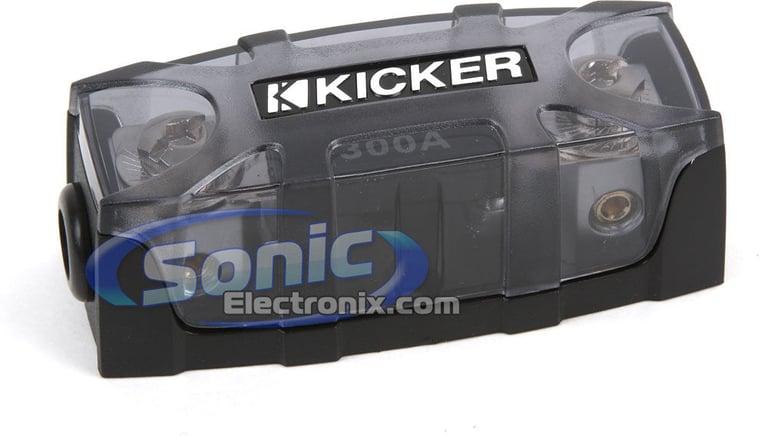

  6. 1 Kicker 09FHA Fuse holder with 300 amp ANL fuse

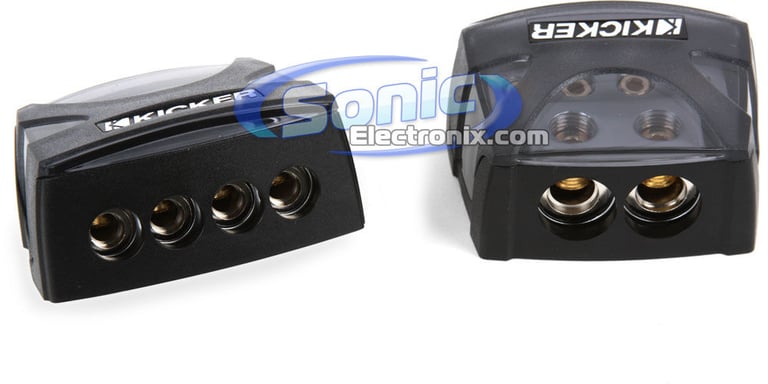

  7. 2 Kicker 09DB1448 Distribution blocks

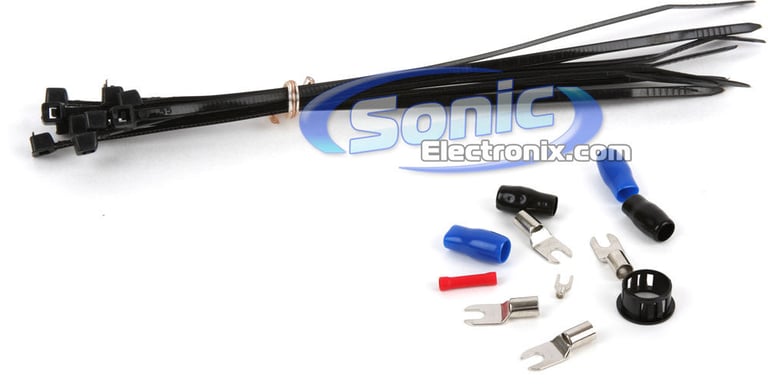

  8. Black rubber firewall grommet
  9. 4 1/0 AWG Spade terminals
  10. 1 18AWG Spade terminal
  11. Black zip ties
  12. Red butt connector

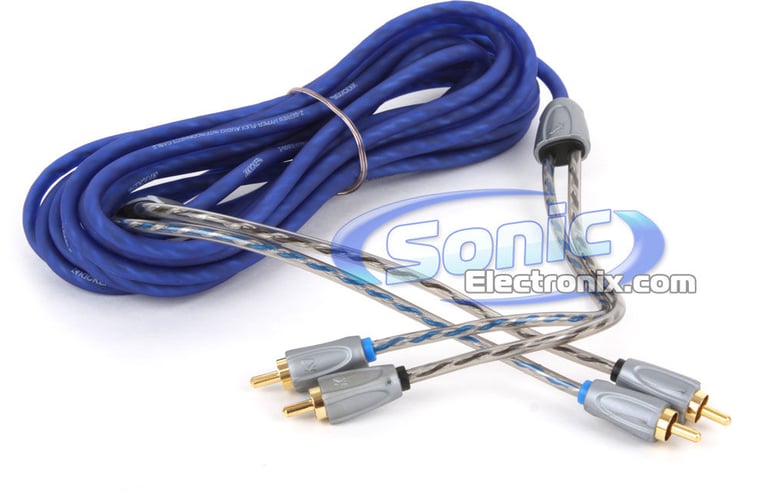

RCA Interconnect Features:
  • KICKER Z-Series RCA interconnects
  • 2-Channel Interconnect Cable
  • Gold plated tips for the best signal transfer
  • Split-center pin for a secure connection while increasing the surface contact area
  • Sure grip ends for simpler installation
  • Twisted pair construction for a reduction in noise interference
  • Hyper-flex technology allows the cable to bend, twist, and contort in every way possible without a loss in quality
  • Cable is blue with silver ends
  • Length: 5 Meters (16.5 ft.)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
2011 Kicker Authorized Online Dealer and eBay Seller

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1500 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
150A x 1
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
2
Power/Ground Wire Size
1/0 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL
Fuse Size
300A
Distribution Block Included
Yes
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10ZX1500.1_09PKD1

Weight:

29.55lbs

Internal SKU:

10zx15001_09pkd1

Internal Product ID:

29871

Product and How-to Videos


Customer Ratings & Reviews


Kicker ZX1500.1 (10ZX1500.1) + Amplifier Kit thumbnail image

5 star
88%
4 star
8%
3 star
4%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
4.7
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Product

The following review is for 09PKD1, which is a part of the bundle you are viewing.

This is bang for the buck. It is worth the money. All other cheap kits are exactly that compared to this.

If you want good quality accessories for your setup and no chance of lack of good connection this is the way to go. Definitely for the person who wants quality, not just a cheap quick hook up and go.

By Matthias on September 2, 2011

28 found this helpful


Great Amplifier Kit

The following review is for 09PKD1, which is a part of the bundle you are viewing.

I have this amp kit running through my 2002 Jeep Liberty and let me tell you it runs true to gauge, I think if they had any less insulation there would be a hazard. The distribution blocks are a little tough on the hands because of the plastic covers but nothing unmanageable. Overall one sick kit that will leave you with never having to upgrade your wiring ever again

By John on May 3, 2010

27 found this helpful


good product

The following review is for 09PKD1, which is a part of the bundle you are viewing.

this kit could do with some improvements, be prepared to buy extra wire terminals and battery terminal

By john on July 7, 2011

27 found this helpful


Amazing product, Amazing price.

The following review is for 09PKD1, which is a part of the bundle you are viewing.

This is one one of the only products with true 1/0 gauge wire.
The kit comes with all that you will need to power your high-end
sound system.

By Jason on October 15, 2010

27 found this helpful


Awspme

The following review is for 09PKD1, which is a part of the bundle you are viewing.

Kicker has always been my first choice this small amp kit is a beast for the money. You can never go wrong with kicker products.

By Livforbass on March 4, 2013

26 found this helpful


Sick!!

The following review is for 09PKD1, which is a part of the bundle you are viewing.

This cable is bad ass!! It's easy to fish around tight spaces even tho it is 1/0 cable! Awesome.

By william on February 23, 2012

25 found this helpful


Absolutely AWESOME Wiring

The following review is for 09PKD1, which is a part of the bundle you are viewing.

Bought this back about 6 months ago. The wire gauge sizes are true, the wire is flexible, and distrobution blocks are solid, and the fuse is heavy. This is a truly awesome wiring kit for anyone planning to run multiple amps or just those wanting to use the 0 gauge only. The kicker wire is hands-down the best wire I've ever used.

By Darell on March 17, 2010

26 found this helpful


excellent buy

The following review is for 09PKD1, which is a part of the bundle you are viewing.

This is a great bang for the buck. If you want the power to be there when you up grade your audio sound.

By Enicer on September 26, 2011

24 found this helpful


Top Notch Gear

The following review is for 09PKD1, which is a part of the bundle you are viewing.

Like others reviewers stated, this kit contains true to gauge wire and extremely flexible!!

What I really liked about this kit is that it allows you to run a 4 gauge or 0 gauge set up. All the insertion points in the distro blocks and fuse holder accept both 4 ga and 0 ga inputs.
The fuse holder and distro blocks are top quality, I'm very pleased with all the wires as well. The fuse holder is great, it has the option of both types of fuses, it comes with a 300A fuse already in there.

The only negative thing about the kit I got was that the fuse holder cover comes off easily, but after pressing it hard it seems to be fine for now.

Overall this kit is excellent, best 0 gauge wire I've worked with. Well worth the price.

By JakrosoValser on February 18, 2011

24 found this helpful


GREAT SERVICE!!!!!!!!

The following review is for 09PKD1, which is a part of the bundle you are viewing.

I ordered the 05 pkd1 and it was discontinued so they called me and let me kno what was in stock and what wasnt and they upgraded me to the 09pkd1 I still had to pay some of the difference but still got a great deal on it! great wire really thick and flexi cant beat it!

By DBK1LA on December 14, 2009

24 found this helpful



MMC-SXM/AUX small

JL Audio MMC-SXM/AUX

Convert SiriusXM Connector to AUX Inputs in Compatible MediaMaster Stereos

$34.99

List price $34.99

db840DVC small

Polk Audio db840DVC (FREE Upgrade to 2017 Model)

180W 8" db Series Dual 4 ohm Marine Certified Subwoofer

(18)

$75.00

List price $209.99

TXX-AP10B small

Audiopipe TXX-AP10B

10" Dual 4 ohm iPipe Subwoofer (Black)

$99.99

List price $199.99

07TC104+08ZX300.1 small

Kicker 07TC104 + Kicker 08ZX300.1

Loaded 10" Vented Truck Box with 1 Comp Sub + Matching Monoblock Amplifier

(1)

$251.99

List price $389.99

CY-PA4003U small

Panasonic CY-PA4003U

4-Channel Amplifier

(1)

$104.99

List price $179.99

DQ-61 BLACK small

AudioControl DQ-61 (Espresso Black)

6 Channel Line Out Converter with Signal Delay, AccuBass, and EQ, with 5-year warranty*!

(2)

$299.99

List price $479.99

VIBE425 small

Lanzar VIBE425 Viberant Series

$159.99

List price $319.99

11ZX5001 small

Kicker ZX500.1 (11ZX500.1)

500W RMS Class D Monoblock ZX Series Amplifier

(4)

$204.95

List price $349.95

MX-3 small

Hifonics Maxxsonics MX-3

Bass Controller for use with Aftermarket Radios and Amplifiers, as well as Factory OEM Stereos

(7)

$26.95

List price $119.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1993 Lexus SC400

2014 Land Rover LR4

2020 Audi Q5

2000 Honda Passport

2017 Kia Sedona

2014 Audi TT

2014 BMW 528i

2015 Dodge Journey

2002 Daewoo Lanos

1980 Ford Pinto

Vehicle
Store
Delete

2023 Can-Am Defender PRO XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
