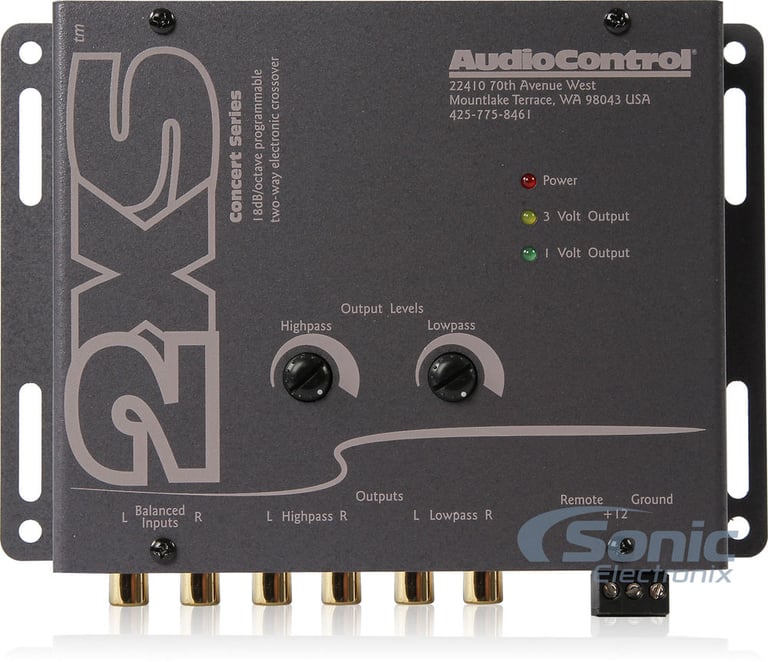

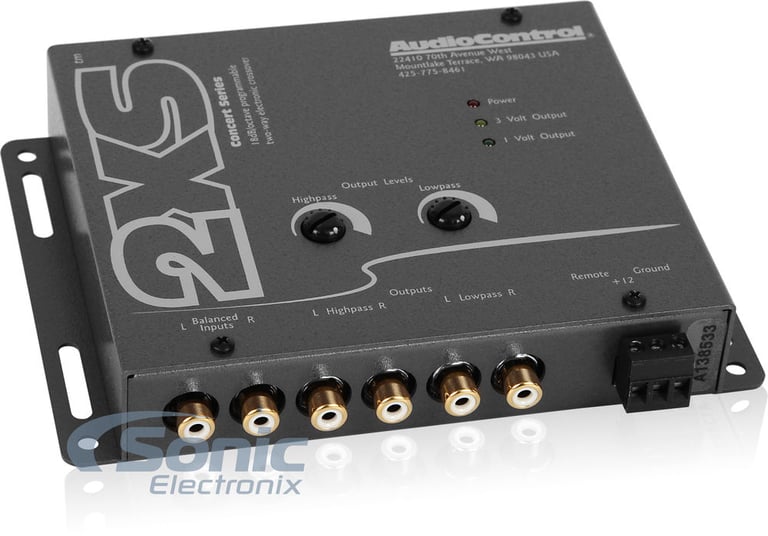

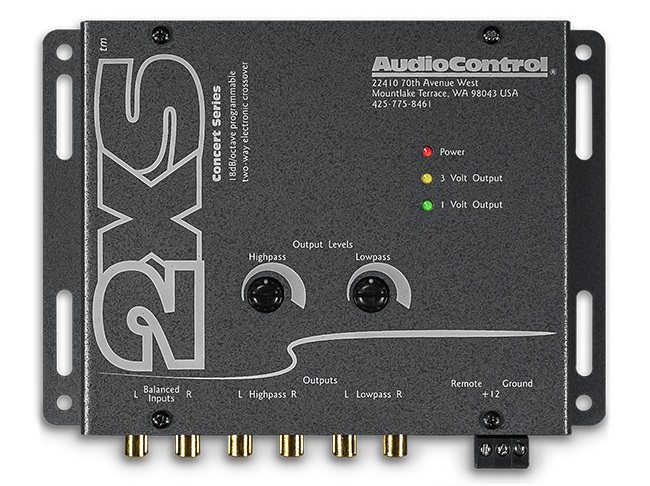

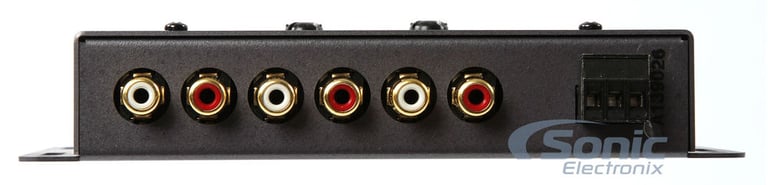

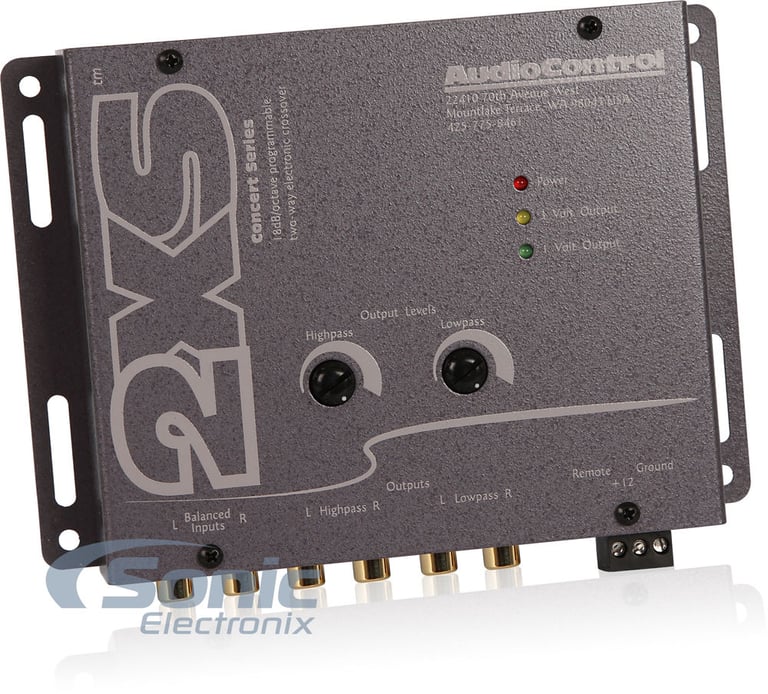

AudioControl 2XS Crossover (Salmon Gray)

For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".

A state-variable, 18dB/octave, 2-way electronic crossover designed with a flexible and accurate module-programmable crossover frequency. AudioControl's exclusive Programmable Frequency Match (PFM) subsonic filter provides exceptional bass control. Winner of the coveted CES "Design and Engineering Excellence Award." This crossover is incredibly adjustable, programmable, and most importantly, the 2XS will make your car audio system sound better. Whether you are a car audio soundoff competitor or just someone who appreciates good sound, the 2XS will provide you with many hours of enjoyment.

Key Features:

Programmable 18dB/Octave 2-way Crossover:

The 2XS utilizes a sharp 18dB/octave state variable filter that accurately separates your high and low frequencies. In addition, by using plug-in resistor modules (for more info see the section on "Making Your Own Crossover Module"), the two way electronic crossover in the 2XS can be configured precisely in any multi-amplified system.

Programmable Frequency Match (PFM) Subsonic Filter:

Subsonics are low frequency non-musical noises which are present in most recordings and usually occur below the frequencies which human ears can detect. This robs amplifier power, causes intermodulation distortion, and may even cause speaker damage. Obviously you don't want your system to reproduce these nasty sounds, therefore, the 2XS features an AudioControl exclusive, a sharp 18dB/octave Programmable Frequency Match (PFM) subsonic filter. This PFM filter rolls off these problem-causing frequencies before they get to your amplifiers. Since it is programmable, you can install a PFM resistor module at the ideal low frequency roll-off point(like the subwoofer enclosure tuning frequency or the -3dB down point of your system), and get the best possible sound from your system.

Line Driver:

Every electronic component produces a small amount of noise. This noise is the result of electrons bouncing into each other like pinballs. Unfortunately, these noises add to the "noise floor" of your car audio system and can end up as hissssss through your speakers. Fortunately, the circuitry in the 2XS has been designed to provide signal gain. This "gain" allows you to raise the signal above the hissssssing noise floor and drive your amplifier better. This, my friend, is a good thing.

Selectable Ground Isolation:

Ground loops and ground noises are constant threats to a quality car stereo installation. Head unit manufacturers ground their products one way while amplifier manufacturers may ground theirs differently. Unfortunately, these differences can cause ground loops. The 2XS helps you avoid these problems by providing selectable signal and power grounds. Ground loops are now things of the past.
