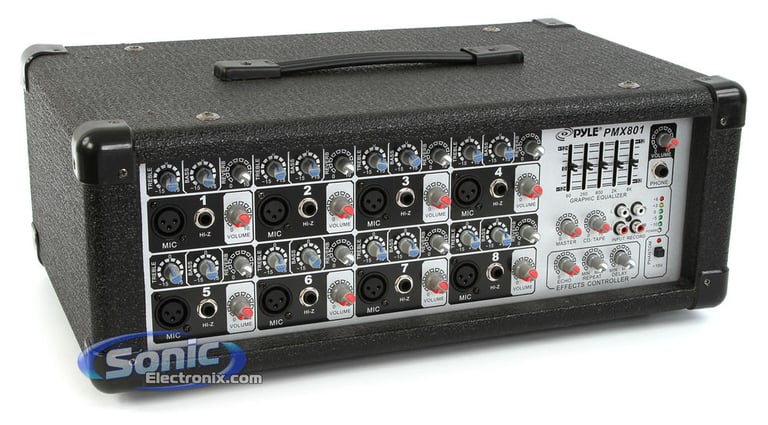

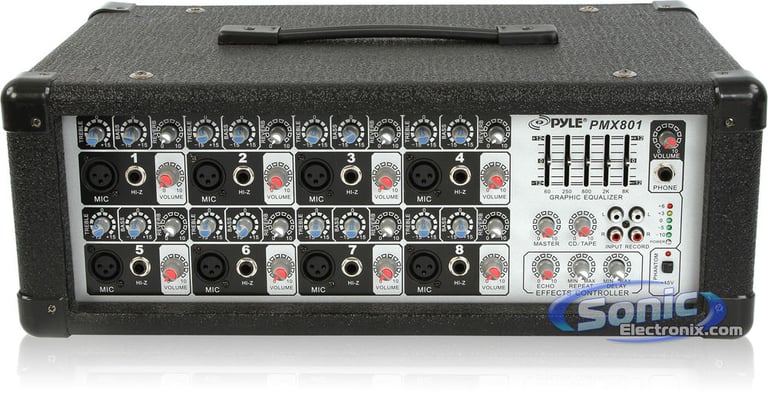

Pyle PMX801

200W, 8-Channel Powered PA Mixer and Amplifier with 5-Band Graphic EQ

Pyle
Shop all Pyle
highlight-star-icon

• 8 Channel Powered PA Mixer
• RCA Input
• Bass-Treble Control
• Return Sound Effect Control
• 5-Band Graphic Equalizer
• Master Volume Control
• Channel Tone Adjust
• Effect Send

Learn more about the pmx801

We apologize

This item has been discontinued


Loading...
LPHFD31 main

PAC LPHFD31

Vehicle Specific Audio Integration T-Harness for select 2018-2024 vehicles from Ford

-42.20%

$63.00

List price $109.00

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602 Speaker Harness for 2009-2024 Ford, Mazda, Lincoln

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

72-5605 main

Metra 72-5605 Tweeter Harness for 2011-2024 Ford, Lincoln

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

OEMADAPT6.5 main

DS18 OEMADAPT6.5

Universal 6.5" Speaker Mounting Adapters

Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-16.67%

$249.95

List price $299.95

Description


Pyle brand icon

Authorized dealer

General Features:
  • 8 Channel Powered PA Mixer/Amplifier
  • Power Output:
    • Peak: 200 Watts
  • 8 x 1/4" Line/High Impedance Input
  • 8 XLR Mic Inputs With Phantom Power
  • RCA Input (Left/Right Ch.)
  • REC RCA Output (L/R)
  • Bass-Treble Control Each Channel
  • Return Sound Effect Control For Each Channel
  • Tape Stereo Input
  • Microphone Input Impedance: 600 Ohm Input Level: -60db
  • High Impedance Input: 10k Ohm Input Level:-20db
  • Tape Input Impedance: 10k Ohm Input Level:-20db
  • Rec Output Impedance: 1k Ohm Output Level:-10db
  • 5-Band Graphic Equalizer
  • Master Volume Control
  • Channel Tone Adjust (High/Low±15db)
  • Aux/Tape/Effect Feedback Input
  • Effect Send
  • Phones Output
  • Also found as: PMX-801
  • Dimensions: 12"L x 20"W x 8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Specifications & Details


Mixer Features
Frequency Response
20 - 20000 Hz
Channels
8 Channels
Rachmountable
Yes
Phantom Power
Yes
Width
20"
Height
8"
Depth
12"
Connections
Main Outs
Unbalanced 1/4" TS
CRTL Room/ALT Outs
None
Direct Outs
0
Headphone Outs
1
Aux Sends
1
Inserts
0
Bus/Subgroup Outs
0
Mic-Pre Inputs
8
Line Inputs
8
Digital Features
Digital Recording Interface
None
Powered Features
Total Max Power
200 watts
Continuous Power @ 8 ohm (Bridged)
200 watts x 1 channel
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PMX801

Weight:

23.65lbs

Internal SKU:

pmx801

Internal Product ID:

30647

Customer Ratings & Reviews


Pyle PMX801 thumbnail image

5 star
0%
4 star
50%
3 star
0%
2 star
0%
1 star
50%



Durability
3
Value
3
Features
2
Design
2.5
Usability
3

Customer Reviews

Sort by:

Loading...

Pyle PMX801

This machine sucks! Too heavy and too big, ugly design. PERIOD!

By Steve on February 26, 2012

6 found this helpful


Pyle Pmx801 for karaoke.

I use the amplifier for karaoke, it does a good job. It has all the power I need to push four speakers. How ever it would be nice to have more out put jacks and an input jack to connect strait to a computer with out the need of 1/4" adapters. But for the price, it's a great buy.

By BOB on December 8, 2011
