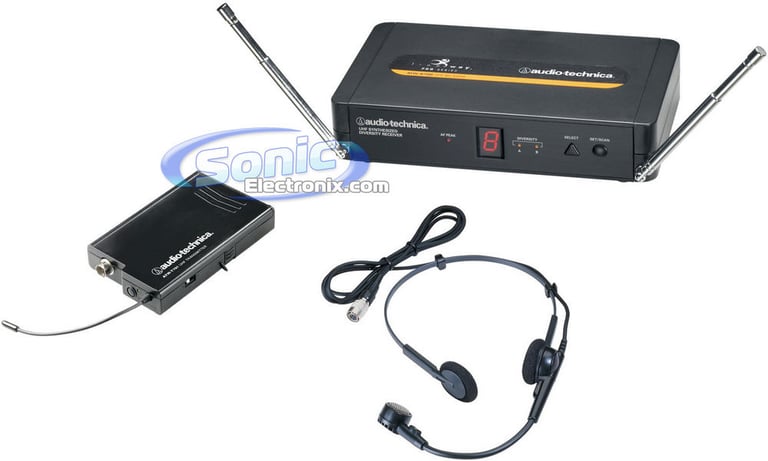

Audio Technica ATW-701/H

700 Series Frequency Diversity UHF Wireless System w/ ATW-R700 & ATWT701 w/ PRO 8HEcW Microphone

Audio Technica
Shop all Audio Technica
highlight-star-icon

700 Series Frequency Diversity UHF Wireless System • 8 Selectable Frequency-Coordinated UHF Channels • Automatic Frequency Scanning • LED Channel Display • Balanced XLR and Unbalanced 1/4" Output Connectors

Learn more about the atw701h

We apologize

This item has been discontinued


Loading...
Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

Description


Audio Technica brand icon

Authorized dealer

Wireless Professionalism

Audio-Technica’s 700 Series Freeway wireless delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock™ squelch and more. 700 Series Freeway systems come equipped with your choice of handheld, headworn, or lavalier microphones; or choose a system designed for guitar hookup. For multiple-mic applications, as many as eight systems may be used together.

General Features:
  • 700 Series Frequency Diversity UHF Wireless System
  • 8 selectable frequency-coordinated UHF channels
  • Use up to 8 simultaneous systems—all channels compatible
  • Automatic frequency scanning
  • Diversity operation for increased range/reliability
  • LED Channel display plus Antenna, AF Peak indicators
  • Balanced XLR and unbalanced 1/4" output connectors
  • Tone Lock squelch system eliminates interference when transmitter is off
  • UniPak transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation
  • Handheld transmitter features: variable trim control, internal channel selector, multi-color battery/power indicator, AA operation
  • Freeway body-pack systems are compatible with all Audio-Technica Wireless Essentials® microphones and cables
  • 1-year Manufacturer's warranty
Overall System Specifications:
  • Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz
  • Number of Channels: 8
  • Frequency Stability: ±0.005%, Phase Lock Loop frequency control
  • Modulation Mode: FM
  • Maximum Deviation: ±25 kHz
  • Operating Range: 200' typical
  • Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
  • Frequency Response: 100 Hz to 12 kHz
Receiver Specifications:
  • Receiving System: Antenna-switching diversity
  • Image Rejection: 55 dB minimum
  • Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz
  • Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
  • Sensitivity: 25 dBµV (S/N 60 dB at 10 kHz deviation, IEC-weighted)
  • Audio Output: Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation)
  • Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)
  • Output Connectors: Unbalanced: 1/4" TS ("mono") phone jack
  • Balanced: XLRM-type
  • Power Supply: 100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode, external power supply
  • Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D
  • Weight: 12.9 oz (365 g)
  • Accessory Included: Power supply
ATW-T701 UniPak™ Body-Pack Transmitter Specifications:
  • RF Power Output: High: 10 mW; Low: 5 mW
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >100 dB, A-weighted
  • Input Connections: High impedance, low impedance, bias
  • Batteries: Two 1.5V AA alkaline (not included)
  • Current Consumption: High: 140 mA; Low: 130 mA, typical
  • Battery Life: Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
  • Dimensions: 2.56" (65.0 mm) W x 4.13" (105.0 mm) H x 0.73" (18.5 mm) D
  • Net Weight: 2.8 oz (80 g)
Handheld Microphone Specifications:
  • RF Power Output: 10 mW
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >100 dB, A-weighted
  • Microphone Element: Dynamic, unidirectional
  • Batteries: Two 1.5V AA alkaline (not included)
  • Current Consumption: 120 mA, typical
  • Battery Life: Approximately 12 hours, depending on battery type and use pattern
  • Dimensions: 9.65" (245.0 mm) long, 2.11" (53.5 mm) diameter
  • Net Weight: 9.1 oz (257 g) (without batteries)
  • Accessory Included: AT8456a Quiet-Flex™ stand clamp
