Description


A Digital Situation

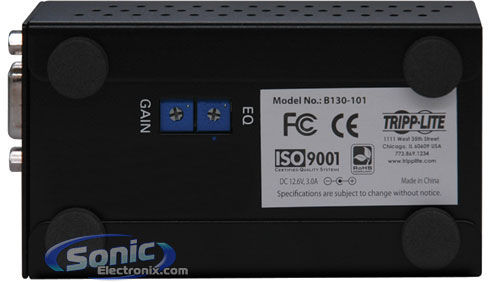

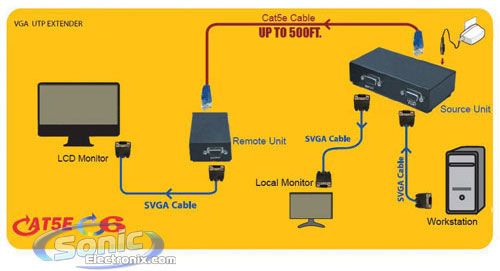

Tripp Lites B130-101 allows you to connect a VGA monitor up to 500ft away from a computer using ordinary Cat5e/Cat6 cable. Ideal for digital signage situations, such as retail, schools, church, etc. The Local unit ( Transmitter ) also allows for connection of a monitor near the source computer. For distances of 500-1000ft, use Zero-Skew cable, such as Tripp Lite P524-01K. Remote unit contains Equalization length ( EQ ) and Brightness ( Gain ) adjustment screws for crystal clear images...small screwdriver is included with the unit.

Key Features:

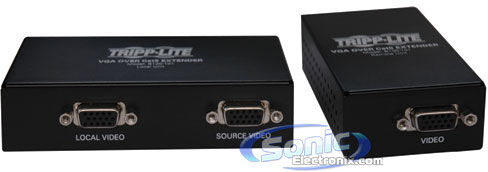

  • VGA over Cat5 Extender Kit (Transmitter + Receiver)
  • Extends VGA up to 500ft away from a source computer
  • Up to 1000ft with Zero-Skew cable ( Tripp Lite P524-01K)
  • Connect a local monitor as well
  • Video Resolution up to 1920 x 1440
  • Equalization and Gain adjustment screws
  • Compatible with: VGA, SVGA, XGA, UXGA, and WUXGA
  • 1-year Manufacturer's warranty
System Requirements:
  • Computer with VGA video output connector
  • Monitor(s) with VGA input

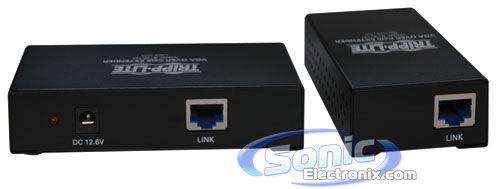

Connections:
  • Local Console Ports (Port 1): 2 x HD15 Female
  • Local Console Ports (Port 2): 1 x RJ45 Jack
  • Remote Console Ports (Port 1): 1 x HD15 Female
  • Remote Console Ports (Port 2): 1 x RJ45 Jack
Package Includes:
  • Local Unit
  • Remote Unit
  • Owners Manual
  • Screwdriver
  • External Power Supply (5-15P Plug), Input: 100-240V, 50/60Hz, 1.5A, Output: DC 12.6V, 3A

Specifications & Details


Adapter Specifications
Adapter Side 1
VGA (D-Sub)
Adapter Side 2
Ethernet Cable
Primary Color
Black
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

B130-101

Weight:

1.75lbs

Internal SKU:

b130101

Internal Product ID:

31024
