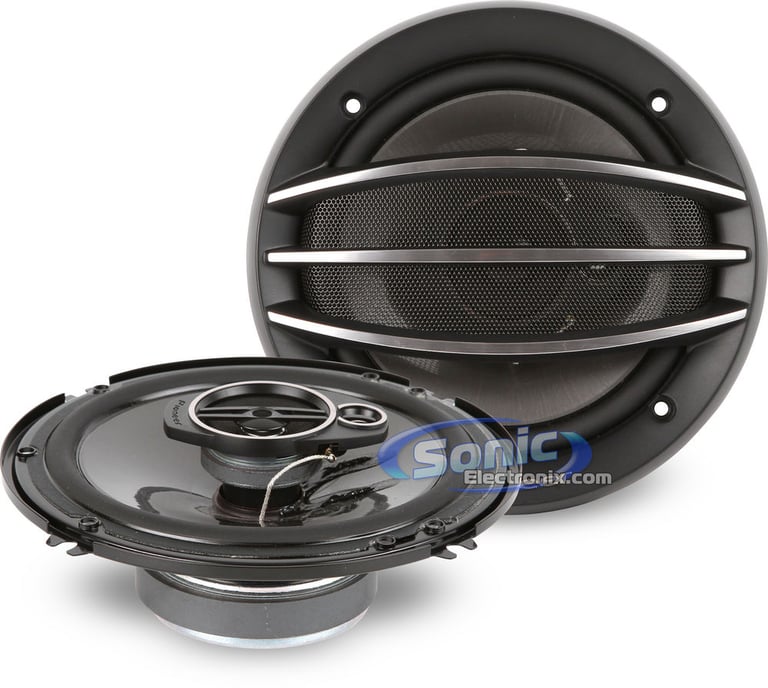

Pioneer TS-A1674R-Open Box

6.5" 3-Way A-Series Coaxial Car Audio Speakers

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 600W
• RMS Power: 70W
• 3/8" Dome Tweeter
• Mounting Depth: 1-3/4"
• Carbon Graphite IMPP Interlaced Aramid Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Learn more about the LS-tsa1674r-OB

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights


• Peak Power: 600W
• RMS Power: 70W
• 3/8" Dome Tweeter
• Mounting Depth: 1-3/4"
• Carbon Graphite IMPP Interlaced Aramid Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

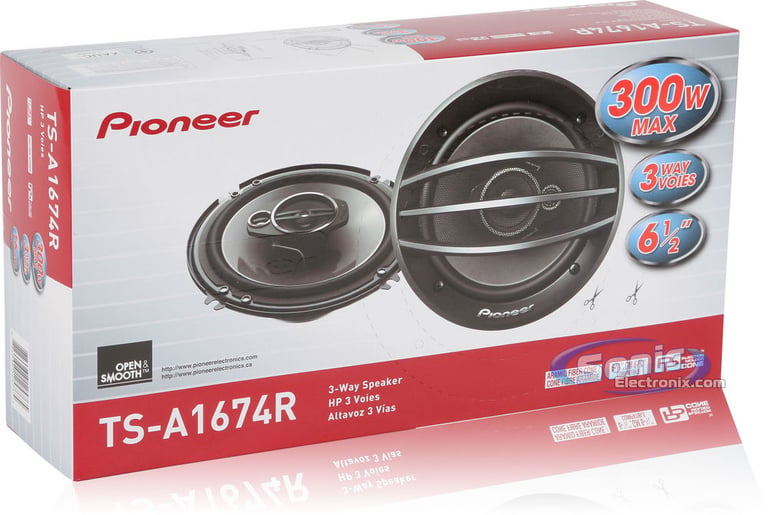

2011 Pioneer A-Series Car Speakers
Improving on the previous design of the Pioneer A-Series speakers, the new 2011 Pioneer TS-A1674R prove to be a big step forward for the already award winning speakers. The most notable improvement on these new speakers is the enhanced power handling of the speakers. With an RMS power handling of 35 watts. The Pioneer TS-A1674R becomes a great solution for a factory replacement speaker. However, Pioneer increased the Max power handling to 300 watts, which is great for those that want to power these speakers with an aftermarket amplifier. Using Carbon graphite IMPP interlaced aramid fiber cone and an elastic polymer surround, the diaphragm response is smooth and results in natural, crisp sound. For those that want the latest in car audio loudspeaker technology, Pioneer is an excellent choice and a leader in the mobile loudspeaker industry. Improve your ride for 2011 with the Pioneer TS-A1674R.

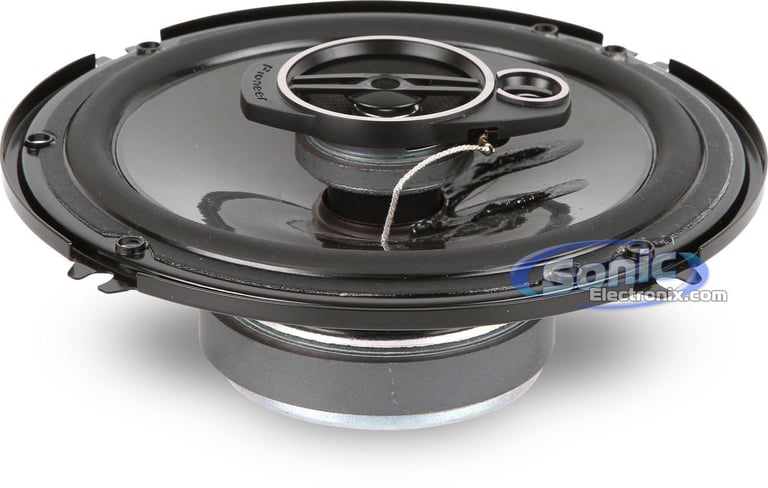

  • 6-1/2" A Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 70 watts per pair / 35 watts each
  • Carbon graphite IMPP interlaced aramid fiber cone
  • Light weight elastic polymer surround

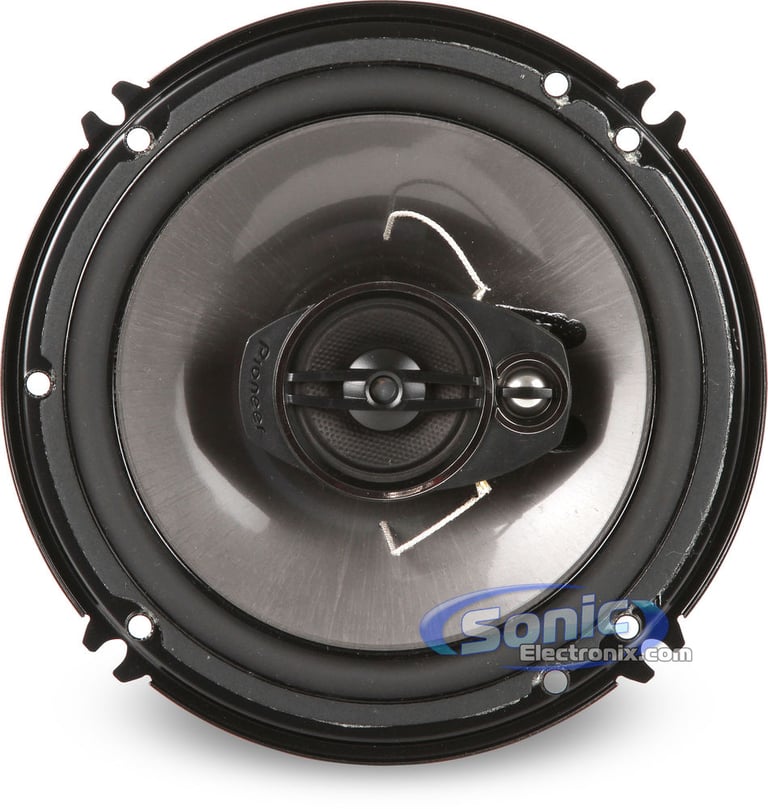

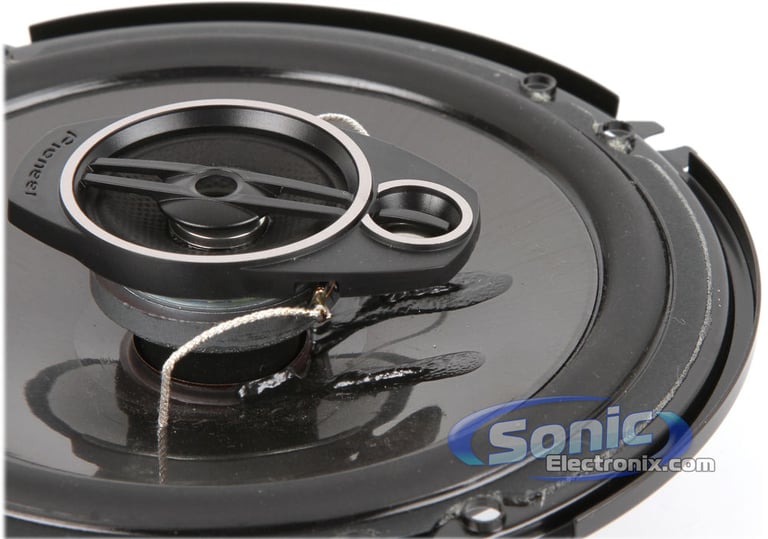

  • 1-5/8" Midrange with 19 g (0.7 oz) strontium magnet
  • 3/8" Dome tweeter
  • High sensitivity and power handling

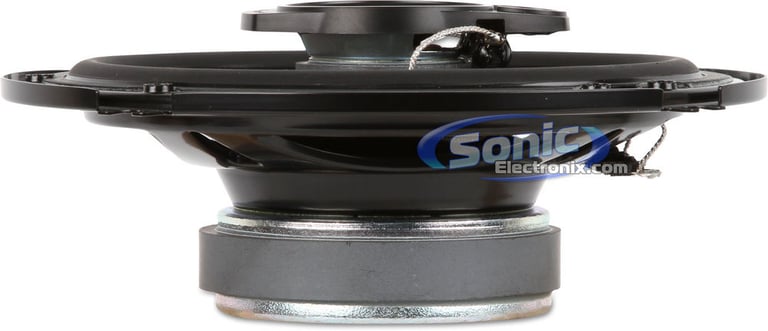

  • Shallow basket design
  • 4 ohm impedance
  • Heat-resistant voice coil

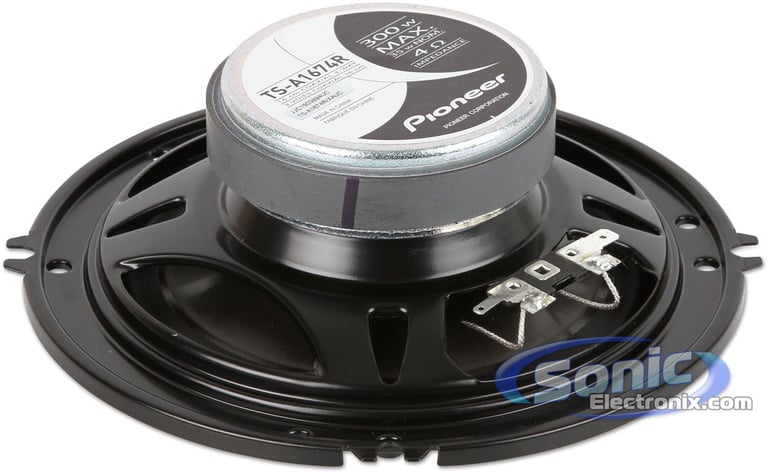

  • 220 g (7.6 oz) Strontium woofer magnet
  • Top-mount depth: 1-3/4"
  • 1-year SonicElectronix.com warranty

Priced Per Pair

Specifications & Details


Speaker Specifications
Speaker Size
6-1/2"
Design
3-way Coaxial
Tweeter Design
Dome
Woofer Composition
Carbon Graphite IMPP Interlaced Aramid Fiber
Woofer Surround
Elastic Polymer
Peak Power Handling
300 watts
RMS Power Handling
35 watts
Sensitivity
90 dB
Frequency Response
37 - 30,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-3/4"
Bottom-Mount Depth
2"
Cutout Dimensions
5" x 5"
General specifications

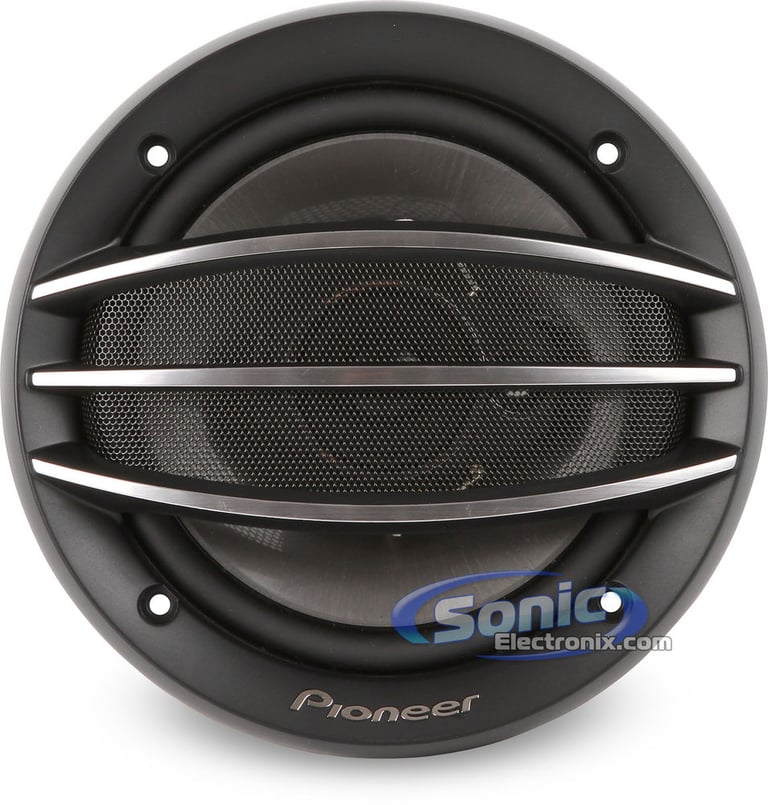

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1674R-OB

Weight:

3.70lbs

Internal SKU:

LS-tsa1674r-OB

Internal Product ID:

75682
