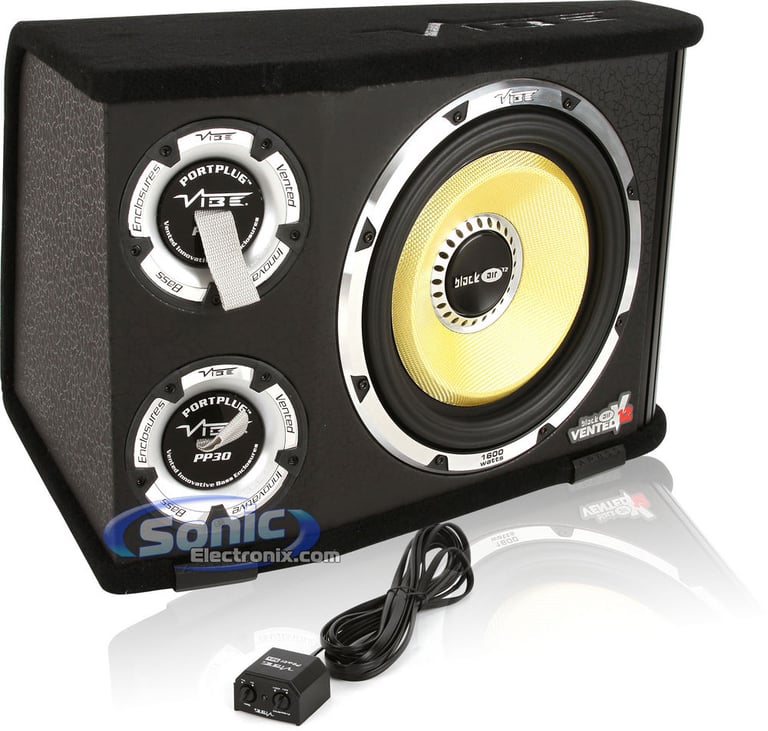

VIBE Audio BlackAirV12-V1

1600W Max 12" Black Air Series Amplified and Ported Subwoofer Enclosure with Variable Port Tuning

VIBE
Shop all VIBE
highlight-star-icon

12" Black Air Series Subwoofer • Dual 2 Ohm • 1600 Watts Max • 550 Watts RMS • Polyglass Cone • Multi-Roll Rubber Surround • FEMM Motor and FEA Cone • Built-in Amplifier and Box • Variable Port Tuning

Learn more about the blackairv12v1

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Add to cart
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Add to cart
JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

$79.99

Add to cart
51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Add to cart
CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4

$229.99

Add to cart
Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

Add to cart
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Add to cart
Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

Add to cart
DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Add to cart
Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Add to cart

Description

VIBE brand icon

Authorized dealer

Subwoofer Features:
  • 12" Dual 2 ohm Black Air Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 550 watts
    • Minimum: 275 watts
  • Final Impedance (of enclosure): 4 ohm (Wired in series internally to create a 4-Ohm amplifier load)

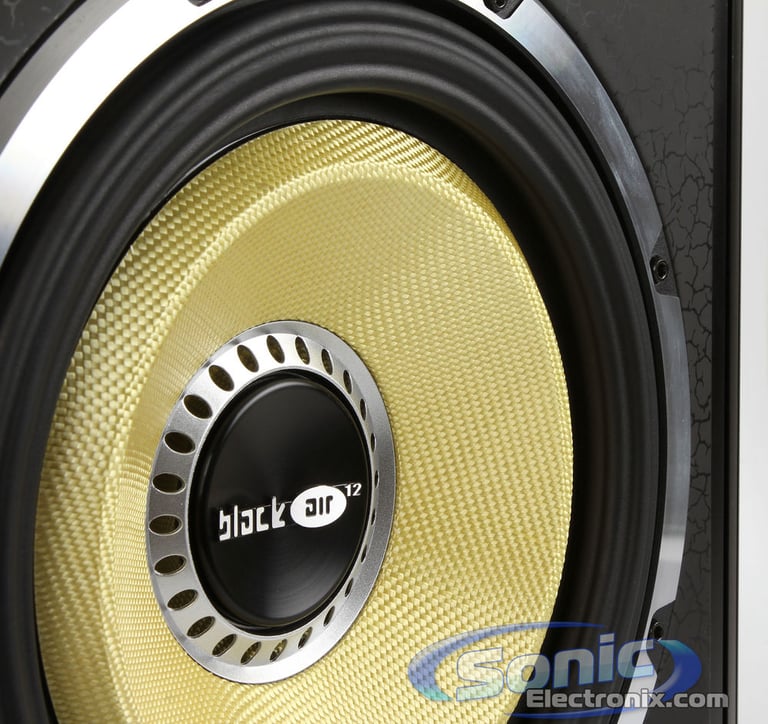

  • Polyglass cone made from a combination of polypropylene and fiberglass
  • Multi-roll rubber surround achieves better linearity throughout the subwoofers excursion range
  • Dual Voice Coils (DVC) offers multiple impedance options
  • Unique cone support is specially designed for rigidity without excessive weight
  • Dual spider assists with the control and stability of the cone, as well as higher power handling
  • FEMM Motor provides low distortion and linear flux saturation
  • FEA Cone is designed using Finite Element Analysis (FEA) to ensure maximum rigidity to weight
  • Alloy torsion basket provides rigidity and support for motor and moving parts
  • Removable rubber boot for greater magnet protection
  • Aluminum alloy gasket is made from high quality machined aluminum
  • Screw input terminals allow for heavier gauge speaker wire to be connected to the voice coil
  • 2" Aluminum 4-layer voice coil
  • Single 60 oz. ferrite magnet
  • Mounting depth: 6-3/4"
  • Mounting diameter: 11-1/4"
  • Frequency response: 25-1,500 Hz
  • Sensitivity: 89 dB
  • Also found as: blackairv12v1, bav12v1, bav12-v1, ba12v1, ba12-v1
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

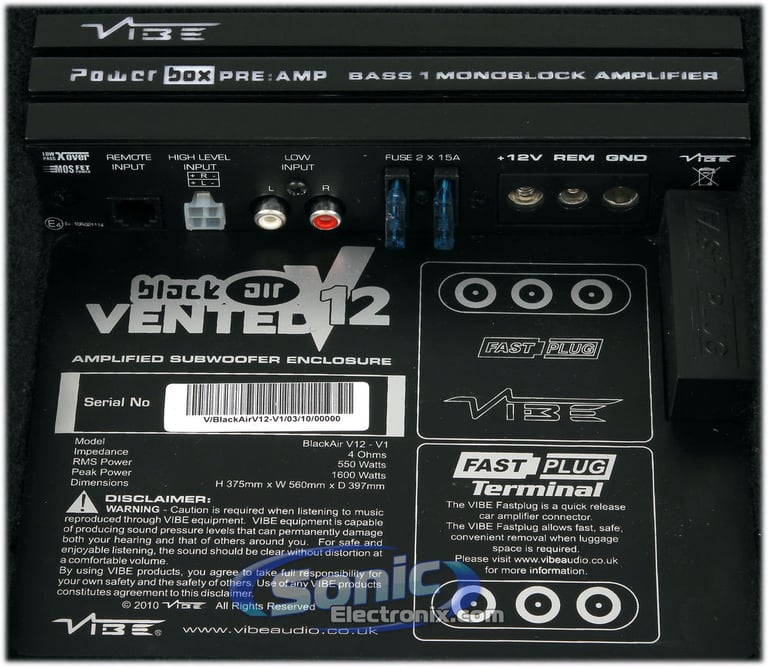

Amplifier Features:
  • PowerBox Series Class AB Car Amplifier
  • Designed to perfectly power the included 12" Black Air Series Subwoofer
  • MOSFET Power Supply

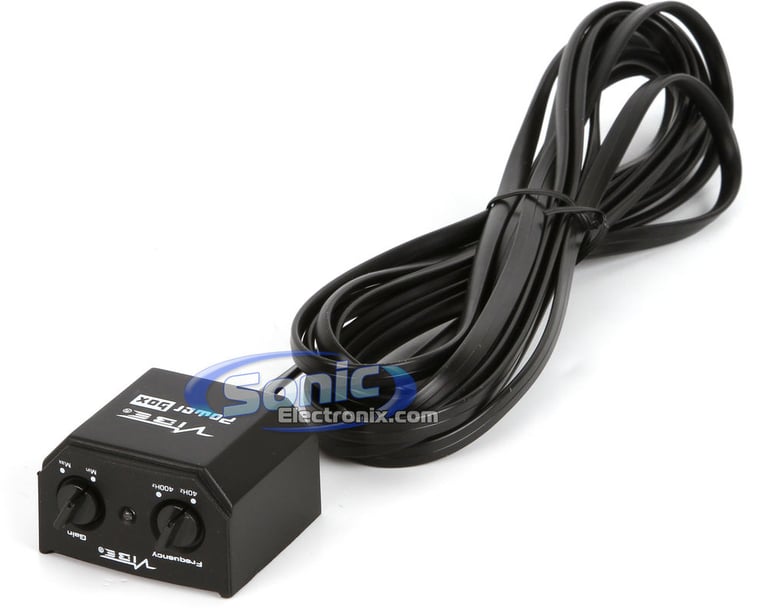

  • Remote level bass control included
  • LED power protection indicators
  • Heavy duty aluminum alloy heatsink
  • High and low-levels inputs
  • Low-pass crossover adjustable from 40-200 Hz
  • Gain adjustment from 0.25v to 6v

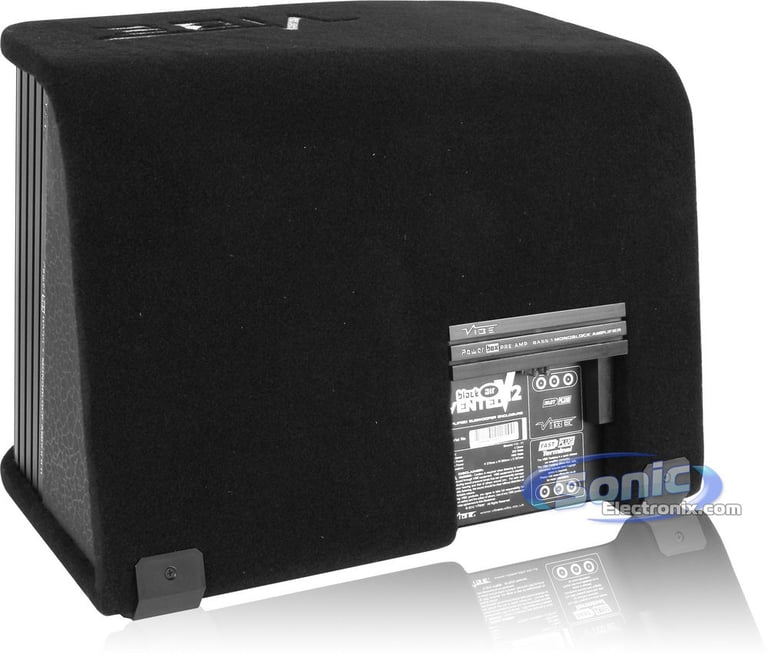

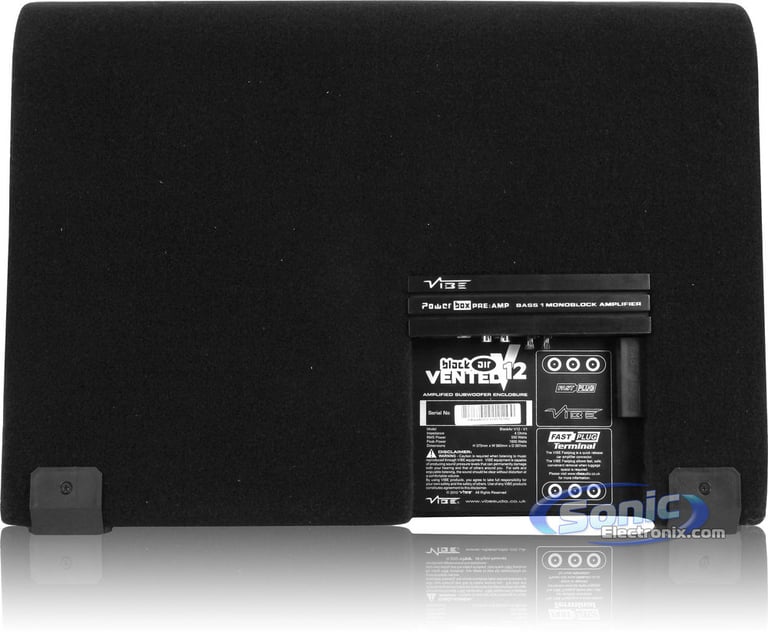

General Enclosure Features:

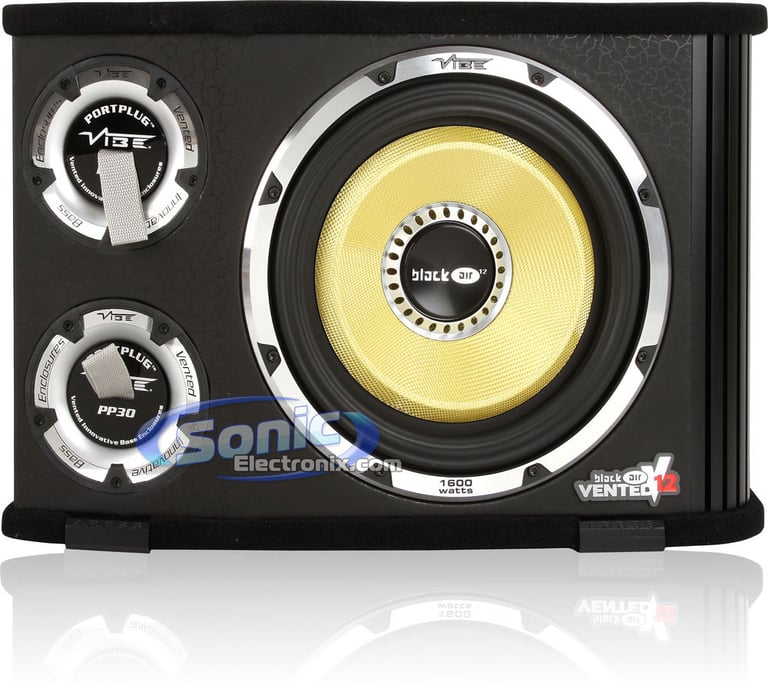

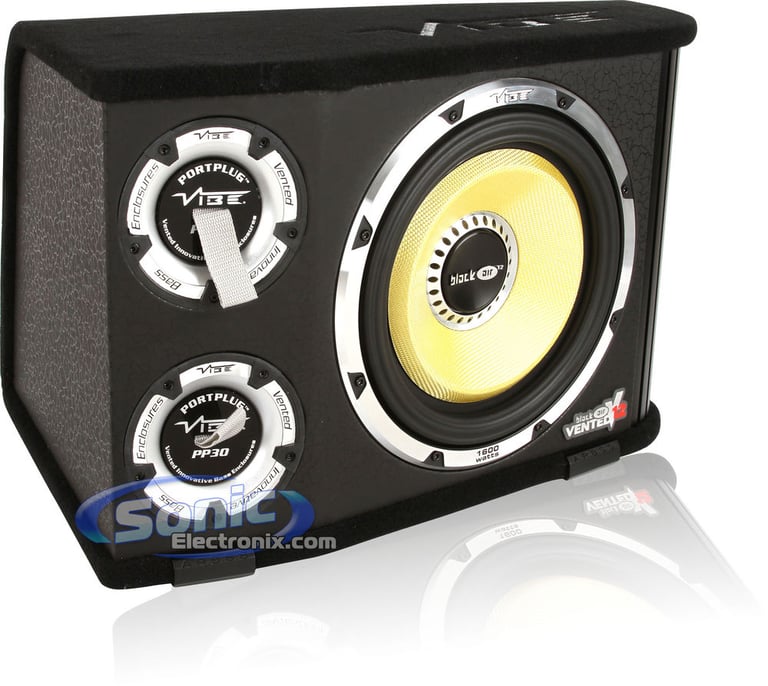

  • 12" Ported Subwoofer Enclosure
  • Box pre-installed with VIBE BA12-V1 Subwoofer

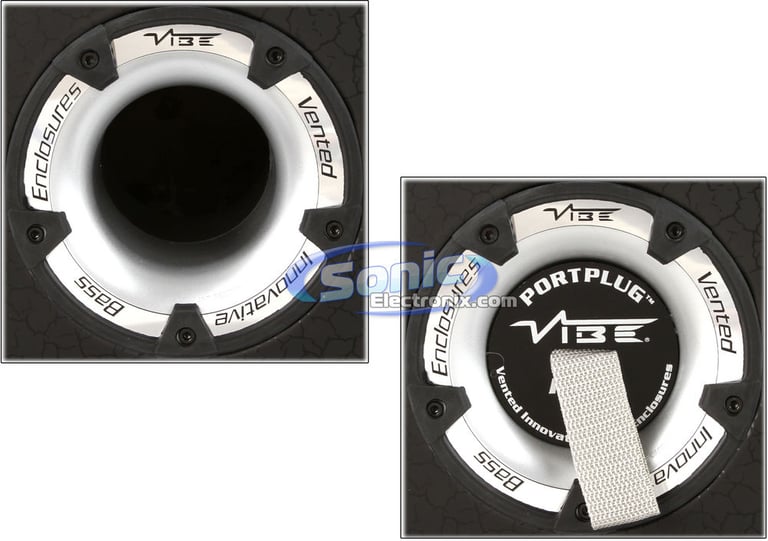

  • Variable Port Tuning allows for different port configurations
  • Made from durable 3/4" MDF
  • Designed and engineered specifically for the loaded subwoofer
  • Inserting both Port Plugs allows enclosure to act as Sealed
  • Final impedance of the entire loaded enclosure is 2 or 8 ohm
  • Dimensions: 15-11/16"L x 22-1/16"W x 14-13/16"H

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details

Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Remote bass/level controller
Yes
Fuse Rating
15A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
550 watts
Total RMS Power Handling
550 watts
Peak Power Handling
1600 watts
Total Peak Power Handling
1600 watts
Woofer Surround
Rubber
Woofer Composition
Polyglass
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
89 dB
Frequency Response
25 - 1,500 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
14-13/16"
Width
22-1/16"
Depth
15-11/16"
Wood Thickness
3/4"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

VIBE

Model Number:

BlackAirV12-V1

Weight:

47.50lbs

Internal SKU:

blackairv12v1

Internal Product ID:

31816
