American DJ VIZI BEAM 5R

Platinum 5R Discharge Lamp Moving Head Fixture with Gobo Shake Effect & Auto Focus

American DJ
Shop all American DJ
highlight-star-icon

Platinum 5R Discharge Lamp Moving Head Fixture • Remote DMX Addressing • 4 Operational Modes • 12 DMX Channels • Gobo Scroll Mode • Gobo Shake Effect • Auto Focus • Strobe Effect • Frost Filter

Learn more about the vizibeam5r

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


American DJ brand icon

Authorized dealer

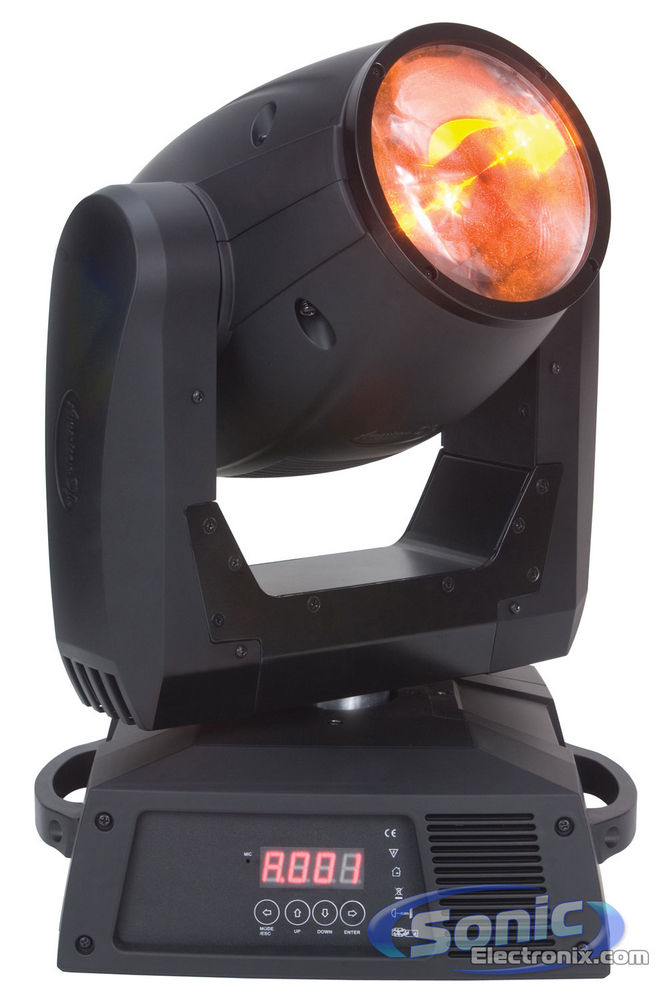

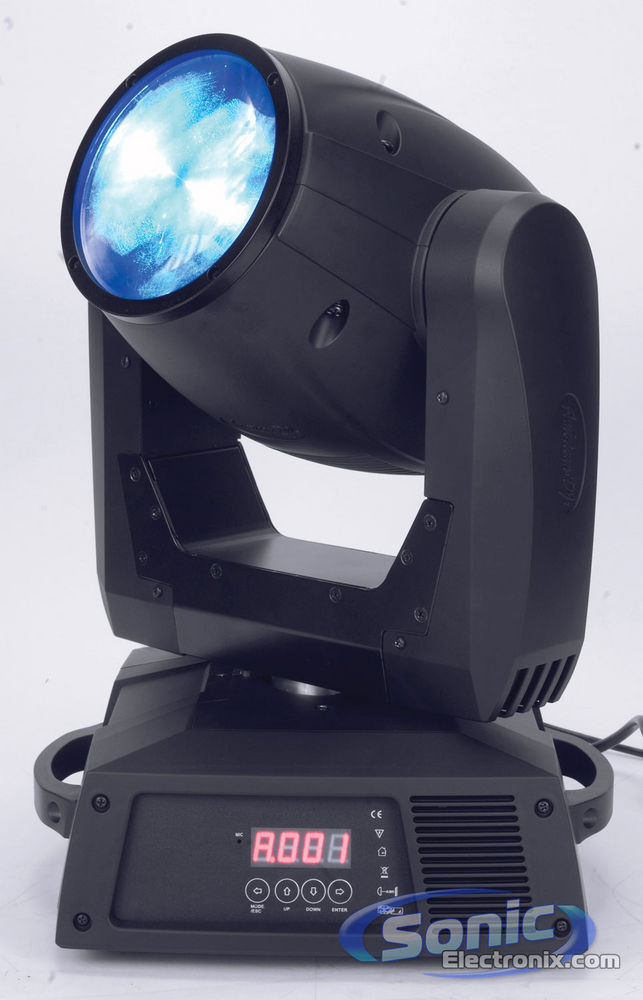

American DJ VIZI BEAM 5R

The ADJ Vizi Beam 5R, Moving Head Fixture features the revolutionary Philips Platinum 5R discharge lamp technology (8000°K, 2,000 hr). The powerful Platinum 5R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Beam 5R is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class. It's very tight, 3-degree beam with extreme output makes it ideal for applications where a small beam is necessary.

Product Features

  • Platinum 5R Discharge Lamp Moving Head Fixture
  • RDMX - Remote DMX addressing (Change DMX values remotely from any DMX Console)
  • 4 Operational modes: DMX, Master/Slave, Stand Alone & Sound Active
  • 12 DMX channels
  • Gobo scroll mode
  • LED DMX 4-Button menu system
  • 3° Beam angle
  • Auto X-Y repositioning
  • 12 dichroic colors + white (UV included)
  • 14 static, fixed gobos + spot
  • 3D Prism with macros
  • Gobo Shake effect
  • Gobo size: 6 mm viewable gobo size
  • Independent gobo and color wheels
  • Pan: 360° standard (540° optional)
  • Tilt: 270°
  • Auto Focus
  • Shutter: Pulse effect; random strobe slow to fast
  • Dimming: 0% - 100%
  • Strobe effect
  • Frost Filter
  • Stepper motors with micro stepping
  • Hanging bracket included
  • 3-pin & 5-pinXLR In/Out
  • LUX: 99250 @ 10M, 70030 @ 15M
  • Lumens: 8000 LUX
  • Multi-voltage Operation: 115V/60Hz or 230V/50Hz (Switchable)
  • Lamp: Philips Platinum 5R discharge, 8,000°K - 2,000 hr. long life
  • Dimensions: 13-1/4"L x 12-1/4"W x 17-3/4"H
  • 1-year Manufacturer's warranty

Specifications & Details


DJ Lighting Features
DJ Lighting Type
LED
Light Coverage
3 °
Number of Lights
1
Number of Colors
13
DJ Light Colors
Blue
Green
Purple
Red
White
Yellow
Sound Activated
Yes
Strobe Light
Yes
Height
17-3/4"
Width
12-1/4"
Depth
13-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VIZI BEAM 5R

Weight:

25.00lbs

Internal SKU:

vizibeam5r

Internal Product ID:

31919
