AudioControl Three.2 EQ/Subwoofer Crossover w/ Dual Aux Inputs

AudioControl Three.2

In-Dash Pre-Amp Equalizer / Subwoofer Crossover w/ Dual Auxiliary Inputs & 5-year warranty*!

In-Dash Pre-Amp Equalizer / Subwoofer Crossover w/ Dual Auxiliary Inputs & 5-year warranty*!

• Graphic Stereo Equalization
• Para-BASS
• Input Selection
• 24dB/Octave Linkwitz Riley Crossover
• Pre-Amp Line Driver
• Master Volume Adjustment
• Subwoofer Level Control
• Fader Control
• Adjustable Illumination

5.0

(8)
List price $359.99
Save: $60.00

$299.99

Special Order. Ships at Later Date with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
AudioControl

Authorized dealer


For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".

Three.2 - In-dash Equalizer/Crossover with Auxiliary Inputs

If you want great sound and love to "tweak" your system, then you will truly appreciate the AudioControl THREE.2. Affectionately called the "EQ on steroids", the THREE.2 is a high-end pre-amplifier that offers equalization and crossover controls for enhanced sound quality. Multiple audio inputs, both front and rear allow for maximum connectivity with all of your favorite source units.

While being housed in a compact ½ DIN sized chassis, the THREE.2 is truly a feature-laden processor. The THREE.2 starts with four stereo equalization filters including AudioControl's proprietary Para-BASS controls, which give subwoofers extra kick and detail as needed. It also features a 4 channel, 2-way, 24 dB/octave car audio crossover with a fader. To round out the package the THREE.2 also includes a subwoofer level control, master volume control, and the ability to select the back lighting illumination color between Cool Blue and Hot Red.

Given that many of today's audio enthusiasts like to carry their music with them, the THREE.2 is equipped with dual, 3.5mm auxiliary input jacks located on the front and rear of the chassis. This helps facilitate the permanent installation of cabling or lets a user plug in their portable audio device on the fly. Like all AudioControl autosound products, the THREE.2 is built in our factory in the Pacific Northwest, USA and carries a full 5-year parts and labor warranty when installed by an authorized dealer.

Key Features:

Graphic Stereo Equalization:

The THREE.2 turns the dashboard of your car into a mini-mixing board, just like that in a recording studio. The THREE.2 has three frequency controls set at 125Hz, 1.25KHz, and 10KHz respectively. The frequencies were selected to provide you with a just enough control to make dramatic improvements in any system.

Para-BASS®:

You want bass, we got bass. This specially designed equalizer control lets you adapt the bass response of any system to your listening desire. Given all of the various types of music combined with numerous possible bass response anomalies in every vehicle, a single control for bass just doesn't cut it. It's like painting a picture with only one color... BORING!

Input Selection:

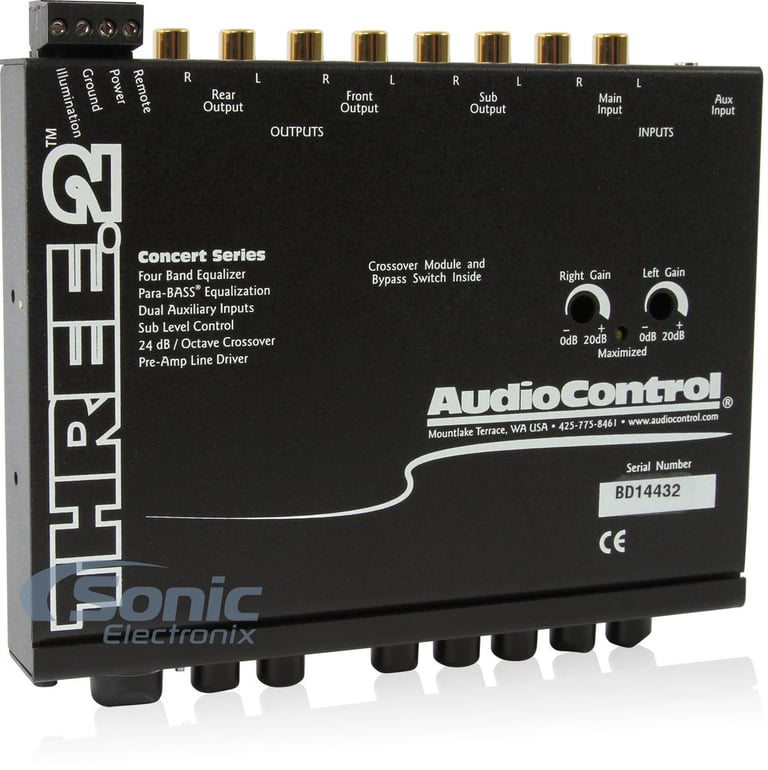

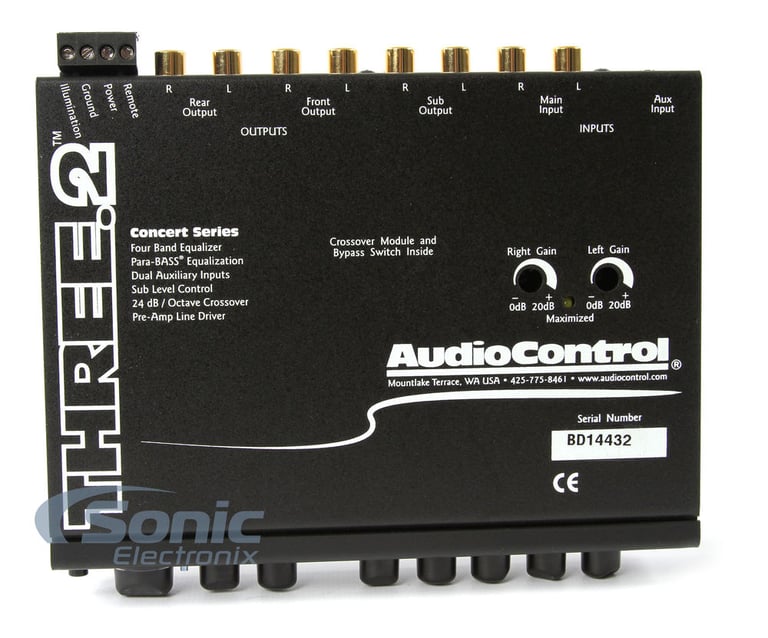

The THREE.2 provides a "Main" RCA input on the back panel of the unit. It also provides two choices for an Auxiliary input. One is on the back panel for a permanent Aux-in, and the other is located on the front panel. If you just want to be able to plug an iPod in on occasion, then you can use the front panel 1/8" input. Also, the THREE.2 Aux-ins have been optimized with extra gain to compensate for weak signals from iPods and other MP3 players.

24dB/Octave Linkwitz Riley Crossover:

What is the benefit of fine tuning your system if you cannot accurately route the proper frequencies to the proper amplifier channels? The programmable audiophile crossover in the THREE.2 is the same crossover in many other award winning AudioControl components. Know who else gives you a 24dB Linkwitz-Riley in their in-dash EQ? Nobody! This is also a far cry from the wimpy crossovers that find their way into some amplifiers these days.

Pre-Amp Line Driver:

Talk about your ironies. Amplifiers require a high voltage input signal (generally 2 to 5 volts) to operate with maximum dynamic range and the best signal-to-noise ratio. On the other hand, typical source units only produce 1 to 2 volts, if your lucky. In a system where the source unit is located in the front of the car and the amplifier(s) are located in the rear, the length of the connecting cables can have an negative impact on the strength of the signal. The THREE.2 includes a line driver that takes the weak output voltage of a head unit and increases it 20dB (up to 13 volts peak) and then delivers it downstream to the amplifier inputs.



General Features:

  • Stereo graphic equalization
  • In-dash Pre-Amp controller
  • Dual stereo auxiliary inputs (3.5 mm front and rear)
  • Para-BASS low frequency contouring
  • Two input channels and two, four, or six channels of output
  • Stereo and Para-BASS equalization controls for maximum sound quality
  • Precise 24 dB/octave electronic crossover
  • Subwoofer level control optimizes bass performance
  • Pre-amp line driver (13 volt peak) delivers maximum signals to amplifiers
  • Pre-amp gain of 20dB
  • Master volume control and fader
  • Selectable illumination - Cool Blue or Hot Red LED's
  • Compact 1/2 DIN chassis
  • Weight: 2lbs
  • Dimensions: 1.00" H x 6.75" W x 5.00" D
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

Three.2 Specifications

  • Maximum input/output level: 9.5 Vrms/13.5 Vpeak
  • Frequency response: 20Hz - 20,000 Hz; ±1dB
  • Total harmonic distortion: 0.01%
  • Signal to Noise ratio: -110dB
  • Input Impedance: 20 K ohms
  • Output Impedance: 150 Ohms
  • Input gain: 0 - 20dB
  • Equalization Cut/Boost: ±12dB
  • Crossover slope: 24dB/octave Linkwitz Riley
  • Factory crossover setting: 90Hz
  • Power supply: High headroom PWM switching
  • Power draw: 250mA
  • Recommended fuse rating: 1 Amp


Check out the AudioControl Three.2 Owner's Manual

FEATURES & SPECS
Equalizer Specifications
Type of Equalizer
Graphic
Equalizer Bands
3 band + Para-BASS
Equalizer Frequencies
40 - 10,000 Hz
Built-in Bass Reconstruction
No
Line Driver
Yes
Speaker Level Inputs
No
Total Number of Inputs
3
Total Number of Outputs
3
Button Color
Blue or Red
Signal Boost/Cut
12 dB
Max Output Level
9.5Vrms
Frequency Response
20 - 20,000 Hz
THD (Total Harmonic Distortion)
0.01%
Signal-to-Noise Ratio
-110 dB
Width
6.75"
Height
1.00"
Depth
5.00"
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
AudioControl Three.2

AudioControl Three.2

5.0

(8)

Write a review

Overall rating distribution

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
5

Floyd

February 18, 2013

name is y i brought it

I havent hooked it up yet but i bet its gone be a beast

23

found this helpful.

Raymond

September 2, 2013

Flexible Pre Amp - Line Driver - XOver

Only requires Front Two Channels for input from the source unit then has Front, Rear and Sub Woofer Left & Right outputs. The Sub Woofer output includes an electric (active 24 dB) crossover at 90 HZ and can be changed out to 30 HZ - 3500 HZ or can by-passed. Line Driver up to 13 v and two 1/8 Aux. plugs, one on the front and one on the back for Ipod or other devices. I use this pre amp along with the Audio Control 6XS for a 4-way active crossover system.

20

found this helpful.

nohobandit

June 24, 2013

Much control for no much $$$

I recently installed this unit in my Dodge Challenger. I have used many AudioControl products in the past but had never used this particular "in dash" piece. Let me tell you, it gives you a very good command of whatever music you are listening too. The adjustments are very accurate and the master volume control is a great feature. The sub control and gain control are great as well. You will not be disappointed with this EQ. Pair it with the in dash Epicenter and your subs will do more than you ever imagined.

18

found this helpful.

Lardoggy

July 13, 2013

This unit works very well, I LIKE IT!

Just fired up the new EQ pre amp. got to love this one. worth every dollar.

16

found this helpful.

Anonymous

January 8, 2019

Just what I needed!

The epicenter added too much bass that would distort quickly, turns out this line driver is exactly what I needed. The 13V output is plenty to feed the amps, in fact, I was able to lower the gains and crank this guy up for all the crystal clear bass I could ever want. Worth every penny!

3

found this helpful.

Jesus

November 19, 2017

Great proscesor

Awesome proscesor . It really does what it suppose to do. I hook it up along with Indash epicenter and ohhhhh boyyy... great great great great sound overall

2

found this helpful.

Anonymous

May 14, 2018

AudioControl Three.2

I reallly recommend this product for any spl competition to boost any amplifier to its peak and I promise that you will not be disappointed.

1

found this helpful.

Mac

October 13, 2020

Great value

I highly recommend this product. Never been disappointed with any audiocontrol equipment.
