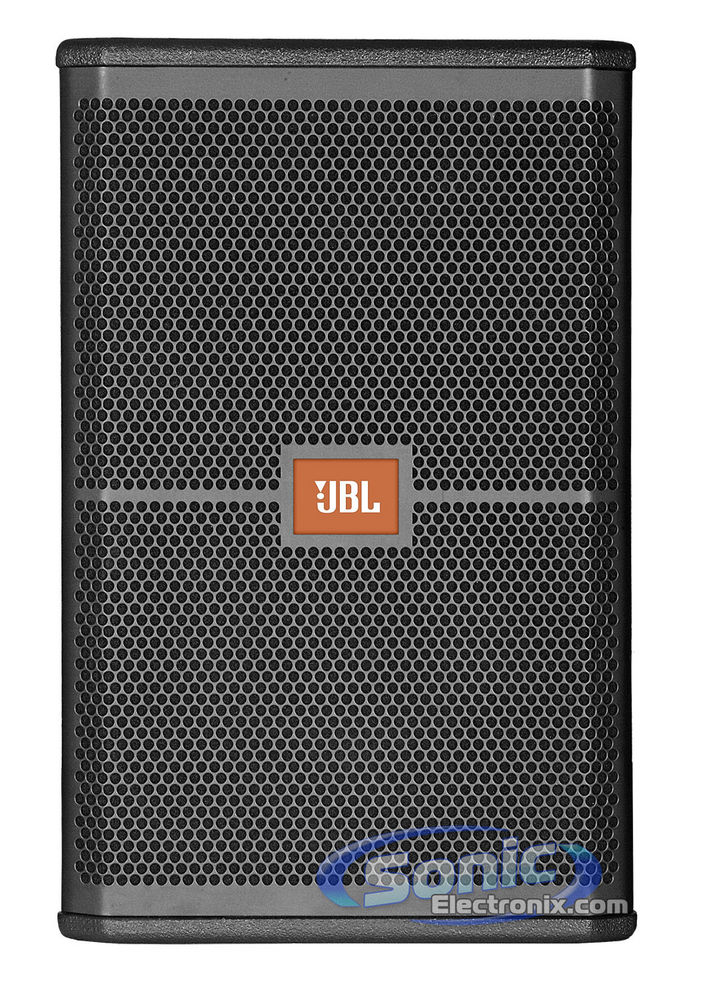

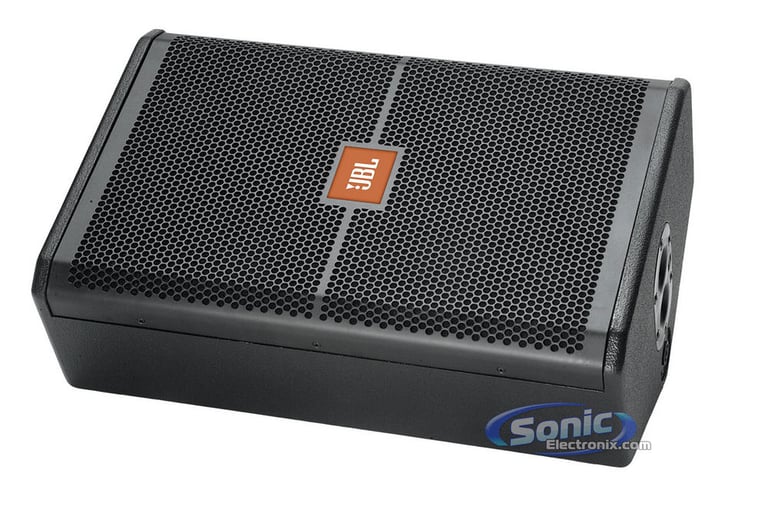

JBL SRX712M

3200W 12" Two-Way High-Powered Stage Monitor Speaker with Bi-Amplified Design

JBL
Shop all JBL
Product videos
highlight-star-icon

12" High-Power Two-Way Stage Monitor • Compact and Low-Profile • Dual-Angle Pole Socket • Peak Power Rating: 3200 Watts • Frequency Response: 83-18,000 Hz • Bi-Amplified or Full-Range

Learn more about the srx712m

We apologize

This item has been discontinued


Loading...
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Limited time!
Club 422F main

JBL Club 422F (SPKCB422FAM)

210W Peak (70W RMS) 4" Club Series 2 Way Coaxial 3-ohm Speakers

-46.14%

$69.99

List price $129.95

H40 main

Cerwin-Vega H40

300W Peak (100W RMS) 4" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

1
-29.45%

$59.96

List price $84.99

Club 44F main

JBL Club 44F (JBLSPKCB44F)

210W Peak (70W RMS) 4" Club Series 2 Way Coaxial 3-ohms Speakers

-23.09%

$99.95

List price $129.95

Product Highlights


12" High-Power Two-Way Stage Monitor • Compact and Low-Profile • Dual-Angle Pole Socket • Peak Power Rating: 3200 Watts • Frequency Response: 83-18,000 Hz • Bi-Amplified or Full-Range

Description


JBL brand icon

Authorized dealer

Incredibly Lightweight

The SRX712M was designed with one goal – build the lightest, smallest, loudest, clearest stage monitor possible while delivering a strikingly professional appearance.

The SRX712M uses a 12" Differential Drive woofer and a 3" (voicecoil diameter) compression driver. The system handles 800 watts (continuous) power yet is only 12" high (305 mm) in the monitor position. A 50º x 90º horn provides smooth, even coverage regardless of the position of the performer.

For utility speaker applications, the SRX712M can be tripod mounted or over a subwoofer with JBL's dual angle pole mount providing 0º or 10º down tilt for optimum audience coverage. dbx DriveRack users may select controller settings optimizing the SRX712M for stage monitor or front of house applications (requires bi-amplified operation of the SRX712M). For suspension or truss mounting, the optional SRX712M-YK yoke bracket is available with attachment points for a wide range of suspension and truss mounting hardware.

Product Features

  • 12" High-Power Two-Way Stage Monitor
  • Power Rating:
    • Continuous: 800 watts x 1 chan.
    • Program: 1600 watts x 1 chan.
    • Peak: 3200 watts x 1 chan.
  • Compact and low-profile for minimal obstruction of audience sight-lines
  • 90°x 50° nominal coverage
  • Bi-amplified or full-range passive operation
  • Dual-angle pole socket for applications requiring tripod mounting
  • Optional yoke available for trussmounted or suspended applications
  • Neodymium magnet Differential Drive woofer for high-power capacity and very light-weight
  • 3 in (diaphragm) neodymium magnet compression driver
  • Frequency Response: 83-18,000 Hz
  • Dimensions: 10-1/4"L x 21-1/2"W x 13-3/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications & Details


Loudspeaker Specifications
Type
Passive
High Frequency Driver Size
1-1/2"
Low Frequency Driver Size
12" Driver
Frequency Response
83 - 18,000 Hz
Sensitivity
96 dB
Maximum Sound Pressure Level SPL
131 dB
Dispersion
90° H x 50° V
Passive Power Specifications
Peak Power Handling
3200 watts
Program Power Handling
1600 watts
Continuous Power Handling
800 watts
Nominal Impedance
8 ohm
Physical Features
Inputs
SpeakOn
Outputs
SpeakOn
Enclosure Material
Polypropylene
Carrying Handles
No
Speaker Mounts
Yes
Height
13-3/4"
Width
21-1/2"
Depth
10-1/4"
Weight (Pounds)
33 lbs
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

SRX712M

Weight:

33.00lbs

Internal SKU:

srx712m

Internal Product ID:

32435
