Product Highlights

12" Two-Way Powered Loudspeaker • 2200 Watts • JBL DrivePack Technology • Bi-Amplified Design • HiQnet Compatible • 60° x 40° Coverage • Differential Drive Low-Frequency Driver

Description

Authorized dealer

Leading Edge Technology

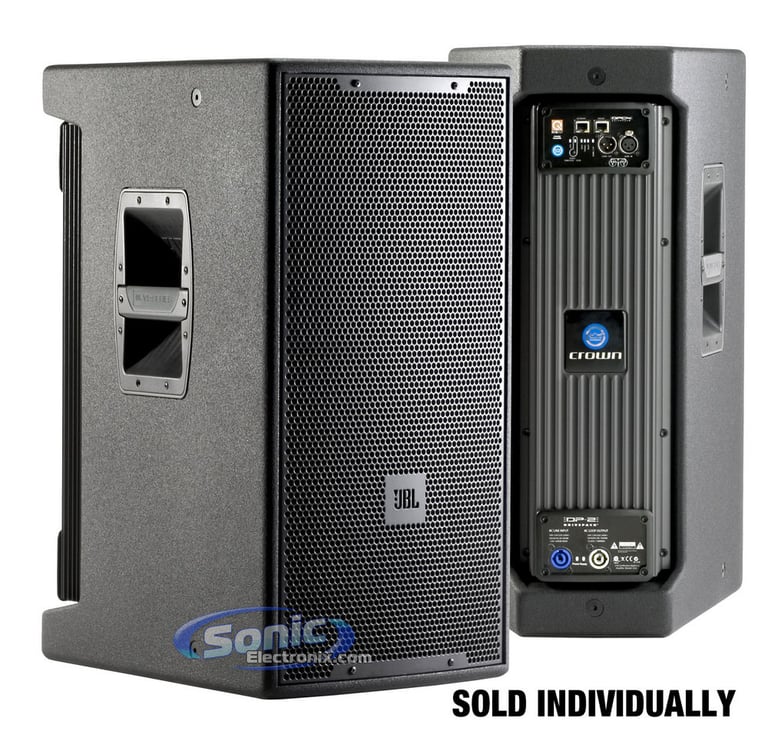

The VP7212/64DP is a powered 12" 2-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing. Designed in cooperation with Crown International, the JBL DrivePack® DP-2 features leading-edge technology such as patented high efficiency Class-I power amplifier technology. Network control and monitoring is optionally available via System Architect software.

VP7212/64DP transducers are JBL’s 2262G 12" diameter Differential Drive® woofer and the JBL 2452H-SL large format 1.5" exit compression driver. The high frequency driver is coupled to a JBL PT-H64HF Progressive Transition (PT) Waveguide for excellent 60° x 40° pattern control, smooth frequency response, and low distortion. Easily rotated for horizontal or vertical system orientation.

General Features:

Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use
Optional input modules are DPAN and DPCN (CobraNet digital audio input) modules with HiQnet System Architect network control and monitoring
2200 Watts peak output power, 1100 Watts continuous
HiQnet compatible; network control
12-inch Differential Drive low-frequency driver for extended low-frequency output
60° x 40°coverage
Stylized and ergonomically designed powder-coated die cast aluminum handles
Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available)
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications:

DP2 Internal Amp Output: 2200 Watts Peak, 1100 Watts Continuous (at nominal load)
DP2 Output: 750LF / 350HF Watts (Continuous IEC shaped pink noise into rated load impedance)
DP2 Output Section: 2-Channel, Class I
Audio Input Connector: XLR with loop-through
Network Control Connector: Ethernet, RJ45
Signal Processing: DSP based, resident in Input Module
System Management: DSP based limiters for mechanical and thermal protection
AC Power Oper. Range: Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon
AC Loop-thru: Neutrik PowerCon
AC Current Requirement: 6A per system

Acoustic And Electrical Specifications:

Nominal Impedance 4 ohm
Frequency Response: 63 Hz – 18 kHz (±3 dB)
Frequency Range: 47 Hz – 20 kHz (–10 dB)
Coverage Pattern: 60° x 40° rotatable waveguide
Max. Peak Output: 136 dB SPL 1m

Transducer Specifications:

Cabinet: (Not For Sale)
Grille: 361743-001
Low Frequency: JBL 2262G, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil neodymium Differential Drive, Direct Cooled
DC Resistance: 2.65 ohm ±10%
High Frequency: JBL 2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit
DC Resistance: 4.1 ohm ±8%
Crossover Network 352817-001

Aural Sweep Test Specifications:

A. System Aural Sweep Test: 100mV Input, 20 Hz to 20 kHz
B. L.F. Aural Sweep Test: 10.0V Input, 10 Hz to 300 Hz
D. H.F. Aural Sweep Test: 3.5V Input, 300 Hz to 20 kHz

Physical Specifications:

Enclosure Dimensions: 701.8 mm x 383.8 mm x 523.5 mm D (H x W x D) (27.63 in. x 15.11 in. x 20.61 in. D)
Net Weight: 78 lbs. (35.4 kg.)
